AmbientLight

AmbientLight[col]

is a three-dimensional graphics directive that specifies the uniform ambient light of color col to use in coloring 3D surfaces.

Details

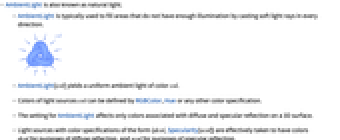

  • AmbientLight is also known as natural light.
  • AmbientLight is typically used to fill areas that do not have enough illumination by casting soft light rays in every direction.
  • AmbientLight[col] yields a uniform ambient light of color col.
  • Colors of light sources col can be defined by RGBColor, Hue or any other color specification.
  • The setting for AmbientLight affects only colors associated with diffuse and specular reflection on a 3D surface.
  • Light sources with color specifications of the form {dcol,Specularity[scol]} are effectively taken to have colors dcol for purposes of diffuse reflection, and scol for purposes of specular reflection.
  • Diffuse reflection is taken to follow Lambert's law, with light effectively scattered equally in all directions from a surface.
  • Specular reflection effectively takes light to be scattered only close to the mirror‐reflection direction, as specified in the notes for Specularity.

Examples

open all close all

Basic Examples  (2)

Ambient light on surfaces:

Wolfram Language code: Graphics3D[{AmbientLight[Orange], Sphere[], Cuboid[{1, 2, -1}, {2, 3, 1}], Cylinder[{{3, -1, 0}, {3, -1, 1}}]}, Lighting -> None]

Style a surface in a plot:

Wolfram Language code: Plot3D[Sin[x + y ^ 2], {x, -3, 3}, {y, -2, 2}, PlotStyle -> AmbientLight[Orange]]

Scope  (2)

Ambient light is uniformly applied to all the surfaces in the scene:

Wolfram Language code: Graphics3D[{AmbientLight[Orange], Sphere[], Cuboid[{1, 2, -1}, {2, 3, 1}], Cylinder[{{3, -1, 0}, {3, -1, 1}}]}, Lighting -> None]

Ambient light gives overall lighting on the scene:

Wolfram Language code: l1 = AmbientLight[GrayLevel[.3]]; l2 = DirectionalLight[Orange, {{1, 1, 1}, {0, 0, 0}}];
Wolfram Language code: {Graphics3D[{l2, EdgeForm[], Sphere[], Cuboid[{1, 2, -1}, {2, 3, 1}], Cylinder[{{3, -1, 0}, {3, -1, 1}}]}, Lighting -> None], Graphics3D[{l1, l2, EdgeForm[], Sphere[], Cuboid[{1, 2, -1}, {2, 3, 1}], Cylinder[{{3, -1, 0}, {3, -1, 1}}]}, Lighting -> None]}

Generalizations & Extensions  (2)

Predefined colored lighting:

Wolfram Language code: Graphics3D[Sphere[], Lighting -> Automatic]

The colored lighting is equivalent to the following explicit setting:

Wolfram Language code: Graphics3D[{Sphere[], AmbientLight[RGBColor[{0.4, 0.2, 0.2}]], DirectionalLight[RGBColor[{0., 0.18, 0.5}], ImageScaled[{2, 0, 2}]], DirectionalLight[RGBColor[{0.18, 0.5, 0.18}], ImageScaled[{2, 2, 3}]], DirectionalLight[RGBColor[{0.5, 0.18, 0.}], ImageScaled[{0, 2, 2}]], DirectionalLight[RGBColor[{0., 0., 0.18}], ImageScaled[{0, 0, 2}]]}]

Predefined neutral lighting:

Wolfram Language code: Graphics3D[{Sphere[]}, Lighting -> "Neutral"]

The neutral lighting is equivalent to the following explicit setting:

Wolfram Language code: Graphics3D[{AmbientLight[RGBColor[{.35, .35, .35}]], DirectionalLight[RGBColor[{.37, .37, .37}], ImageScaled[{2, 0, 2}]], DirectionalLight[RGBColor[{.37, .37, .37}], ImageScaled[{2, 2, 2}]], DirectionalLight[RGBColor[{.37, .37, .37}], ImageScaled[{0, 2, 2}]], Sphere[]}, Lighting -> None]

Applications  (1)

Build a scene with multiple objects and light sources:

Wolfram Language code: col = {Red, Green, Blue}; objs = Graphics3D[{Specularity[White, 2], EdgeForm[], Cylinder[{{2, 2, 0}, {2, 2, 4}}], Cylinder[{{6, 2, 0}, {6, 2, 4}}], Cylinder[{{10, 2, 0}, {10, 2, 4}}]}]; walls = ParametricPlot3D[{{u, v - 2, 0}, {u, 4, 2v}}, {u, -2, 14}, {v, 0, 6}, PlotPoints -> 15, MaxRecursion -> 0, PlotStyle -> Specularity[White, 2], Mesh -> None, Axes -> False]; srcs[pos_] := Graphics3D[MapThread[{DirectionalLight[#1, {{0, -1, 0}, {0, 0, 0}}], Sphere[{#2, 0, 8}, .3]}&, {col, pos}]]; lights[pos_] := Join[{AmbientLight[GrayLevel[.1]]}, Sequence@@MapThread[{SpotLight[#1, {{#2, 0, 8}, {#2, 3, 0}}, {Pi / 2, 20}], {PointLight[#1, {#2, 0, 8}, {0, 8, 0}]}}&, {col, pos}]];

Animate the spotlights:

Wolfram Language code: Animate[With[{rx = -6Cos[t] + 6, gx = 6Sin[t] + 6, bx = 6Cos[t] + 6}, Show[objs, walls, srcs[{rx, gx, bx}], Lighting -> lights[{rx, gx, bx}], Background -> Black, Boxed -> False, ImageSize -> 300]], {t, 0, 2Pi}, SaveDefinitions -> True, AnimationRunning -> False]

Possible Issues  (1)

The default light scheme uses several colored light sources:

Wolfram Language code: Graphics3D[{AmbientLight[Orange], Sphere[]}]

Set Lighting to None to turn off the default lights:

Wolfram Language code: Graphics3D[{AmbientLight[Orange], Sphere[]}, Lighting -> None]

Neat Examples  (1)

A simple light show:

Wolfram Language code: p1[θ_] := RotationTransform[θ, {0, 0, 1}][{0, 2, 0}]; p2[θ_] := RotationTransform[θ + Pi / 2, {1, 0, 1}][{0, 2, 0}]; p3[θ_] := RotationTransform[θ + Pi, {1, 0, 0}][{0, 2, 0}]; p4[θ_] := RotationTransform[θ + 3Pi / 2, {1, 0, -1}][{0, 2, 0}];
Wolfram Language code: Animate[Graphics3D[{AmbientLight[GrayLevel[.1]], PointLight[Red, p1[θ]], PointLight[Green, p2[θ]], PointLight[Blue, p3[θ]], PointLight[Yellow, p4[θ]], Specularity[White, 30], Sphere[], Sphere[p1[θ], .4], Sphere[p2[θ], .4], Sphere[p3[θ], .4], Sphere[p4[θ], .4]}, Lighting -> None, PlotRange -> 2.5, Background -> Black, Boxed -> False, ImageSize -> 300], {θ, 0, 2Pi}, SaveDefinitions -> True, AnimationRunning -> False]
