MaterialShading

is a three-dimensional graphics directive specifying that surfaces that follow are to be drawn with the material "material" appearance.

MaterialShading[{"material",col}]

uses the specified color col as the base color.

MaterialShading[parm₁val₁,parm₂val₂,…]

uses the specified parameters parms.

Details

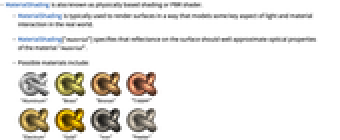

MaterialShading is also known as physically based shading or PBR shader.

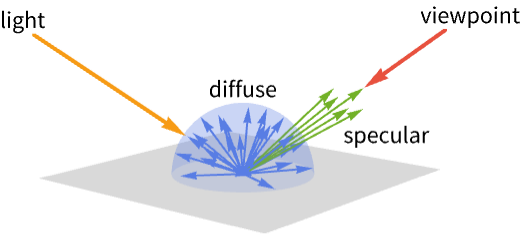

MaterialShading is typically used to render surfaces in a way that models some key aspect of light and material interaction in the real world.

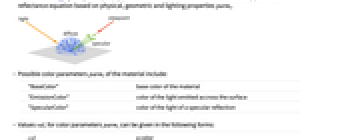

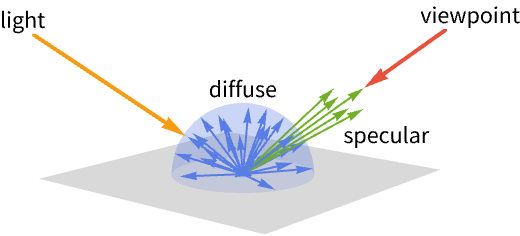

MaterialShading["material"] specifies that reflectance on the surface should well approximate optical properties of the material "material".
Possible materials include:

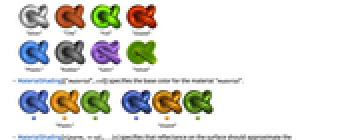

MaterialShading[{"material",col}] specifies the base color for the material "material".

MaterialShading[<|parm₁val₁,…|>] specifies that reflectance on the surface should approximate the reflectance equation based on physical, geometric and lighting properties parm_i.

Possible color parameters parm_i of the material include:

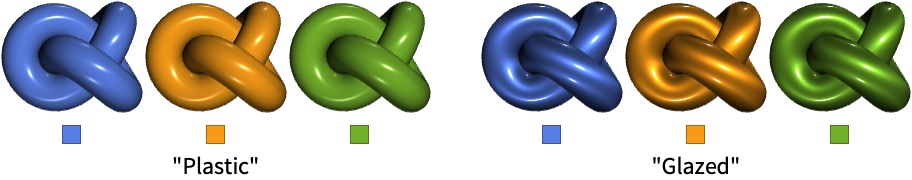

	"BaseColor"	base color of the material
	"EmissionColor"	color of the light emitted accross the surface
	"SpecularColor"	color of the light of a specular reflection

Values val_i for color parameters parm_i can be given in the following forms:
col a color

Texture[image] a 2D texture based on an image

{…,s} fraction of the color contribution to the final color
Possible physical parameters parm_i include:

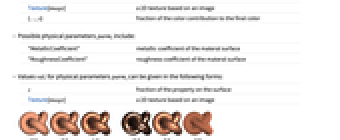

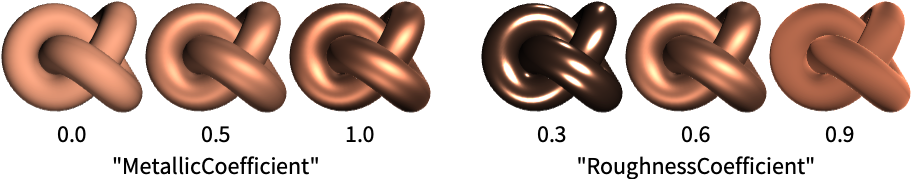

"MetallicCoefficient" metallic coefficient of the materal surface

"RoughnessCoefficient" roughness coefficient of the materal surface
Values val_i for physical parameters parm_i can be given in the following forms:
s fraction of the property on the surface

Texture[image] a 2D texture based on an image

Possible geometric parameters parm_i include:

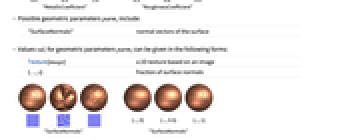

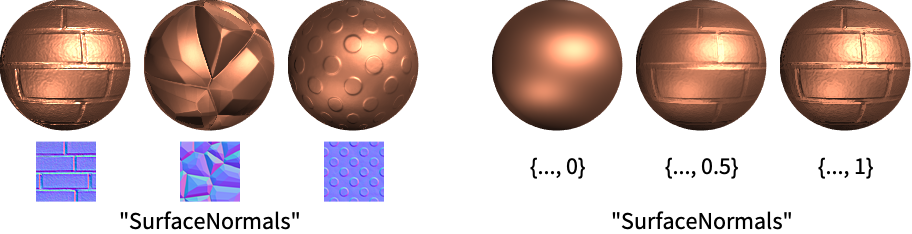

"SurfaceNormals" normal vectors of the surface
Values val_i for geometric parameters parm_i can be given in the following forms:
Texture[image] a 2D texture based on an image

{…,s} fraction of surface normals

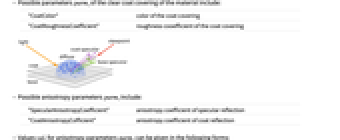

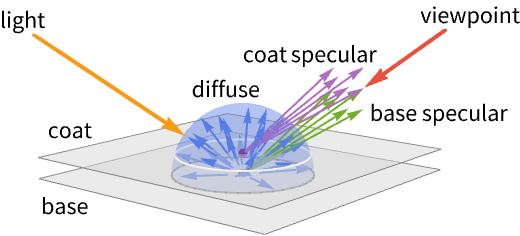

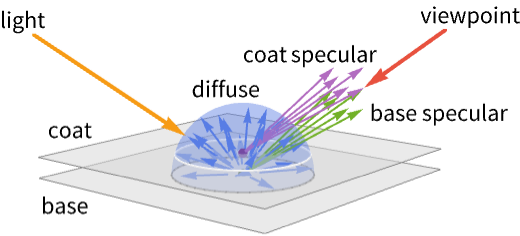

Possible parameters parm_i of the clear coat covering of the material include:

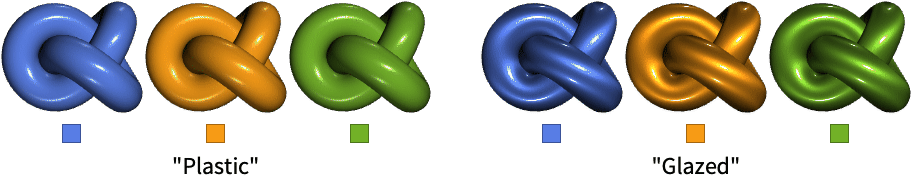

"CoatColor" color of the coat covering

"CoatRoughnessCoefficient" roughness cooefficient of the coat covering

Possible anisotropy parameters parm_i include:
"SpecularAnisotropyCoefficient" anisotropy coefficient of specular reflection

"CoatAnisotropyCofficient" anisotropy coefficient of coat reflection
Values val_i for anisotropy parameters parm_i can be given in the following forms:
s fraction of the reflection with respect to the view angle

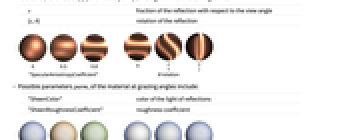

{s,θ} rotation of the reflection

Possible parameters parm_i of the material at grazing angles include:

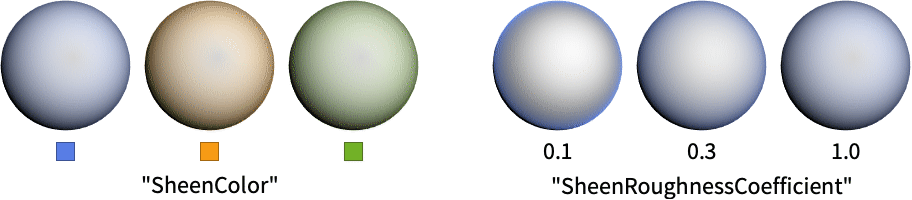

"SheenColor" color of the light of reflections

"SheenRoughnessCoefficient" roughness coefficient

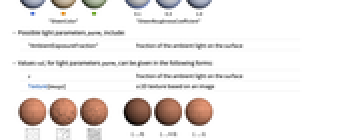

Possible light parameters parm_i include:

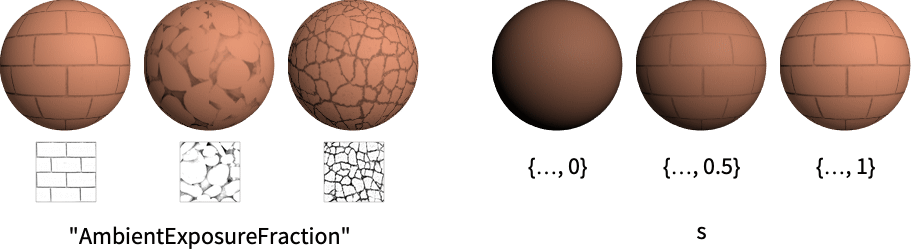

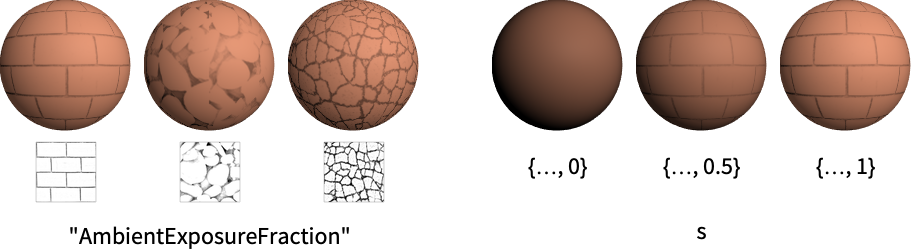

"AmbientExposureFraction" fraction of the ambient light on the surface
Values val_i for light parameters parm_i can be given in the following forms:
s fraction of the ambient light on the surface

Texture[image] a 2D texture based on an image

MaterialShading[] is effectively equivalent to MaterialShading[<|"BaseColor"White|>].
MaterialShading will override any color, Opacity, Texture, Glow or Specularity settings.

Examples

open all close all

Basic Examples (4)

Apply material shading to the unit sphere:

Wolfram Language code: Graphics3D[{MaterialShading["Iron"], Sphere[]}, Lighting -> "ThreePoint"]

Show a knot made of bronze:

Wolfram Language code: Graphics3D[{MaterialShading["Bronze"], KnotData["SolomonSeal", "ImageData"]}, Lighting -> "ThreePoint"]

Style a surface in a plot:

Wolfram Language code:

Plot3D[Sin[x + y ^ 2], {x, -3, 3}, {y, -2, 2}, PlotPoints -> 80, PlotStyle -> MaterialShading["Copper"], Mesh -> None, Lighting -> "ThreePoint"]

Show a gold Beethoven bust:

Wolfram Language code:

Graphics3D[{MaterialShading["Gold"], ExampleData[{"Geometry3D", "Beethoven"}, "GraphicsComplex"]}, Boxed -> False, Lighting -> "ThreePoint"]

Scope (15)

Basic Uses (6)

Apply material shading to a graphics primitive:

Wolfram Language code: Graphics3D[{MaterialShading["Iron"], #}, Lighting -> "ThreePoint"]& /@ {Sphere[], CapsuleShape[], Cone[]}

Apply material shading to a plot:

Wolfram Language code:

SphericalPlot3D[1 + Sin[5ϕ] / 5, {θ, 0, Pi}, {ϕ, 0, 2Pi}, Axes -> False, PlotStyle -> MaterialShading["Gold"], PlotPoints -> 40, Lighting -> "ThreePoint"]

Apply material shading to a chart:

Wolfram Language code: BarChart3D[Range[5], ChartElements -> [image], ChartStyle -> MaterialShading["Copper"], Lighting -> "ThreePoint"]

Style a geometric region:

Wolfram Language code: Region[Style[MengerMesh[2, 3], MaterialShading["Clay"]], Lighting -> "Accent"]

Apply material shading to a 3D object:

Wolfram Language code:

Graphics3D[{MaterialShading["Aluminum"], ExampleData[{"Geometry3D", "Galleon"}, "GraphicsComplex"]}, Lighting -> "ThreePoint", Boxed -> False]

Summary box:

Wolfram Language code: MaterialShading["Gold"]

Specification (6)

Specify a named material preset:

Wolfram Language code: Graphics3D[{MaterialShading["Electrum"], Sphere[]}, Lighting -> "ThreePoint"]

Use a material Entity:

Wolfram Language code: Graphics3D[{MaterialShading[Entity["Element", "Copper"]], Sphere[]}, Lighting -> "ThreePoint"]

Use a custom base color for a named material:

Wolfram Language code: Graphics3D[{MaterialShading[{"Electrum", Cyan}], Sphere[]}, Lighting -> "ThreePoint"]

Specify the material parameters directly:

Wolfram Language code:

Graphics3D[{MaterialShading[<|"BaseColor" -> Red, "MetallicCoefficient" -> 1.0, "RoughnessCoefficient" -> 0.8 |>], Sphere[]}, Lighting -> "ThreePoint"]

Use LightDarkSwitched to specify different colors for light and dark modes:

Wolfram Language code:

graphic = Graphics3D[{MaterialShading[<|"BaseColor" -> LightDarkSwitched[Red, Cyan]|>], Sphere[]}, Lighting -> "ThreePoint"];

Wolfram Language code: {LightModePane[graphic], DarkModePane[graphic]}

MaterialShading[] with no arguments uses a White base color:

Wolfram Language code: Graphics3D[{MaterialShading[], Sphere[]}, Lighting -> "ThreePoint"]

Lighting (3)

MaterialShading works with all types of lights:

Wolfram Language code:

lights = {{"Ambient", LightGray}, {"Point", White, ImageScaled[{1, 1, 2}]}, {"Directional", White, ImageScaled[{1, 1, 2}]}, {"Spot", White, {{1, -1, 1}, {0, 0, 0}}, Pi / 4}};
Graphics3D[{MaterialShading["Iron"], Sphere[]}, Lighting -> {#}]& /@ lights

Use colored lights:

Wolfram Language code:

Graphics3D[{MaterialShading["Iron"], Sphere[]}, Lighting -> {{"Directional", Red, ImageScaled[{1, -0.5, 1}]}, {"Directional", Green, ImageScaled[{-1, -0.5, 1}]}, {"Directional", Blue, ImageScaled[{0, 1, 1}]}, {"Ambient", GrayLevel[0.2]}}]

Use "ThreePoint" or "Accent" lighting to faithfully reproduce colors on the surface:

Wolfram Language code: Graphics3D[{MaterialShading["Iron"], Sphere[]}, Lighting -> #] & /@ { "ThreePoint", "Accent", Automatic}

Applications (14)

Basic Applications (10)

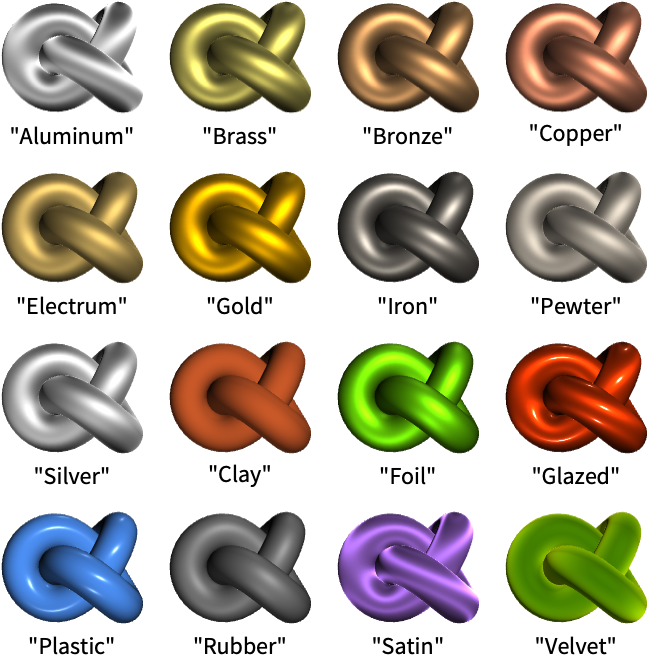

Show the named materials:

Wolfram Language code:

knot = IconizedObject[«[image]»];
materials = {"Aluminum", "Brass", "Bronze", "Copper", "Electrum", "Gold", "Iron", "Pewter", "Silver", "Clay", "Foil", "Glazed", "Plastic", "Rubber", "Satin", "Velvet"};

Wolfram Language code:

Grid[Partition[Labeled[Graphics3D[{MaterialShading[#], knot}, Lighting -> "ThreePoint", Boxed -> False, ImageSize -> 72, Method -> {"ShrinkWrap" -> True}], #]& /@ materials, 4, 4, 1, {}], Spacings -> {1, 1}]

Use the "BaseColor" parameter to set the base color of the material:

Wolfram Language code:

Table[Graphics3D[{MaterialShading[<|"BaseColor" -> c|>], Sphere[]}, Lighting -> "ThreePoint"], {c, {RGBColor[0.34398, 0.49112, 0.89936], RGBColor[0.97, 0.606, 0.081], RGBColor[0.91, 0.318, 0.243]}}]

Use the "RoughnessCoefficient" parameter to set the shininess of the material:

Wolfram Language code:

Table[Graphics3D[{MaterialShading[<|"RoughnessCoefficient" -> r|>], Sphere[]}, Lighting -> "ThreePoint"], {r, {0.15, 0.4, 1.0}}]

Use the "SpecularColor" parameter to set the color of the specular highlight on shiny materials:

Wolfram Language code:

Table[Graphics3D[{MaterialShading[<|"SpecularColor" -> s, "RoughnessCoefficient" -> 0.3|>], Sphere[]}, Lighting -> "ThreePoint"], {s, {RGBColor[0.34398, 0.49112, 0.89936], RGBColor[0.97, 0.606, 0.081], RGBColor[0.91, 0.318, 0.243]}}]

Specular highlights with the base color set to Black:

Wolfram Language code:

Table[Graphics3D[{MaterialShading[<|"SpecularColor" -> s, "RoughnessCoefficient" -> 0.3, "BaseColor" -> Black|>], Sphere[]}, Lighting -> "ThreePoint"], {s, {RGBColor[0.34398, 0.49112, 0.89936], RGBColor[0.97, 0.606, 0.081], RGBColor[0.91, 0.318, 0.243]}}]

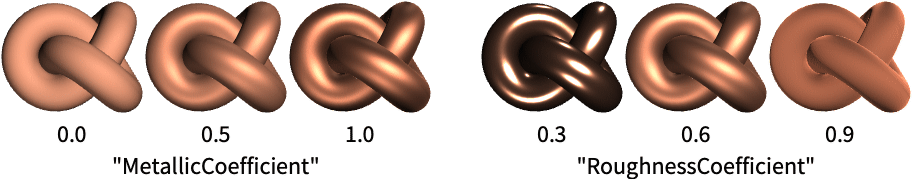

Use the "MetallicCoefficient" parameter to create metallic materials:

Wolfram Language code:

Table[Graphics3D[{MaterialShading[<|"MetallicCoefficient" -> m, "RoughnessCoefficient" -> 0.7|>], Sphere[]}, Lighting -> "ThreePoint"], {m, {0, 1}}]

Set the base color:

Wolfram Language code:

Table[Graphics3D[{MaterialShading[<|"BaseColor" -> c, "MetallicCoefficient" -> 1, "RoughnessCoefficient" -> 0.7|>], Sphere[]}, Lighting -> "ThreePoint"], {c, {RGBColor[0.34398, 0.49112, 0.89936], RGBColor[0.97, 0.606, 0.081], RGBColor[0.91, 0.318, 0.243]}}]

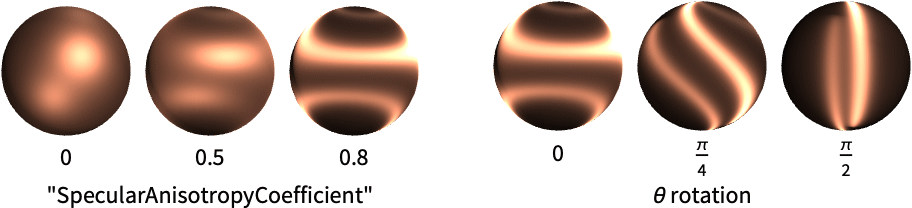

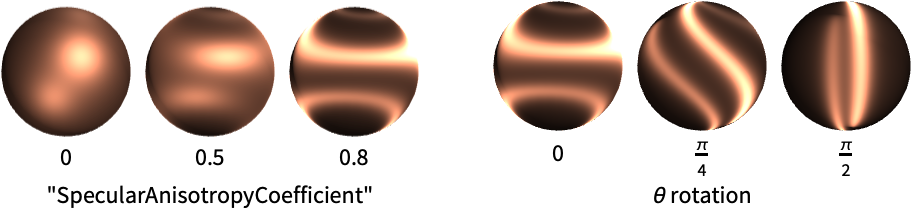

Use the "SpecularAnisotropyCoefficient" parameter to set the material's preference to reflect light along its tangent direction:

Wolfram Language code:

Table[Graphics3D[{MaterialShading[<|"MetallicCoefficient" -> 1, "RoughnessCoefficient" -> 0.7, "SpecularAnisotropyCoefficient" -> a|>], Sphere[]}, Lighting -> "Accent"], {a, {0, 0.5, 1.0}}]

Set a custom angle for the tangent direction:

Wolfram Language code:

Table[Graphics3D[{MaterialShading[<|"MetallicCoefficient" -> 1, "RoughnessCoefficient" -> 0.7, "SpecularAnisotropyCoefficient" -> {1.0, θ}|>], Sphere[]}, Lighting -> "Accent"], {θ, {0, Pi / 4, Pi / 2}}]

Use the "EmissionColor" parameter to set the light emitted by the material itself:

Wolfram Language code: Table[Graphics3D[{MaterialShading[<|"EmissionColor" -> c|>], Sphere[]}, Lighting -> "Accent"], {c, {Red, Green, Blue}}]

The emitted color does not require scene lighting:

Wolfram Language code: Graphics3D[{MaterialShading[<|"EmissionColor" -> Red|>], Sphere[]}, Lighting -> None]

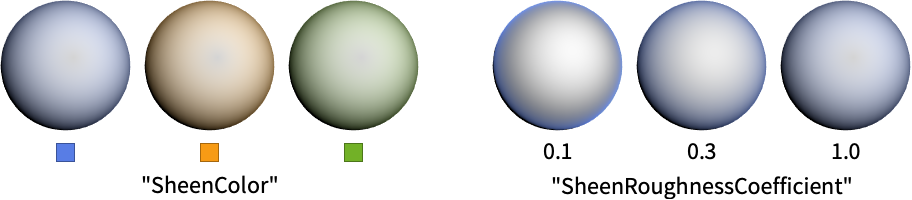

Use the "SheenColor" parameter to add highlights on the edges of materials:

Wolfram Language code:

Table[Graphics3D[{MaterialShading[<|"SheenColor" -> c|>], Sphere[]}, Lighting -> "Accent"], {c, {RGBColor[0.34398, 0.49112, 0.89936], RGBColor[0.97, 0.606, 0.081], RGBColor[0.91, 0.318, 0.243]}}]

The "SheenRoughnessCoefficient" parameter sets the concentration of the sheen lighting:

Wolfram Language code:

Table[Graphics3D[{MaterialShading[<|"SheenColor" -> RGBColor[0.34398, 0.49112, 0.89936], "SheenRoughnessCoefficient" -> r|>], Sphere[]}, Lighting -> "Accent"], {r, {0.1, 0.9}}]

Metallic materials do not have diffuse lighting and appear dark when perfectly smooth:

Wolfram Language code: Graphics3D[{MaterialShading[<|"MetallicCoefficient" -> 1|>], Sphere[]}, Lighting -> "Accent"]

Use the "RoughnessCoefficient" parameter to increase the roughness of the metal:

Wolfram Language code:

Graphics3D[{MaterialShading[<|"MetallicCoefficient" -> 1, "RoughnessCoefficient" -> #|>], Sphere[]}, Lighting -> "Accent"]& /@ {1 / 3, 2 / 3, 1}

The "AmbientExposureFraction" parameter has no effect with directional, point or spot lights:

Wolfram Language code:

lights = {{"Directional", White, ImageScaled[{1, 1, 4}]}, {"Point", White, ImageScaled[{1, 1, 2}]}, {"Spot", White, {ImageScaled[{1, 1, 2}], {0, 0, 0}}, Pi / 4}};
Graphics3D[{MaterialShading[<|"AmbientExposureFraction" -> Texture[[image]]|>], Sphere[]}, Lighting -> {#}]& /@ lights

Use an ambient light to view the effect of the "AmbientExposureFraction" parameter:

Wolfram Language code:

Graphics3D[{MaterialShading[<|"AmbientExposureFraction" -> Texture[[image]]|>], Sphere[]}, Lighting -> {{"Directional", Gray, ImageScaled[{1, 1, 4}]}, {"Ambient", Gray}}]

Photorealistic Materials (4)

Create a nonmetallic matte material:

Wolfram Language code: Graphics3D[{MaterialShading[], Sphere[]}, Lighting -> "ThreePoint"]

Use combinations of PBR textures to create semi-realistic materials:

Wolfram Language code: Graphics3D[{MaterialShading[<|"BaseColor" -> Texture[[image]], "SurfaceNormals" -> Texture[[image]]|>], Sphere[]}, ...]

Use metallic textures to create metal materials with wear and tear:

Wolfram Language code:

Graphics3D[{MaterialShading[<|"BaseColor" -> Texture[[image]], "SurfaceNormals" -> Texture[[image]], "RoughnessCoefficient" -> 0.65, "MetallicCoefficient" -> Texture[[image]] |>], Sphere[]}, Lighting -> "ThreePoint", Boxed -> False, ViewPoint -> Front]

Use emission textures to create glowing-hot materials:

Wolfram Language code:

Graphics3D[{MaterialShading[<|"BaseColor" -> GrayLevel[0.15], "SurfaceNormals" -> Texture[[image]], "RoughnessCoefficient" -> 0.6, "EmissionColor" -> Texture[[image]] , "SpecularColor" -> GrayLevel[1]|>], Sphere[]}, Lighting -> "Accent", Boxed -> False, ViewPoint -> Right]

Properties & Relations (3)

MaterialShading with no arguments approximates the default system appearance:

Wolfram Language code: {Graphics3D[{MaterialShading[], Sphere[]}], Graphics3D[{Sphere[]}]}

Apply a texture to a cuboid:

Wolfram Language code: Graphics3D[{MaterialShading[<|"BaseColor" -> Texture[[image]] |>], Cuboid[]}, Lighting -> "Neutral"]

Use VertexTextureCoordinates to specify vertex texture coordinates for a 2D texture:

Wolfram Language code:

Graphics3D[{MaterialShading[<|"BaseColor" -> Texture[[image]]|>], Polygon[{{-2, -1, 0}, {2, -1, 0}, {2, 1, 0}, {-2, 1, 0}}, VertexTextureCoordinates -> {{0, 0}, {2, 0}, {2, 1}, {0, 1}}]}]

Possible Issues (1)

The default light scheme uses several colored light sources:

Wolfram Language code: Graphics3D[{MaterialShading["Iron"], Sphere[]}]

Use "ThreePoint" lighting to get the standard material shading effect:

Wolfram Language code: Graphics3D[{MaterialShading["Iron"], Sphere[]}, Lighting -> "ThreePoint"]

Neat Examples (1)

A red, glazed deco-cube:

Wolfram Language code:

With[{c = 0.8}, ContourPlot3D[((x ^ 2 + y ^ 2 - c ^ 2) ^ 2 + (z ^ 2 - 1) ^ 2) ((y ^ 2 + z ^ 2 - c ^ 2) ^ 2 + (x ^ 2 - 1) ^ 2) ((z ^ 2 + x ^ 2 - c ^ 2) ^ 2 + (y ^ 2 - 1) ^ 2), {x, -1.5, 1.5}, {y, -1.5, 1.5}, {z, -1.5, 1.5}, Contours -> {0.1}, ContourStyle -> {MaterialShading[{"Glazed", Red}]}, Boxed -> False, Axes -> False, Background -> GrayLevel[.1], Lighting -> "ThreePoint", Mesh -> False, ViewAngle -> Pi / 10, ViewVertical -> {0, 1, 0}, PlotPoints -> 50]]
