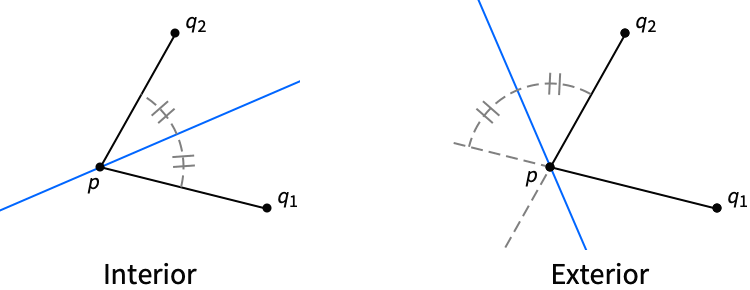

AngleBisector[{q1,p,q2}]

gives the bisector of the interior angle at p formed by the triangle with vertex points p, q1 and q2.

AngleBisector[{q1,p,q2},"type"]

gives the angle bisector of the specified type.

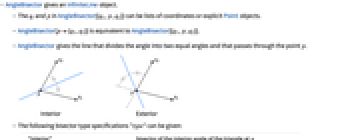

Details
Details and Options Details and Options
Examples
Basic Examples
Scope
Properties & Relations
Possible Issues
See Also
Related Guides
History
Cite this Page

AngleBisector

AngleBisector[{q1,p,q2}]

gives the bisector of the interior angle at p formed by the triangle with vertex points p, q1 and q2.

AngleBisector[{q1,p,q2},"type"]

gives the angle bisector of the specified type.

Details

Examples

open all close all

Basic Examples  (1)

Calculate an angle bisector:

Wolfram Language code: bisector = AngleBisector[{{1, 0}, {0, 0}, {1, Sqrt[3]}}]
Wolfram Language code: Graphics[{Arrow[{{0, 0}, {1, 0}}], Arrow[{{0, 0}, {1, Sqrt[3]}}], bisector}]

Scope  (2)

Find an interior angle bisector:

Wolfram Language code: AngleBisector[{{1, 0}, {0, 0}, {1, Sqrt[3]}}, "Interior"]

Find an exterior angle bisector:

Wolfram Language code: AngleBisector[{{1, 0}, {0, 0}, {1, Sqrt[3]}}, "Exterior"]

Properties & Relations  (4)

AngleBisector finds the interior angle bisector by default:

Wolfram Language code: AngleBisector[{{1, 0}, {0, 0}, {1, Sqrt[3]}}]
Wolfram Language code: AngleBisector[{{1, 0}, {0, 0}, {1, Sqrt[3]}}, "Interior"]

The angle bisector divides the angle into two equal angles:

Wolfram Language code: bisector = AngleBisector[{{1, 0}, {0, 0}, {1, Sqrt[3]}}]
Wolfram Language code: Graphics[{Arrow[{{0, 0}, {1, 0}}], Arrow[{{0, 0}, {1, Sqrt[3]}}], bisector}]
Wolfram Language code: PlanarAngle[{{1, 0}, {0, 0}, {3 / 2, Sqrt[3] / 2}}]
Wolfram Language code: PlanarAngle[{{3 / 2, Sqrt[3] / 2}, {0, 0}, {1, Sqrt[3]}}]

The exterior angle bisector divides the exterior angle into two equal angles:

Wolfram Language code: bisector = AngleBisector[{{1, 0}, {0, 0}, {1, Sqrt[3]}}, "Exterior"]
Wolfram Language code: Graphics[{Arrow[{{0, 0}, {1, 0}}], Style[Arrow[{{0, 0}, {-1, 0}}], Dashed], Arrow[{{0, 0}, {1, Sqrt[3]}}], bisector}]
Wolfram Language code: PlanarAngle[{{-1, 0}, {0, 0}, {-1 / 2, Sqrt[3] / 2}}]
Wolfram Language code: PlanarAngle[{{-1 / 2, Sqrt[3] / 2}, {0, 0}, {1, Sqrt[3]}}]

TriangleConstruct[{a,b,c},"AngleBisector"] is equivalent to AngleBisector[{a,b,c}]:

Wolfram Language code: TriangleConstruct[{{1, 0}, {0, 0}, {Sqrt[3], 1}}, "AngleBisector"]
Wolfram Language code: AngleBisector[{{1, 0}, {0, 0}, {Sqrt[3], 1}}]

Possible Issues  (2)

The three points must be distinct:

Wolfram Language code: AngleBisector[{{1, 0}, {0, 0}, {0, 0}}]

AngleBisector only works in 2D:

Wolfram Language code: AngleBisector[{{1, 0, 0}, {0, 0, 0}, {0, 0, 1}}]
