Circumsphere

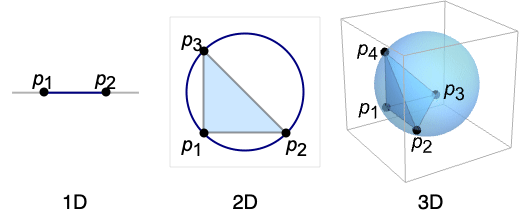

Circumsphere[{p1,…,pn+1}]

gives the sphere that circumscribes the points pi in .

Circumsphere[poly]

gives the circumsphere of a polyhedron or polygon poly.

Details

Examples

open all close all

Basic Examples  (2)

A circumsphere in 2D:

Wolfram Language code: Graphics[Circumsphere[{{0, 0}, {1, 0}, {0, 1}}]]

And in 3D:

Wolfram Language code: Graphics3D[Circumsphere[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}]]

The circumsphere of the regular octahedron:

Wolfram Language code: ℛ = Circumsphere[Octahedron[]]
Wolfram Language code: Graphics3D[{Opacity[0.6], Octahedron[], ℛ}]

Its surface area:

Wolfram Language code: Area[ℛ]

Scope  (17)

Graphics  (6)

Specification  (2)

Circumspheres in different dimensions:

Wolfram Language code: Graphics[Circumsphere[{{0, 0}, {1, 0}, {0, 1}}]]
Wolfram Language code: Graphics3D[Circumsphere[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}]]

Circumsphere evaluates to a Sphere:

Wolfram Language code: Circumsphere[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}]

Get the center and radius:

Wolfram Language code: {First@%, Last@%}

Styling  (4)

Colored circumspheres:

Wolfram Language code: ℛ = Circumsphere[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}];
Wolfram Language code: Table[Graphics3D[{c, ℛ}], {c, {Red, Green, Blue, Yellow}}]

Different properties can be specified for the front and back of faces using FaceForm:

Wolfram Language code: ℛ = Circumsphere[{{-1, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}];
Wolfram Language code: Graphics3D[{FaceForm[Yellow, Blue], ℛ}, PlotRange -> {{-0.8, 0.8}, {-0.8, 0.8}, {-0.8, 0.8}}]

Circumspheres with different specular exponents:

Wolfram Language code: ℛ = Circumsphere[{{-1, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}];
Wolfram Language code: Table[Graphics3D[{Orange, Specularity[White, n], ℛ}], {n, {5, 20, 100}}]

Black circumsphere that glows red:

Wolfram Language code: Graphics3D[{Glow[Red], Black, ℛ}]

Opacity specifies the face opacity:

Wolfram Language code: ℛ = Circumsphere[{{-1, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}];
Wolfram Language code: Table[Graphics3D[{Opacity[o], ℛ}], {o, {0.3, 0.5, 0.9}}]

Regions  (11)

Circumsphere works in any number of dimensions:

Wolfram Language code: Circumsphere[{{0, 0, 0, 0, 0}, {1, 0, 0, 0, 0}, {0, 1, 0, 0, 0}, {0, 0, 1, 0, 0}, {0, 0, 0, 1, 0}, {0, 0, 0, 0, 1}}]

Get the circumcenter and circumradius:

Wolfram Language code: {First[%], Last[%]}

Embedding dimension is the dimension of the space in which the sphere lives:

Wolfram Language code: ℛ = Circumsphere[{{0, 0}, {1, 0}, {1, 1}}];
Wolfram Language code: RegionEmbeddingDimension[ℛ]

Geometric dimension is the dimension of the shape itself:

Wolfram Language code: RegionDimension[ℛ]

Membership testing:

Wolfram Language code: ℛ = Circumsphere[{{1, 0, 0}, {0, 1, 0}, {0, 0, 1}, {-1, 0, 0}}];
Wolfram Language code: {RegionMember[ℛ, {1, 0, 0}], RegionMember[ℛ, {1, 2, 3}]}

Get conditions for membership:

Wolfram Language code: RegionMember[ℛ, {x, y, z}]

Area:

Wolfram Language code: ℛ = Circumsphere[{{1, 0, 0}, {0, 1, 0}, {0, 0, 1}, {-1, 0, 0}}];
Wolfram Language code: {Area[ℛ], RegionMeasure[ℛ]}

Centroid:

Wolfram Language code: c = RegionCentroid[ℛ]
Wolfram Language code: Graphics3D[{{Opacity[0.5], LightBlue, ℛ}, {PointSize[Large], Red, Point[c]}}]

Distance from a point:

Wolfram Language code: ℛ = Circumsphere[{{1, 0}, {0, 1}, {-1, 0}}];
Wolfram Language code: RegionDistance[ℛ, {1, 2}]

Plot it:

Wolfram Language code: {Plot3D[RegionDistance[ℛ, {x, y}], {x, -2, 2}, {y, -2, 2}, MeshFunctions -> {#3&}, Mesh -> 5, Exclusions -> Norm[{x, y}] == 1], ContourPlot[RegionDistance[ℛ, {x, y}], {x, -2, 2}, {y, -2, 2}, Contours -> {{0.5, Red}, {1, Green}, {1.5, Blue}}]}

Signed distance from a point:

Wolfram Language code: ℛ = Circumsphere[{{1, 0}, {0, 1}, {-1, 0}}];
Wolfram Language code: {SignedRegionDistance[ℛ, {2, 0}], SignedRegionDistance[ℛ, {1 / 4, 1 / 3}]}

Plot it:

Wolfram Language code: Plot3D[SignedRegionDistance[ℛ, {x, y}], {x, -2, 2}, {y, -2, 2}, MeshFunctions -> {#3&}, Mesh -> 5, Exclusions -> Norm[{x, y}] == 1]

Nearest point in the region:

Wolfram Language code: ℛ = Circumsphere[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}];
Wolfram Language code: {RegionNearest[ℛ, {2, 2, 2}], RegionNearest[ℛ, {(1/2), (1/2), (1/2)}]}

Nearest points to an enclosing sphere:

Wolfram Language code: spherePoints[{n_, m_}, c_, r_] := Flatten[Table[c + r{Cos[k 2π / n]Sin[l π / m], Sin[k 2π / n]Sin[l π / m], Cos[l π / m]}, {k, 0., n - 1}, {l, 0., m - 1}], 1];
Wolfram Language code: pl = spherePoints[{8, 8}, RegionCentroid[ℛ], 3 / 2]; npl = Table[RegionNearest[ℛ, p], {p, pl}];
Wolfram Language code: Legended[Graphics3D[{ℛ, {Thin, Gray, Line[Transpose[{pl, npl}]]}, {Red, Point[pl]}, {PointSize[Medium], Blue, Point[npl]}}, Lighting -> "Neutral", Boxed -> False], PointLegend[{Red, Blue}, {"start", "nearest"}]]

A sphere is bounded:

Wolfram Language code: ℛ = Circumsphere[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}];
Wolfram Language code: BoundedRegionQ[ℛ]

Find its range:

Wolfram Language code: r = RegionBounds[ℛ]
Wolfram Language code: Graphics3D[{{EdgeForm[White], Opacity[0.2, Yellow], Cuboid@@Transpose[r]}, ℛ}, Boxed -> False]

Integrate over a Circumsphere:

Wolfram Language code: ℛ = Circumsphere[{{-1, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}];
Wolfram Language code: Integrate[1, {x, y, z}∈ℛ]
Wolfram Language code: Integrate[x^2y^2z^2, {x, y, z}∈ℛ]

Optimize over it:

Wolfram Language code: ℛ = Circumsphere[{{-1, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}];
Wolfram Language code: Maximize[{x^2 + 2y^2 + 3z^2, {x, y, z}∈ℛ}, {x, y, z}]

Solve equations over a Circumsphere:

Wolfram Language code: ℛ = Circumsphere[{{-1, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}];
Wolfram Language code: Reduce[x^2 == y^2 == z^2 && {x, y, z}∈ℛ, {x, y, z}]//LogicalExpand

Applications  (7)

Find the intersections of a Line and a Circumsphere:

Wolfram Language code: Subscript[ℛ, 1] = Line[{{-2, -1, 1}, {2, 1, -1}}]; Subscript[ℛ, 2] = Circumsphere[{{-1, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}];
Wolfram Language code: pts = Solve[{x, y, z}∈Subscript[ℛ, 1] && {x, y, z}∈Subscript[ℛ, 2], {x, y, z}]
Wolfram Language code: Graphics3D[{Subscript[ℛ, 1], {Opacity[0.35], Subscript[ℛ, 2]}, {Red, PointSize[Medium], Point[{x, y, z} /. pts]}}, PlotRange -> 1]

Find the intersection of two circumspheres:

Wolfram Language code: Subscript[ℛ, 1] = Circumsphere[{{-1, 0}, {1, 0}, {0, 1}}]; Subscript[ℛ, 2] = Circumsphere[{{0, 0}, {2, 0}, {1, 1}}];
Wolfram Language code: pts = Solve[{x, y}∈Subscript[ℛ, 1] && {x, y}∈Subscript[ℛ, 2], {x, y}]
Wolfram Language code: Graphics[{Subscript[ℛ, 1], Subscript[ℛ, 2], {Red, PointSize[Medium], Point[{x, y} /. pts]}}]

Find a perpendicular bisector of a triangle:

Wolfram Language code: pts = {a, b, c} = {{1, 2}, {0, 0}, {3, 0}};
Wolfram Language code: circumCenter = RegionCentroid[Circumsphere[pts]];
Wolfram Language code: bisector = Line[{circumCenter, RegionCentroid[Line[{a, b}]]}];

Visualize circumcenter and bisectors in red:

Wolfram Language code: Graphics[{{LightGray, Circumsphere[pts]}, {LightBlue, Triangle[pts]}, {Dashed, Red, bisector}, {Blue, Point[pts]}, {Red, PointSize[Large], Point[circumCenter]}}]

The defining property of a DelaunayMesh is that no input point is contained in the circumcircle of any Triangle in the mesh:

Wolfram Language code: SeedRandom[12345]; pts = RandomReal[{0, 1}, {6, 2}]; ℛ = DelaunayMesh[pts]; tris = First /@ MeshPrimitives[ℛ, 2]; circs = Circumsphere /@ tris;
Wolfram Language code: Show[HighlightMesh[ℛ, Style[{0, All}, Directive[Red, PointSize[Medium]]]], Graphics[{Gray, circs}], PlotRange -> {{0, 1}, {0, 1}}]

Use Circumsphere to approximate the radius of curvature of a function:

Wolfram Language code: y[x_] := Sin[x ^ 2]; r[x_] := ((1 + y'[x] ^ 2) ^ (3 / 2)) / Abs[y''[x]]; c[x_] := With[{ϵ = 0.0001}, Circumsphere[{{x - ϵ, y[x - ϵ]}, {x, y[x]}, {x + ϵ, y[x + ϵ]}}]];

Compare the exact radius of curvature with the radius from the circumcircle approximation:

Wolfram Language code: {N@r[1], Last[c[1]]}

Plot it:

Wolfram Language code: Show[{Plot[y[x], {x, -2, 2}], Graphics[{c[-1.2], c[0], c[1.4], Red, PointSize[Medium], Point[{-1.2, y[-1.2]}], Point[{0, y[0]}], Point[{1.4, y[1.4]}]}]}, AspectRatio -> Automatic]

Use a circumsphere with symbolic input to derive a formula for the radius of curvature:

Wolfram Language code: circ = Circumsphere[{{x - ϵ, y[x - ϵ]}, {x, y[x]}, {x + ϵ, y[x + ϵ]}}];
Wolfram Language code: Limit[Last@circ, ϵ -> 0, Assumptions -> x∈Reals]

The result is identical to the radius formula:

Wolfram Language code: r[x]

Use Circumsphere to find a disk covering for any region with a triangulation. First triangulate the region:

Wolfram Language code: ℛ = TriangulateMesh@DiscretizeGraphics[Graphics[CountryData["UnitedStates", {"Shape", "Mercator"}]]]

Use Circumsphere to compute a circle for each triangle:

Wolfram Language code: circles = Circumsphere[First[#]]& /@ MeshPrimitives[ℛ, 2];
Wolfram Language code: Graphics[{Opacity[0.5], Map[{RandomColor[], #}&, circles]}]

Compute its efficiency:

Wolfram Language code: coverArea = Total@Map[Area[Disk@@#]&, circles]
Wolfram Language code: regionArea = Area[ℛ]
Wolfram Language code: regionArea / coverArea

Use Circumsphere to generate a ball covering for a triangulated region. First discretize and triangulate the region:

Wolfram Language code: ℛ = TriangulateMesh[[image], MeshQualityGoal -> "Minimal"]

Use Circumsphere to compute spheres for each tetrahedron:

Wolfram Language code: spheres = Circumsphere[First[#]]& /@ MeshPrimitives[ℛ, 3];
Wolfram Language code: Graphics3D[{Opacity[0.5], Map[{RandomColor[], #}&, spheres]}]

Compute the packing density:

Wolfram Language code: coverVolume = Total@Map[Volume[Ball@@#]&, spheres]
Wolfram Language code: regionVolume = Volume[ℛ]
Wolfram Language code: regionVolume / coverVolume

Properties & Relations  (1)

Circumsphere can represent any Sphere by picking three points on a sphere in 2D:

Wolfram Language code: points = {{x + r, y}, {x - r, y}, {x, y + r}};
Wolfram Language code: Simplify[RegionMember[Sphere[{x, y}, r], points], {x, y, r}∈Reals && r > 0]
Wolfram Language code: Simplify[Circumsphere[points], r > 0]

Picking four points on a sphere in 3D etc.:

Wolfram Language code: points = {{x + r, y, z}, {x - r, y, z}, {x, y + r, z}, {x, y, z + r}};
Wolfram Language code: Simplify[RegionMember[Sphere[{x, y, z}, r], points], {x, y, z, r}∈Reals && r > 0]
Wolfram Language code: Simplify[Circumsphere[points], r > 0]
