ConcaveHullMesh

ConcaveHullMesh[{p1,p2,…}]

gives the concave hull mesh from the points p1,p2,….

ConcaveHullMesh[{p1,p2,…},α]

gives the concave hull mesh of the specified parameter α.

ConcaveHullMesh[{p1,p2,…},α,d]

gives the concave hull mesh of cells of dimension d.

Details and Options

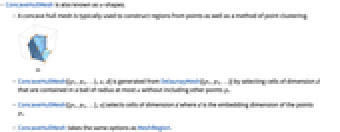

  • ConcaveHullMesh is also known as α‐shapes.
  • A concave hull mesh is typically used to construct regions from points as well as a method of point clustering.
  • ConcaveHullMesh[{p1,p2,…},α,d] is generated from DelaunayMesh[{p1,p2,…}] by selecting cells of dimension d that are contained in a ball of radius at most α without including other points pi.
  • ConcaveHullMesh[{p1,p2,…},α] selects cells of dimension d where d is the embedding dimension of the points pi.
  • ConcaveHullMesh takes the same options as MeshRegion.

Examples

open all close all

Basic Examples  (2)

A concave hull mesh of points randomly sampled from an Annulus:

Wolfram Language code: ConcaveHullMesh[RandomPoint[Annulus[], 2000]]

Find its area:

Wolfram Language code: Area[%]

Reconstruct a 3D model from its vertices:

Wolfram Language code: ConcaveHullMesh[MeshCoordinates[ResourceData["Horse"]], Automatic, 2]

Scope  (6)

Basic Uses  (3)

A concave hull mesh in 1D:

Wolfram Language code: ConcaveHullMesh[{{0}, {1}, {3}, {4}}]

A concave hull mesh in 2D:

Wolfram Language code: ConcaveHullMesh[{{0, 0}, {0, 1}, {-1, (1/3)}, {-1, (2/3)}, {-2, 0}, {-2, 1}}]

A concave hull mesh in 3D:

Wolfram Language code: ConcaveHullMesh[{{0, 0, 0}, {0, 1, 0}, {0, 0, 1}, {0, 1, 1}, {1, 1 / 3, 1 / 3}, {1, 2 / 3, 1 / 3}, {1, 1 / 3, 2 / 3}, {1, 2 / 3, 2 / 3}, {2, 0, 0}, {2, 1, 0}, {2, 0, 1}, {2, 1, 1}}]

Specifications  (3)

ConcaveHullMesh takes a set of points:

Wolfram Language code: pts = {{-1, -1, -1}, {-1, -1, 1}, {-1, 1, -1}, {-1, 1, 1}, {1, -1, -1}, {1, -1, 1}, {1, 1, -1}, {1, 1, 1}};
Wolfram Language code: ConcaveHullMesh[pts]

Use a Point list:

Wolfram Language code: ConcaveHullMesh[Point[pts]]

Specify the maximum radius of simplices:

Wolfram Language code: ConcaveHullMesh[pts, #]& /@ {0.05, 0.4, 1.0}

Specify the dimension of simplices:

Wolfram Language code: pts = RandomPoint[Ball[], 300];
Wolfram Language code: ConcaveHullMesh[pts, 0.2, #] & /@ {1, 2, 3}
Wolfram Language code: RegionDimension /@ %

Use All to get the full -complex for the point set:

Wolfram Language code: ConcaveHullMesh[pts, 0.2, All]

Applications  (7)

Curve Reconstruction  (1)

ConcaveHullMesh can reconstruct 1D curves in 1D:

Wolfram Language code: pts = List /@ Range[10]; ConcaveHullMesh[pts]

2D:

Wolfram Language code: pts = Table[{t, Cos[t]}, {t, 0, 4Pi, Pi / 20}]; ConcaveHullMesh[pts, Automatic, 1]

3D:

Wolfram Language code: pts = Table[{t, Cos[t], Sin[t]}, {t, 0, 8Pi, Pi / 20}]; ConcaveHullMesh[pts, Automatic, 1]

Surface Reconstruction  (4)

ConcaveHullMesh can reconstruct surfaces in 1D:

Wolfram Language code: pts = RandomPoint[RegionUnion[Ball[{-2}], Ball[{2}]], 30]; ConcaveHullMesh[pts, 1, 0]
Wolfram Language code: RegionMeasure[%]

2D:

Wolfram Language code: pts = RandomPoint[RegionBoundary[Annulus[]], 500]; ConcaveHullMesh[pts, 0.1, 1]
Wolfram Language code: ArcLength[%]

3D:

Wolfram Language code: pts = RandomPoint[RegionBoundary[DiscretizeRegion[Torus[]]], 1000]; ConcaveHullMesh[pts, Automatic, 2]
Wolfram Language code: Area[%]

ConcaveHullMesh can reconstruct 3D models:

Wolfram Language code: ConcaveHullMesh[MeshCoordinates[ResourceData[#]], Automatic, 2]& /@ {"Stanford Bunny", "Horse", "Cow"}

ConcaveHullMesh can approximate parametric surfaces:

Wolfram Language code: pts = Flatten[#, 1]&@Table[{...}, {θ, 0.001, π, 0.05}, {ϕ, 0.001, 2 π, 0.05}];
Wolfram Language code: ConcaveHullMesh[pts, Automatic, 2]

ConcaveHullMesh can reconstruct non-orientable surfaces:

Wolfram Language code: pts = Flatten[#, 1]&@Table[{Cos[t] (3 + r Cos[t / 2]), Sin[t] (3 + r Cos[t / 2]), r Sin[t / 2]}, {r, -1, 1, 0.4}, {t, 0, 2 Pi, 0.1}];
Wolfram Language code: ConcaveHullMesh[pts]

Solid Reconstruction  (1)

ConcaveHullMesh can reconstruct solids in 1D:

Wolfram Language code: pts = RandomPoint[Ball[{0}], 10]; ConcaveHullMesh[pts, 1]
Wolfram Language code: ArcLength[%]

2D:

Wolfram Language code: pts = RandomPoint[Annulus[], 500]; ConcaveHullMesh[pts, 0.3]
Wolfram Language code: Area[%]

3D:

Wolfram Language code: pts = RandomPoint[DiscretizeRegion[Torus[]], 1000]; ConcaveHullMesh[pts, 0.3]
Wolfram Language code: Volume[%]

Point Clustering  (1)

Generate normally distributed data and visualize it:

Wolfram Language code: SeedRandom[123]; Dis = MixtureDistribution[...]; data = RandomVariate[Dis, 500]; ListPlot[data]

Find the concave hull of the data:

Wolfram Language code: ConcaveHullMesh[data, Automatic, All]

Use ConnectedMeshComponents to separate points into clusters:

Wolfram Language code: ConnectedMeshComponents[%]

Visualize the separate clusters:

Wolfram Language code: ListPlot[MeshCoordinates[#]& /@ %]

Properties & Relations  (4)

ConcaveHullMesh gives a MeshRegion of the same dimension as the embedding dimension of the point set:

Wolfram Language code: pts = RandomPoint[Ball[], 100];
Wolfram Language code: RegionDimension[ConcaveHullMesh[pts]]

ConvexHullMesh is equivalent to ConcaveHullMesh with a sufficiently large α:

Wolfram Language code: pts = ExampleData[{"Geometry3D", "Beethoven"}, "VertexData"];
Wolfram Language code: ConcaveHullMesh[pts, Infinity]

The convex hull is a full-dimensional region:

Wolfram Language code: ConvexHullMesh[pts]
Wolfram Language code: RegionDimension[{%%, %}]

Concave hull meshes may have multiple connected components:

Wolfram Language code: ℛ = RandomPoint[RegionUnion[Ball[{0, 0, 0}, .2], FilledTorus[]], 1000];
Wolfram Language code: ConcaveHullMesh[ℛ]

The convex hull:

Wolfram Language code: ConvexHullMesh[ℛ]

ConcaveHullMesh gives a subset of cells from the DelaunayMesh:

Wolfram Language code: pts = RandomPoint[Annulus[], 100];
Wolfram Language code: {ConcaveHullMesh[pts], DelaunayMesh[pts]}

Interactive Examples  (1)

Create an interactive example with draggable points to view the concave hull in real time:

Wolfram Language code: DynamicModule[{pts = Join[CirclePoints[4], CirclePoints[{0.5, Pi / 2}, 4]]}, LocatorPane[Dynamic[pts], Dynamic[Graphics[{Locator[Dynamic[#]]& /@ pts, LightGray, EdgeForm[Gray], ConcaveHullMesh[pts]}, PlotRange -> 1]], LocatorAutoCreate -> True]]
