Ticks

Ticks

is an option for graphics functions that specifies tick marks for axes.

Details

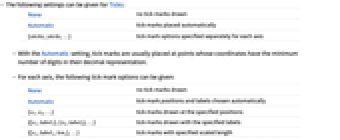

  • The following settings can be given for Ticks:
  • Noneno tick marks drawn
    Automatictick marks placed automatically
    {xticks,yticks,…}tick mark options specified separately for each axis
  • With the Automatic setting, tick marks are usually placed at points whose coordinates have the minimum number of digits in their decimal representation.
  • For each axis, the following tick mark options can be given:
  • Noneno tick marks drawn
    Automatictick mark positions and labels chosen automatically
    {x1,x2,…}tick marks drawn at the specified positions
    {{x1,label1},{x2,label2},…}tick marks drawn with the specified labels
    {{x1,label1,len1},…}tick marks with specified scaled length
    { { x 1 , label 1 , { plen 1 , mlen 1 } } , … }
    		tick marks with specified lengths in the positive and negative directions
    {{x1,label1,len1,style1},…}tick marks with specified styles
    funca function to be applied to xmin, xmax to get the tick mark specification
  • If no explicit labels are given, the tick mark labels are given as the numerical values of the tick mark positions.
  • Any expression can be given as a tick mark label.
  • Tick mark lengths are given as a fraction of the distance across the whole plot.
  • Tick mark styles can involve any graphics directives.
  • The tick mark function func[xmin,xmax] may return any other tick mark option.
  • Ticks can be used in both two- and three-dimensional graphics.
  • AbsoluteOptions gives the explicit form of Ticks specifications when Automatic settings are given.
  • TicksStyle gives default styles to use for tick marks and tick mark labels.

Examples

open all close all

Basic Examples  (4)

Draw the axes but no tick marks:

Wolfram Language code: Plot[Sin[x], {x, 0, 10}, Ticks -> None]

Place tick marks automatically:

Wolfram Language code: Plot[Sin[x], {x, 0, 10}, Ticks -> Automatic]
Wolfram Language code: LogLogPlot[Abs[(ω I - 1)(ω I + 1) / ((ω I + 10)(ω I - 10))], {ω, 1, 10 ^ 3}, Ticks -> Automatic]

Place tick marks at specific positions:

Wolfram Language code: Plot[Sin[x], {x, 0, 10}, Ticks -> {{0, Pi, 2Pi, 3Pi}, {-1, 1}}]
Wolfram Language code: Plot3D[Sin[x y], {x, 0, Pi}, {y, 0, Pi}, Ticks -> {{0, Pi / 2, Pi}, {0, Pi / 2, Pi}, {-1, 0, 1}}]

Specify overall ticks style, including the tick labels, using TicksStyle:

Wolfram Language code: Plot[Sin[x], {x, 0, 10}, TicksStyle -> Directive[Orange, 12]]

Scope  (8)

Ticks Positions and Labeling  (3)

Place ticks on the axis only:

Wolfram Language code: Plot[Sin[x], {x, 0, 10}, Ticks -> {Automatic, None}]

Place ticks on the axis only:

Wolfram Language code: Plot[Sin[x], {x, 0, 10}, Ticks -> {None, Automatic}]

Draw tick marks at the specified positions:

Wolfram Language code: Plot[Sin[x], {x, 0, 10}, Ticks -> {{Pi, 2Pi, 3Pi}, {-1, 1}}]
Wolfram Language code: Graphics3D[Cylinder[], Ticks -> {{-1, 0, 1}, {-1, 0, 1}, {-1, 0, 1}}, Axes -> True]

Draw tick marks at the specified positions with the specified labels:

Wolfram Language code: Plot[Sin[x], {x, 0, 10}, Ticks -> {{{Pi, 180°}, {2Pi, 360°}, {3Pi, 540°}}, {-1, 1}}]
Wolfram Language code: Graphics3D[Cylinder[], Axes -> True, Ticks -> {None, None, {{-1, "bottom"}, {0, "center"}, {1, "top"}}}]

Ticks Styling  (5)

Specify tick marks with scaled lengths:

Wolfram Language code: Plot[Cos[x], {x, 0, 10}, Ticks -> {{{Pi, 180°, 1}, {2Pi, 360°, 1}, {3Pi, 540°, 1}}, {-1, 1}}]

Specify tick marks with scaled lengths in positive and negative directions:

Wolfram Language code: Plot[Cos[x], {x, 0, 10}, Ticks -> {{{Pi, 180°, {0, .5}}, {2Pi, 360°, {.5, 0}}, {3Pi, 540°, {0, .5}}}, {-1, 1}}]

Specify the style of each tick mark:

Wolfram Language code: Plot[Cos[x], {x, 0, 10}, Ticks -> {{{Pi, 180°, {0, .5}, Red}, {2Pi, 360°, {.5, 0}, Thick}, {3Pi, 540°, {0, .5}, Directive[Red, Dashed]}}, {-1, 1}}]

Specify overall ticks style, including tick labels, using TicksStyle:

Wolfram Language code: Plot[Sin[x], {x, 0, 10}, TicksStyle -> Directive[Orange, 12]]

Specify ticks style for each axis:

Wolfram Language code: Plot[Cos[x], {x, 0, 10}, TicksStyle -> {Red, Blue}]

Individually styled ticks can be used with TicksStyle, and have higher priority:

Wolfram Language code: Plot[Cos[x], {x, 0, 10}, Ticks -> {{0, {Pi, Pi, .5, Directive[Blue, Dashed]}, 2Pi, 3Pi}, None}, TicksStyle -> Directive[Orange, 12]]

Generalizations & Extensions  (1)

Specify a grid function applied to xmin and xmax values of each direction:

Wolfram Language code: ticks[min_, max_] := Table[If[EvenQ[i], {i, i, .06, Red}, {i, i, .02, Blue}], {i, Ceiling[min], Floor[max], 1}]
Wolfram Language code: Graphics[Circle[{0, 0}, 4], Axes -> True, Ticks -> ticks]

Applications  (1)

Put a major tick with a label at each integer, and a minor tick in between:

Wolfram Language code: ticks[min_, max_] := Join[Table[{i, Style[i, 12], {.04, 0}}, {i, Ceiling[min], Floor[max]}], Table[{j + .5, , {.02, 0}}, {j, Round[min], Round[max - 1], 1}]]
Wolfram Language code: Plot3D[Sin[x y], {x, 0, 4}, {y, 0, 4}, Ticks -> ticks, Mesh -> None]

Properties & Relations  (7)

TicksStyle affects ticks and tick labels:

Wolfram Language code: Plot[2Sin[x], {x, 0, 10}, AxesLabel -> {x, y}, PlotLabel -> 2Sin[x], TicksStyle -> Orange]

LabelStyle offers overall style of all the label-like elements, including tick labels:

Wolfram Language code: Plot[2Sin[x], {x, 0, 10}, PlotLabel -> 2Sin[x], AxesLabel -> {x, y}, LabelStyle -> Directive[Blue, FontFamily -> "Helvetica"]]

TicksStyle can be used together with LabelStyle and has higher priority:

Wolfram Language code: Plot[2Sin[x], {x, 0, 10}, PlotLabel -> 2Sin[x], AxesLabel -> {x, y}, LabelStyle -> Directive[Blue, FontFamily -> "Helvetica"], TicksStyle -> Orange]

AxesStyle affects the axes, axes labels, ticks and tick labels:

Wolfram Language code: Plot[2Sin[x], {x, 0, 10}, AxesLabel -> {x, y}, PlotLabel -> 2Sin[x], TicksStyle -> Orange]

TicksStyle can be used together with AxesStyle, and has higher priority:

Wolfram Language code: Plot[2Sin[x], {x, 0, 10}, AxesLabel -> {x, y}, PlotLabel -> 2Sin[x], AxesStyle -> Directive[Gray, FontSize -> 15], TicksStyle -> Orange]

Individually styled ticks can be used with other styles, and have higher priority:

Wolfram Language code: Plot[Sin[x], {x, 0, 10}, Ticks -> {{0, {Pi, Pi, 1, Directive[Blue, Thick]}, 2Pi, 3Pi}, {-1, 1}}, AxesStyle -> Directive[Gray, Dashed], TicksStyle -> Directive[Orange, 12]]

FrameTicks controls the ticks and tick labels on the frame edges:

Wolfram Language code: Graphics[Circle[], Frame -> True, FrameTicks -> All]

GridLines puts grids across the image:

Wolfram Language code: Graphics[Circle[], GridLines -> Automatic, Axes -> True]

FaceGrids puts grids on the faces of the bounding box in 3D:

Wolfram Language code: Graphics3D[Cylinder[], FaceGrids -> All, Axes -> True]

Possible Issues  (1)

A tick label on the axes origin is not displayed:

Wolfram Language code: Plot[Sin[x], {x, -4, 4}, Ticks -> {{-Pi, 0, Pi}, {-1, 0, 1}}]
