RegionHausdorffDistance

RegionHausdorffDistance[reg1,reg2]

gives the Hausdorff distance between the regions reg1 and reg2.

Details and Options

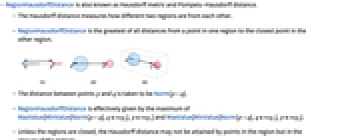

  • RegionHausdorffDistance is also known as Hausdorff metric and Pompeiu–Hausdorff distance.
  • The Hausdorff distance measures how different two regions are from each other.

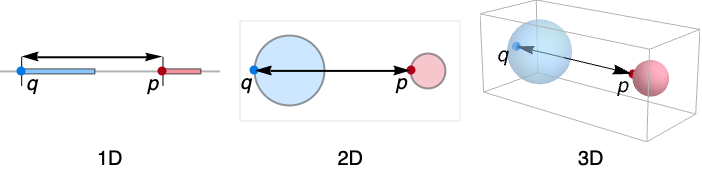

  • RegionHausdorffDistance is the greatest of all distances from a point in one region to the closest point in the other region.
  • The distance between points p and q is taken to be Norm[p-q].
  • RegionHausdorffDistance is effectively given by the maximum of MaxValue[MinValue[Norm[p-q],q∈reg2],p∈reg1] and MaxValue[MinValue[Norm[p-q],q∈reg1],p∈reg2].
  • Unless the regions are closed, the Hausdorff distance may not be attained by points in the region but in the closure of the regions.
  • The Hausdorff distance between two regions reg1 and reg2 is ϵ if reg1⊆RegionDilation[reg2,ϵ] and reg2⊆RegionDilation[reg1,ϵ].

Examples

open all close all

Basic Examples  (4)

Find the Hausdorff distance between two disks:

Wolfram Language code: RegionHausdorffDistance[Disk[], Disk[{0, 0}, 3]]

Show the disks:

Wolfram Language code: Graphics[{Opacity[1 / 3], Disk[], Disk[{0, 0}, 3]}, Axes -> True]

Find the Hausdorff distance between the unit disk and a regular polygon:

Wolfram Language code: RegionHausdorffDistance[Disk[], RegularPolygon[6]]

Show the regions:

Wolfram Language code: Graphics[{Opacity[1 / 3], Disk[], RegularPolygon[6]}, Axes -> True]

Plot the Hausdorff distance as the number of sides increases:

Wolfram Language code: ListPlot[Table[{n, RegionHausdorffDistance[Disk[], RegularPolygon[n]]}, {n, 3, 10}], Joined -> True]

Find the Hausdorff distance between two point clouds:

Wolfram Language code: RegionHausdorffDistance[RandomReal[1, {1000, 2}], RandomReal[1, {1000, 2}]]

Find the Hausdorff distance between a MeshRegion and its convex hull:

Wolfram Language code: Subscript[ℛ, 1] = ResourceData["Stanford Bunny"]; Subscript[ℛ, 2] = ConvexHullMesh[Subscript[ℛ, 1]];
Wolfram Language code: RegionHausdorffDistance[Subscript[ℛ, 1], Subscript[ℛ, 2]]

Show the hull:

Wolfram Language code: Graphics3D[{EdgeForm[], Opacity[0.5], Subscript[ℛ, 1], Subscript[ℛ, 2]}]

Scope  (9)

Special Regions  (8)

Points:

Wolfram Language code: RegionHausdorffDistance[Point[{{1, 1}, {1, 2}}], Point[{3, 4}]]

RegionHausdorffDistance accepts coordinate lists:

Wolfram Language code: RegionHausdorffDistance[{{1, 1}, {1, 2}}, {3, 4}]

Lines:

Wolfram Language code: RegionHausdorffDistance[Line[{{0, 0}, {1, 1}}], Line[{{-1, 1}, {2, 0}}]]
Wolfram Language code: RegionHausdorffDistance[Line[{{0, -1, 2}, {2, -1, -3}}], Line[{{-1, 1, 3}, {2, -1, 0}}]]

Polygons:

Wolfram Language code: RegionHausdorffDistance[Polygon[{{0, 0}, {2, 1}, {1, 3}}], Polygon[{{2, 0}, {0, 3}, {-1, 1}}]]
Wolfram Language code: RegionHausdorffDistance[Triangle[], Rectangle[]]

Simplices:

Wolfram Language code: RegionHausdorffDistance[Simplex[{{0}, {1}}], Simplex[{{2}, {3}}]]
Wolfram Language code: RegionHausdorffDistance[Simplex[{{0, 0}, {2, 0}, {0, 2}}], Simplex[{{1, -1}, {1, 1}, {2, -1}}]]
Wolfram Language code: RegionHausdorffDistance[Simplex[{{0, 0, 0}, {2, 0, 0}, {0, 2, 0}, {0, 0, 2}}], Simplex[{{-1, 0, 1}, {2, 0, 1}, {3, 2, 0}, {2, 0, 2}}]]

Boxes:

Wolfram Language code: RegionHausdorffDistance[Rectangle[], Rectangle[{2, 1}]]
Wolfram Language code: RegionHausdorffDistance[Cuboid[], Cuboid[{3, 2, 1}]]
Wolfram Language code: RegionHausdorffDistance[Cube[], Cube[2]]

Balls:

Wolfram Language code: RegionHausdorffDistance[Disk[], Disk[{1, 1}]]
Wolfram Language code: RegionHausdorffDistance[Ball[], Ball[{1, 2, 3}]]

Spheres:

Wolfram Language code: RegionHausdorffDistance[Circle[], Circle[{1, 2}]]
Wolfram Language code: RegionHausdorffDistance[Sphere[], Sphere[{4, 5, 6}]]

Regions in n:

Wolfram Language code: RegionHausdorffDistance[Simplex[{{1, 0, 0, 0}, {0, 1, 0, 0}, {0, 0, 1, 0}, {0, 0, 0, 1}}], {1, 2, 3, 4}]
Wolfram Language code: RegionHausdorffDistance[Point[{1, 2, 3, 4, 5}], {6, 7, 8, 9, 10}]
Wolfram Language code: RegionHausdorffDistance[Cuboid[{1, 2, 3, 4, 5}, {6, 7, 8, 9, 10}], {11, 12, 13, 14, 15}]
Wolfram Language code: RegionHausdorffDistance[Ball[{1, 2, 3, 4, 5, 6, 7}, 8], {9, 10, 11, 12, 13, 14, 15}]

Mesh Regions  (1)

The Hausdorff distance between two 1D meshes:

Wolfram Language code: ℛ = ConvexHullMesh[RandomReal[1, {10, 1}]]; 𝒮 = ConvexHullMesh[RandomReal[1, {10, 1}]];
Wolfram Language code: RegionHausdorffDistance[ℛ, 𝒮]

2D:

Wolfram Language code: ℛ = ConvexHullMesh[RandomReal[1, {10, 2}]]; 𝒮 = ConvexHullMesh[RandomReal[{1 / 2, 3 / 2}, {10, 2}]];
Wolfram Language code: Show[ℛ, HighlightMesh[𝒮, 2]]
Wolfram Language code: RegionHausdorffDistance[ℛ, 𝒮]

3D:

Wolfram Language code: ℛ = ConvexHullMesh[RandomReal[1, {20, 3}]]; 𝒮 = ConvexHullMesh[RandomReal[{1 / 2, 3 / 2}, {20, 3}]];
Wolfram Language code: Show[ℛ, HighlightMesh[𝒮, 2]]
Wolfram Language code: RegionHausdorffDistance[ℛ, 𝒮]

Options  (2)

WorkingPrecision  (2)

RegionHausdorffDistance will try to compute the distance using the same precision as its inputs:

Wolfram Language code: RegionHausdorffDistance[Disk[], Point[{4, 4}]]

Compute the distance using machine arithmetic:

Wolfram Language code: RegionHausdorffDistance[Disk[], Point[{4, 4}], WorkingPrecision -> MachinePrecision]

In some cases, the exact answer cannot be computed:

Wolfram Language code: RegionHausdorffDistance[ImplicitRegion[x ^ 6 + y ^ 6 - x y <= 1, {x, y}], Point[{2, 3}]]

Find the RegionHausdorffDistance using 30 digits of precision:

Wolfram Language code: RegionHausdorffDistance[Disk[], Point[{4, 4}], WorkingPrecision -> 30]

Applications  (1)

Region Reconstruction  (1)

Reconstruct a mesh from random point samples:

Wolfram Language code: ℛ = ResourceData["Horse"]; 𝒮 = ReconstructionMesh[RandomPoint[ℛ, 10000]];

Determine the Hausdorff distance between the ground truth and reconstructed mesh:

Wolfram Language code: RegionHausdorffDistance[ℛ, 𝒮]

Plot how the Hausdorff distance decreases with larger sample counts:

Wolfram Language code: ListPlot[Table[{n, RegionHausdorffDistance[ℛ, ReconstructionMesh[RandomPoint[ℛ, n]]]}, {n, {100, 500, 1000, 2000, 3000, 4000}}], Joined -> True]

Properties & Relations  (4)

The Hausdorff distance between two points is equivalent to the EuclideanDistance:

Wolfram Language code: RegionHausdorffDistance[{1, 2}, {3, 4}]
Wolfram Language code: EuclideanDistance[{1, 2}, {3, 4}]

The Hausdorff distance between two point sets is the maximum EuclideanDistance from any point to the other set:

Wolfram Language code: 𝒜 = {{0, 0}, {1, 2}, {4, 3}}; ℬ = {{4, 2}, {3, 0}};
Wolfram Language code: RegionHausdorffDistance[𝒜, ℬ] === Max[Min /@ Table[EuclideanDistance[a, b], {a, 𝒜}, {b, ℬ}]]

The Hausdorff distance between a region and a single point is the furthest distance of the point to any point in the region:

Wolfram Language code: RegionHausdorffDistance[Disk[], Point[{3, 5}]] === RegionFarthestDistance[Disk[], Point[{3, 5}]]

RegionDistance can be used to find the nearest distance from a point to a region:

Wolfram Language code: ℛ = Disk[];
Wolfram Language code: RegionDistance[ℛ, {3, 5}]
