SignedRegionDistance

gives the minimum distance from the point p to the region reg if p is outside the region and the minimum distance to the complement of reg if p is inside the region.

SignedRegionDistance[reg]

gives a RegionDistanceFunction[…] that can be applied repeatedly to different points.

Details and Options

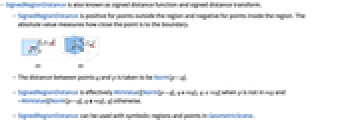

SignedRegionDistance is also known as signed distance function and signed distance transform.

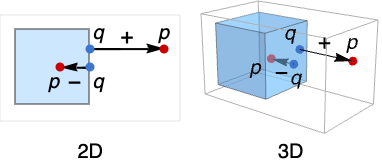

SignedRegionDistance is positive for points outside the region and negative for points inside the region. The absolute value measures how close the point is to the boundary.

The distance between points q and p is taken to be Norm[p-q].
SignedRegionDistance is effectively MinValue[{Norm[p-q],q∈reg},q∈reg] when p is not in reg and -MinValue[{Norm[p-q],q∉reg},q] otherwise.
SignedRegionDistance can be used with symbolic regions and points in GeometricScene.

Examples

open all close all

Basic Examples (2)

Find the signed distance from a point inside to the unit disk:

Wolfram Language code: SignedRegionDistance[Disk[], {0, 0}]

For a point outside:

Wolfram Language code: SignedRegionDistance[Disk[], {1, 1}]

Plot the distance as a function of position:

Wolfram Language code: Plot3D[SignedRegionDistance[Disk[], {x, y}], {x, -2, 2}, {y, -2, 2}]

Find the signed distance from a point to a MeshRegion:

Wolfram Language code: DelaunayMesh[RandomReal[1, {25, 2}]]

With one argument, you get a RegionDistanceFunction:

Wolfram Language code: df = SignedRegionDistance[%]

Wolfram Language code: df[{{1 / 2, 1 / 2}, {2, 2}}]

Scope (19)

Special Regions (8)

The signed distance to a Point is always non-negative, as it has no interior:

Wolfram Language code: SignedRegionDistance[Point[{{1, 1}, {1, 2}}], {3, 4}]

Wolfram Language code: SignedRegionDistance[Point[{{0, 0, 0}, {1, 2, 3}}], {1, 1, 1}]

Plot the signed distance from a three-point set:

Wolfram Language code: ℛ = Point[{{1, 2}, {3, 4}, {5, 6}}];

Wolfram Language code: Plot3D[SignedRegionDistance[ℛ, {x, y}], {x, 0, 7}, {y, 0, 7}, MeshFunctions -> {#3&}, Mesh -> 5]

The signed distance to a Line can be negative in 1D:

Wolfram Language code: SignedRegionDistance[Line[{{0}, {1}}], {1 / 2}]

But in 2D and above, it is always non-negative:

Wolfram Language code: SignedRegionDistance[Line[{{0, 0}, {1, 1}}], {3, 4}]

Plot the signed distance from a line in 2D:

Wolfram Language code: ℛ = Line[{{0, 0}, {1, 1}}];

Wolfram Language code: Plot3D[SignedRegionDistance[ℛ, {x, y}], {x, -1, 2}, {y, -1, 2}, MeshFunctions -> {#3&}, Mesh -> 5]

Rectangle:

Wolfram Language code: SignedRegionDistance[Rectangle[{0, 0}, {3, 2}], {1, 1}]

The signed distance from a Cuboid can be negative in any dimension:

Wolfram Language code: SignedRegionDistance[Cuboid[{0, 0, 0, 0}, {2, 2, 2, 2}], {1, 1, 1, 1}]

Plot the signed distance to a rectangle:

Wolfram Language code: ℛ = Rectangle[{-1, -1}, {1, 1}];

Wolfram Language code:

Plot3D[SignedRegionDistance[ℛ, {x, y}], {x, -2, 2}, {y, -2, 2}, MeshFunctions -> {#3&}, Mesh -> {{0}}, MeshShading -> {Red, Green}, Exclusions -> Norm[{x, y}, ∞] == 1]

The signed distance from a full-dimensional Simplex can be negative:

Wolfram Language code: SignedRegionDistance[Simplex[1], {1 / 2}]

Wolfram Language code: SignedRegionDistance[Simplex[2], {1 / 3, 1 / 3}]

But the signed distance to a lower-dimensional simplex cannot:

Wolfram Language code: SignedRegionDistance[Simplex[{{0, 0}, {1, 1}}], {1 / 2, 1 / 2}]

Plot the signed distance to a 2D simplex:

Wolfram Language code: ℛ = Simplex[2];

Wolfram Language code:

Plot3D[SignedRegionDistance[ℛ, {x, y}], {x, -1, 2}, {y, -1, 2}, MeshFunctions -> {#3&}, Mesh -> {{0}}, MeshShading -> {Red, Green}]

The signed distance to a Disk can be negative:

Wolfram Language code: SignedRegionDistance[Disk[{0, 0}, 1], {1 / 2, 1 / 2}]

Ball generalizes Disk to any dimension:

Wolfram Language code: SignedRegionDistance[Ball[{0, 0, 0, 0}, 1], {1 / 3, 1 / 3, 1 / 3, 1 / 3}]

Plot the signed distance to a disk:

Wolfram Language code: ℛ = Disk[];

Wolfram Language code:

Plot3D[SignedRegionDistance[ℛ, {x, y}], {x, -2, 2}, {y, -2, 2}, MeshFunctions -> {#3&}, Mesh -> {{0}}, MeshShading -> {Red, Green}]

The signed distance to an Ellipsoid can be negative in any dimension:

Wolfram Language code: SignedRegionDistance[Ellipsoid[{0, 0, 0}, {3, 2, 1}], {2, 0, 0}]

Plot the signed distance to an ellipsoid in 2D:

Wolfram Language code: ℛ = Ellipsoid[{0, 0}, {1, 2}];

Wolfram Language code:

Plot3D[SignedRegionDistance[ℛ, {x, y}], {x, -2, 2}, {y, -3, 3}, MeshFunctions -> {#3&}, Mesh -> {{0}}, MeshShading -> {Red, Green}]

The distance to a Circle is always non-negative, as it has no interior:

Wolfram Language code: SignedRegionDistance[Circle[{0, 0}, 1], {1 / 2, 1 / 2}]

The same goes for Sphere in any dimension:

Wolfram Language code: SignedRegionDistance[Sphere[{0, 0, 0}, 1], {1 / 2, 1 / 2, 1 / 2}]

Plot the signed distance to a circle:

Wolfram Language code: ℛ = Circle[];

Wolfram Language code:

Plot3D[RegionDistance[ℛ, {x, y}], {x, -2, 2}, {y, -2, 2}, MeshFunctions -> {#3&}, Mesh -> 5, Exclusions -> Norm[{x, y}] == 1]

Cylinder:

Wolfram Language code: SignedRegionDistance[Cylinder[{{0, 0, 0}, {0, 0, 2}}, 1], {1 / 2, 1 / 2, 1}]

Cone:

Wolfram Language code: SignedRegionDistance[Cone[{{0, 0, 0}, {0, 0, 2}}, 1], {1 / 2, 1 / 2, 1 / 2}]

Formula Regions (2)

The signed distance to a disk represented as an ImplicitRegion:

Wolfram Language code: ℛ = ImplicitRegion[x^2 + y^2 ≤ 1, {x, y}];

Wolfram Language code: Region[ℛ]

Wolfram Language code: SignedRegionDistance[ℛ, {1 / 2, 1 / 2}]

A cylinder:

Wolfram Language code: ℛ = ImplicitRegion[x^2 + y^2 ≤ 1.5, {x, y, {z, 0, 2}}];

Wolfram Language code: SignedRegionDistance[ℛ, {1, 2, 3}]

The distance to a disk represented as a ParametricRegion:

Wolfram Language code: ℛ = ParametricRegion[{r Cos[θ], r Sin[θ]}, {{r, 0, 1}, {θ, 0, 2π}}];

Wolfram Language code: SignedRegionDistance[ℛ, {1 / 2, 1 / 2}]

Using a rational parametrization of the disk:

Wolfram Language code: ℛ = ParametricRegion[{r(1 - t^2/1 + t^2), r(2t/1 + t^2)}, {t, {r, 0, 1}}];

Wolfram Language code: SignedRegionDistance[ℛ, {1 / 2, 1 / 2}]

Mesh Regions (4)

The signed distance to a BoundaryMeshRegion can be negative in any dimension:

Wolfram Language code: ℛ = BoundaryMeshRegion[{{0}, {1}}, Point[{{1}, {2}}]]

Wolfram Language code: SignedRegionDistance[ℛ, {1 / 2}]

In 2D:

Wolfram Language code: ℛ = ConvexHullMesh[RandomReal[1, {10, 2}]];

Wolfram Language code: Show[ℛ, Graphics[{Red, Point[{1 / 2, 1 / 2}]}]]

Wolfram Language code: SignedRegionDistance[ℛ, {1 / 2, 1 / 2}]

In 3D:

Wolfram Language code: ℛ = ConvexHullMesh[RandomReal[1, {20, 3}]];

Wolfram Language code: Show[HighlightMesh[ℛ, Style[2, Opacity[0.5]]], Graphics3D[{Red, Point[{1 / 2, 1 / 2, 1 / 2}]}]]

Wolfram Language code: SignedRegionDistance[ℛ, {1 / 2, 1 / 2, 1 / 2}]

Signed distance cannot be negative to a 0D MeshRegion in 1D:

Wolfram Language code: ℛ = MeshRegion[{{0}, {1}}, Point[{{1}, {2}}]]

Wolfram Language code: SignedRegionDistance[ℛ, {1 / 2}]

But it can for a 1D MeshRegion:

Wolfram Language code: ℛ = MeshRegion[{{0}, {1}}, Line[{1, 2}]]

Wolfram Language code: SignedRegionDistance[ℛ, {1 / 2}]

Signed distance cannot be negative to a 0D MeshRegion in 2D:

Wolfram Language code: ℛ = MeshRegion[{{0, 0}, {1, 0}, {0, 1}}, Point[{{1}, {2}, {3}}]];

Wolfram Language code: Show[ℛ, Graphics[{Red, Point[{1 / 3, 1 / 3}]}]]

Wolfram Language code: SignedRegionDistance[ℛ, {1 / 3, 1 / 3}]

Nor for a 1D MeshRegion:

Wolfram Language code: ℛ = MeshRegion[{{0, 0}, {1, 0}, {0, 1}}, Line[{1, 2, 3, 1}]];

Wolfram Language code: Show[ℛ, Graphics[{Red, Point[{1 / 3, 1 / 3}]}]]

Wolfram Language code: SignedRegionDistance[ℛ, {1 / 3, 1 / 3}]

But it can for a 2D MeshRegion:

Wolfram Language code: ℛ = MeshRegion[{{0, 0}, {1, 0}, {0, 1}}, Polygon[{1, 2, 3}]];

Wolfram Language code: Show[ℛ, Graphics[{Red, Point[{1 / 3, 1 / 3}]}]]

Wolfram Language code: SignedRegionDistance[ℛ, {1 / 3, 1 / 3}]

Signed distance cannot be negative to a 0D MeshRegion in 3D:

Wolfram Language code: ℛ = MeshRegion[{{0, 0, 0}, {0, 0, 1}, {0, 1, 0}, {1, 0, 0}}, Point[{{1}, {2}, {3}, {4}}]];

Wolfram Language code: Show[ℛ, Graphics3D[{Red, Point[{1 / 4, 1 / 4, 1 / 4}]}]]

Wolfram Language code: SignedRegionDistance[ℛ, {1 / 4, 1 / 4, 1 / 4}]

Nor for a 1D MeshRegion:

Wolfram Language code: ℛ = MeshRegion[{{0, 0, 0}, {0, 0, 1}, {0, 1, 0}, {1, 0, 0}}, Line[{{1, 2, 3, 4, 1}}]];

Wolfram Language code: Show[ℛ, Graphics3D[{Red, Point[{1 / 4, 1 / 4, 1 / 4}]}]]

Wolfram Language code: SignedRegionDistance[ℛ, {1 / 4, 1 / 4, 1 / 4}]

Nor for a 2D MeshRegion:

Wolfram Language code: ℛ = MeshRegion[{{0, 0, 0}, {0, 0, 1}, {0, 1, 0}, {1, 0, 0}}, Polygon[{{1, 2, 3}, {2, 3, 4}}]];

Wolfram Language code: Show[ℛ, Graphics3D[{Red, Point[{1 / 4, 1 / 4, 1 / 4}]}]]

Wolfram Language code: SignedRegionDistance[ℛ, {1 / 4, 1 / 4, 1 / 4}]

But it can for a 3D MeshRegion:

Wolfram Language code: ℛ = MeshRegion[{{0, 0, 0}, {0, 0, 1}, {0, 1, 0}, {1, 0, 0}}, Tetrahedron[{{1, 2, 3, 4}}]];

Wolfram Language code: Show[HighlightMesh[ℛ, Style[2, Opacity[0.5]]], Graphics3D[{Red, Point[{1 / 4, 1 / 4, 1 / 4}]}]]

Wolfram Language code: SignedRegionDistance[ℛ, {1 / 4, 1 / 4, 1 / 4}]

Derived Regions (3)

The signed distance to a RegionIntersection:

Wolfram Language code: ℛ = RegionIntersection[Disk[{0, 0}, 1], Disk[{0, 1}, 1]];

Wolfram Language code: SignedRegionDistance[ℛ, {0, 1 / 2}]

Wolfram Language code: Show[DiscretizeRegion[ℛ], Graphics[{Red, Point[{0, 1 / 2}]}]]

The signed distance to a TransformedRegion:

Wolfram Language code: ℛ = TransformedRegion[Disk[], ScalingTransform[{3, 2}]];

Wolfram Language code: SignedRegionDistance[ℛ, {2, 1}]

Wolfram Language code: Show[DiscretizeRegion[ℛ, {{-3, 3}, {-2, 2}}], Graphics[{Red, Point[{2, 1}]}]]

The signed distance to a RegionBoundary is always non-negative:

Wolfram Language code: ℛ = RegionBoundary[Disk[]];

Wolfram Language code: SignedRegionDistance[ℛ, {1 / 2, 1 / 2}]

Wolfram Language code: Graphics[{ℛ, Red, Point[{1 / 2, 1 / 2}]}]

CSG Regions (1)

The signed distance to a CSGRegion in 2D:

Wolfram Language code: ℛ = CSGRegion["Difference", {Disk[], Disk[{1 / 2, 1 / 2}]}];

Wolfram Language code: SignedRegionDistance[ℛ, {-3 / 4, 0}]

Wolfram Language code: Show[ℛ, Graphics[{Red, Point[{-3 / 4, 0}]}]]

3D:

Wolfram Language code: ℛ = CSGRegion["Difference", {Cube[2], Cylinder[{{1, 1, 1}, {1, -1, 1}}]}];

Wolfram Language code: SignedRegionDistance[ℛ, {1 / 2, 1, 1 / 2}]

Wolfram Language code: Show[ℛ, Graphics3D[{Red, Point[{1 / 2, 1, 1 / 2}]}]]

Subdivision Regions (1)

The signed distance to a SubdivisionRegion in 2D:

Wolfram Language code: ℛ = SubdivisionRegion[Rectangle[]];

Wolfram Language code: SignedRegionDistance[ℛ, {1 / 2, 1 / 2}]

Wolfram Language code: Show[ℛ, Graphics[{Red, Point[{1 / 2, 1 / 2}]}]]

3D:

Wolfram Language code: ℛ = SubdivisionRegion[Cuboid[]];

Wolfram Language code: SignedRegionDistance[ℛ, {1, 1, 1}]

Wolfram Language code: Show[ℛ, Graphics3D[{Red, Point[{1, 1, 1}]}]]

Applications (2)

If is a region that is full-dimensional, then the depth of a point is the negative signed region distance. Find the depth of {1,1} in Disk[{0,0},5]:

Wolfram Language code:

ℛ = Disk[{0, 0}, 5];
p = {1, 1};

Wolfram Language code: -SignedRegionDistance[ℛ, p]

To illustrate it, you need to compute the nearest point in :

Wolfram Language code: q = RegionNearest[RegionDifference[FullRegion[2], ℛ], p]

Plot it:

Wolfram Language code: Graphics[{{StandardYellow, EdgeForm[StandardGray], ℛ}, {Red, Point[{p, q}]}, {Dashed, Line[{p, q}]}}]

Find the depth of the point {1,1,1} in Cuboid[{0,0,0},{2,2,2}]:

Wolfram Language code:

ℛ = Cuboid[{0, 0, 0}, {2, 2, 2}];
p = {1, 1, 1};

Wolfram Language code: -SignedRegionDistance[ℛ, p]

To illustrate it, you need to compute the nearest point in :

Wolfram Language code: q = RegionNearest[RegionDifference[FullRegion[3], ℛ], p]

Plot it:

Wolfram Language code: Graphics3D[{{Opacity[0.5], ℛ}, {Red, Point[{p, q}]}, {Dashed, Line[{p, q}]}}]

Properties & Relations (5)

A point is a RegionMember if the signed distance to the region is non-positive:

Wolfram Language code: ℛ = Disk[];

Wolfram Language code: Reduce[RegionMember[ℛ, {x, y}]⧦SignedRegionDistance[ℛ, {x, y}] ≤ 0, {x, y}, Reals]

A point on the RegionBoundary has signed distance 0:

Wolfram Language code: ℛ = Disk[];

Wolfram Language code: Reduce[RegionMember[RegionBoundary[ℛ], {x, y}]⧦SignedRegionDistance[ℛ, {x, y}] == 0, {x, y}, Reals]

A point is in the interior of the region if the signed distance to the region is negative:

Wolfram Language code: ℛ = Disk[];

Wolfram Language code:

Reduce[RegionMember[ℛ, {x, y}] && !RegionMember[RegionBoundary[ℛ], {x, y}]⧦SignedRegionDistance[ℛ, {x, y}] < 0, {x, y}, Reals]

Abs of SignedRegionDistance is the MinValue of the distance to the RegionBoundary:

Wolfram Language code: ℛ = Disk[{0, 0}, {3, 2}];

Wolfram Language code: d1 = Abs[SignedRegionDistance[ℛ, {5, 5}]];

Wolfram Language code: d2 = MinValue[Norm[{5 - x, 5 - y}], {x, y}∈RegionBoundary[ℛ]];

Wolfram Language code: FullSimplify[d1 == d2]

For a point outside the region, RegionDistance and SignedRegionDistance are the same:

Wolfram Language code: ℛ = Disk[];

Wolfram Language code: Reduce[!RegionMember[ℛ, {x, y}]RegionDistance[ℛ, {x, y}] == SignedRegionDistance[ℛ, {x, y}], {x, y}, Reals]

Top

More Learning

Tech Support

Wolfram Solutions

Wolfram Solutions For Education

Get Started

Grow Your Skills

Work with Us

Educational Programs for Adults

Educational Programs for Youth

Read

SignedRegionDistance

Details and Options

Examples

Basic Examples (2)

Scope (19)

Special Regions (8)

Formula Regions (2)

Mesh Regions (4)

Derived Regions (3)

CSG Regions (1)

Subdivision Regions (1)

Applications (2)

Properties & Relations (5)

Text

CMS

APA

BibTeX

BibLaTeX

SignedRegionDistance

Details and Options

Examples

Basic Examples (2)

Scope (19)

Special Regions (8)

Formula Regions (2)

Mesh Regions (4)

Derived Regions (3)

CSG Regions (1)

Subdivision Regions (1)

Applications (2)

Properties & Relations (5)

See Also

Related Guides

History

Text

CMS

APA

BibTeX

BibLaTeX
