RegionDilation

RegionDilation[reg,r]

gives the dilation of the region reg by a disk of radius r centered at the origin.

RegionDilation[reg1,reg2]

gives the dilation of the region reg1 by the region reg2.

RegionDilation[reg1,reg2,{u,v}]

gives the dilation of reg1 scaled by a factor u and reg2 scaled by a factor v.

Details and Options

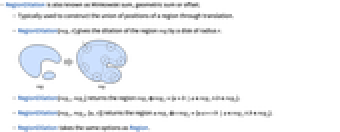

  • RegionDilation is also known as Minkowski sum, geometric sum or offset.
  • Typically used to construct the union of positions of a region through translation.

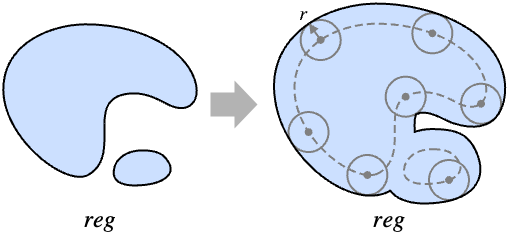

  • RegionDilation[reg,r] gives the dilation of the region reg by a disk of radius r.
  • RegionDilation[reg1,reg2] returns the region reg1⊕reg2={a+b|a∈reg1∧b∈reg2}.
  • RegionDilation[reg1,reg2,{u,v}] returns the region u reg1⊕v reg2={u a+v b|a∈reg1∧b∈reg2}.
  • RegionDilation takes the same options as Region.

Examples

open all close all

Basic Examples  (4)

Dilation of a disk:

Wolfram Language code: RegionDilation[Disk[], 1 / 2]

Dilation of Triangle by Disk:

Wolfram Language code: Region[RegionDilation[Triangle[], Disk[]]]

Dilation of Rectangle by Triangle:

Wolfram Language code: RegionDilation[Rectangle[], Triangle[]]

Visualize it:

Wolfram Language code: Region[%]

Dilation of two regions:

Wolfram Language code: RegionDilation[[image], [image]]

Visualize it:

Wolfram Language code: Region[%]

Scope  (8)

Special Regions  (4)

Dilation of two lines:

Wolfram Language code: RegionDilation[Line[{{0, 0}, {1, 1}}], Line[{{1, 1}, {2, 1}}]]

Visualize it:

Wolfram Language code: Region[%]

Dilation of two disks:

Wolfram Language code: RegionDilation[Disk[{0, 0}, 1], Disk[{1, 0}, 1]];
Wolfram Language code: Region[%]

Dilation of a rectangle and a disk:

Wolfram Language code: RegionDilation[Region[Rectangle[]], Disk[]]

A disk and a circle:

Wolfram Language code: ℛ = RegionDilation[Disk[{0, 0}, 1], Circle[{1, 0}, 1]];

Visualize it:

Wolfram Language code: Region[ℛ]

Dilation of two polygons:

Wolfram Language code: Subscript[ℛ, 1] = Polygon[{{0, 0}, {3, -1}, {2, 0}, {3, 1}}]; Subscript[ℛ, 2] = Polygon[{{5, 0}, {2, 1}, {3, 0}, {2, -1}}];
Wolfram Language code: ℛ = RegionDilation[Subscript[ℛ, 1], Subscript[ℛ, 2]];

Visualize it:

Wolfram Language code: Region[ℛ]

Formula Regions  (1)

RegionDilation of ImplicitRegion objects:

Wolfram Language code: Subscript[ℛ, 1] = ImplicitRegion[x ≤ -1, {x}]; Subscript[ℛ, 2] = ImplicitRegion[x ≥ 1, {x}];
Wolfram Language code: RegionDilation[Subscript[ℛ, 1], Subscript[ℛ, 2]]

2D:

Wolfram Language code: Subscript[ℛ, 1] = ImplicitRegion[x^2 + y^2 ≤ 1, {x, y}]; Subscript[ℛ, 2] = ImplicitRegion[x^2 + (y - 1)^2 ≤ 1, {x, y}];
Wolfram Language code: RegionDilation[Subscript[ℛ, 1], Subscript[ℛ, 2]]
Wolfram Language code: DiscretizeRegion[%]

Mesh Regions  (1)

Dilation of two BoundaryMeshRegion objects:

Wolfram Language code: RegionDilation[[image], [image]];
Wolfram Language code: Region[%]

In 3D:

Wolfram Language code: RegionDilation[[image], [image]];
Wolfram Language code: Region[%]

Derived Regions  (2)

Dilation of two BooleanRegion objects:

Wolfram Language code: Subscript[ℛ, 1] = BooleanRegion[Or, {Triangle[{{0, 0}, {2, 3}, {-2, 3}}], Triangle[{{0, 2}, {2, -1}, {-2, -1}}]}]; Subscript[ℛ, 2] = BooleanRegion[And, {Triangle[{{0, 0}, {2, 3}, {-2, 3}}], Triangle[{{0, 2}, {2, -1}, {-2, 2}}]}];
Wolfram Language code: ℛ = RegionDilation[Subscript[ℛ, 1], Subscript[ℛ, 2]];

Visualize it:

Wolfram Language code: Region[ℛ]

Dilation of two TransformedRegion objects:

Wolfram Language code: Subscript[ℛ, 1] = TransformedRegion[Cuboid[], RotationTransform[Pi / 8, {1, 0, 0}]]; Subscript[ℛ, 2] = TransformedRegion[Cuboid[], RotationTransform[Pi / 8, {0, 1, 0}]];
Wolfram Language code: ℛ = RegionDilation[Subscript[ℛ, 1], Subscript[ℛ, 2]];

Visualize it:

Wolfram Language code: Region[ℛ]

Possible Issues  (1)

RegionDilation gives an approximate result when the exact result cannot be computed:

Wolfram Language code: RegionDilation[Polygon[{{0, 0}, {1, 0}, {1, 1}}], Disk[]]

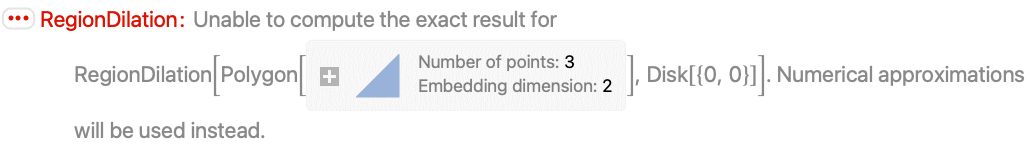

Turn on the message:

Wolfram Language code: On[General::approx]
Wolfram Language code: RegionDilation[Polygon[{{0, 0}, {1, 0}, {1, 1}}], Disk[]]
