SystemsModelStateFeedbackConnect

SystemsModelStateFeedbackConnect[sys,con]

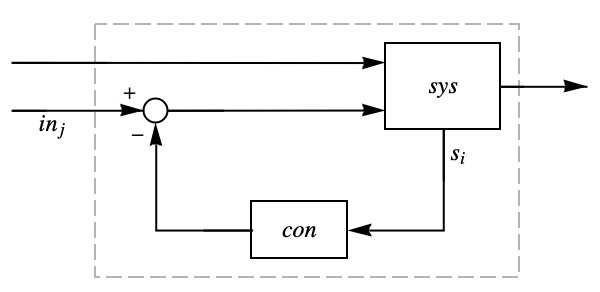

connects the states of the systems model sys to the controller con and the outputs of con to the inputs of sys in feedback.

SystemsModelStateFeedbackConnect[sys,con,{s1,…},{{in1,ftype1},…}]

connects state si of sys to the i^(th) input of con and the j^(th) output of con to input inj of sys with feedback type ftypej

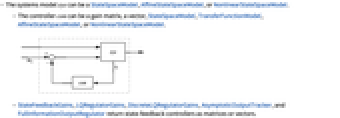

Details

Examples

open all close all

Basic Examples  (3)

Determine the closed-loop model of a state-feedback system:

Wolfram Language code: SystemsModelStateFeedbackConnect[StateSpaceModel[{{{Subscript[a, 1], Subscript[a, 2]}, {Subscript[a, 3], Subscript[a, 4]}}, {{Subscript[b, 1]}, {Subscript[b, 2]}}, {{Subscript[c, 1], Subscript[c, 2]}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None], {{Subscript[k, 1], Subscript[k, 2]}}]

Compute the feedback gains to place the poles at z1 and z2 for a discrete-time system:

Wolfram Language code: ssm = StateSpaceModel[{{{1, T}, {0, 1}}, {{T^2/2}, {T}}, {{1, 0}}, {{0}}}, SamplingPeriod -> T, SystemsModelLabels -> None]; k = StateFeedbackGains[ssm, {Subscript[z, 1], Subscript[z, 2]}]

Determine the closed-loop model:

Wolfram Language code: SystemsModelStateFeedbackConnect[ssm, k]

Verify the pole locations:

Wolfram Language code: Eigenvalues[Normal[%][[1]]]

Determine the closed-loop model with a set of optimal state feedback gains:

Wolfram Language code: Subscript[ssm, d] = StateSpaceModel[{{{0.4725, 0.2376, 0.0589, 0.1971}, {0.1451, 0.5669, 0.2311, 0.0439}, {0.0932, 0.119, 0.5752, 0.2319}, {0.2628, 0.0757, 0.1406, 0.4465}}, {{0.5711}, {-0.3999}, {0.6899}, {0.8156}}, {{0.11, 0, 0, 0.05}, {0, 0, 0.03, 1.1}}, {{0}, {0}}}, SamplingPeriod -> 0.01, SystemsModelLabels -> None]; q = DiagonalMatrix[{0.5, 0.8, 2, 4}];r = {{1}}; k = LQRegulatorGains[Subscript[ssm, d], {q, r}]; SystemsModelStateFeedbackConnect[Subscript[ssm, d], k]

Scope  (15)

Basic Uses  (10)

The closed-loop model of a system with state feedback:

Wolfram Language code: SystemsModelStateFeedbackConnect[StateSpaceModel[{{{a}}, {{b}}, {{c}}, {{d}}}, SamplingPeriod -> None, SystemsModelLabels -> None], {{k}}]

With positive state feedback:

Wolfram Language code: SystemsModelStateFeedbackConnect[StateSpaceModel[{{{a}}, {{b}}, {{c}}, {{d}}}, SamplingPeriod -> None, SystemsModelLabels -> None], {{k}}, "Positive"]

The state feedback gains specified as a transfer-function model:

Wolfram Language code: SystemsModelStateFeedbackConnect[StateSpaceModel[{{{8, 6}, {-4, -2}}, {{-4}, {3}}, {{2, 3}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None], TransferFunctionModel[{{{-95/2, -60}}, 1}, ]]

The gains specified as a state-space model:

Wolfram Language code: SystemsModelStateFeedbackConnect[StateSpaceModel[{{{8, 6}, {-4, -2}}, {{-4}, {3}}, {{2, 3}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None], StateSpaceModel[{{}, {}, {}, {{-95/2, -60}}}, SamplingPeriod -> None, SystemsModelLabels -> None]]

A affine state-space model with feedback specified in a vector:

Wolfram Language code: SystemsModelStateFeedbackConnect[AffineStateSpaceModel[{{a[Subscript[x, 1]]}, {{b[Subscript[x, 1]]}}, {c[Subscript[x, 1]]}, {{0}}}, {Subscript[x, 1]}, {Subscript[, 1]}, {Automatic}, Automatic, SamplingPeriod -> None], {k[Subscript[x, 1]]}]

A nonlinear state-space model with feedback specified in a vector:

Wolfram Language code: SystemsModelStateFeedbackConnect[NonlinearStateSpaceModel[{{f[x, u]}, {h[x, u]}}, {x}, {u}, {Automatic}, Automatic, SamplingPeriod -> None], {k[x, u]}]

Positive state feedback:

Wolfram Language code: SystemsModelStateFeedbackConnect[StateSpaceModel[{{{27.5, 24.6}, {-30, -26.5}}, {{-1}, {1}}, {{-5, -4}}, {{0}}}, SamplingPeriod -> None, SystemsModelLabels -> None], {{4.59, -6.42}}, "Positive"]

Only feedback to the first input:

Wolfram Language code: ssm = StateSpaceModel[{{{0, -1, -2}, {-2, -1, 0}, {2, 2, 3}}, {{0, -2}, {0, 1}, {1, 1}}, {{1, 2, 1}}, {{0, 0}}}, SamplingPeriod -> None, SystemsModelLabels -> None];
Wolfram Language code: SystemsModelStateFeedbackConnect[ssm, (⁠-(67/2) (127/4) 18⁠), {1, 2, 3}, {1}]

Only feedback to the second input:

Wolfram Language code: ssm = StateSpaceModel[{{{0, -1, -2}, {-2, -1, 0}, {2, 2, 3}}, {{0, -2}, {0, 1}, {1, 1}}, {{1, 2, 1}}, {{0, 0}}}, SamplingPeriod -> None, SystemsModelLabels -> None];
Wolfram Language code: SystemsModelStateFeedbackConnect[ssm, (⁠364 (467/2) (1025/2)⁠), {1, 2, 3}, {2}]

Connect the second state to the first input through a feedback system:

Wolfram Language code: SystemsModelStateFeedbackConnect[StateSpaceModel[{{{Subscript[a, 11], Subscript[a, 12]}, {Subscript[a, 21], Subscript[a, 22]}}, {{Subscript[b, 11], Subscript[b, 12]}, {Subscript[b, 21], Subscript[b, 22]}}, {{Subscript[c, 11], Subscript[c, 12]}, {Subscript[c, 21], Subscript[c, 22]}}, {{0, 0}, {0, 0}}}, SamplingPeriod -> None, SystemsModelLabels -> None], StateSpaceModel[{{{Subscript[α, 11], Subscript[α, 12]}, {Subscript[α, 21], Subscript[α, 22]}}, {{Subscript[β, 11], Subscript[β, 12]}, {Subscript[β, 21], Subscript[β, 22]}}, {{Subscript[γ, 11], Subscript[γ, 12]}}, {{0, 0}}}, SamplingPeriod -> None, SystemsModelLabels -> None], {2}, {1}]

The closed-loop model of a multiple-input system:

Wolfram Language code: ssm = StateSpaceModel[{{{0, -1, -2}, {-2, -1, 0}, {2, 2, 3}}, {{0, -2}, {0, 1}, {1, 1}}, {{1, 2, 1}}, {{0, 0}}}, SamplingPeriod -> None, SystemsModelLabels -> None]; k = StateFeedbackGains[ssm, {-4. + 2 I, -4. - 2 I, -8.}]
Wolfram Language code: SystemsModelStateFeedbackConnect[ssm, k]

System Types  (5)

Connect two StateSpaceModel systems:

Wolfram Language code: SystemsModelStateFeedbackConnect[StateSpaceModel[{{{a}}, {{b}}, {{c}}, {{d}}}, SamplingPeriod -> None, SystemsModelLabels -> None], StateSpaceModel[{{{α}}, {{β}}, {{γ}}, {{ρ}}}, SamplingPeriod -> None, SystemsModelLabels -> None]]

With delays:

Wolfram Language code: SystemsModelStateFeedbackConnect[StateSpaceModel[{{{a + SystemsModelDelay[Subscript[τ, 1]]}}, {{b}}, {{c}}, {{d}}}, SamplingPeriod -> None, SystemsModelLabels -> None], StateSpaceModel[{{{α + SystemsModelDelay[Subscript[τ, 2]]}}, {{β}}, {{γ}}, {{ρ}}}, SamplingPeriod -> None, SystemsModelLabels -> None]]

Using descriptor state-space models:

Wolfram Language code: SystemsModelStateFeedbackConnect[StateSpaceModel[{{{a}}, {{b}}, {{c}}, {{d}}, {{e}}}, SamplingPeriod -> None, SystemsModelLabels -> None], StateSpaceModel[{{{α}}, {{β}}, {{γ}}, {{ρ}}, {{η}}}, SamplingPeriod -> None, SystemsModelLabels -> None]]

Input linear AffineStateSpaceModel systems:

Wolfram Language code: SystemsModelStateFeedbackConnect[AffineStateSpaceModel[{{a[Subscript[x, 1]]}, {{b[Subscript[x, 1]]}}, {c[Subscript[x, 1]]}, {{0}}}, {Subscript[x, 1]}, {Subscript[, 1]}, {Automatic}, Automatic, SamplingPeriod -> None], AffineStateSpaceModel[{{α[Subscript[x, 2]]}, {{β[Subscript[x, 2]]}}, {γ[Subscript[x, 2]]}, {{0}}}, {Subscript[x, 2]}, {Subscript[, 1]}, {Automatic}, Automatic, SamplingPeriod -> None]]

General nonlinear NonlinearStateSpaceModel systems:

Wolfram Language code: SystemsModelStateFeedbackConnect[NonlinearStateSpaceModel[{{Subscript[f, 1][Subscript[x, 1], Subscript[u, 1]]}, {Subscript[h, 1][Subscript[x, 1], Subscript[u, 1]]}}, {Subscript[x, 1]}, {Subscript[u, 1]}, {Automatic}, Automatic, SamplingPeriod -> None], NonlinearStateSpaceModel[{{Subscript[f, 2][Subscript[x, 2], Subscript[u, 2]]}, {Subscript[x, 2]}}, {Subscript[x, 2]}, {Subscript[u, 2]}, {Automatic}, Automatic, SamplingPeriod -> None]]

Connecting a standard linear system and an input linear system will give an affine model:

Wolfram Language code: SystemsModelStateFeedbackConnect[StateSpaceModel[{{{a}}, {{b}}, {{c}}, {{d}}}, SamplingPeriod -> None, SystemsModelLabels -> None], AffineStateSpaceModel[{{α[x]}, {{β[x]}}, {γ[x]}, {{0}}}, {x}, {Subscript[, 1]}, {Automatic}, Automatic, SamplingPeriod -> None]]

Connecting standard linear or affine system with a nonlinear system gives a nonlinear model:

Wolfram Language code: SystemsModelStateFeedbackConnect[StateSpaceModel[{{{a}}, {{b}}, {{c}}, {{d}}}, SamplingPeriod -> None, SystemsModelLabels -> None], NonlinearStateSpaceModel[{{f[x, u]}, {h[x, u]}}, {x}, {u}, {Automatic}, Automatic, SamplingPeriod -> None]]
Wolfram Language code: SystemsModelStateFeedbackConnect[AffineStateSpaceModel[{{a[x]}, {{b[x]}}, {c[x]}, {{d[x]}}}, {x}, {Subscript[, 1]}, {Automatic}, Automatic, SamplingPeriod -> None], NonlinearStateSpaceModel[{{f[x, u]}, {h[x, u]}}, {x}, {u}, {Automatic}, Automatic, SamplingPeriod -> None]]

Applications  (3)

The linearized inverted pendulum model is unstable:

Wolfram Language code: pendulum = StateSpaceModel[{{{0, 1, 0, 0}, {(g*(m + M))/ (l*M), 0, 0, 0}, {0, 0, 0, 1}, {(-g)*(m/M), 0, 0, 0}}, {{0}, {-l^(-1)/M}, {0}, {M^(-1)}}, {{1, 0, 0, 0}, {0, 0, 1, 0}}, {{0}, {0}}}, SamplingPeriod -> None, SystemsModelLabels -> None] /. {g -> 9.8, m -> 1, M -> 10, l -> 5};

A plot of its unstable response:

Wolfram Language code: StateResponse[{pendulum, {.01, 0, 0, 0}}, 0, {t, 0, 5}]; Plot[%, {t, 0, 5}]

Compute a set of state feedback gains:

Wolfram Language code: k = StateFeedbackGains[pendulum, {-0.2, -0.5, -5, -8.67}]

The closed-loop system:

Wolfram Language code: csys = SystemsModelStateFeedbackConnect[pendulum, k]

The closed-loop response is stable:

Wolfram Language code: StateResponse[{csys, {.01, 0, 0, 0}}, 0, {t, 0, 15}]; Plot[%, {t, 0, 15}, PlotLayout -> "Column", PlotRange -> All]

Calculate a gain matrix to optimize a quadratic cost function of the input and the states:

Wolfram Language code: ssm = StateSpaceModel[{{{0, 1, 0}, {0, 0, 1}, {0, -2, -3}}, {{0}, {0}, {1}}, {{1, 0, 0}, {0, 1, 0}, {0, 0, 1}}, {{0}, {0}, {0}}}, SamplingPeriod -> None, SystemsModelLabels -> None]; k = LQRegulatorGains[ssm, {(⁠| | | | | --- | - | - | | 100 | 0 | 0 | | 0 | 1 | 0 | | 0 | 0 | 1 |⁠), (⁠0.01⁠)}]

Find the closed-loop system:

Wolfram Language code: SystemsModelStateFeedbackConnect[ssm, k]

Calculate a gain matrix to optimize a quadratic cost function of the input and the outputs:

Wolfram Language code: ssm = StateSpaceModel[{{{0, 0, 1, 0}, {0, 0, 0, 1}, {-0.12, 0, -0.8, 0}, {0, -0.12, 0, -0.8}}, {{0, 0}, {0, 0}, {1, 0}, {0, 1}}, {{-0.54, 0.6, -2.7, 1}}, {{3, 0}}}, SamplingPeriod -> 0.5, SystemsModelLabels -> None]; k = LQOutputRegulatorGains[ssm, {{{0.05}}, DiagonalMatrix[{2, 2}]}];

Find the closed-loop system:

Wolfram Language code: SystemsModelStateFeedbackConnect[ssm, k]

Properties & Relations  (1)

A model where the output matrix is identity and the direct transmission matrix is zero:

Wolfram Language code: ssm = StateSpaceModel[{RandomReal[5, {2, 2}], RandomReal[5, {2, 1}], IdentityMatrix[2]}]

SystemsModelStateFeedbackConnect and SystemsModelFeedbackConnect are equivalent:

Wolfram Language code: {SystemsModelStateFeedbackConnect[ssm, {{Subscript[k, 1], Subscript[k, 2]}}], SystemsModelFeedbackConnect[ssm, TransferFunctionModel[{{Subscript[k, 1], Subscript[k, 2]}}]]}
Wolfram Language code: Subtract@@(Normal /@ %)
