AffineHalfSpace

AffineHalfSpace[{p₁,…,p_k+1},w]

represents AffineSpace[{p₁,…,p_k+1}] extended in the direction w.

AffineHalfSpace[p,{v₁,…,v_k},w]

represents AffineSpace[p,{v₁,…,v_k}] extended in the direction w.

Details

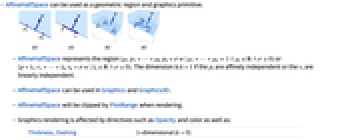

AffineHalfSpace can be used as a geometric region and graphics primitive.

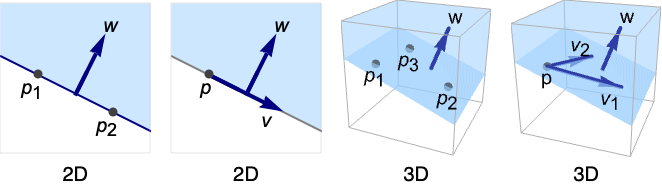

AffineHalfSpace represents the region or . The dimension is if the p_i are affinely independent or the v_i are linearly independent.
AffineHalfSpace can be used in Graphics and Graphics3D.
AffineHalfSpace will be clipped by PlotRange when rendering.
Graphics rendering is affected by directives such as Opacity and color as well as:
Thickness,Dashing 1-dimensional ()

FaceForm 2-dimensional ()
For a two-dimensional AffineSpace, FaceForm[front,back] can be used to specify different styles for the front and back, where the front is defined to be in the direction of the normal Cross[v₁,v₂] or Cross[p₂-p₁,p₃-p₁], depending on which input form is used.

Examples

open all close all

Basic Examples (3)

An AffineHalfSpace in 2D:

Wolfram Language code: Graphics[AffineHalfSpace[{0, 0}, {{1, -1}}, {1, 1}]]

And in 3D:

Wolfram Language code: Graphics3D[AffineHalfSpace[{0, 0, 0}, {{-1, 0, 1}, {1, 1, 0}}, {-1, 1, -1}]]

Different styles applied to an affine half-space region:

Wolfram Language code: ℛ = AffineHalfSpace[{0, 0, 0}, {{-1, 0, 1}, {1, 1, 0}}, {-1, 1, -1}];

Wolfram Language code:

{Graphics3D[{Pink, ℛ}], Graphics3D[{EdgeForm[Thick], Pink, ℛ}], Graphics3D[{EdgeForm[Dashed], Pink, ℛ}], Graphics3D[{EdgeForm[Directive[Thick, Dashed, Blue]], Pink, ℛ}]}

Determine if points belong to a given affine half-space region:

Wolfram Language code: ℛ = AffineHalfSpace[{0, 0, 0}, {{-1, 0, 1}, {1, 1, 0}}, {-1, 1, -1}];

Wolfram Language code: {RegionMember[ℛ, {1, 1, 1}], RegionMember[ℛ, {-1, 0, 0}]}

Scope (18)

Graphics (8)

Specification (3)

Define an affine half-space in 3D using two points and a directional vector:

Wolfram Language code:

ill = Graphics3D[{PointSize[Medium], Point[{{1, 0, 0}, {0, 0, 1}}], Thick, Arrowheads[Medium], Arrow[Tube[{{1, 0, 0}, {1, 1, 1}}]]}, PlotRange -> 2, Axes -> True];

Wolfram Language code: Show[ill, Graphics3D[AffineHalfSpace[{{1, 0, 0}, {0, 0, 1}}, {0, 1, 1}]]]

Define the same affine half-space using a point, a tangent vector, and a directional vector:

Wolfram Language code:

ill = Graphics3D[{PointSize[Medium], Point[{{1, 0, 0}}], Thick, Arrowheads[Medium], Arrow[Tube[{{{1, 0, 0}, {1, 1, 1}}, {{1, 0, 0}, {0, 0, 1}}}]]}, PlotRange -> 2, Axes -> True];

Wolfram Language code: Show[ill, Graphics3D[AffineHalfSpace[{1, 0, 0}, {{-1, 0, 1}}, {0, 1, 1}]]]

An affine half-space in 3D defined by a single point and directional vector:

Wolfram Language code:

ill = Graphics3D[{PointSize[Medium], Point[{{0, 0, 0}}], Arrowheads[Medium], Thick, Arrow[Tube[{{0, 0, 0}, {0, 1, 1}}]]}, PlotRange -> 2, Axes -> True];

Wolfram Language code: Show[ill, Graphics3D[AffineHalfSpace[{{0, 0, 0}}, {0, 1, 1}]]]

Affine half-spaces varying in tangent vector:

Wolfram Language code:

Table[Graphics3D[AffineHalfSpace[{0, 0, 0}, {{1, Cos[θ], Sin[θ]}}, {1, 1, 1}], ImageSize -> Tiny, PlotLabel -> θ], {θ, 0, π, π / 4}]

Affine half-spaces varying in directional vector:

Wolfram Language code:

Table[Graphics3D[AffineHalfSpace[{0, 0, 0}, {{1, 0, 0}}, {1, Cos[θ], Sin[θ]}], ImageSize -> Tiny, PlotLabel -> θ], {θ, 0, π, π / 4}]

Styling (2)

Color directives specify the color of the affine half-space:

Wolfram Language code: Table[Graphics3D[{c, AffineHalfSpace[{{0, 0, 0}, {1, 0, 0}, {0, 1, 1}}, {0, 1, 0}]}], {c, {Red, Green, Yellow, Blue}}]

FaceForm and EdgeForm can be used to specify the styles of the faces and edges:

Wolfram Language code:

Graphics3D[{FaceForm[Pink], EdgeForm[Directive[Dashed, Thick, Blue]], AffineHalfSpace[{{0, 0, 0}, {1, 0, 0}, {0, 1, 1}}, {0, 1, 0}]}]

Coordinates (3)

Specify coordinates by fractions of the plot range:

Wolfram Language code:

Graphics3D[AffineHalfSpace[{Scaled[{0.5, 0, 0}], Scaled[{0, 0.5, 0}], Scaled[{0.5, 0.5, 0.5}]}, {1, 0, 0}], PlotRange -> {{0, 10}, {0, 10}, {0, 10}}, Axes -> True]

Specify scaled offsets from the ordinary coordinates:

Wolfram Language code:

Graphics3D[AffineHalfSpace[{Scaled[{0.3, 0.2, 0.5}, {.1, 0, 0}], Scaled[{0, 0, 0.5}, {1, 1, 1}]}, {1, 0, 0}], PlotRange -> {{0, 2}, {0, 2}, {0, 2}}, Axes -> True]

Points and vectors can be Dynamic:

Wolfram Language code:

DynamicModule[{θ = 0}, {Slider[Dynamic[θ], {0, Pi}], Graphics3D[AffineHalfSpace[{0, 0, 0}, {Dynamic[{1, Cos[θ], Sin[θ]}]}, {0, 1, 1}]]}]

Regions (10)

Embedding dimension is the dimension of the coordinates:

Wolfram Language code: RegionEmbeddingDimension[AffineHalfSpace[{{0, 0}, {1, 0}}, {0, 1}]]

Wolfram Language code: RegionEmbeddingDimension[AffineHalfSpace[{{0, 0, 0}, {0, 1, 0}}, {0, 0, 1}]]

Geometric dimension is the dimension of the region itself:

Wolfram Language code: RegionDimension[AffineHalfSpace[{{0, 0}, {1, 0}}, {0, 1}]]

Wolfram Language code: RegionDimension[AffineHalfSpace[{{0, 0, 0}, {0, 1, 0}}, {0, 0, 1}]]

Point membership test:

Wolfram Language code: ℛ = AffineHalfSpace[{{0, 0, 0}, {0, 1, 0}}, {0, 0, 1}];

Wolfram Language code: {RegionMember[ℛ, {2, 2, 0}], RegionMember[ℛ, {0, 0, 1}]}

Get the conditions for membership:

Wolfram Language code: RegionMember[ℛ, {x, y, z}]

An affine half-space has infinite measure and undefined centroid:

Wolfram Language code: ℛ = AffineHalfSpace[{{0, 0, 0}, {0, 1, 0}}, {0, 0, 1}];

Wolfram Language code: RegionMeasure[ℛ]

Wolfram Language code: RegionCentroid[ℛ]

Distance from a point:

Wolfram Language code: ℛ = AffineHalfSpace[{{0, 0, 0}, {0, 1, 0}, {1, 0, 0}}, {0, 0, 1}];

Wolfram Language code: RegionDistance[ℛ, {0, 0, -3}]

Signed distance from a point:

Wolfram Language code: SignedRegionDistance[ℛ, {0, 0, -3}]

Nearest point in the region:

Wolfram Language code: ℛ = AffineHalfSpace[{{0, 0, 0}, {0, 1, 0}, {1, 0, 0}}, {0, 0, 1}];

Wolfram Language code: RegionNearest[ℛ, {-1, -2, -3}]

Nearest points:

Wolfram Language code:

pts = Flatten[Table[{Cos[k 2 π / 8]Cos[j π / 8], Sin[k 2 π / 8]Cos[j π / 8], Sin[j π / 8]}, {k, 0, 7}, {j, -3, 3}], 1];
nst = RegionNearest[ℛ, #]& /@ pts;

Wolfram Language code:

Legended[Graphics3D[{{Opacity[0.5], ℛ}, {Thin, Gray, Line[Transpose[{pts, nst}]]}, {Red, Point[pts]}, {Blue, Point[nst]}}, Boxed -> False], PointLegend[{Red, Blue}, {"start", "nearest"}]]

An affine half-space is unbounded:

Wolfram Language code:

ℛ = AffineHalfSpace[{{Subscript[x, 0], Subscript[y, 0], Subscript[z, 0]}, {Subscript[x, 1], Subscript[y, 1], Subscript[z, 1]}, {Subscript[x, 2], Subscript[y, 2], Subscript[z, 2]}}, {Subscript[v, x], Subscript[v, y], Subscript[v, z]}];

Wolfram Language code: BoundedRegionQ[ℛ]

Find the region range:

Wolfram Language code: RegionBounds[ℛ]

Integrate over an affine half-space:

Wolfram Language code: ℛ = AffineHalfSpace[{{0, 0, 0}, {0, 1, 0}}, {0, 0, 1}];

Wolfram Language code: Integrate[Exp[-(z ^ 2 + y ^ 2)], {x, y, z}∈ℛ]

Optimize over an affine half-space:

Wolfram Language code: ℛ = AffineHalfSpace[{{1, 1, 1}, {0, 1, 0}}, {0, 0, 1}];

Wolfram Language code: Minimize[{x^2 + y^2 + z^2 + 1, {x, y, z}∈ℛ}, {x, y, z}]

Solve equations over an affine half-space:

Wolfram Language code: ℛ = AffineHalfSpace[{{0, 0, 0}, {0, 1, 0}}, {0, 0, 1}];

Wolfram Language code: Reduce[x^2 + y^2 + z^2 == 1 && {x, y, z}∈ℛ, {x, y, z}]

Applications (2)

Visualize the upper half-plane:

Wolfram Language code: Region[AffineHalfSpace[{{0, 0}, {1, 0}}, {0, 1}], Frame -> True]

The lower half-plane:

Wolfram Language code: Region[AffineHalfSpace[{{0, 0}, {1, 0}}, {0, -1}], Frame -> True]

The left half-plane:

Wolfram Language code: Region[AffineHalfSpace[{{0, 0}, {0, 1}}, {-1, 0}], Frame -> True]

The right half-plane:

Wolfram Language code: Region[AffineHalfSpace[{{0, 0}, {0, 1}}, {1, 0}], Frame -> True]

Visualize the upper half-space:

Wolfram Language code: Region[AffineHalfSpace[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}}, {0, 0, 1}], Boxed -> True]

The lower half-space:

Wolfram Language code: Region[AffineHalfSpace[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}}, {0, 0, -1}], Boxed -> True]

The left half-space:

Wolfram Language code: Region[AffineHalfSpace[{{0, 0, 0}, {0, 1, 0}, {0, 0, 1}}, {-1, 0, 0}], Boxed -> True]

The right half-space:

Wolfram Language code: Region[AffineHalfSpace[{{0, 0, 0}, {0, 1, 0}, {0, 0, 1}}, {1, 0, 0}], Boxed -> True]

The front half-space:

Wolfram Language code: Region[AffineHalfSpace[{{0, 0, 0}, {1, 0, 0}, {0, 0, 1}}, {0, -1, 0}], Boxed -> True]

The back half-space:

Wolfram Language code: Region[AffineHalfSpace[{{0, 0, 0}, {1, 0, 0}, {0, 0, 1}}, {0, 1, 0}], Boxed -> True]

Properties & Relations (6)

HalfLine is a special case of AffineHalfSpace:

Wolfram Language code:

Subscript[ℛ, 1] = AffineHalfSpace[{0, 0, 0}, {}, {1, 2, 3}];
Subscript[ℛ, 2] = HalfLine[{0, 0, 0}, {1, 2, 3}];

Wolfram Language code: RegionEqual[Subscript[ℛ, 1], Subscript[ℛ, 2]]

HalfPlane is a special case of AffineHalfSpace:

Wolfram Language code:

Subscript[ℛ, 1] = AffineHalfSpace[{0, 0, 0}, {{1, 2, 3}}, {1, 1, 1}];
Subscript[ℛ, 2] = HalfPlane[{0, 0, 0}, {1, 2, 3}, {1, 1, 1}];

Wolfram Language code: RegionEqual[Subscript[ℛ, 1], Subscript[ℛ, 2]]

HalfSpace is a special case of AffineHalfSpace:

Wolfram Language code:

p = {1, 1, 1};n = {1, 2, 3};
{v1, v2} = NullSpace[{n}];
w = -n;

Wolfram Language code:

Subscript[ℛ, 1] = AffineHalfSpace[p, {v1, v2}, w];
Subscript[ℛ, 2] = HalfSpace[n, p];

Wolfram Language code: RegionEqual[Subscript[ℛ, 1], Subscript[ℛ, 2]]

AffineHalfSpace is a special case of ConicHullRegion:

Wolfram Language code:

p = {1, 1, 1, 1};
{v1, v2} = {{-3, 0, 1, 1}, {-2, 1, 0, 4}};
w = {-1, -2, -3, 1};

Wolfram Language code:

Subscript[ℛ, 1] = AffineHalfSpace[p, {v1, v2}, w];
Subscript[ℛ, 2] = ConicHullRegion[p, {v1, v2}, {w}];

Wolfram Language code: RegionEqual[Subscript[ℛ, 1], Subscript[ℛ, 2]]

ParametricRegion can represent any AffineHalfSpace in :

Wolfram Language code: p = {1, 0};v = {1, 2};w = {1, 1};

Wolfram Language code:

Subscript[ℛ, 1] = ParametricRegion[p + a v + b w, {a, {b, 0, Infinity}}];
Subscript[ℛ, 2] = AffineHalfSpace[p, {v}, w];

Wolfram Language code: RegionEqual[Subscript[ℛ, 1], Subscript[ℛ, 2]]

In :

Wolfram Language code: p = {0, 0, 0, 5, 1};{v1, v2, v3} = {{1, 2, 3, 0, 0}, {1, 1, 1, 5, 1}, {1, 1, 1, 1, 1}};w = {0, 1, 0, 1, 0};

Wolfram Language code:

Subscript[ℛ, 1] = ParametricRegion[p + a v1 + b v2 + c v3 + d w, {a, b, c, {d, 0, Infinity}}];
Subscript[ℛ, 2] = AffineHalfSpace[p, {v1, v2, v3}, w];

Wolfram Language code: RegionEqual[Subscript[ℛ, 1], Subscript[ℛ, 2]]

ImplicitRegion can represent any AffineHalfSpacein :

Wolfram Language code: p = {1, 2};v = {1, 1};w = {1, 0};

Wolfram Language code: Subscript[ℛ, 1] = ImplicitRegion[-1 - x + y ≤ 0, {x, y}];Subscript[ℛ, 2] = AffineHalfSpace[p, {v}, w];

Wolfram Language code: RegionEqual[Subscript[ℛ, 1], Subscript[ℛ, 2]]

In :

Wolfram Language code: p = {1, 2, 1, 1, 1};{v1, v2} = {{2, 2, 1, 1, 1}, {0, 0, 1, 2, 3}};w = {1, 1, 1, 1, 1};

Wolfram Language code:

Subscript[ℛ, 1] = ImplicitRegion[1 + x1 - 3 x3 + x5 ≤ 0 && x3 - 2 x4 + x5 == 0 && 1 + x1 - x2 == 0, {x1, x2, x3, x4, x5}];

Wolfram Language code: Subscript[ℛ, 2] = AffineHalfSpace[p, {v1, v2}, w];

Wolfram Language code: RegionEqual[Subscript[ℛ, 1], Subscript[ℛ, 2]]

Neat Examples (1)

A collection of random half-spaces in :

Wolfram Language code:

Table[Graphics[{EdgeForm[Black], {RandomColor[], AffineHalfSpace[RandomReal[{-1, 1}, {2, 2}], RandomReal[{-1, 1}, 2]]}}, ImageSize -> 30, Frame -> True, FrameTicks -> False], {30}]

In :

Wolfram Language code:

Table[Graphics3D[{EdgeForm[Black], {RandomColor[], AffineHalfSpace[RandomReal[{-1, 1}, {3, 3}], RandomReal[{-1, 1}, 3]]}}, ImageSize -> 30, Boxed -> True, Ticks -> False, PlotRange -> 1], {20}]
