DifferentiatorFilter

DifferentiatorFilter[data,ωc]

applies a differentiator filter with a cutoff frequency ωc to an array of data.

DifferentiatorFilter[data,ωc,n]

uses a filter kernel of length n.

DifferentiatorFilter[data,ωc,n,wfun]

applies a smoothing window wfun to the filter kernel.

Details and Options

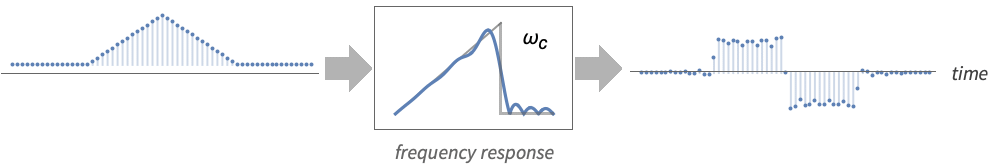

  • DifferentiatorFilter is a finite impulse response (FIR) discrete-time filter that is commonly used to approximate the derivative of sampled data.
  • The data can be any of the following:
  • listarbitrary-rank numerical array
    tseriestemporal data such as TimeSeries and TemporalData
    imagearbitrary Image or Image3D object
    audioan Audio or Sound object
    videoa Video object
  • When applied to images and multidimensional arrays, filtering is applied successively to each dimension, starting at level 1. DifferentiatorFilter[data,{ωc1,ωc2,…}] uses the frequency ωci for the i^(th) dimension.
  • Filtering with cutoff frequency ωc reduces the susceptibility of the derivative to signal noise, with the amount of smoothing dependent on the value of the cutoff frequency ωc.
  • The cutoff frequency ωc should be between 0 and . Smaller values of ωc result in greater smoothing.
  • DifferentiatorFilter[data,ωc] uses a filter kernel length and smoothing window suitable for the cutoff frequency ωc and the input data.
  • Typical smoothing windows wfun include:
  • BlackmanWindowsmoothing with a Blackman window
    DirichletWindowno smoothing
    HammingWindowsmoothing with a Hamming window
    {v1,v2,…}use a window with values vi
    fcreate a window by sampling f between and
  • The following options can be given:
  • Padding "Fixed"the padding value to use
    SampleRate Automaticsample rate assumed for the input
  • By default, SampleRate->1 is assumed for images as well as data. For sampled sound objects with sample rate r, SampleRate->r is used.
  • With SampleRate->r, the cutoff frequency ωc should be between 0 and r×.

Examples

open all close all

Basic Examples  (2)

Differentiate a sampled cosine signal:

Wolfram Language code: dx = 0.1; data = Table[Cos[2x], {x, 0, 2π, dx}]; ListLinePlot[{data, (1/ 2dx) DifferentiatorFilter[data, Pi, 20]}]

Differentiate an image:

Wolfram Language code: DifferentiatorFilter[[image], Pi / 2]//ImageAdjust

Scope  (10)

Data  (7)

Filter a 1D triangular sequence:

Wolfram Language code: data = BoxMatrix[5, {41}]; ListLinePlot[{data, DifferentiatorFilter[data, 1.]}, PlotRange -> All]

Filter a 2D pulse sequence:

Wolfram Language code: data = Table[UnitBox[(n/7), (m/7)], {n, -7, 7}, {m, -7, 7}]; ListPlot3D[data]
Wolfram Language code: ListPlot3D[DifferentiatorFilter[data, 1.], PlotRange -> All]

Filter a TimeSeries:

Wolfram Language code: ts = TemporalData[TimeSeries, {{{0., -0.27267267057145633, -0.6672983789995302, -0.5338541947930846, -0.6117404489279314, -0.6755527076595494, -0.02125421294486496, -0.10792797291843935, -0.6138271235477938, -0.3248568606554575, -0.08843449054 ... 2053424, -0.49980440691873723, -0.5388679788215971, -0.4101602764645551}}, {{0, 1., 0.01}}, 1, {"Continuous", 1}, {"Continuous", 1}, 1, {ValueDimensions -> 1, ResamplingMethod -> {"Interpolation", InterpolationOrder -> 1}}}, False, 10.1]; filtered = DifferentiatorFilter[ts, Quantity[10, "Hertz"]];
Wolfram Language code: ListLinePlot[{ts, 5filtered}, PlotLegends -> {"original", "filtered"}, PlotRange -> All]

Digital differentiation of a square wave audio signal:

Wolfram Language code: a = AudioGenerator["Square"]
Wolfram Language code: DifferentiatorFilter[a, Quantity[15000, "Hertz"]]

Filter video frames:

Wolfram Language code: DifferentiatorFilter[Video["ExampleData/fish.mp4"], 3]

Differentiation of a 3D image:

Wolfram Language code: 200DifferentiatorFilter[[image], Pi]

Filter using exact precision:

Wolfram Language code: DifferentiatorFilter[{0, 0, 0, 1, 1, 1, 0, 0, 0}, Pi, 4]

Parameters  (3)

With an audio signal, a numeric cutoff frequency is interpreted as radians per second:

Wolfram Language code: a = \!\(\*AudioBox["![Embedded Audio Player](audio://content-iz4x8)"]\);
Wolfram Language code: DifferentiatorFilter[a, 10000 2 Pi] === DifferentiatorFilter[a, Quantity[10000*2*Pi, "Radians"/"Seconds"]] === DifferentiatorFilter[a, Quantity[10000, "Hertz"]]

Differentiation of a unit step sequence using a filter of length 7:

Wolfram Language code: DifferentiatorFilter[{0., 0., 0., 0., 1., 1., 1., 1.}, Pi, 6]

Use a different cutoff frequency:

Wolfram Language code: DifferentiatorFilter[{0., 0., 0., 0., 1., 1., 1., 1.}, Pi / 2, 6]

Use a specific window function:

Wolfram Language code: DifferentiatorFilter[{0., 0., 0., 0., 1., 1., 1., 1.}, Pi, 6, BlackmanWindow]

Specify the window function as a numeric list:

Wolfram Language code: DifferentiatorFilter[{0., 0., 0., 0., 1., 1., 1., 1.}, Pi, 6, {1, 1, 1, 1, 1, 1}]

Use different cutoff frequencies in each dimension:

Wolfram Language code: DifferentiatorFilter[[image], {Pi / 3, Pi}, 20]//ImageAdjust

Options  (4)

Padding  (2)

By default, "Fixed" padding is used:

Wolfram Language code: DifferentiatorFilter[[image], Pi / 3, 21]//ImageAdjust

Use Padding->None to eliminate potential image border artifacts:

Wolfram Language code: DifferentiatorFilter[[image], Pi / 3, 21, Padding -> None]//ImageAdjust

Different padding methods result in different edge effects:

Wolfram Language code: ramp = Range[21] / 21. + RandomReal[.1, 21]; GraphicsRow@(ListLinePlot[{ramp, DifferentiatorFilter[ramp, Pi, 6, Padding -> #]}, ...]& /@ {"Fixed", "Periodic", 0})

SampleRate  (2)

Use a half-band differentiating filter, assuming a normalized sample rate of 1:

Wolfram Language code: DifferentiatorFilter[{0, 0, 0, 1, 1, 1, 0, 0, 0}, π / 2., 5]

Assume a sample rate of 3:

Wolfram Language code: DifferentiatorFilter[{0, 0, 0, 1, 1, 1, 0, 0, 0}, 3 π / 2., 5, SampleRate -> 3]

Apply a half-band differentiator filter to audio sampled at a rate of :

Wolfram Language code: a = AudioGenerator[Sin[11025 2 π #^2]&]; sr = QuantityMagnitude@AudioSampleRate[a]
Wolfram Language code: DifferentiatorFilter[a, sr π / 2., 21]//Periodogram

Applications  (2)

Use a derivative filter to highlight edges in an image:

Wolfram Language code: DifferentiatorFilter[[image], Pi, 6]//ImageAdjust

Convert a triangle wave to a square wave:

Wolfram Language code: x = Table[TriangleWave[n / 32], {n, 0, 63}]//N; y = DifferentiatorFilter[x, Pi, 6, Padding -> "Periodic"];
Wolfram Language code: GraphicsRow[{ListPlot[x, Filling -> 0, ImageSize -> Small], ListPlot[y, Filling -> 0, ImageSize -> Small]}]

Properties & Relations  (7)

Create a differentiator filter using LeastSquaresFilterKernel and a Hamming window:

Wolfram Language code: n = 5; ω = 1.5; win = Array[HammingWindow, n, {-1 / 2, 1 / 2}]; ker = win LeastSquaresFilterKernel[{"Differentiator", ω}, n]
Wolfram Language code: ListConvolve[ker, {0, 0, 0, 0, 1, 1, 1, 1}, Ceiling[n / 2], 0]

Compare with the result of DifferentiatorFilter:

Wolfram Language code: DifferentiatorFilter[{0, 0, 0, 0, 1, 1, 1, 1}, ω, n, win, Padding -> 0]

Impulse response of an odd-length, full-band derivative filter of length 21:

Wolfram Language code: h = DifferentiatorFilter[ArrayPad[{1.}, 10], Pi, 21]
Wolfram Language code: ListPlot[h, PlotRange -> All, Filling -> 0]

Magnitude spectrum of the filter:

Wolfram Language code: Plot[Abs[ListFourierSequenceTransform[h, ω]], {ω, 0, π}]

Magnitude spectrum of an odd-length, full-band derivative filter with no smoothing window:

Wolfram Language code: Plot[Evaluate@Abs[ListFourierSequenceTransform[DifferentiatorFilter[ArrayPad[{1.}, 10], Pi, 21, None], ω]], {ω, 0, π}]

Impulse response of an even-length derivative filter:

Wolfram Language code: h = DifferentiatorFilter[ArrayPad[{1.}, 10], Pi, 20]
Wolfram Language code: ListPlot[h, PlotRange -> All, Filling -> 0]

Magnitude spectrum of the filter:

Wolfram Language code: Plot[Abs[ListFourierSequenceTransform[h, ω]], {ω, 0, π}, PlotRange -> All]

Magnitude spectrum of an even-length, full-band derivative filter with no smoothing window:

Wolfram Language code: Plot[Evaluate@Abs[ListFourierSequenceTransform[DifferentiatorFilter[ArrayPad[{1.}, 10], Pi, 20, None], ω]], {ω, 0, π}]

Magnitude response of an odd-length differentiator filter for different filter lengths:

Wolfram Language code: Manipulate[ ListLinePlot[Abs[Fourier[DifferentiatorFilter[ArrayPad[{1.}, 128], Pi, n], FourierParameters -> {1, -1}]][[ ;; 129]], ...], {{n, 21}, 3, 127, 2}]

Impulse response of a half-band, odd-length derivative filter:

Wolfram Language code: h = DifferentiatorFilter[ArrayPad[{1.}, 10], Pi / 2, 21]
Wolfram Language code: ListPlot[h, PlotRange -> All, Filling -> 0]

Magnitude spectrum of the filter:

Wolfram Language code: Plot[Abs[ListFourierSequenceTransform[h, ω]], {ω, 0, π}]

Possible Issues  (1)

With PaddingNone, the output will be shorter than the input:

Wolfram Language code: DifferentiatorFilter[{0., 0., 0., 1., 1., 1.}, 1., Padding -> None]
