HeatRadiationValue[pred,vars,pars]

represents a thermal radiation boundary condition for PDEs with predicate pred indicating where it applies, with model variables vars and global parameters pars.

HeatRadiationValue[pred,vars,pars,lkey]

represents a thermal radiation boundary condition with local parameters specified in pars[lkey].

Details
Details and Options Details and Options
Examples
Basic Examples
Scope
Basic Uses
2D
Applications
See Also
Tech Notes
Related Guides
History
Cite this Page

HeatRadiationValue

HeatRadiationValue[pred,vars,pars]

represents a thermal radiation boundary condition for PDEs with predicate pred indicating where it applies, with model variables vars and global parameters pars.

HeatRadiationValue[pred,vars,pars,lkey]

represents a thermal radiation boundary condition with local parameters specified in pars[lkey].

Details

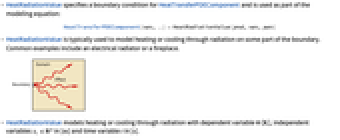

  • HeatRadiationValue specifies a boundary condition for HeatTransferPDEComponent and is used as part of the modeling equation:

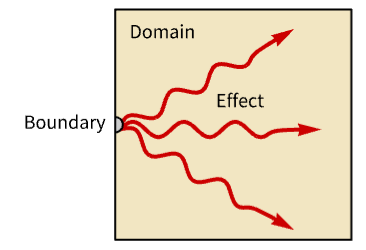

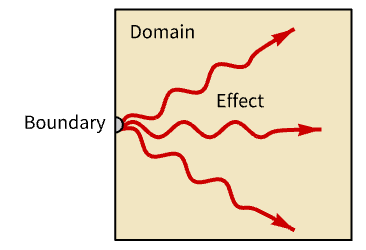

  • HeatRadiationValue is typically used to model heating or cooling through radiation on some part of the boundary. Common examples include an electrical radiator or a fireplace.
  • HeatRadiationValue models heating or cooling through radiation with dependent variable [TemplateBox[{InterpretationBox[, 1], "K", kelvins, "Kelvins"}, QuantityTF]], independent variables in [TemplateBox[{InterpretationBox[, 1], "m", meters, "Meters"}, QuantityTF]] and time variable in [TemplateBox[{InterpretationBox[, 1], "s", seconds, "Seconds"}, QuantityTF]].

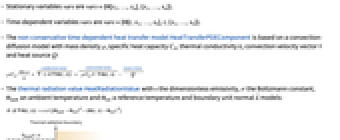

  • Stationary variables vars are vars={Θ[x1,…,xn],{x1,…,xn}}.
  • Time-dependent variables vars are vars={Θ[t,x1,…,xn],t,{x1,…,xn}}.
  • The non-conservative time-dependent heat transfer model HeatTransferPDEComponent is based on a convection-diffusion model with mass density , specific heat capacity , thermal conductivity , convection velocity vector and heat source :
  • The thermal radiation value HeatRadiationValue with the dimensionless emissivity, the Boltzmann constant, an ambient temperature and a reference temperature and boundary unit normal models:

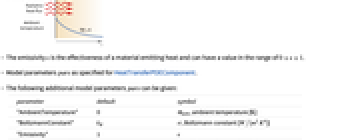

  • The emissivity is the effectiveness of a material emitting heat and can have a value in the range of .
  • Model parameters pars as specified for HeatTransferPDEComponent.
  • The following additional model parameters pars can be given:
  • parameterdefaultsymbol
    "AmbientTemperature"0, ambient temperature [TemplateBox[{InterpretationBox[, 1], "K", kelvins, "Kelvins"}, QuantityTF]]
    "BoltzmannConstant", Boltzmann constant []
    "Emissivity"1
    "ReferenceTemperature"0, reference temperature [TemplateBox[{InterpretationBox[, 1], "K", kelvins, "Kelvins"}, QuantityTF]]

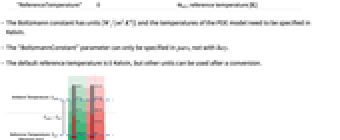

  • The Boltzmann constant has units [] and the temperatures of the PDE model need to be specified in Kelvin.
  • The "BoltzmannConstant" parameter can only be specified in pars, not with lkey.

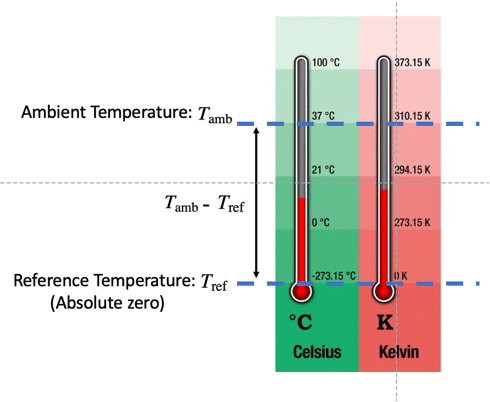

  • The default reference temperature is 0 Kelvin, but other units can be used after a conversion.

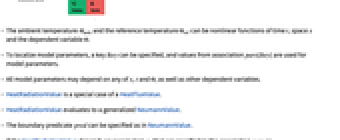

  • The ambient temperature and the reference temperature can be nonlinear functions of time , space and the dependent variable .
  • To localize model parameters, a key lkey can be specified, and values from association pars[lkey] are used for model parameters.
  • All model parameters may depend on any of , and , as well as other dependent variables.
  • HeatRadiationValue is a special case of a HeatFluxValue.
  • HeatRadiationValue evaluates to a generalized NeumannValue.
  • The boundary predicate pred can be specified as in NeumannValue.
  • If the HeatRadiationValue depends on parameters that are specified in the association pars as …,keypi…,pivi,…, the parameters are replaced with .

Examples

open all close all

Basic Examples  (2)

Set up a thermal radiation boundary condition:

Wolfram Language code: HeatRadiationValue[x ≥ 0, {Θ[t, x, y], t, {x, y}}, <|"AmbientTemperature" -> Subscript[Θ, amb][t, x, y]|>]

Model a temperature field and a thermal radiation boundary with:

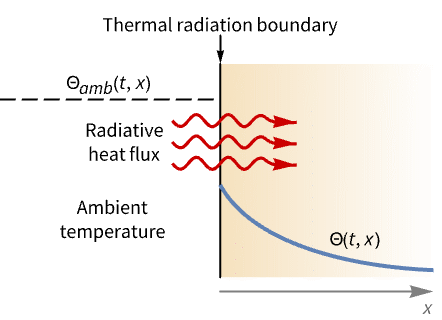

rho C_p(partialTheta(t, x))/(partialt)+del .(-k del Theta(t,x))^(︷^( heat transfer model )) =|_(Gamma_(x=0))epsilon k_B ((Theta_(amb)-Theta_(ref))^4-(Theta(t,x)-Theta_(ref))^( 4))^(︷^( heat radiation boundary ))

Set up the heat transfer model variables vars:

Wolfram Language code: vars = {Θ[t, x], t, {x}};

Set up a region :

Wolfram Language code: Ω = Line[{{0}, {1 / 5}}];

Specify heat transfer model parameters mass density , specific heat capacity and thermal conductivity :

Wolfram Language code: pars = <|"MassDensity" -> 1.2, "SpecificHeatCapacity" -> 1006.14, "ThermalConductivity" -> 0.026, "ReferenceTemperature" -> -273.15|>;

Specify boundary condition parameters with a constant ambient temperature of –25 °C and a surface emissivity of :

Wolfram Language code: pars["BC1"] = <|"Emissivity" -> 0.2, "AmbientTemperature" -> -25|>;

Specify the equation:

Wolfram Language code: eqn = HeatTransferPDEComponent[vars, pars] == HeatRadiationValue[x == 0, vars, pars, "BC1"]

Set up initial conditions:

Wolfram Language code: ics = Θ[0, x] == 0;

Solve the PDE:

Wolfram Language code: Tfun = NDSolveValue[{eqn, ics}, Θ, {t, 0, 600}, x∈Ω];

Visualize the solution:

Wolfram Language code: Manipulate[Plot[Tfun[t, x], {x}∈Ω, ...], {{t, 180}, 0, 600, 20}, Rule[...]]

Scope  (6)

Basic Uses  (5)

Define model variables vars for a transient temperature field with model parameters pars and a specific boundary condition parameter:

Wolfram Language code: vars = {Θ[t, x, y], t, {x, y}}; pars = <|"MassDensity" -> 1.2, "SpecificHeatCapacity" -> 1006.14, "ThermalConductivity" -> 0.026, "BoundaryCondition1" -> <|"AmbientTemperature" -> 300, "Emissivity" -> 1 / 2|>|>; HeatRadiationValue[x == 1, vars, pars, "BoundaryCondition1"]

Define model variables vars for a transient temperature field with model parameters pars and multiple specific parameter boundary conditions:

Wolfram Language code: vars = {Θ[t, x, y], t, {x, y}}; pars = <|"MassDensity" -> 1.2, "SpecificHeatCapacity" -> 1006.14, "ThermalConductivity" -> 0.026, "BoundaryCondition1" -> <|"AmbientTemperature" -> 300, "Emissivity" -> 0.5|>, "BoundaryCondition2" -> <|"AmbientTemperature" -> 400, "Emissivity" -> 0.75|>|>;
Wolfram Language code: HeatRadiationValue[x == 0, vars, pars, "BoundaryCondition1"]
Wolfram Language code: HeatRadiationValue[x == 1, vars, pars, "BoundaryCondition2"]

Set up a reference temperature of absolute zero in degrees Celsius:

Wolfram Language code: Subscript[Θ, ref] = QuantityMagnitude[Quantity[0., "Kelvins"], "DegreesCelsius"]

Set up a thermal radiation boundary condition with a reference and ambient temperature in Celsius:

Wolfram Language code: HeatRadiationValue[x == 0, {Θ[t, x, y], t, {x, y}}, <|"ReferenceTemperature" -> Subscript[Θ, ref], "AmbientTemperature" -> Subscript[Θ, amb][t, x, y]|>]

If no value for emissivity is specified, then an emissivity of 1 is assumed:

Wolfram Language code: HeatRadiationValue[x ≥ 0, {Θ[t, x, y], t, {x, y}}, <|"AmbientTemperature" -> Subscript[Θ, amb][t, x, y]|>] == HeatRadiationValue[x ≥ 0, {Θ[t, x, y], t, {x, y}}, <|"AmbientTemperature" -> Subscript[Θ, amb][t, x, y], "Emissivity" -> 1|>]

Set up a thermal radiation boundary condition with ambient temperature emissivity :

Wolfram Language code: HeatRadiationValue[x ≥ 0, {Θ[t, x, y], t, {x, y}}, <|"AmbientTemperature" -> Subscript[Θ, amb][t, x, y], "Emissivity" -> 0.1|>]

2D  (1)

Model a ceramic strip that is embedded in a high-thermal-conductive material. The side boundaries of the strip are maintained at a constant temperature . The top surface of the strip is losing heat via both heat convection and heat radiation to the ambient environment at . The bottom boundary, however, is assumed to be thermally insulated:

Model a temperature field and the thermal radiation and thermal transfer with:

del .(-k del Theta(x,y))^(︷^( heat transfer model )) =|_(Gamma_(x=0))epsilon k_B ((Theta_(amb)-Theta_(ref))^4-(Theta(x,y)-Theta_(ref))^( 4))^(︷^( heat radiation boundary ))+|_(Gamma_(x=0))h (Theta_(ext)(x,y)-Theta(x,y))^(︷^( heat transfer boundary ))

Set up the heat transfer model variables vars:

Wolfram Language code: vars = {Θ[x, y], {x, y}};

Set up a rectangular domain with a width of and a height of :

Wolfram Language code: Ω = Rectangle[{0, 0}, {0.02, 0.01}];

Specify thermal conductivity :

Wolfram Language code: pars = <|"ThermalConductivity" -> 3|>;

Set up temperature surface boundary conditions at the left and right boundaries:

Wolfram Language code: Subscript[Γ, temp] = HeatTemperatureCondition[x == 0 || x == 0.02, vars, pars, <|"SurfaceTemperature" -> 1173|>]

Set up a heat transfer boundary condition on the top surface:

Wolfram Language code: Subscript[Γ, convective] = HeatTransferValue[y == 0.01, vars, pars, <|"AmbientTemperature" -> 323, "HeatTransferCoefficient" -> 50|>]

Also set up a thermal radiation boundary condition on the top surface:

Wolfram Language code: Subscript[Γ, radiation] = HeatRadiationValue[y == 0.01, vars, pars, <|"AmbientTemperature" -> 323.|>]

Set up the equation:

Wolfram Language code: eqn = {HeatTransferPDEComponent[vars, pars] == Subscript[Γ, convective] + Subscript[Γ, radiation], Subscript[Γ, temp]}

Solve the PDE:

Wolfram Language code: Tfun = NDSolveValue[eqn, Θ, {x, y}∈Ω];

Visualize the solution:

Wolfram Language code: Legended[ContourPlot[Tfun[x, y], {x, y}∈Ω, ...], BarLegend[...]]

Applications  (1)

Model the temperature field and a thermal radiation boundary with:

rho C_p(partialTheta(t, x))/(partialt)+del .(-k del Theta(t,x))^(︷^( heat transfer model )) =|_(Gamma_(x=0))epsilon k_B ((Theta_(amb)-Theta_(ref))^4-(Theta-Theta_(ref))^( 4))^(︷^( heat radiation boundary ))

Set up the heat transfer model variables vars:

Wolfram Language code: vars = {Θ[t, x], t, {x}};

Set up a region region:

Wolfram Language code: region = Line[{{0}, {1 / 5}}];

Specify heat transfer model parameters density , specific heat capacity and thermal conductivity :

Wolfram Language code: pars = <|"MassDensity" -> 1.2, "SpecificHeatCapacity" -> 1006.14, "ThermalConductivity" -> 0.026, "ReferenceTemperature" -> -273.15|>;

Specify boundary condition parameters with a constant ambient temperature of and a surface emissivity of :

Wolfram Language code: pars["BC1"] = <|"Emissivity" -> 0.2, "AmbientTemperature" -> -25|>;

Specify the equation:

Wolfram Language code: eqn = HeatTransferPDEComponent[vars, pars] == HeatRadiationValue[x == 0, vars, pars, "BC1"]

Solve the PDE:

Wolfram Language code: Tfun = NDSolveValue[{eqn, Θ[0, x] == 0}, Θ, {t, 0, 600}, x∈region];

Visualize the solution:

Wolfram Language code: Manipulate[Plot[Tfun[t, x], {x, 0, 1 / 5}, ...], {{t, 180}, 0, 600, 20}, Rule[...]]
