BooleanRegion

BooleanRegion[bfunc,{reg1,reg2,…}]

represents the Boolean combination bfunc of regions reg1, reg2, ….

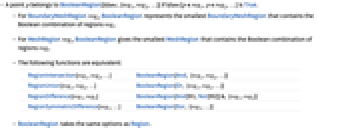

Details and Options

Examples

open all close all

Basic Examples  (2)

The Boolean Xor of two disks:

Wolfram Language code: BooleanRegion[Xor, {Disk[{-1 / 3, 0}, 1], Disk[{1 / 3, 0}, 1]}];

Visualize it:

Wolfram Language code: Region[%]

A Boolean function applied to MeshRegion objects:

Wolfram Language code: BooleanRegion[¬#2∧#1&, {[image], [image]}]

Scope  (11)

Special Regions  (5)

A Boolean Or of Line regions:

Wolfram Language code: ℛ = BooleanRegion[Or, {Line[{{1}, {2}}], Line[{{3}, {4}}], Line[{{5}, {6}}]}];

Visualize it:

Wolfram Language code: Region[ℛ]

A BooleanCountingFunction applied to Polygon regions:

Wolfram Language code: pts = {{-5, 0}, {1, -2}, {-1, 0}, {1, 2}}; {p1, p2, p3, p4} = Polygon /@ {pts, -pts, Reverse /@ pts, -Reverse /@ pts};
Wolfram Language code: ℛ = BooleanRegion[BooleanCountingFunction[{1, 2}, 4], {p1, p2, p3, p4}];

Compute its Area:

Wolfram Language code: Area[ℛ]

A Boolean Xor of two Disk regions:

Wolfram Language code: ℛ = BooleanRegion[Xor, {Disk[{0, 0}, 1], Disk[{1, 0}, 1]}];

Visualize it:

Wolfram Language code: Region[ℛ]

A Boolean Or of two Cuboid regions:

Wolfram Language code: ℛ = BooleanRegion[Or, {Cuboid[], Cuboid[{0.5, 0.5, 0.5}]}];

Visualize it:

Wolfram Language code: Region[ℛ]

A Boolean And of regions with different RegionDimension:

Wolfram Language code: ℛ = BooleanRegion[And, {Disk[{0, 0}, 1], Circle[{0, 1}, 1]}];

Visualize it:

Wolfram Language code: Region[ℛ]

Formula Regions  (2)

A Boolean Xor of ImplicitRegion objects is an ImplicitRegion:

Wolfram Language code: Subscript[ℛ, 1] = ImplicitRegion[x ≤ 1, {x}]; Subscript[ℛ, 2] = ImplicitRegion[x ≥ -1, {x}];
Wolfram Language code: BooleanRegion[Xor, {Subscript[ℛ, 1], Subscript[ℛ, 2]}]

2D:

Wolfram Language code: Subscript[ℛ, 1] = ImplicitRegion[x^2 + y^2 ≤ 1, {x, y}]; Subscript[ℛ, 2] = ImplicitRegion[x^2 + (y - 1)^2 ≤ 1, {x, y}];
Wolfram Language code: BooleanRegion[Xor, {Subscript[ℛ, 1], Subscript[ℛ, 2]}]

3D:

Wolfram Language code: Subscript[ℛ, 1] = ImplicitRegion[x^2 + y^2 + z^2 ≤ 1, {x, y, z}]; Subscript[ℛ, 2] = ImplicitRegion[(x - 1)^2 + y^2 + z^2 ≤ 1, {x, y, z}];
Wolfram Language code: BooleanRegion[Xor, {Subscript[ℛ, 1], Subscript[ℛ, 2]}]

nD:

Wolfram Language code: Subscript[ℛ, 1] = ImplicitRegion[x^2 + y^2 + z^2 + u^2 + v^2 ≤ 1, {x, y, z, u, v}]; Subscript[ℛ, 2] = ImplicitRegion[(x - 1)^2 + y^2 + z^2 + u^2 + v^2 ≤ 1, {x, y, z, u, v}];
Wolfram Language code: BooleanRegion[Xor, {Subscript[ℛ, 1], Subscript[ℛ, 2]}]

A Boolean function applied to ParametricRegion objects:

Wolfram Language code: Subscript[ℛ, 1] = ParametricRegion[{u, v, w}, {{u, 0, 2}, {v, 0, 2}, {w, 0, 2}}]; Subscript[ℛ, 2] = ParametricRegion[{u - 1, v + 1, w - 1}, {{u, 0, 2}, {v, 0, 2}, {w, 0, 2}}];
Wolfram Language code: ℛ = BooleanRegion[¬#1∧#2&, {Subscript[ℛ, 1], Subscript[ℛ, 2]}];

Visualize it:

Wolfram Language code: Region[ℛ]

Mesh Regions  (2)

A Boolean function of BoundaryMeshRegion objects is a BoundaryMeshRegion:

Wolfram Language code: BooleanRegion[¬#2∧#1&, {[image], [image]}]
Wolfram Language code: BoundedRegionQ[%]

2D:

Wolfram Language code: BooleanRegion[¬#2∧#1&, {[image], [image]}]
Wolfram Language code: BoundedRegionQ[%]

3D:

Wolfram Language code: BooleanRegion[¬#2∧#1&, {[image], [image]}]
Wolfram Language code: BoundedRegionQ[%]

A Boolean function of full dimensional MeshRegion objects is a MeshRegion:

Wolfram Language code: BooleanRegion[¬#2∧#1&, {[image], [image]}]
Wolfram Language code: MeshRegionQ[%]

2D:

Wolfram Language code: BooleanRegion[¬#2∧#1&, {[image], [image]}]
Wolfram Language code: MeshRegionQ[%]

3D:

Wolfram Language code: BooleanRegion[¬#2∧#1&, {[image], [image]}]
Wolfram Language code: MeshRegionQ[%]

Derived Regions  (2)

A Boolean function of BooleanRegion objects:

Wolfram Language code: Subscript[ℛ, 1] = BooleanRegion[Or, {Triangle[{{0, 0}, {2, 3}, {-2, 3}}], Triangle[{{0, 2}, {2, -1}, {-2, -1}}]}]; Subscript[ℛ, 2] = BooleanRegion[And, {Triangle[{{0, 0}, {2, 3}, {-2, 3}}], Triangle[{{0, 2}, {2, -1}, {-2, 2}}]}];
Wolfram Language code: ℛ = BooleanRegion[¬#2∧#1&, {Subscript[ℛ, 1], Subscript[ℛ, 2]}];

Visualize it:

Wolfram Language code: Region[ℛ]

A Boolean Or of TransformedRegion objects:

Wolfram Language code: Subscript[ℛ, 1] = TransformedRegion[Cuboid[], RotationTransform[Pi / 8, {1, 0, 0}]]; Subscript[ℛ, 2] = TransformedRegion[Cuboid[], RotationTransform[Pi / 8, {0, 1, 0}]];
Wolfram Language code: ℛ = BooleanRegion[Or, {Subscript[ℛ, 1], Subscript[ℛ, 2]}];

Visualize it:

Wolfram Language code: Region[ℛ]

Applications  (1)

Boolean operations over regions:

Wolfram Language code: {a, b} = {[image], [image]};
Wolfram Language code: Multicolumn[Table[BooleanRegion[op, {a, b}, PlotLabel -> op, BaseStyle -> Opacity[0.7]], {op, {Or, And, ¬#2∧#1&, #1⊻#2&}}], 2]

Properties & Relations  (2)

RegionUnion is a Boolean combination Or of regions:

Wolfram Language code: {Subscript[ℛ, 1], Subscript[ℛ, 2]} = {[image], [image]};
Wolfram Language code: RegionUnion[Subscript[ℛ, 1], Subscript[ℛ, 2]] == BooleanRegion[Or, {Subscript[ℛ, 1], Subscript[ℛ, 2]}]

RegionIntersection:

Wolfram Language code: RegionIntersection[Subscript[ℛ, 1], Subscript[ℛ, 2]] == BooleanRegion[And, {Subscript[ℛ, 1], Subscript[ℛ, 2]}]

RegionDifference:

Wolfram Language code: RegionDifference[Subscript[ℛ, 1], Subscript[ℛ, 2]] == BooleanRegion[¬#2∧#1&, {Subscript[ℛ, 1], Subscript[ℛ, 2]}]

RegionSymmetricDifference:

Wolfram Language code: RegionSymmetricDifference[Subscript[ℛ, 1], Subscript[ℛ, 2]] == BooleanRegion[Xor, {Subscript[ℛ, 1], Subscript[ℛ, 2]}]

The RegionMeasure of a Boolean And obeys a simple formula:

Wolfram Language code: Subscript[ℛ, 1] = Disk[{0, 0}, 1]; Subscript[ℛ, 2] = Disk[{1, 0}, 1]; Subscript[ℛ, 3] = BooleanRegion[And, {Subscript[ℛ, 1], Subscript[ℛ, 2]}];

Subtract the measure of the RegionUnion from the sum of the measures:

Wolfram Language code: RegionMeasure[Subscript[ℛ, 3]] == RegionMeasure[Subscript[ℛ, 1]] + RegionMeasure[Subscript[ℛ, 2]] - RegionMeasure[RegionUnion[Subscript[ℛ, 1], Subscript[ℛ, 2]]]

Possible Issues  (3)

BooleanRegion is defined only for regions with the same RegionEmbeddingDimension:

Wolfram Language code: Subscript[ℛ, 1] = Disk[]; Subscript[ℛ, 2] = Ball[{0, 0, 1}, 1];
Wolfram Language code: BooleanRegion[Or, {Subscript[ℛ, 1], Subscript[ℛ, 2]}]

Components of dimension less than the embedding dimension may be omitted:

Wolfram Language code: Subscript[ℛ, 1] = MeshRegion[{{0, 0, 0}, {2, 0, 0}, {2, 2, 0}, {1, 1, 2}}, Tetrahedron[{1, 2, 3, 4}]]; Subscript[ℛ, 2] = MeshRegion[{{0, 0, 0}, {2, 2, 0}, {0, 2, 0}, {1, 1, 2}}, Tetrahedron[{1, 2, 3, 4}], PlotTheme -> "Web"];
Wolfram Language code: Show[{Subscript[ℛ, 1], Subscript[ℛ, 2]}]
Wolfram Language code: BooleanRegion[And, {Subscript[ℛ, 1], Subscript[ℛ, 2]}]

Turn on a message:

Wolfram Language code: On[BooleanRegion::drc]
Wolfram Language code: BooleanRegion[And, {Subscript[ℛ, 1], Subscript[ℛ, 2]}]

BooleanRegion may include overlapping lower-dimensional components:

Wolfram Language code: Subscript[ℛ, 1] = Sphere[]; Subscript[ℛ, 2] = Ball[{1 / 2, 0, 0}];
Wolfram Language code: Graphics3D[{Yellow, Subscript[ℛ, 1], Green, Opacity@.5, Subscript[ℛ, 2]}]
Wolfram Language code: Subscript[ℛ, 3] = BooleanRegion[Or, {DiscretizeGraphics[Subscript[ℛ, 1]], BoundaryDiscretizeGraphics[Subscript[ℛ, 2]]}]

The connected mesh components:

Wolfram Language code: ConnectedMeshComponents[Subscript[ℛ, 3]]

Neat Examples  (1)

The Boolean Xor of two spiral polygons:

Wolfram Language code: BooleanRegion[Xor, {[image], [image]}]
