StraussHardcorePointProcess

StraussHardcorePointProcess[μ,γ,rh,rs,d]

represents a Strauss hardcore point process with constant intensity μ, interaction parameter γ, hard-core interaction radius rh and Strauss interaction radius rs in .

Details

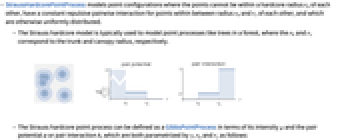

  • StraussHardcorePointProcess models point configurations where the points cannot be within a hardcore radius r_(h) of each other, have a constant repulsive pairwise interaction for points within between radius r_(h) and r_(s) of each other, and which are otherwise uniformly distributed.

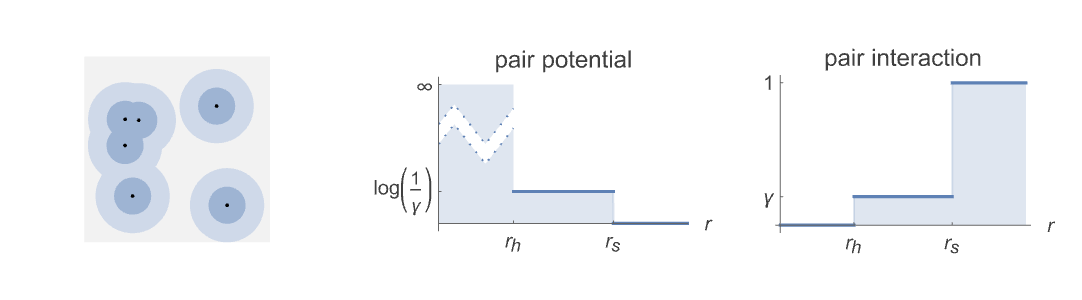

  • The Strauss hardcore model is typically used to model point processes like trees in a forest, where the r_(h) and r_(s) correspond to the trunk and canopy radius, respectively.
  • The Strauss hardcore point process can be defined as a GibbsPointProcess in terms of its intensity μ and the pair potential or pair interaction , which are both parametrized by γ, rh and rs as follows:

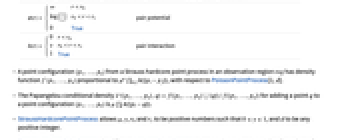

  • phi(r)= infty r<r_h; log(1/gamma) r_h<r<r_s; 0 TemplateBox[{True, paclet:ref/True}, RefLink, BaseStyle -> {2ColumnTableMod}]; pair potential
    h(r)= 0 r<r_h; gamma r_h<r<r_s; 1 TemplateBox[{True, paclet:ref/True}, RefLink, BaseStyle -> {2ColumnTableMod}]; pair interaction
  • A point configuration from a Strauss hardcore point process in an observation region reg has density function proportional to mu^n product_(i!=j)h(TemplateBox[{{{p, _, i}, -, {p, _, j}}}, Norm]), with respect to PoissonPointProcess[1,d].
  • The Papangelou conditional density for adding a point to a point configuration is mu product_ih(TemplateBox[{{{p, _, i}, -, q}}, Norm]).
  • StraussHardcorePointProcess allows μ, γ, rh and rs to be positive numbers such that , and d to be any positive integer.
  • StraussHardcorePointProcess simplifies to HardcorePointProcess when , or . Smaller values of gamma inhibit points being closer than r_(s).
  • Possible Method settings in RandomPointConfiguration for StraussPointProcess are:
  • "MCMC"Markov chain Monte Carlo birth and death
    "Exact"coupling from the past
  • Possible PointProcessEstimator settings in EstimatedPointProcess for StraussHardcorePointProcess are:
  • Automaticautomatically choose the parameter estimator
    "MaximumPseudoLikelihood"maximize the pseudo-likelihood
  • StraussHardcorePointProcess can be used with such functions as RipleyK and RandomPointConfiguration.

Examples

open all close all

Basic Examples  (2)

Sample from a Strauss hardcore point process:

Wolfram Language code: proc = StraussHardcorePointProcess[30, 0.1, 1., 2, 2];
Wolfram Language code: reg = Rectangle[{0, 0}, {10, 10}];
Wolfram Language code: pts = RandomPointConfiguration[proc, reg]

Visualize the points in the sample:

Wolfram Language code: ListPlot[pts]

Sample from a geo region:

Wolfram Language code: reg = Entity["Country", "Ireland"]
Wolfram Language code: pts = RandomPointConfiguration[ StraussHardcorePointProcess[1 / Quantity[2, "Kilometers"] ^ 2, .5, Quantity[20., "Kilometers"], Quantity[40., "Kilometers"], 2], reg]

Visualize the points:

Wolfram Language code: GeoListPlot[pts]

Scope  (5)

Generate three realizations from a Strauss hardcore point process:

Wolfram Language code: proc = StraussHardcorePointProcess[100, 0.1, 0.1, .3, 2]; reg = Disk[];
Wolfram Language code: pts = RandomPointConfiguration[proc, reg, 3]
Wolfram Language code: ListPlot[pts]

Estimate the parameters:

Wolfram Language code: Clear[μ, γ, rh, rs, d];EstimatedPointProcess[pts, StraussHardcorePointProcess[μ, γ, rh, rs, d]]

Generate three realizations from a Strauss hardcore point process in the geo region:

Wolfram Language code: μ = Quantity[.5, "Kilometers" ^ -2]; γ = .5; rh = Quantity[5., "Kilometers"]; rs = Quantity[10., "Kilometers"]; proc = StraussHardcorePointProcess[μ, γ, rh, rs, 2];
Wolfram Language code: reg = GeoDisk[Entity["City", {"Vancouver", "BritishColumbia", "Canada"}], Quantity[30, "Kilometers"]];
Wolfram Language code: pts = RandomPointConfiguration[proc, reg, 3]

Visualize the point configurations:

Wolfram Language code: GeoListPlot[pts]

Estimate the parameters:

Wolfram Language code: Clear[μ, γ, rh, rs, d];EstimatedPointProcess[pts, StraussHardcorePointProcess[μ, γ, rh, rs, d]]

Generate samples with increasing hardcore radius:

Wolfram Language code: proc[r_] := StraussHardcorePointProcess[10, 0.5, r, .1, 2];
Wolfram Language code: sample[r_] := RandomPointConfiguration[proc[r], Rectangle[{0, 0}, {10, 10}]]
Wolfram Language code: range = {.5, 1, 2};
Wolfram Language code: Table[ListPlot[sample[r], PlotLabel -> Row[{"r = ", r}]], {r, range}]

Generate samples with increasing Strauss radius:

Wolfram Language code: proc[r_] := StraussHardcorePointProcess[10, 0.5, .1, r, 2];
Wolfram Language code: sample[r_] := RandomPointConfiguration[proc[r], Rectangle[{0, 0}, {10, 10}]]
Wolfram Language code: range = {.5, 1, 2};
Wolfram Language code: Table[ListPlot[sample[r], PlotLabel -> Row[{"r = ", r}]], {r, range}]

Generate samples with increasing interacting parameter γ:

Wolfram Language code: proc[γ_] := StraussHardcorePointProcess[10, γ, .1, 1, 2];
Wolfram Language code: sample[γ_] := RandomPointConfiguration[proc[γ], Rectangle[{0, 0}, {10, 10}]];
Wolfram Language code: gammas = {0.01, 0.1, 0.9};
Wolfram Language code: Table[ListPlot[sample[γ], PlotLabel -> Row[{"γ = ", γ}]], {γ, gammas}]

Options  (4)

Method  (4)

Simulate using the Markov chain Monte Carlo method:

Wolfram Language code: proc = StraussHardcorePointProcess[100, .2, .01, .02 , 2]; reg = Disk[];
Wolfram Language code: RandomPointConfiguration[proc, reg, Method -> "MCMC"]

Specify the number of recursive calls to the sampler:

Wolfram Language code: RandomPointConfiguration[proc, reg, Method -> {"MCMC", MaxRecursion -> 6}]

Specify the length of run:

Wolfram Language code: RandomPointConfiguration[proc, reg, Method -> {"MCMC", "LengthOfRun" -> 5 * 10 ^ 4}]

Provide an initial state for the simulation:

Wolfram Language code: proc = StraussHardcorePointProcess[50, 0.3, .1, .2, 2]; reg = Disk[];
Wolfram Language code: RandomPointConfiguration[proc, reg, Method -> {"MCMC", "InitialState" -> RandomPoint[reg, 100]}]

Provide an initial state for the simulation:

Wolfram Language code: proc = StraussHardcorePointProcess[50, 0.3, rHC = .1, .2, 2]; reg = Disk[];
Wolfram Language code: pts1 = RandomPointConfiguration[proc, reg, Method -> {"MCMC", "InitialState" -> {{1, 0}, {0, 1}}}]

The initial state must have nonzero density to ensure that the result does:

Wolfram Language code: minDistance[pts_] := Min@Nearest[pts -> "Distance", pts, 2][[All, 2]]
Wolfram Language code: init = RandomPoint[reg, 100]; minDistance[init] > rHC
Wolfram Language code: pts2 = RandomPointConfiguration[proc, reg, Method -> {"MCMC", "InitialState" -> init, "LengthOfRun" -> 10}]

Check if the minimal distance between the points is smaller than the hardcore radius:

Wolfram Language code: minDistance[pts2["Points"]] > rHC
Wolfram Language code: minDistance[pts1["Points"]] > rHC

Sample using an exact method:

Wolfram Language code: proc = StraussHardcorePointProcess[10, .05, .01, .1, 2];
Wolfram Language code: reg = Rectangle[];
Wolfram Language code: pts = RandomPointConfiguration[proc, reg, Method -> "Exact"]

Visualize the points in the sample:

Wolfram Language code: ListPlot[pts]

Possible Issues  (1)

By default, the simulation will run until the number of points converges to a steady state, or until the default number of iterations is reached:

Wolfram Language code: proc = StraussHardcorePointProcess[10 ^ 3, .2, .01, .02 , 2]; reg = Disk[];
Wolfram Language code: RandomPointConfiguration[proc, reg]

Raise the number of recursive calls to the sampler:

Wolfram Language code: RandomPointConfiguration[proc, reg, Method -> {"MCMC", MaxRecursion -> 6}]

Increase the length of run:

Wolfram Language code: RandomPointConfiguration[proc, reg, Method -> {"MCMC", "LengthOfRun" -> 5 * 10 ^ 4}]
