StraussPointProcess

StraussPointProcess[μ,γ,rs,d]

represents a Strauss point process with constant intensity μ, interaction parameter γ and interaction radius rs in d.

Details

  • StraussPointProcess models point configurations with a constant repulsive pairwise interaction for points within radius rs of each other but that are otherwise uniformly distributed.
  • The Strauss model is typically used when the process interaction has a constant penalty for points within radius rs, including for locations of plants, birds nests and biological cells.
  •

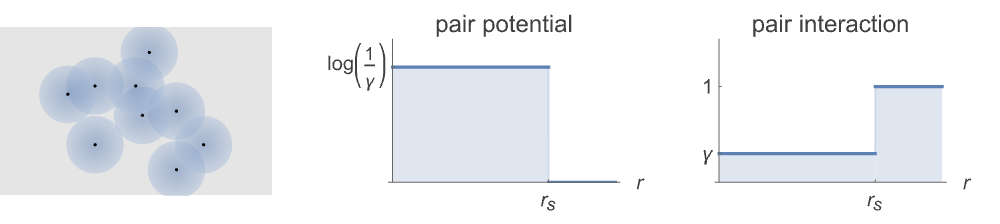

  • The Strauss point process can be defined as a GibbsPointProcess in terms of its intensity μ and the pair potential ϕ or pair interaction h, which are both parametrized by γ and rs as follows:
  • pair potential
    pair interaction
  • A point configuration from a Strauss point process StraussPointProcess[μ,γ,rs,d] in an observation region reg has density function proportional to , where m=sum_(i!=j)Boole[TemplateBox[{{{p, _, i}, -, {p, _, j}}}, Norm]<r_s] with respect to PoissonPointProcess[1,d].
  • The Papangelou conditional density for adding a point to a point configuration is where m=sum_iBoole[TemplateBox[{{{p, _, i}, -, q}}, Norm]<r_s].
  • StraussPointProcess allows μ, γ and r_(s) to be any positive numbers such that , and d to be any positive integer.
  • StraussPointProcess simplifies to HardcorePointProcess when and to PoissonPointProcess when . Smaller values of gamma inhibit points being closer than r_(s).
  • Possible Method settings in RandomPointConfiguration for StraussPointProcess are:
  • "MCMC"Markov chain Monte Carlo birth and death
    "Exact"coupling from the past
  • Possible PointProcessEstimator settings in EstimatedPointProcess for StraussPointProcess are:
  • Automaticautomatically choose the parameter estimator
    "MaximumPseudoLikelihood"maximize the pseudo-likelihood
  • StraussPointProcess can be used with such functions as RipleyK and RandomPointConfiguration.

Examples

open all close all

Basic Examples  (2)

Sample from a Strauss point process:

Wolfram Language code: domain = Rectangle[{0, 0}, {10, 10}];
Wolfram Language code: pts = RandomPointConfiguration[StraussPointProcess[30, 0.1, 1., 2], domain]

Visualize the points in the sample:

Wolfram Language code: ListPlot[pts]

Sample from a geo region:

Wolfram Language code: reg = Entity["Country", "Switzerland"]
Wolfram Language code: pts = RandomPointConfiguration[StraussPointProcess[Quantity[1., "Kilometers" ^ -2], .5, Quantity[50., "Kilometers"], 2], reg]
Wolfram Language code: GeoListPlot[pts]

Scope  (4)

Generate several realizations from a Strauss point process in :

Wolfram Language code: proc = StraussPointProcess[100, 0.5, 0.1, 2]; reg = Rectangle[];
Wolfram Language code: sample = RandomPointConfiguration[proc, reg, 3]
Wolfram Language code: ListPlot[sample]

Estimate the process:

Wolfram Language code: Clear[μ, γ, R];EstimatedPointProcess[sample, StraussPointProcess[μ, γ, R, 2]]

Generate several realizations from a Strauss point process on the surface of the Earth:

Wolfram Language code: μ = Quantity[10. ^ -2, "Kilometers" ^ -2]; rs = Quantity[5., "Kilometers"]; γ = .5;
Wolfram Language code: proc = StraussPointProcess[μ, γ, rs, 2]; reg = GeoDisk[Entity["Island", "Santorini"], Quantity[30, "Kilometers"]];
Wolfram Language code: sample = RandomPointConfiguration[proc, reg, 2]
Wolfram Language code: GeoListPlot[sample]

Estimate the process:

Wolfram Language code: Clear[μ, γ, rs]; EstimatedPointProcess[sample, StraussPointProcess[μ, γ, rs, 2]]

Generate samples with an increasing interacting radius:

Wolfram Language code: proc = StraussPointProcess[10, 0.3, r, 2];
Wolfram Language code: sample[r_] := RandomPointConfiguration[proc, Rectangle[{0, 0}, {10, 10}]]
Wolfram Language code: range = {.5, 1, 2};
Wolfram Language code: Table[ListPlot[sample[r], PlotLabel -> Row[{"r = ", r}]], {r, range}]

Generate samples with increasing interacting parameter γ:

Wolfram Language code: proc = StraussPointProcess[10, γ, 1, 2];
Wolfram Language code: sample[γ_] := RandomPointConfiguration[proc, Rectangle[{0, 0}, {10, 10}]];
Wolfram Language code: gammas = {0.01, 0.1, 0.9};
Wolfram Language code: samples = Table[sample[γ], {γ, gammas}];
Wolfram Language code: Table[ListPlot[sample[γ], PlotLabel -> Row[{"γ = ", γ}]], {γ, gammas}]

Options  (4)

Method  (4)

Use the Markov chain Monte Carlo simulation method:

Wolfram Language code: proc = StraussPointProcess[10 ^ 3, .2, .1, 2]; reg = Disk[];
Wolfram Language code: RandomPointConfiguration[proc, reg, Method -> "MCMC"]

Specify the number of recursive calls to the sampler:

Wolfram Language code: RandomPointConfiguration[proc, reg, Method -> {"MCMC", MaxRecursion -> 6}]

Specify the length of run:

Wolfram Language code: RandomPointConfiguration[proc, reg, Method -> {"MCMC", "LengthOfRun" -> 5000}]

Provide an initial state for the simulation:

Wolfram Language code: proc = StraussPointProcess[50, 0.3, .1, 2]; reg = Disk[];
Wolfram Language code: RandomPointConfiguration[proc, reg, Method -> {"MCMC", "InitialState" -> RandomPoint[reg, 100]}]

Visualize the birth and death process at different stages:

Wolfram Language code: proc = StraussPointProcess[50, 0.3, .1, 2]; reg = Disk[];
Wolfram Language code: path = Table[ BlockRandom[ SeedRandom[1]; RandomPointConfiguration[proc, reg, Method -> {"MCMC", "InitialState" -> {{0., 0.4}, {-0.3, -0.2}}, "LengthOfRun" -> len}]["Points"]] , {len, 1, 100}];
Wolfram Language code: Animate[ Graphics[{Lighter[GrayLevel[.4], .8], Disk[{0, 0}, 1.02], Black, PointSize[0.02], Point[path[[i]]]}] , {i, 1, Length[path], 1}, TrackedSymbols :> i, SaveDefinitions -> True, AnimationRate -> 2, AnimationRunning -> False]

Use coupling from the past for exact sampling:

Wolfram Language code: proc = StraussPointProcess[8, 0.4, 0.2, 2];
Wolfram Language code: pts = RandomPointConfiguration[proc, Rectangle[{0, 0}, {5, 5}], Method -> "Exact"]
Wolfram Language code: ListPlot[pts]

Applications  (1)

Compute the average number of points in a unit disk for a Strauss point process:

Wolfram Language code: 𝒟 = PointCountDistribution[StraussPointProcess[20, 1, .2, 2], Disk[]];
Wolfram Language code: NExpectation[n, n𝒟, Method -> {"MonteCarlo", "SamplingIncrement" -> 10 ^ 4}]

Possible Issues  (2)

By default, the simulation will run until the number of points converges to a steady state, or until the default number of iterations is reached:

Wolfram Language code: proc = StraussPointProcess[10 ^ 3, .2, .01, 2]; reg = Disk[];
Wolfram Language code: RandomPointConfiguration[proc, reg]

Raise the number of recursive calls to the sampler:

Wolfram Language code: RandomPointConfiguration[proc, reg, Method -> {"MCMC", MaxRecursion -> 6}]

Specify a larger length of run:

Wolfram Language code: RandomPointConfiguration[proc, reg, Method -> {"MCMC", "LengthOfRun" -> 5 * 10 ^ 4}]

The objective function for estimating the parameters is the pseudo log-likelihood:

Wolfram Language code: proc = StraussPointProcess[50, 0.5, 0.1, 2]; reg = Rectangle[];
Wolfram Language code: BlockRandom[sample = RandomPointConfiguration[proc, reg], RandomSeeding -> 4]
Wolfram Language code: est = EstimatedPointProcess[sample, StraussPointProcess[μ, γ, r, 2]]

The estimated process has a higher pseudo log-likelihood:

Wolfram Language code: sample["PseudoLogLikelihood", est]
Wolfram Language code: sample["PseudoLogLikelihood", proc]

Both processes generate data that looks similar:

Wolfram Language code: sample2 = RandomPointConfiguration[est, reg]
Wolfram Language code: ListPlot[{sample["Points"], sample2["Points"]}]
