WaveletPsi

WaveletPsi[wave,x]

gives the wavelet function for the symbolic wavelet wave evaluated at x.

WaveletPsi[wave]

gives the wavelet function as a pure function.

Details and Options

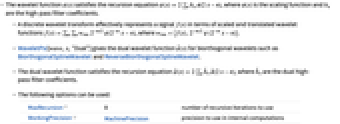

  • The wavelet function satisfies the recursion equation , where is the scaling function and are the high-pass filter coefficients.
  • A discrete wavelet transform effectively represents a signal in terms of scaled and translated wavelet functions , where .
  • WaveletPsi[wave,x,"Dual"] gives the dual wavelet function for biorthogonal wavelets such as BiorthogonalSplineWavelet and ReverseBiorthogonalSplineWavelet.
  • The dual wavelet function satisfies the recursion equation , where are the dual high-pass filter coefficients.
  • The following options can be used:
  • MaxRecursion 8number of recursive iterations to use
    WorkingPrecision MachinePrecisionprecision to use in internal computations

Examples

open all close all

Basic Examples  (3)

Haar wavelet function:

Wolfram Language code: Plot[WaveletPsi[HaarWavelet[], x], {x, -1, 2}, Exclusions -> None]
Wolfram Language code: WaveletPsi[HaarWavelet[], x, WorkingPrecision -> ∞]

Daubechies wavelet function:

Wolfram Language code: Plot[WaveletPsi[DaubechiesWavelet[4], x], {x, -3, 4}, PlotRange -> All]
Wolfram Language code: WaveletPsi[DaubechiesWavelet[4], x]

Mexican hat wavelet function:

Wolfram Language code: Plot[WaveletPsi[MexicanHatWavelet[1], x], {x, -5, 5}, PlotRange -> All]
Wolfram Language code: WaveletPsi[MexicanHatWavelet[1], x]

Scope  (5)

Compute primal wavelet function:

Wolfram Language code: ψ = WaveletPsi[DaubechiesWavelet[3]]
Wolfram Language code: Plot[ψ[x], {x, -2, 3}, PlotRange -> All]

Dual wavelet function:

Wolfram Language code: Overscript[ψ, ~] = WaveletPsi[BiorthogonalSplineWavelet[3, 5], x, "Dual"]
Wolfram Language code: Plot[Overscript[ψ, ~], {x, -3, 4}, PlotRange -> All]

Wavelet function for discrete wavelets, including HaarWavelet:

Wolfram Language code: Plot[WaveletPsi[HaarWavelet[], x], {x, -0.5, 1.5}, Exclusions -> None]

DaubechiesWavelet:

Wolfram Language code: Plot[WaveletPsi[DaubechiesWavelet[3], x], {x, -2, 3}, PlotRange -> All]

SymletWavelet:

Wolfram Language code: Plot[WaveletPsi[SymletWavelet[5], x], {x, -4, 5}, PlotRange -> All]

CoifletWavelet:

Wolfram Language code: Plot[WaveletPsi[CoifletWavelet[2], x], {x, -5, 6}, PlotRange -> All]

BiorthogonalSplineWavelet:

Wolfram Language code: Plot[WaveletPsi[BiorthogonalSplineWavelet[2, 4], x], {x, -2, 3}, PlotRange -> All]

ReverseBiorthogonalSplineWavelet:

Wolfram Language code: Plot[WaveletPsi[ReverseBiorthogonalSplineWavelet[5, 5], x], {x, -4, 5}, PlotRange -> All]

CDFWavelet:

Wolfram Language code: Plot[WaveletPsi[CDFWavelet[], x], {x, -3, 4}, PlotRange -> All]

ShannonWavelet:

Wolfram Language code: Plot[WaveletPsi[ShannonWavelet[8], x], {x, -8, 8}, PlotRange -> All]

BattleLemarieWavelet:

Wolfram Language code: Plot[Re@WaveletPsi[BattleLemarieWavelet[6, 8], x], {x, -8, 8}, PlotRange -> All]

MeyerWavelet:

Wolfram Language code: Plot[Re@WaveletPsi[MeyerWavelet[2, 5], x], {x, -5, 5}, PlotRange -> All]

Wavelet function for continuous wavelets, including DGaussianWavelet:

Wolfram Language code: Plot[WaveletPsi[DGaussianWavelet[3], x], {x, -5, 5}, PlotRange -> All]

MexicanHatWavelet:

Wolfram Language code: Plot[WaveletPsi[MexicanHatWavelet[1], x], {x, -5, 5}, PlotRange -> All]

GaborWavelet:

Wolfram Language code: Plot[{Re[WaveletPsi[GaborWavelet[1], x]], Im[WaveletPsi[GaborWavelet[1], x]]}, {x, -5, 5}, PlotRange -> All]

ShannonWavelet:

Wolfram Language code: Plot[WaveletPsi[ShannonWavelet[8], x], {x, -8, 8}, PlotRange -> All]

MorletWavelet:

Wolfram Language code: Plot[WaveletPsi[MorletWavelet[], x], {x, -5, 5}, PlotRange -> All]

PaulWavelet:

Wolfram Language code: Plot[{Re[WaveletPsi[PaulWavelet[4], x]], Im[WaveletPsi[PaulWavelet[4], x]]}, {x, -2, 2}, PlotRange -> All]

Multivariate scaling and wavelet functions are products of univariate ones:

Wolfram Language code: ϕ = WaveletPhi[DaubechiesWavelet[3]]; ψ = WaveletPsi[DaubechiesWavelet[3]];
Wolfram Language code: Plot3D[Evaluate[ϕ[x]ψ[y]], {x, 0, 5}, {y, 0, 5}, PlotRange -> All, ColorFunction -> "SolarColors", Mesh -> None, Axes -> None]
Wolfram Language code: Plot3D[Evaluate[ϕ[x]ψ[y]], {x, 0, 5}, {y, -2, 3}, PlotRange -> All, ColorFunction -> "SolarColors", Mesh -> None, Axes -> None]
Wolfram Language code: Plot3D[Evaluate[ψ[x]ϕ[y]], {x, -2, 3}, {y, 0, 5}, PlotRange -> All, ColorFunction -> "SolarColors", Mesh -> None, Axes -> None]
Wolfram Language code: Plot3D[Evaluate[ψ[x]ψ[y]], {x, -2, 3}, {y, -2, 3}, PlotRange -> All, ColorFunction -> "SolarColors", Mesh -> None, Axes -> None]

Options  (3)

MaxRecursion  (1)

Plot wavelet function using different levels of recursion:

Wolfram Language code: Table[Plot[WaveletPsi[DaubechiesWavelet[2], x, MaxRecursion -> i], {x, -1, 2}, PlotLabel -> i, PlotRange -> All], {i, 1, 8, 2}]

WorkingPrecision  (2)

By default WorkingPrecision->MachinePrecision is used:

Wolfram Language code: Subscript[ψ, 1] = WaveletPsi[DaubechiesWavelet[4]]
Wolfram Language code: Subscript[ψ, 2] = WaveletPsi[DaubechiesWavelet[4], WorkingPrecision -> MachinePrecision]
Wolfram Language code: Subscript[ψ, 1] == Subscript[ψ, 2]

Use higher-precision filter computation:

Wolfram Language code: WaveletPsi[DaubechiesWavelet[4], 2, WorkingPrecision -> 20]
Wolfram Language code: Precision[%]

Properties & Relations  (4)

Wavelet function integrates to zero :

Wolfram Language code: Integrate[WaveletPsi[HaarWavelet[], x], {x, -∞, ∞}]

satisfies the recursion equation :

Wolfram Language code: ϕ = WaveletPhi[DaubechiesWavelet[2]];
Wolfram Language code: b = WaveletFilterCoefficients[DaubechiesWavelet[2], "PrimalHighpass"];

Plot the components and the sum of the recursion:

Wolfram Language code: wavelet[x_, ϕ_, b_] := 2Table[b[[i, 2]]ϕ[2x - b[[i, 1]]], {i, Length[b]}]
Wolfram Language code: {Plot[Evaluate@wavelet[x, ϕ, b], {x, -1, 2}, PlotRange -> All], Plot[Total@wavelet[x, ϕ, b], {x, -1, 2}, PlotRange -> All]}

Frequency response for is given by :

Wolfram Language code: g[wav_, ω_] := With[{b = WaveletFilterCoefficients[wav, "PrimalHighpass"]}, Sum[b[[i, 2]]Exp[-I b[[i, 1]]ω], {i, Length[b]}] ]

The filter is a high-pass filter:

Wolfram Language code: Plot[Abs[g[DaubechiesWavelet[2], ω]], {ω, -π, π}, Ticks -> {{-π, -(π/2), 0, (π/2), π}, Automatic}, AxesLabel -> {ω, Abs[G[ω]]}]

Fourier transform of is given by :

Wolfram Language code: h[wav_, ω_] := With[{a = WaveletFilterCoefficients[wav]}, Sum[a[[i, 2]]Exp[-I a[[i, 1]]ω], {i, Length[a]}]]
Wolfram Language code: g[wav_, ω_] := With[{b = WaveletFilterCoefficients[wav, "PrimalHighpass"]}, Sum[b[[i, 2]]Exp[-I b[[i, 1]]ω], {i, Length[b]}] ]
Wolfram Language code: fg[wav_, ω_, j_] := Abs[g[wav, (ω/2)]Product[h[wav, (ω/2^i)], {i, j}]]
Wolfram Language code: Plot[fg[DaubechiesWavelet[2], ω, 10], {ω, -10Pi, 10Pi}, PlotRange -> All, AxesLabel -> {ω, Overscript[ψ, ^ ][ω]}]

Neat Examples  (1)

Plot translates and dilations of wavelet function:

Wolfram Language code: ψ[x_, j_, k_] := 2^j / 2WaveletPsi[BiorthogonalSplineWavelet[1, 3], 2^jx - k]
Wolfram Language code: Plot[Evaluate@Table[ψ[x, j, 0], {j, 0, 4}], {x, -0.5, 1}, Filling -> Axis, PlotRange -> All, Axes -> {True, False}]
Wolfram Language code: Plot[Evaluate@Table[ψ[x, 2, k], {k, 0, 2^2 - 1}], {x, -0.5, 1.5}, Filling -> Axis, PlotRange -> All]
