WaveletExplorer

As of Version 8, the functionality of the Wavelet Explorer add-on has been integrated into the Wolfram System.

Wavelet Filters

The following is a list of filters available in Wavelet Explorer, along with the equivalent form in Version 8.

HaarFilter[]	WaveletFilterCoefficients[HaarWavelet[]]
DaubechiesFilter[n]	WaveletFilterCoefficients[DaubechiesWavelet[n]]
LeastAsymmetricFilter[n]	WaveletFilterCoefficients[SymletWavelet[n]]
CoifletFilter[n]	WaveletFilterCoefficients[CoifletWavelet[n]]
ShannonFilter[lim]	WaveletFilterCoefficients[ShannonWavelet[lim]]
MeyerFilter[n,lim]	WaveletFilterCoefficients[MeyerWavelet[n,lim]]
SplineFilter[n,lim]	WaveletFilterCoefficients[BattleLemarieWavelet[n,lim]]
BiorthogonalSplineFilter[n,m]	WaveletFilterCoefficients[BiorthogonalSplineWavelet[n,m]]
HighpassFilter[h]	WaveletFilterCoefficients[wave,"PrimalHighpass"]

Built-in function equivalents.

To compute wavelet coefficients, use the built-in function WaveletFilterCoefficients.

Wavelet Explorer

Wolfram Language code: WaveletFilterCoefficients[DaubechiesWavelet[2]]

Note that all wavelet coefficients are scaled by relative to the results from Wavelet Explorer, so to get the equivalent values, you must multiply the result by .

Wolfram Language code: {#[[1]], Sqrt[2]#[[2]]}& /@ WaveletFilterCoefficients[DaubechiesWavelet[2]]

To compute high-pass filter coefficients, use the "PrimalHighpass" argument to WaveletFilterCoefficients.

Wavelet Explorer

Wolfram Language code: WaveletFilterCoefficients[DaubechiesWavelet[2], "PrimalHighpass"]

Scaling and Wavelet Functions

The following is a list of functions available in Wavelet Explorer, along with the equivalent form in Version 8.

ScalingFunction[filt,j]	WaveletPhi[wave]
Wavelet[wave,j]	WaveletPsi[wave]
ShannonPhi[t]	WaveletPhi[ShannonWavelet[lim],t]
ShannonPsi[t]	WaveletPsi[ShannonWavelet[lim],t]
MeyerPhi[n,t,lim]	WaveletPhi[MeyerWavelet[n,lim],t]
MeyerPsi[n,t,lim]	WaveletPsi[MeyerWavelet[n,lim],t]
SplinePhi[n,t,lim]	WaveletPhi[BattleLemarieWavelet[n,lim],t]
SplinePsi[n,t,lim]	WaveletPsi[BattleLemarieWavelet[n,lim],t]
BSpline[n,t]	BSplineBasis[{n,{u₁,u₂,…}},0,t]
DScalingFunction[filt,jmax,m]	Dt[WaveletPhi[wave,t],{t,m}]
DWavelet[filt,jmax,m]	Dt[WaveletPsi[wave,t],{t,m}]

Built-in function equivalents.

The functionality of ScalingFunction is now available by using WaveletPhi.

Wavelet Explorer

Wolfram Language code: Plot[WaveletPhi[DaubechiesWavelet[2], x], {x, 0, 3}]

To find the derivative of the scaling function, use Dt and WaveletPhi.

Wavelet Explorer

Wolfram Language code: Plot[Evaluate[Dt[WaveletPhi[DaubechiesWavelet[6], x], {x, 1}]], {x, 0, 11}, PlotRange -> All]

The functionality of DWavelet is now available by using Dt and WaveletPsi.

Wavelet Explorer

Wolfram Language code: Plot[Evaluate[Dt[WaveletPsi[SymletWavelet[10], x], {x, 1}]], {x, -9, 10}, PlotRange -> {{-5, 5}, All}]

Compute higher-order derivatives of the scaling and wavelet function.

Wolfram Language code: wave = SymletWavelet[10];

The InterpolatingFunction outputted from WaveletPhi and WaveletPsi has InterpolationOrder set to 1. Hence the second derivative comes out to be 0.

Wolfram Language code: func = WaveletPsi[wave, x]

Wolfram Language code: Plot[Evaluate[Dt[func, {x, 2}]], {x, -9, 10}, PlotRange -> {{-5, 5}, All}]

Resampling and interpolating with a higher InterpolationOrder resolves the issue.

Wavelet Explorer

Wolfram Language code: ifunc = ListInterpolation[Table[WaveletPsi[wave, x], {x, -9, 10, 0.01}], {-9, 10}]

Wolfram Language code: Plot[Evaluate[Dt[ifunc[x], {x, 2}]], {x, -9, 10}, PlotRange -> {{-5, 5}, All}]

The functionality of BSpline is now available by using the built-in function BSplineBasis.

Wavelet Explorer

Wolfram Language code: bspline[n_, t_] := BSplineBasis[{n, Range[-Floor[(n + 1/2)], Ceiling[(n + 1/2)]]}, 0, t]

Wolfram Language code:

Plot[bspline[6, t], {t, -3, 4},
PlotRange -> All]

Wavelet Transforms

The following is a list of wavelet transforms available in Wavelet Explorer, along with the equivalent form in Version 8.

WaveletTransform[data,filt,j]	DiscreteWaveletTransform[data,wave,j]
InverseWaveletTransform[wd,filt]	InverseWaveletTransform[dwd]
WaveletPacketCoefficients[data,filt,j]	DiscreteWaveletPacketTransform[data,filt,j]
WaveletPacketTransform[data,filt,l]	WaveletBestBasis[DiscreteWaveletPacketTransform[…]]
InverseWaveletPacketTransform[wpdata,filt]	InverseWaveletTransform[dwd]

Built-in function equivalents. The function MRDecomposition is not directly supported with built-in functionality.

The functionality of WaveletTransform is now available by using DiscreteWaveletTransform.

Wavelet Explorer

Wolfram Language code: Simplify@DiscreteWaveletTransform[Range[4], WorkingPrecision -> ∞][Automatic]

To compute a packet transform, use DiscreteWaveletPacketTransform.

Wavelet Explorer

Wolfram Language code: dwpt = DiscreteWaveletPacketTransform[Range[8], DaubechiesWavelet[2], 2]

Use InverseWaveletTransform to compute the inverse:

Wavelet Explorer

Wolfram Language code: InverseWaveletTransform[dwpt]

The functionality of MRDecomposition can be replicated as follows.

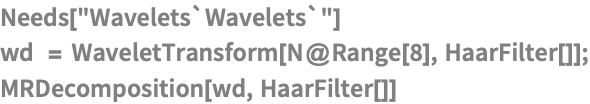

Wavelet Explorer Needs["Wavelets`Wavelets`"]
wd = WaveletTransform[N@Range[8], HaarFilter[]];
MRDecomposition[wd, HaarFilter[]]

Wolfram Language code: dwd = DiscreteWaveletTransform[Range[8]];

Wolfram Language code: InverseWaveletTransform[wd, Automatic, #]& /@ wd["BasisIndex"]

Wolfram Language code: Total[%]

Sine & Cosine Transforms

The following is a list of functions available in Wavelet Explorer, along with the equivalent form in Version 8.

CosTransform[data,n, BasisType->m]	FourierDCT[data,m]
SinTransform[data,n,BasisType->m]	FourierDST[data,m]
InverseCosTransform[cdata]	FourierDCT[cdata,m]
InverseSinTransform[sdata]	FourierDST[sdata,m]

Built-in function equivalents. The functions CosPacketCoefficients, SinPacketCoefficients, CosPacketTransform, SinPacketTransform, InverseCosPacketTransform, InverseSinPacketTransform, MalvarTransform, and InverseMalvarTransform are not directly supported with built-in functionality.

To compute SinTransform, use the built-in function FourierDST.

Wavelet Explorer

Wolfram Language code: FourierDST[{Range[8]}, 4]

SinTransform with a specified second argument.

Wavelet Explorer

Wolfram Language code: Map[FourierDST[#, 4]&, Partition[Range[8], 2]]

In one dimension, the functionality of SinPacketCoefficients can be replicated as follows.

Wavelet Explorer

Wolfram Language code:

sinPacketCoefficients[data_ ? VectorQ, j_Integer, ftype_Integer ? (1 ≤ # ≤ 4&)] :=
	Module[{sdata, l},
	(* Split data into octave lengths *)
	l = 2^Range[j, 0, -1];
	sdata = Rest@FoldList[{id, oct}  Flatten[Map[Partition[#, oct]&, id], 1], {data}, l];
	(* Map FourierDST over the data *)
	Map[FourierDST[#, ftype]&, sdata, {2}]
	]

Wolfram Language code: sinPacketCoefficients[Range[8], 3, 4]

Similarly, we can write CosPacketCoefficients using FourierDCT.

Wavelet Explorer

Wolfram Language code:

cosPacketCoefficients[data_ ? VectorQ, j_Integer, ftype_Integer ? (1 ≤ # ≤ 4&)] := Module[{sdata, l},
	(* Split data into octave lengths *)
	l = 2^Range[j, 0, -1];sdata = Rest[FoldList[Function[{id, oct}, Flatten[(Partition[#1, oct]&) /@ id, 1]], {data}, l]];
	(* Split data into octave lengths *)
	Map[FourierDCT[#1, ftype]&, sdata, {2}]]

Wolfram Language code: cosPacketCoefficients[Range[8], 3, 4]

Other Utilities

The following is a list of functions available in Wavelet Explorer, along with the equivalent form in Version 8.

PlotCoefficients[wd]	WaveletListPlot[dwd]
PhaseSpacePlot[wd]	WaveletScalogram[dwd]
ShowBasisPosition[wd]	DiscreteWaveletData[…]["BestBasisBlockView"]
PlotCoefficients2D[wd]	WaveletMatrixPlot[dwd]
ShowBasisPosition2D[wd]	DiscreteWaveletData[…]["BestBasisBlockView"]
WaveletCompress[wd,…]	WaveletThreshold[dwd,tspec]

Built-in function equivalents. The functions GrayCodeOrder and CumulativeEnergy are not directly supported with built-in functionality.

To plot wavelet coefficients, use WaveletScalogram.

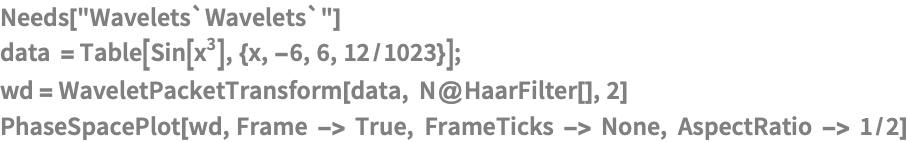

Wavelet Explorer $Needs["Wavelets`Wavelets`"] data = Table[Sin[x^3], {x, -6, 6, 12/1023}]; wd = WaveletPacketTransform[data, N@HaarFilter[], 2] PhaseSpacePlot[wd, Frame -> True, FrameTicks -> None, AspectRatio -> 1/2]$

Wolfram Language code: dwd = DiscreteWaveletPacketTransform[Table[Sin[x^3], {x, -6, 6, 12 / 1023}], HaarWavelet[], 2]

Wolfram Language code: WaveletScalogram[dwd, Frame -> True, FrameTicks -> None, AspectRatio -> 1 / 2]

Use WaveletThreshold for data compression.

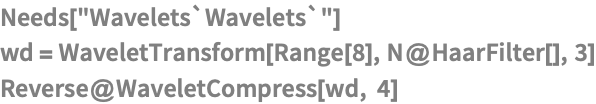

Wavelet Explorer Needs["Wavelets`Wavelets`"]
wd = WaveletTransform[Range[8], N@HaarFilter[], 3]
Reverse@WaveletCompress[wd, 4]

Wolfram Language code:

SeedRandom[11];
data = RandomReal[1, {16}];

Wolfram Language code: dwd = DiscreteWaveletTransform[Range[8], HaarWavelet[], 3]

Wolfram Language code: WaveletThreshold[dwd, {"LargestCoefficients", 4}, Automatic][Automatic, "Values"]

The function CumulativeEnergy can be written as follows.

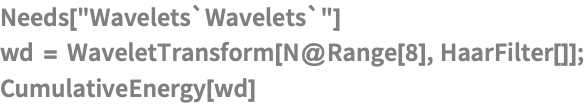

Wavelet Explorer Needs["Wavelets`Wavelets`"]
wd = WaveletTransform[N@Range[8], HaarFilter[]];
CumulativeEnergy[wd]

Wolfram Language code: dwd = DiscreteWaveletTransform[Range[8], HaarWavelet[]];

Wolfram Language code:

cumulativeEnergy[data_] := Accumulate[Reverse[Sort[Abs[Flatten[data]]]]^2]
cumulativeEnergy[data_, n_Integer] := Accumulate[Reverse[Take[Sort[Abs[Flatten[data]]], -n]]^2]

Wolfram Language code: cumulativeEnergy[dwd[Automatic, "Values"]]

Wolfram Language code: cumulativeEnergy[dwd[Automatic, "Values"], 4]
