AppellF2

AppellF2[a,b1,b2,c1,c2,x,y]

is the Appell hypergeometric function of two variables .

Details

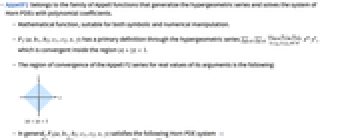

  • AppellF2 belongs to the family of Appell functions that generalize the hypergeometric series and solves the system of Horn PDEs with polynomial coefficients.
  • Mathematical function, suitable for both symbolic and numerical manipulation.
  • has a primary definition through the hypergeometric series , which is convergent inside the region TemplateBox[{x}, Abs]+TemplateBox[{y}, Abs]<1.
  • The region of convergence of the Appell F2 series for real values of its arguments is the following:
  • In general, satisfies the following Horn PDE system »:
  • reduces to when or .
  • For certain special arguments, AppellF2 automatically evaluates to exact values.
  • AppellF2 can be evaluated to arbitrary numerical precision.

Examples

open all close all

Basic Examples  (7)

Evaluate numerically:

Wolfram Language code: AppellF2[2, 1, 3, 4, 5, 0.6, 0.3]

The defining sum:

Wolfram Language code: Sum[x^m y^n( Pochhammer[a, m + n]Pochhammer[b1, m] Pochhammer[b2, n]/Pochhammer[c1, m]Pochhammer[c2, n] m! n!), {m, 0, Infinity}, {n, 0, Infinity}]

Plot over a subset of the reals:

Wolfram Language code: Plot[AppellF2[2, 1, 1 / 2, 1 / 3, 2, 1 / 3, y], {y, -3 / 4, 1 / 4}]

Plot over a subset of the complexes:

Wolfram Language code: Plot[Abs[AppellF2[1 / 2, 1 / 3, 1 / 4, 1 / 5, 1 / 6, 1 / 7, z I]], {z, -3 / 4, 3 / 4}]

Plot a family of AppellF2 functions:

Wolfram Language code: Plot[Table[Abs[AppellF2[1 / 2, 1 / 3, 1 / 4, 1 / 5, 1 / 6, n / 10 I, z I]], {n, -5, 5, 1}]//Evaluate, {z, -3 / 4, 3 / 4}]

Series expansion at the origin:

Wolfram Language code: Series[AppellF2[1, 1, 1, 1, 3, 4, x], {x, 0, 3}]

TraditionalForm formatting:

Wolfram Language code: AppellF2[a, Subscript[b, 1], Subscript[b, 2], Subscript[c, 1], Subscript[c, 2], x, y]//TraditionalForm

Scope  (17)

Numerical Evaluation  (6)

Evaluate numerically:

Wolfram Language code: AppellF2[3, 2, 1, 2, 3, 1 / 3, 0.2]
Wolfram Language code: AppellF2[-2, -1, -2, 5, 2 / 3 + I, 0.4, 0.3]

Evaluate to high precision:

Wolfram Language code: N[AppellF2[3, 2, 1, 2, 3, 1 / 3, 2 / 5], 10]

The precision of the output tracks the precision of the input:

Wolfram Language code: AppellF2[3, 2, 1, 2, 3, 1 / 3, 0.400000000000000000001]

Complex number inputs:

Wolfram Language code: AppellF2[I, 1, 1 + I, 3.2, 1 / 2, 0.5, 0.2 + 0.5 I]

Evaluate AppellF2 efficiently at high precision:

Wolfram Language code: AppellF2[3, 2, 1, 2, 1 / 3, 1 / 7, 1 / 5`100]//Timing
Wolfram Language code: AppellF2[3, 2, 1, 2, 7, 1 / 3, -1 / 5`100 + I];//Timing

Compute average-case statistical intervals using Around:

Wolfram Language code: AppellF2[ 1 / 2, 1, 5 / 2, 3, 1, 0, Around[2.1, 0.01]]

Compute the elementwise values of an array:

Wolfram Language code: AppellF2[1 / 2, 1, 1 / 2, 1 / 2, 1, 0, {{1 / 2, 2}, {2, 1 / 2}}]

Or compute the matrix AppellF2 function using MatrixFunction:

Wolfram Language code: MatrixFunction[AppellF2[1 / 2, 1, 1 / 2, 1 / 2, 1, 0, #]&, {{1 / 2, 2}, {2, 1 / 2}}]//FullSimplify

Specific Values  (3)

Values at fixed points:

Wolfram Language code: AppellF2[1 / 2, 0, 1 / 2, 1, 1 / 2, 0, 2]
Wolfram Language code: AppellF2[1 / 2, 1 / 3, 1 / 4, 1 / 5, 1 / 2, 0, 2]

Simplify to Hypergeometric2F1 functions:

Wolfram Language code: AppellF2[a, Subscript[b, 1], Subscript[b, 2], Subscript[c, 1], Subscript[c, 2], x, 0]
Wolfram Language code: AppellF2[a, Subscript[b, 1], Subscript[b, 2], Subscript[c, 1], Subscript[c, 2], 0, y]

Value at zero:

Wolfram Language code: AppellF2[a, Subscript[b, 1], Subscript[b, 2], Subscript[c, 1], Subscript[c, 2], 0, 0]

Visualization  (3)

Plot the AppellF2 function for various parameters:

Wolfram Language code: Plot[{AppellF2[2, 1, 3, 1 / 3, 2, x, 1 / 3], AppellF2[2, 1, 3, 1 / 3, 2, x, 1 / 4], AppellF2[2, 1, 3, 1 / 3, 2, x, 1 / 5]}, {x, -1 / 2, 1 / 2}]

Plot AppellF2 as a function of its second parameter :

Wolfram Language code: Plot[{AppellF2[2, 1, 1 / 2, 1 / 3, 2, 1 / 3, y], AppellF2[2, 1, 1 / 2, 1 / 3, 2, 1 / 4, y], AppellF2[2, 1, 1 / 2, 1 / 3, 2, 1 / 5, y]}, {y, -1 / 2, 1 / 2}]

Plot the real part of :

Wolfram Language code: ComplexContourPlot[Re[AppellF2[2, 1, 3, 1 / 3, 2, 0, z]], {z, -1 - I, 1 + I}]

Plot the imaginary part of :

Wolfram Language code: ComplexContourPlot[Im[AppellF2[2, 1, 3, 1 / 3, 2, 0, z]], {z, -5 - 5I, 5 + 5I}]

Differentiation  (4)

First derivative with respect to x:

Wolfram Language code: D[AppellF2[a, Subscript[b, 1], Subscript[b, 2], Subscript[c, 1], Subscript[c, 2], x, y], x]

First derivative with respect to y:

Wolfram Language code: D[AppellF2[a, Subscript[b, 1], Subscript[b, 2], Subscript[c, 1], Subscript[c, 2], x, y], y]

Higher derivatives with respect to y:

Wolfram Language code: Table[D[AppellF2[a, Subscript[b, 1], Subscript[b, 2], Subscript[c, 1], Subscript[c, 2], x, y], {y, k}], {k, 1, 3}]//FullSimplify

Plot the higher derivatives with respect to y when a=b1=b2=2, c1=c2=5 and x=1/5:

Wolfram Language code: Plot[Evaluate[% /. {a -> 2, Subscript[b, 1] -> 2, Subscript[b, 2] -> 2, Subscript[c, 1] -> 5, Subscript[c, 2] -> 5, x -> 1 / 5}], {y, -1 / 2, 1 / 2}, Rule[...]]

Formula for the ^(th) derivative with respect to y:

Wolfram Language code: D[AppellF2[a, Subscript[b, 1], Subscript[b, 2], Subscript[c, 1], Subscript[c, 2], x, y], {y, n}]

Series Expansions  (1)

Find the Taylor expansion using Series:

Wolfram Language code: Series[AppellF2[a, Subscript[b, 1], Subscript[b, 2], Subscript[c, 1], Subscript[c, 2], x, y], {x, 0, 2}]//Normal//FullSimplify

Plots of the first three approximations around :

Wolfram Language code: terms = Normal@Table[Series[AppellF2[1 / 2, 1 / 3, 1 / 4, 1 / 5, 1 / 6, x, .3], {x, 0, m}], {m, 1, 5, 2}]; Plot[{AppellF2[1 / 2, 1 / 3, 1 / 4, 1 / 5, 1 / 6, x, .3], terms}, {x, 0, 1 / 2}]

Applications  (1)

The Appell function solves the following system of PDEs with polynomial coefficients:

Wolfram Language code: pde = {x (1 - x) f^(2, 0)[x, y] - x y f^(1, 1)[x, y] + (Subscript[c, 1] - (a + Subscript[b, 1] + 1)x)f^(1, 0)[x, y] - Subscript[b, 1] y f^(0, 1)[x, y] - a Subscript[b, 1] f[x, y] == 0, y (1 - y) f^(0, 2)[x, y] - x y f^(1, 1)[x, y] + (Subscript[c, 2] - (a + Subscript[b, 2] + 1)y)f^(0, 1)[x, y] - Subscript[b, 2] x f^(1, 0)[x, y] - a Subscript[b, 2] f[x, y] == 0};

Check that is a solution:

Wolfram Language code: (pde /. {a -> 2, Subscript[b, 1] -> 1, Subscript[b, 2] -> 1 / 2, Subscript[c, 1] -> 1 / 3, Subscript[c, 2] -> 2}) /. f -> Function[{x, y}, AppellF2[2, 1, 1 / 2, 1 / 3, 2, x, y]];
Wolfram Language code: % /. Thread[{x, y} -> RandomReal[{-3 / 4, 3 / 4}, {2}, WorkingPrecision -> 20]]

Neat Examples  (1)

Many elementary and special functions are special cases of AppellF2:

Wolfram Language code: funclist = Inactivate[...];
Wolfram Language code: Grid[...]//TraditionalForm
