InfinitePlane

InfinitePlane[{p₁,p₂,p₃}]

represents the plane passing through the points p₁, p₂, and p₃.

InfinitePlane[p,{v₁,v₂}]

represents the plane passing through the point p in the directions v₁ and v₂.

Details

InfinitePlane is also known as plane or hyperplane.

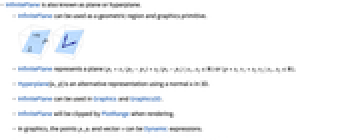

InfinitePlane can be used as a geometric region and graphics primitive.

InfinitePlane represents a plane or .
Hyperplane[n,p] is an alternative representation using a normal n in 3D.
InfinitePlane can be used in Graphics and Graphics3D.
InfinitePlane will be clipped by PlotRange when rendering.
In graphics, the points p, p_i and vector v can be Dynamic expressions.
Graphics rendering is affected by directives such as FaceForm, Opacity, and color.
FaceForm[front,back] can be used to specify different styles for the front and back in 3D. The front is defined by the right-hand rule and the direction of the points p_i or the vectors v_i.
InfinitePlane can be used with functions such as RegionMeasure, RegionCentroid, etc.

Examples

open all close all

Basic Examples (3)

An InfinitePlane in 3D:

Wolfram Language code: Graphics3D[InfinitePlane[{{1, 0, 0}, {1, 1, 1}, {0, 0, 1}}]]

Different styles applied to an infinite plane:

Wolfram Language code: ℛ = InfinitePlane[{{1, 0, 0}, {1, 1, 1}, {0, 0, 1}}];

Wolfram Language code:

{Graphics3D[{Pink, ℛ}], Graphics3D[{EdgeForm[Thick], Pink, ℛ}], Graphics3D[{EdgeForm[Dashed], Pink, ℛ}], Graphics3D[{EdgeForm[Directive[Thick, Dashed, Blue]], Pink, ℛ}]}

Determine if points belong to a given infinite plane:

Wolfram Language code: ℛ = InfinitePlane[{{1, 0, 0}, {1, 0, 1}, {1, 1, 0}}];

Wolfram Language code: {RegionMember[ℛ, {1, 2, 3}], RegionMember[ℛ, {0, 2, 3}]}

Scope (17)

Graphics (7)

Specification (2)

Define an infinite plane in 3D using three points:

Wolfram Language code: ill = Graphics3D[{PointSize[Medium], Point[{{1, 0, 0}, {1, 1, 1}, {0, 0, 1}}]}, PlotRange -> 2, Axes -> True];

Wolfram Language code: Show[ill, Graphics3D[InfinitePlane[{{1, 0, 0}, {1, 1, 1}, {0, 0, 1}}]]]

Define the same plane using a single point and two tangent vectors:

Wolfram Language code:

ill = Graphics3D[{PointSize[Medium], Point[{{1, 0, 0}}], Arrowheads[Medium], Thick, Arrow[{{1, 0, 0}, {1, 1, 1}}], Arrow[{{1, 0, 0}, {0, 0, 1}}]}, PlotRange -> 2, Axes -> True];

Wolfram Language code: Show[ill, Graphics3D[InfinitePlane[{1, 0, 0}, {{0, 1, 1}, {-1, 0, 1}}]]]

An infinite plane varying in direction:

Wolfram Language code:

Table[Graphics3D[InfinitePlane[{0, 0, 0}, {{1, 0, 0}, {1, Cos[θ], Sin[θ]}}], ImageSize -> Tiny, PlotLabel -> θ], {θ, 0, π, π / 4}]

Styling (2)

Color directives specify the color of the infinite plane:

Wolfram Language code: Table[Graphics3D[{c, InfinitePlane[{1, 0, 0}, {{0, 1, 1}, {-1, 0, 1}}]}], {c, {Red, Green, Yellow, Blue}}]

FaceForm and EdgeForm can be used to specify the styles of the faces and edges:

Wolfram Language code:

Graphics3D[{FaceForm[Pink], EdgeForm[Directive[Dashed, Thick, Blue]], InfinitePlane[{1, 0, 0}, {{0, 1, 1}, {-1, 0, 1}}]}]

Coordinates (3)

Specify coordinates by fractions of the plot range:

Wolfram Language code:

Graphics3D[InfinitePlane[{Scaled[{0.5, 0, 0}], Scaled[{0, 0.5, 0}], Scaled[{0.5, 0.5, 0.5}]}], PlotRange -> {{0, 10}, {0, 10}, {0, 10}}, Axes -> True]

Specify scaled offsets from the ordinary coordinates:

Wolfram Language code:

Graphics3D[InfinitePlane[{Scaled[{0, 0, 0.5}, {1, 0, 0}], Scaled[{0, 0, 0.5}, {0, 1, 0}], Scaled[{0, 0, 0.5}, {1, 1, 1}]}], PlotRange -> {{0, 2}, {0, 2}, {0, 2}}, Axes -> True]

Points and vectors can be Dynamic:

Wolfram Language code:

DynamicModule[{θ = 0}, {Slider[Dynamic[θ], {0, Pi}], Graphics3D[InfinitePlane[{0, 0, 0}, {{1, 0, 0}, Dynamic[{1, Cos[θ], Sin[θ]}]}]]}]

Regions (10)

Embedding dimension is the dimension of the coordinates:

Wolfram Language code:

RegionEmbeddingDimension[InfinitePlane[{{Subscript[x, 0], Subscript[y, 0]}, {Subscript[x, 1], Subscript[y, 1]}, {Subscript[x, 2], Subscript[y, 2]}}]]

Wolfram Language code:

RegionEmbeddingDimension[InfinitePlane[{Subscript[x, 0], Subscript[y, 0], Subscript[z, 0]}, {{Subscript[vx, 1], Subscript[vy, 1], Subscript[vz, 1]}, {Subscript[vx, 2], Subscript[vy, 2], Subscript[vz, 2]}}]]

Geometric dimension is the dimension of the region itself:

Wolfram Language code:

RegionEmbeddingDimension[InfinitePlane[{{Subscript[x, 0], Subscript[y, 0]}, {Subscript[x, 1], Subscript[y, 1]}, {Subscript[x, 2], Subscript[y, 2]}}]]

Wolfram Language code:

RegionDimension[InfinitePlane[{Subscript[x, 0], Subscript[y, 0], Subscript[z, 0]}, {{Subscript[vx, 1], Subscript[vy, 1], Subscript[vz, 1]}, {Subscript[vx, 2], Subscript[vy, 2], Subscript[vz, 2]}}]]

Point membership test:

Wolfram Language code: ℛ = InfinitePlane[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}}];

Wolfram Language code: {RegionMember[ℛ, {2, 2, 0}], RegionMember[ℛ, {0, 0, 1}]}

Get the conditions for membership:

Wolfram Language code: RegionMember[ℛ, {x, y, z}]

An infinite plane has infinite measure and undefined centroid:

Wolfram Language code: ℛ = InfinitePlane[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}}];

Wolfram Language code: RegionMeasure[ℛ]

Wolfram Language code: RegionCentroid[ℛ]

Distance from a point:

Wolfram Language code: ℛ = InfinitePlane[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}}];

Wolfram Language code: RegionDistance[ℛ, {0, 0, -3}]

Signed distance from a point:

Wolfram Language code: SignedRegionDistance[ℛ, {0, 0, -3}]

Nearest point in the region:

Wolfram Language code: ℛ = InfinitePlane[{{0, 0, 0}, {1, 0, 0}, {0, 3, 1}}];

Wolfram Language code: RegionNearest[ℛ, {1, 2, 3}]

Nearest points:

Wolfram Language code:

pts = Flatten[Table[{Cos[k 2 π / 8]Cos[j π / 8], Sin[k 2 π / 8]Cos[j π / 8], Sin[j π / 8]}, {k, 0, 7}, {j, -3, 3}], 1];
nst = RegionNearest[ℛ, #]& /@ pts;

Wolfram Language code:

Legended[Graphics3D[{{Opacity[0.5], ℛ}, {Thin, Gray, Line[Transpose[{pts, nst}]]}, {Red, Point[pts]}, {Blue, Point[nst]}}, Boxed -> False], PointLegend[{Red, Blue}, {"start", "nearest"}]]

An infinite plane is unbounded:

Wolfram Language code:

ℛ = InfinitePlane[{{Subscript[x, 0], Subscript[y, 0], Subscript[z, 0]}, {Subscript[x, 1], Subscript[y, 1], Subscript[z, 1]}, {Subscript[x, 2], Subscript[y, 2], Subscript[z, 2]}}];

Wolfram Language code: BoundedRegionQ[ℛ]

Find the region range:

Wolfram Language code: RegionBounds[ℛ]

Integrate over an infinite plane:

Wolfram Language code: ℛ = InfinitePlane[{{0, 0, 0}, {1, 0, 0}, {0, 1, 1}}];

Wolfram Language code: Integrate[Exp[-x^2 - y^2], {x, y, z}∈ℛ]

Optimize over an infinite plane:

Wolfram Language code: ℛ = InfinitePlane[{0, 0, 2}, {{1, 0, 0}, {0, 1, 0}}];

Wolfram Language code: Minimize[{x^2 + y^2 + z^2 + 1, {x, y, z}∈ℛ}, {x, y, z}]

Solve equations over an infinite plane:

Wolfram Language code: ℛ = InfinitePlane[{0, 0, 0}, {{1, 2, 0}, {0, 0, 3}}];

Wolfram Language code: Reduce[x^2 + y^2 + z^2 == 1 && {x, y, z}∈ℛ, {x, y, z}]

Applications (7)

Find the plane in which a triangle is embedded:

Wolfram Language code: {Subscript[p, 1], Subscript[p, 2], Subscript[p, 3]} = {{1, 0, 0}, {1, 1, 1}, {0, 0, 1}};

InfinitePlane can use the same parametrization as Triangle:

Wolfram Language code:

Subscript[ℛ, 1] = Triangle[{Subscript[p, 1], Subscript[p, 2], Subscript[p, 3]}];
Subscript[ℛ, 2] = InfinitePlane[{Subscript[p, 1], Subscript[p, 2], Subscript[p, 3]}];

Wolfram Language code: Graphics3D[{Red, Subscript[ℛ, 1], Opacity[0.5, Yellow], Subscript[ℛ, 2]}, PlotRange -> {{-2, 2}, {-2, 2}, {-2, 2}}]

Find the plane in which a polygon is embedded:

Wolfram Language code:

p0 = {1, 1, 1};
e1 = Normalize[{2, 1, 1}];e2 = Normalize[{-1, 1, 2}];

Wolfram Language code: pl = With[{p = 5}, Table[p0 + Cos[2Pi k / p]e1 + Sin[2Pi k / p]e2, {k, p}]];

To find the plane, take the first three points (or any three points not on a line):

Wolfram Language code:

Subscript[ℛ, 1] = Polygon[pl];
Subscript[ℛ, 2] = InfinitePlane[pl[[1 ;; 3]]];

Wolfram Language code: Graphics3D[{Red, Subscript[ℛ, 1], Opacity[0.5, Yellow], Subscript[ℛ, 2]}, PlotRange -> {{-2, 2}, {-2, 2}, {-2, 2}}]

The tangent plane to a parametric surface f[u,v] is given by InfinitePlane[f[u,v],{∂_uf[u,v],∂_vf[u,v]}]. Find the tangent plane to the parametric surface :

Wolfram Language code: f1[u_, v_] := {Cos[u]Sin[v], Sin[u]Sin[v], Cos[v]};

Wolfram Language code:

s1 = ParametricPlot3D[f1[u, v], {u, 0, 2π}, {v, 0, π}];
t1 = With[{u = 3π / 4, v = π / 4}, Graphics3D[{Opacity[0.5], InfinitePlane[f1[u, v], {Derivative[1, 0][f1][u, v], Derivative[0, 1][f1][u, v]}]}]];

Wolfram Language code: Show[s1, t1, PlotRangePadding -> Scaled[0.2]]

Find the tangent plane to the surface :

Wolfram Language code: f2[u_, v_] := {4 + (3 + Cos[v]) Sin[u], 4 + (3 + Cos[v]) Cos[u], 4 + Sin[v]};

Wolfram Language code:

s2 = ParametricPlot3D[f2[u, v], {u, 0, 2π}, {v, 0, 2π}];
t2 = With[{u = 3π / 4, v = π / 4}, Graphics3D[{Opacity[0.5], InfinitePlane[f2[u, v], {Derivative[1, 0][f2][u, v], Derivative[0, 1][f2][u, v]}]}]];

Wolfram Language code: Show[s2, t2, PlotRangePadding -> Scaled[0.2]]

Find the intersection points of a sphere, a plane, and a surface defined by :

Wolfram Language code:

Subscript[ℛ, 1] = Sphere[];
Subscript[ℛ, 2] = InfinitePlane[{{0, 0, 0}, {0, 1, 0}, {1, 0, 1}}];

Wolfram Language code: pts = Solve[2 x y == z^2 && {x, y, z}∈Subscript[ℛ, 1] && {x, y, z}∈Subscript[ℛ, 2], {x, y, z}, Reals]

Visualize intersection points:

Wolfram Language code: intersections = {PointSize[Large], Red, Point[{x, y, z} /. pts]};

Wolfram Language code: r1 = {Opacity[0.5, LightBlue], Subscript[ℛ, 1]};

Wolfram Language code: r2 = {Opacity[0.5, Yellow], Subscript[ℛ, 2]};

Wolfram Language code:

r3 = ContourPlot3D[2 x y == z^2, {x, -1.2, 1.2}, {y, -1.2, 1.2}, {z, -1.2, 1.2}, Mesh -> None, ContourStyle -> Opacity[0.5]];

Wolfram Language code: Show[{Graphics3D[{r1, r2, intersections}], r3}, Boxed -> False]

Partition space in a BubbleChart:

Wolfram Language code: b = BubbleChart3D[RandomReal[1, {10, 4}]];

Wolfram Language code: p = InfinitePlane[{0, 0, 0}, {{0, 0, 1}, {1, 1, 0}}];

Combine the graphics:

Wolfram Language code: Show[b, Graphics3D[{Opacity@0.7, p}]]

Visualize a reflection plane:

Wolfram Language code:

pt = {1, 1, 1};
v1 = {3, -1, -2};
v2 = {-1, 3, -2};

Define a reflection plane:

Wolfram Language code: ip = InfinitePlane[pt, {v1, v2}];

Define a ReflectionTransform using a point on the plane and its normal vector:

Wolfram Language code: n = Cross[Normalize[v1], Normalize[v2]];

Wolfram Language code: rt = ReflectionTransform[n, pt];

Visualize the reflection of a unit cube about the plane:

Wolfram Language code: c = Cuboid[];

Wolfram Language code: Graphics3D[{Opacity[0.5], {Yellow, ip}, {Blue, c}, {Red, GeometricTransformation[c, rt]}}]

Properties & Relations (6)

InfinitePlane[{p₁,p₂,p₃}] is equivalent to InfinitePlane[p₁,{p₂-p₁,p₃-p₁}]:

Wolfram Language code: {Subscript[p, 1], Subscript[p, 2], Subscript[p, 3]} = {{1, 0, 0}, {1, 1, 1}, {0, 0, 1}};

Wolfram Language code:

Subscript[ℛ, 1] = InfinitePlane[{Subscript[p, 1], Subscript[p, 2], Subscript[p, 3]}];
Subscript[ℛ, 2] = InfinitePlane[Subscript[p, 1], {Subscript[p, 2] - Subscript[p, 1], Subscript[p, 3] - Subscript[p, 1]}];

Wolfram Language code: RegionEqual[Subscript[ℛ, 1], Subscript[ℛ, 2]]

InfinitePlane[p,{v₁,v₂}] is equivalent to Hyperplane[Cross[v₁,v₂],p] in 3D:

Wolfram Language code: Subscript[ℛ, 1] = InfinitePlane[{1, 2, 3}, {{1, 1, 0}, {0, 1, 1}}];

Wolfram Language code: Subscript[ℛ, 2] = Hyperplane[Cross[{1, 1, 0}, {0, 1, 1}], {1, 2, 3}];

Wolfram Language code: RegionEqual[Subscript[ℛ, 1], Subscript[ℛ, 2]]

ParametricRegion can represent any InfinitePlane:

Wolfram Language code: Subscript[ℛ, 1] = InfinitePlane[{1, 2, 3}, {{4, 5, 6}, {7, 8, 9}}];

Wolfram Language code: Subscript[ℛ, 2] = ParametricRegion[{1, 2, 3} + u{4, 5, 6} + v{7, 8, 9}, {{u, -∞, ∞}, {v, -∞, ∞}}];

Wolfram Language code: RegionEqual[Subscript[ℛ, 1], Subscript[ℛ, 2]]

ImplicitRegion can represent any InfinitePlane:

Wolfram Language code: Subscript[ℛ, 1] = ImplicitRegion[-9 (-1 + x) - 3 (-2 + y) + 4 (-3 + z) == 0, {x, y, z}];

Wolfram Language code: Subscript[ℛ, 2] = InfinitePlane[{{1, 2, 3}, {-4, 5, -6}, {7, -8, 9}}];

Wolfram Language code: RegionEqual[Subscript[ℛ, 1], Subscript[ℛ, 2]]

InfinitePlane is a special case of ConicHullRegion:

Wolfram Language code: pts = {{1, 2, 3}, {-4, 5, -6}, {7, -8, 9}};

Wolfram Language code: RegionEqual[ConicHullRegion[pts], InfinitePlane[pts]]

Any InfinitePlane can be represented as a union of two HalfPlane regions:

Wolfram Language code: {Subscript[p, 1], Subscript[v, 1], Subscript[v, 2]} = {{0, 1, 3}, {1, -1, -2}, {1, 1, 0}};

Wolfram Language code: Subscript[ℛ, 1] = InfinitePlane[Subscript[p, 1], {Subscript[v, 1], Subscript[v, 2]}];

Wolfram Language code:

Subscript[ℛ, 2] = RegionUnion[HalfPlane[Subscript[p, 1], Subscript[v, 1], Subscript[v, 2]], HalfPlane[Subscript[p, 1], Subscript[v, 1], -Subscript[v, 2]]];

Wolfram Language code: RegionEqual[Subscript[ℛ, 1], Subscript[ℛ, 2]]

Neat Examples (2)

A random collection of planes:

Wolfram Language code:

Graphics3D[Table[{Hue[RandomReal[]], InfinitePlane[RandomReal[1, {3, 3}]]}, {25}], Lighting -> "Neutral", PlotRange -> 1]

Sweep an infinite plane around an axis:

Wolfram Language code:

Table[Graphics3D[{Opacity[0.3], ColorData["Rainbow"][Rescale[θ, {0, π / 2}]], InfinitePlane[{0, 0, 0}, {{1, 0, 0}, {1, Cos[θ], Sin[θ]}}]}], {θ, 0, π, π / 12}]//Show
