RegionCentroid

RegionCentroid[reg]

gives the centroid of the region reg.

Details and Options

RegionCentroid is also known as center of mass, center of gravity, or barycenter.
The centroid is effectively given by Integrate[{x₁,…,x_n},{x₁,…,x_n}∈reg]/RegionMeasure[reg].
The centroid is in the region when the region is convex. Otherwise it is typically not in the region.

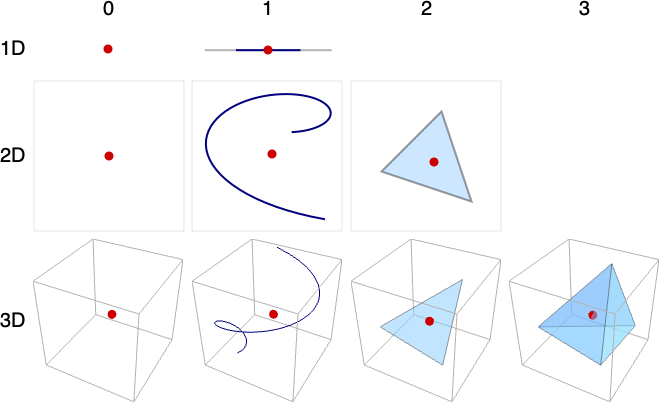

Examples of cases where rows correspond to embedding dimension and columns to geometric dimension:

If the region reg consists of a finite number of points, the RegionCentroid gives the mean.
A region with infinite RegionMeasure has no RegionCentroid and returns a point with Indeterminate coordinates.
RegionCentroid takes an Assumptions option that can be used to specify assumptions on parameters.
RegionCentroid can be used with symbolic regions in GeometricScene.

Examples

open all close all

Basic Examples (2)

Find the centroid of a region:

Wolfram Language code: RegionCentroid[Disk[{x, y}, r]]

Wolfram Language code: RegionCentroid[Rectangle[{a, b}, {c, d}]]

The centroid of a Polygon:

Wolfram Language code: ℛ = Polygon[{{0, 0}, {1, 0}, {1.5, 0.5}, {1, 1}, {0, 1}, {-0.5, 0.5}}];

Wolfram Language code: RegionCentroid[ℛ]

Wolfram Language code: Graphics[{LightBlue, ℛ, Red, Point[RegionCentroid[ℛ]]}]

Scope (25)

Special Regions (10)

The centroid for Point corresponds to the mean of the coordinates:

Wolfram Language code:

ℛ = Point[Tuples[Range[5], 2]];
Region[ℛ]

Wolfram Language code: RegionCentroid[ℛ]

Points can be used in any number of dimensions:

Wolfram Language code: RegionCentroid[Point[Tuples[Range[5], 4]]]

Line:

Wolfram Language code:

ℛ = Line[{{0, 0}, {1, 1}, {1, 0}}];
Graphics[{ℛ, Red, Point[RegionCentroid[ℛ]]}]

Wolfram Language code: RegionCentroid[ℛ]

Lines can be used in any number of dimensions:

Wolfram Language code: RegionCentroid[Line[{{0}, {1}}]]

Wolfram Language code: RegionCentroid[Line[{{0, 0, 0}, {1, 1, 1}}]]

Rectangle can be used in 2D:

Wolfram Language code: RegionCentroid[Rectangle[{Subscript[l, x], Subscript[l, y]}, {Subscript[u, x], Subscript[u, y]}]]

Wolfram Language code:

ℛ = Rectangle[{0, 1}, {3, 3}];
Graphics[{LightBlue, EdgeForm[Gray], ℛ, Red, Point[RegionCentroid[ℛ]]}]

Wolfram Language code: RegionCentroid[ℛ]

Cuboid can be used in any number of dimensions:

Wolfram Language code:

RegionCentroid[Cuboid[{Subscript[l, x], Subscript[l, y], Subscript[l, z]}, {Subscript[u, x], Subscript[u, y], Subscript[u, z]}]]

Wolfram Language code:

ℛ = Cuboid[{1, 2, 3}, {5, 5, 5}];
Graphics3D[{{Opacity[0.5], ℛ}, Red, Point[RegionCentroid[ℛ]]}]

Wolfram Language code: RegionCentroid[ℛ]

A 4D Cuboid:

Wolfram Language code:

RegionCentroid[Cuboid[{Subscript[l, x], Subscript[l, y], Subscript[l, z], Subscript[l, w]}, {Subscript[u, x], Subscript[u, y], Subscript[u, z], Subscript[u, w]}]]

A Simplex can correspond to a point, line, or triangle in 2D:

Wolfram Language code: ℛ = {Simplex[{{0, 0}}], Simplex[{{0, 0}, {1, 1}}], Simplex[{{0, 0}, {1, 0}, {0, 1}}]};

Wolfram Language code: Table[Framed@Graphics[{Lighter[Blue, 0.5], s, Red, Point[RegionCentroid[s]]}, ImageSize -> 50], {s, ℛ}]

Wolfram Language code: RegionCentroid /@ ℛ

Simplices can be used in any number of dimensions:

Wolfram Language code: RegionCentroid[Simplex[{{0}, {1}}]]

Wolfram Language code: RegionCentroid[Simplex[{{0, 0, 0}, {1, 0, 0}, {0, 1, 0}, {0, 0, 1}}]]

The centroid of a standard unit Simplex in dimension :

Wolfram Language code: Table[RegionCentroid[Simplex[n]], {n, 1, 5}]

The centroid of a Polygon may lie outside the region:

Wolfram Language code:

ℛ = Polygon[{{0, 0}, {3, -1}, {1, 0}, {3, 1}}];
Graphics[{LightBlue, EdgeForm[Gray], ℛ, Red, Point[RegionCentroid[ℛ]]}]

Wolfram Language code: RegionCentroid[ℛ]

In 3D:

Wolfram Language code:

ℛ = Polygon[{{0, 0, 0}, {(5/3), (2/3), -(4/3)}, {(8/15), (8/15), -(4/15)}, {1, 2, 0}}];
Graphics3D[{LightBlue, EdgeForm[Gray], ℛ, Red, Point[RegionCentroid[ℛ]]}]

Wolfram Language code: RegionCentroid[ℛ]

Disk can be used in 2D:

Wolfram Language code: RegionCentroid[Disk[{Subscript[c, x], Subscript[c, y]}, r]]

Wolfram Language code:

ℛ = Disk[{2, 3}, 2];
Graphics[{LightBlue, EdgeForm[Gray], ℛ, Red, Point[RegionCentroid[ℛ]]}]

Wolfram Language code: RegionCentroid[ℛ]

Ball can be used in any dimension:

Wolfram Language code: RegionCentroid[Ball[{Subscript[c, x], Subscript[c, y], Subscript[c, z]}, r]]

Wolfram Language code:

ℛ = Ball[{1, 2, 3}, 4];
Graphics3D[{{Opacity[0.5], ℛ}, Red, Point[RegionCentroid[ℛ]]}]

Wolfram Language code: RegionCentroid[ℛ]

In 4D:

Wolfram Language code: RegionCentroid[Ball[{Subscript[c, x], Subscript[c, y], Subscript[c, z], Subscript[c, w]}, r]]

Disk as an ellipse can be used in 2D:

Wolfram Language code: RegionCentroid[Disk[{Subscript[c, x], Subscript[c, y]}, {Subscript[r, x], Subscript[r, y]}]]

Wolfram Language code:

ℛ = Disk[{0, 0}, {3, 2}];
Graphics[{LightBlue, EdgeForm[Gray], ℛ, Red, Point[RegionCentroid[ℛ]]}]

Wolfram Language code: RegionCentroid[ℛ]

Ellipsoid can be used in any dimension:

Wolfram Language code:

RegionCentroid[Ellipsoid[{Subscript[c, x], Subscript[c, y], Subscript[c, z], Subscript[c, w]}, {Subscript[r, x], Subscript[r, y], Subscript[r, z], Subscript[r, w]}]]

Wolfram Language code:

ℛ = Ellipsoid[{0, 0, 0}, {3, 2, 1}];
Graphics3D[{{Opacity[0.5], ℛ}, Red, Point[RegionCentroid[ℛ]]}]

Wolfram Language code: RegionCentroid[ℛ]

Circle can be used in 2D:

Wolfram Language code: RegionCentroid[Circle[{Subscript[c, x], Subscript[c, y]}, r]]

Wolfram Language code:

ℛ = Circle[{0, 0}, 1];
Graphics[{ℛ, Red, Point[RegionCentroid[ℛ]]}]

Wolfram Language code: RegionCentroid[ℛ]

As an ellipse:

Wolfram Language code: RegionCentroid[Circle[{Subscript[c, x], Subscript[c, y]}, {Subscript[r, x], Subscript[r, y]}]]

Wolfram Language code:

ℛ = Circle[{0, 0}, {3, 2}];
Graphics[{ℛ, Red, Point[RegionCentroid[ℛ]]}]

Wolfram Language code: RegionCentroid[ℛ]

Cylinder can be used in 3D:

Wolfram Language code:

RegionCentroid[Cylinder[{{Subscript[x, 1], Subscript[y, 1], Subscript[z, 1]}, {Subscript[x, 2], Subscript[y, 2], Subscript[z, 2]}}, r]]

Wolfram Language code:

ℛ = Cylinder[{{0, 0, 0}, {0, 0, 2}}, 1];
Graphics3D[{{Opacity[0.5], ℛ}, Red, Point[RegionCentroid[ℛ]]}]

Wolfram Language code: RegionCentroid[ℛ]

Cone can be used in 3D:

Wolfram Language code:

RegionCentroid[Cone[{{Subscript[x, 1], Subscript[y, 1], Subscript[z, 1]}, {Subscript[x, 2], Subscript[y, 2], Subscript[z, 2]}}, r]]

Wolfram Language code:

ℛ = Cone[{{0, 0, 0}, {0, 0, 2}}, 1];
Graphics3D[{{Opacity[0.5], ℛ}, Red, Point[RegionCentroid[ℛ]]}]

Wolfram Language code: RegionCentroid[ℛ]

Formula Regions (2)

The centroid of a disk represented as an ImplicitRegion:

Wolfram Language code: RegionCentroid[ImplicitRegion[x^2 + y^2 ≤ 1, {x, y}]]

The centroid of a cylinder:

Wolfram Language code: RegionCentroid[ImplicitRegion[x^2 + y^2 ≤ 1, {x, y, {z, 0, 2}}]]

The centroid of a disk represented as a ParametricRegion:

Wolfram Language code: RegionCentroid[ParametricRegion[{r Cos[θ], r Sin[θ]}, {{r, 0, 1}, {θ, 0, 2π}}]]

Using a rational parameterization of the disk:

Wolfram Language code: RegionCentroid[ParametricRegion[{r(1 - t^2/1 + t^2), r(2t/1 + t^2)}, {t, {r, 0, 1}}]]

The centroid of a cylinder:

Wolfram Language code: RegionCentroid[ParametricRegion[{r Cos[θ], r Sin[θ], z}, {{r, 0, 1}, {θ, 0, 2π}, {z, 0, 2}}]]

Mesh Regions (2)

The centroid of a MeshRegion:

Wolfram Language code: ℛ = DelaunayMesh[RandomReal[1, {10, 2}]];

Wolfram Language code: c = RegionCentroid[ℛ]

Wolfram Language code: Show[ℛ, Graphics[{Red, Point[c]}]]

A 1D mesh embedded in 2D:

Wolfram Language code: ℛ = MeshRegion[{{0, 0}, {1, 0}, {2, -1}, {2, 1}}, {Line[{{1, 2, 3, 4, 2}}]}];

Wolfram Language code: c = RegionCentroid[ℛ]

Wolfram Language code: Show[ℛ, Graphics[{Red, Point[c]}]]

In 3D:

Wolfram Language code: ℛ = DelaunayMesh[RandomReal[1, {20, 3}]];

Wolfram Language code: c = RegionCentroid[ℛ]

Wolfram Language code: Show[HighlightMesh[ℛ, Style[2, Opacity[0.15]]], Graphics3D[{Red, PointSize[Medium], Point[c]}]]

The centroid of a BoundaryMeshRegion:

Wolfram Language code: ℛ = ConvexHullMesh[RandomReal[1, {10, 2}]];

Wolfram Language code: c = RegionCentroid[ℛ]

Wolfram Language code: Show[ℛ, Graphics[{Red, Point[c]}]]

In 3D:

Wolfram Language code: ℛ = ConvexHullMesh[RandomReal[1, {20, 3}]];

Wolfram Language code: c = RegionCentroid[ℛ]

Wolfram Language code: Show[HighlightMesh[ℛ, Style[2, Opacity[0.25]]], Graphics3D[{Red, PointSize[Medium], Point[c]}]]

Derived Regions (5)

The centroid of a RegionIntersection:

Wolfram Language code: ℛ = RegionIntersection[Disk[{0, 0}, 1], Disk[{0, 1}, 1]];

Wolfram Language code: c = RegionCentroid[ℛ]

Wolfram Language code: Show[DiscretizeRegion[ℛ], Graphics[{Red, Point[c]}]]

The centroid of a TransformedRegion:

Wolfram Language code: ℛ = TransformedRegion[Disk[{0, 0}, 1], ShearingTransform[30 Degree, {1, 0}, {0, 1}]];

Wolfram Language code: c = RegionCentroid[ℛ]

Wolfram Language code: Show[DiscretizeRegion[ℛ, {{-2, 2}, {-1, 1}}], Graphics[{Red, Point[c]}]]

The centroid of a RegionBoundary:

Wolfram Language code: ℛ = RegionBoundary[Simplex[2]]

Wolfram Language code: c = RegionCentroid[ℛ]

Wolfram Language code: Show[DiscretizeRegion[ℛ, {{-1.1, 1.1}, {-1.1, 1.1}}], Graphics[{Red, Point[c]}]]

General Boolean combination :

Wolfram Language code:

{r1, r2, r3} = {Disk[], ParametricRegion[{{u v, u ^ 2 - v ^ 2}, -1 ≤ u + v ≤ 1}, {u, v}], Simplex[{{0, 0}, {0, 1}, {1, 0}}]};

Wolfram Language code: RegionCentroid[BooleanRegion[#1 && (#2 || !#3)&, {r1, r2, r3}]]//Together

Inverse transformed region :

Wolfram Language code: ℛ = InverseTransformedRegion[Disk[], {Indexed[#1, 1] + Indexed[#1, 2] + 1, Indexed[#1, 1] - Indexed[#1, 2] + 2}& , 2]

Wolfram Language code: RegionCentroid[ℛ]

Geographic Regions (2)

The centroid of a polygon with GeoPosition:

Wolfram Language code:

ℛ = Polygon[GeoPosition[{{{40.083441, -88.235716}, {40.083607, -88.257488}, {40.082603, -88.257149},
   {40.076136999999996, -88.25740499999999}, {40.076178, -88.270888}, {40.076516, -88.271558},
   {40.083686, -88.271512}, {40.083659999999995, -88.267046},  ... 33323}, {40.098112, -88.228687},
   {40.095216, -88.228627}, {40.095179, -88.238547}, {40.094480999999995, -88.238546},
   {40.094508999999995, -88.23267}, {40.094106, -88.232556}, {40.090666999999996, -88.232477},
   {40.090741, -88.235745}}}]];

Wolfram Language code: RegionCentroid[ℛ]

The centroid of a polygon with GeoGridPosition:

Wolfram Language code:

ℛ = Polygon[GeoGridPosition[{{{-0.9950503945490105, 1.2366760550756015},
   {-0.9952074890903578, 1.2369207053693891}, {-0.9952196732768064, 1.2369073327446167},
   {-0.9953160063787643, 1.236848436956935}, {-0.9954141759436825, 1.2369993898475449},
   {-0. ... 197645333103}, {-0.9949098578570917, 1.2368130881428654},
   {-0.9948663952535768, 1.2367477711687371}, {-0.9948714472169538, 1.2367426500757825},
   {-0.9949211061652593, 1.2367089232486177}, {-0.9949439717990124, 1.236746107097628}}}, "Bonne"]];

Wolfram Language code: RegionCentroid[ℛ]

CSG Regions (2)

The centroid of a CSGRegion in 2D:

Wolfram Language code: ℛ = CSGRegion["Difference", {Disk[], Disk[{0.5, 0.5}]}];

Wolfram Language code: c = RegionCentroid[ℛ]

Wolfram Language code: Show[ℛ, Graphics[{Red, Point[c]}]]

The centroid of a CSGRegion in 3D:

Wolfram Language code: ℛ = CSGRegion["Difference", {Cube[3], Cuboid[{-1, -3, -1}, {3, 3, 3}]}];

Wolfram Language code: c = RegionCentroid[ℛ]

Wolfram Language code: Show[ℛ, Graphics3D[{Red, Point[c]}]]

Subdivision Regions (2)

The centroid of a SubdivisionRegion in 2D:

Wolfram Language code: ℛ = SubdivisionRegion[Rectangle[]];

Wolfram Language code: c = RegionCentroid[ℛ]

Wolfram Language code: Show[ℛ, Graphics[{Red, Point[c]}]]

The centroid of a SubdivisionRegion in 3D:

Wolfram Language code: ℛ = SubdivisionRegion[Cube[]];

Wolfram Language code: c = RegionCentroid[ℛ]

Wolfram Language code: Show[Region[ℛ, BaseStyle -> {FaceForm[Opacity[0.2]]}], Graphics3D[{Red, Point[c]}]]

Applications (5)

Find the center of mass for a mesh region:

Wolfram Language code: gm = ExampleData[{"Geometry3D", "Cow"}, "MeshRegion"]

Wolfram Language code: c = RegionCentroid[gm]

Wolfram Language code: Show[MeshRegion[gm, BaseStyle -> Opacity[.4]], Graphics3D[{Red, Point@c}]]

Compute the center of mass of a region with density given by and compare to the centroid:

Wolfram Language code: ℛ = Disk[];

Wolfram Language code:

c1 = RegionCentroid[ℛ]
c2 = Integrate[{x, y}(x - 1)^2(y - 1)^2, {x, y}∈ℛ] / Area[ℛ]

Visualize it:

Wolfram Language code:

Legended[Graphics[{LightBlue, EdgeForm[Gray], ℛ, Red, Point[c2], Blue, Point[c1]}], PointLegend[{Red, Blue}, {"Center of Mass", "Centroid"}]]

The center of mass is shifted because the density is highest in the lower-left:

Wolfram Language code: ContourPlot[(x - 1)^2(y - 1)^2, {x, y}∈ℛ]

Find a perpendicular bisector of a triangle:

Wolfram Language code: pts = {a, b, c} = {{1, 2}, {0, 0}, {3, 0}};

Wolfram Language code: circumCenter = RegionCentroid[Circumsphere[pts]];

Wolfram Language code: bisector = Line[{circumCenter, RegionCentroid[Line[{a, b}]]}];

Visualize circumcenter and bisectors in red:

Wolfram Language code:

Graphics[{{LightGray, Circumsphere[pts]}, {LightBlue, Triangle[pts]}, {Dashed, Red, bisector}, {Blue, Point[pts]}, {Red, PointSize[Large], Point[circumCenter]}}]

Compute a centroidal Voronoi diagram from a random set of points:

Wolfram Language code: pts = RandomReal[1, {100, 2}];

Wolfram Language code: ℛ = VoronoiMesh[pts, {{0, 1}, {0, 1}}];

Define a function that computes the centroid of each Voronoi region in a Voronoi mesh:

Wolfram Language code: vcf[pts_] := RegionCentroid /@ MeshPrimitives[VoronoiMesh[pts, {{0, 1}, {0, 1}}], "Faces"];

Recursively apply VoronoiMesh to the centroids of the precursive Voronoi regions:

Wolfram Language code: centroids = NestList[vcf, pts, 3];

Visualize the Voronoi mesh and centroids at each iteration:

Wolfram Language code: vm = VoronoiMesh[#, {{0, 1}, {0, 1}}]& /@ centroids;

The generating point (black) of each Voronoi region converges toward the region's centroid (red):

Wolfram Language code: MapThread[Show[#1, Graphics[{Black, Point[#2], Red, Point[vcf[#2]]}]]&, {vm, centroids}]

Estimate the centroid of a region by taking the Mean of a random sampling of points in the region:

Wolfram Language code:

ℛ = ConvexHullMesh[RandomReal[1, {10, 2}]];
mf = RegionMember[ℛ];
pts = Select[RandomVariate[UniformDistribution[RegionBounds[ℛ]], 1000], mf];
Show[ℛ, Graphics[Point[pts]]]

Wolfram Language code: {c1, c2} = {Mean[pts], RegionCentroid[ℛ]}

Wolfram Language code: Show[ℛ, Graphics[{Red, Point[c1], Black, Point[c2]}]]

Properties & Relations (3)

RegionCentroid is not necessarily in the region if the region is not convex:

Wolfram Language code:

ℛ = Polygon[{{0, 0}, {3, -1}, {1, 0}, {3, 1}}];
c = RegionCentroid[ℛ];
Graphics[{LightBlue, EdgeForm[Gray], ℛ, Red, Point[c]}]

RegionCentroid is equivalent to Integrate[p,p∈ℛ]/m with m=RegionMeasure[ℛ]:

Wolfram Language code:

ℛ = Sphere[{1, 2, 3}];
m = RegionMeasure[ℛ];

Wolfram Language code: {RegionCentroid[ℛ], Integrate[p, p∈ℛ] / m}

The centroid for is given by when disjoint:

Wolfram Language code: {Subscript[ℛ, 1], Subscript[ℛ, 2]} = {Disk[{0, 0}], Disk[{2, 0}]};

Wolfram Language code:

{m1, m2} = RegionMeasure /@ {Subscript[ℛ, 1], Subscript[ℛ, 2]};
{c1, c2} = RegionCentroid /@ {Subscript[ℛ, 1], Subscript[ℛ, 2]};

Wolfram Language code: (m1 c1 + m2 c2) / (m1 + m2)

Wolfram Language code: RegionCentroid[RegionUnion[Subscript[ℛ, 1], Subscript[ℛ, 2]]]//Simplify

Possible Issues (1)

RegionCentroid returns a point with Indeterminate coordinates for a region with infinite RegionMeasure:

Wolfram Language code: ℛ = HalfSpace[{1, 1}, 0];

Wolfram Language code: RegionMeasure[ℛ]

Wolfram Language code: RegionCentroid[ℛ]

Top

More Learning

Tech Support

Wolfram Solutions

Wolfram Solutions For Education

Get Started

Grow Your Skills

Work with Us

Educational Programs for Adults

Educational Programs for Youth

Read

RegionCentroid

Details and Options

Examples

Basic Examples (2)

Scope (25)

Special Regions (10)

Formula Regions (2)

Mesh Regions (2)

Derived Regions (5)

Geographic Regions (2)

CSG Regions (2)

Subdivision Regions (2)

Applications (5)

Properties & Relations (3)

Possible Issues (1)

Text

CMS

APA

BibTeX

BibLaTeX

RegionCentroid

Details and Options

Examples

Basic Examples (2)

Scope (25)

Special Regions (10)

Formula Regions (2)

Mesh Regions (2)

Derived Regions (5)

Geographic Regions (2)

CSG Regions (2)

Subdivision Regions (2)

Applications (5)

Properties & Relations (3)

Possible Issues (1)

See Also

Related Guides

History

Text

CMS

APA

BibTeX

BibLaTeX
