GoochShading

GoochShading[]

is a three-dimensional graphics directive specifying that surfaces that follow are to be drawn with a warm color facing toward the light and a cool color facing away.

GoochShading[col]

uses cool and warm colors obtained by blending col with slate Blue and Orange.

GoochShading[{ccol,wcol}]

uses the cool color ccol and the warm color wcol.

GoochShading[{w1,w2}{ccol,wcol}]

uses the colors ccol and wcol weighted by the wi.

GoochShading["scheme"]

uses the specified gradient color scheme in ColorData.

Details

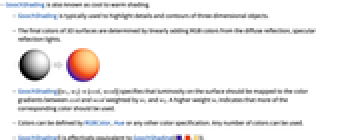

  • GoochShading is also known as cool to warm shading.
  • GoochShading is typically used to highlight details and contours of three-dimensional objects.

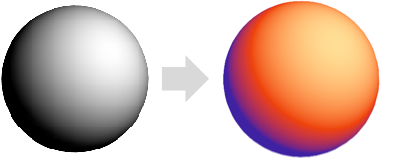

  • The final colors of 3D surfaces are determined by linearly adding RGB colors from the diffuse reflection, specular reflection lights.
  • GoochShading[{w1,w2}{ccol,wcol}] specifies that luminosity on the surface should be mapped to the color gradients between ccol and wcol weighted by w1 and w2. A higher weight wi indicates that more of the corresponding color should be used.
  • Colors can be defined by RGBColor, Hue or any other color specification. Any number of colors can be used.
  • GoochShading[] is effectively equivalent to GoochShading[{,,}].
  • In GoochShading[{ccol,wcol}], the colors ccol and wcol are weighted uniformly.
  • The setting Lighting"Accent" uses a directional light and faithfully reproduces colors on the surface.

Examples

open all close all

Basic Examples  (4)

Apply Gooch shading to the unit sphere with a directional light:

Wolfram Language code: Graphics3D[{GoochShading[], Sphere[]}, Lighting -> "Accent"]

Use a colored Gooch shading to show a knot:

Wolfram Language code: Graphics3D[{GoochShading[{LABColor[0.268505119996119, 0.26589133685332694, -0.5698407894340829], LABColor[0.9838025798885295, -0.1047406804200568, 0.48599170232069433]}], KnotData["SolomonSeal", "ImageData"]}, Lighting -> "Accent"]

Style a surface in a plot:

Wolfram Language code: Plot3D[Sin[x + y ^ 2], {x, -3, 3}, {y, -2, 2}, PlotPoints -> 80, PlotStyle -> Directive[White, GoochShading[]], Mesh -> None, Lighting -> "Accent"]

A sailing ship:

Wolfram Language code: Graphics3D[{GoochShading[], ExampleData[{"Geometry3D", "Galleon"}, "GraphicsComplex"]}, Boxed -> False, Lighting -> "Accent"]

Scope  (14)

Basic Uses  (5)

Apply GoochShading to a graphics primitive:

Wolfram Language code: Graphics3D[{GoochShading[], #}, Lighting -> "Accent"]& /@ {Sphere[], CapsuleShape[], Cone[]}

Apply Gooch shading to a plot:

Wolfram Language code: SphericalPlot3D[1 + 2Cos[2θ], {θ, 0, Pi}, {ϕ, 0, 2Pi}, Axes -> False, PlotStyle -> GoochShading[], PlotPoints -> 40, Lighting -> "Accent" ]

Apply Gooch shading to a chart:

Wolfram Language code: BarChart3D[Range[5], ChartElements -> [image], ChartStyle -> GoochShading[], Lighting -> "Accent"]

Apply Gooch shading to a 3D object:

Wolfram Language code: Graphics3D[{GoochShading[], ExampleData[{"Geometry3D", "Beethoven"}, "GraphicsComplex"]}, Lighting -> "Accent"]

Summary box:

Wolfram Language code: GoochShading[]

Specification  (6)

GoochShading with no arguments uses three gray tones:

Wolfram Language code: Graphics3D[{GoochShading[], Sphere[]}, Lighting -> "Accent"]

Use colorized Gooch shading:

Wolfram Language code: Graphics3D[{GoochShading[#], Sphere[]}, Lighting -> "Accent"]& /@ {Red, Green, Blue}

Use a custom color sequence:

Wolfram Language code: Graphics3D[{GoochShading[#], Sphere[]}, Lighting -> "Accent"]& /@ {{DarkGray, LightGray}, {Red, Pink, LightRed}, {Purple, Blue, Green, Yellow, Orange, Red}}

Specify the weight of each color:

Wolfram Language code: Graphics3D[{GoochShading[# -> {DarkGray, Gray, LightGray}], Sphere[]}, Lighting -> "Accent"]& /@ {{1, 0.1, 0.1}, {1, 1, 1}, {0.1, 1, 0.1}}

Use a predefined color scheme from ColorData:

Wolfram Language code: Graphics3D[{GoochShading[#], Sphere[]}, Lighting -> "Accent"]& /@ {"SunsetColors", "BlueGreenYellow", "DeepSeaColors"}

Use LightDarkSwitched to specify different colors for light and dark modes:

Wolfram Language code: graphic = Graphics3D[{GoochShading[LightDarkSwitched[StandardRed, StandardBlue]], Sphere[]}, Lighting -> "Accent"];
Wolfram Language code: {LightModePane[graphic], DarkModePane[graphic]}

Lighting  (3)

GoochShading works with all types of lights:

Wolfram Language code: lights = {{"Ambient", LightGray}, {"Point", White, ImageScaled[{1, 1, 2}]}, {"Directional", White, ImageScaled[{1, 1, 2}]}, {"Spot", White, {{1, -1, 1}, {0, 0, 0}}, Pi / 4}}; Graphics3D[{GoochShading[], Sphere[]}, Lighting -> {#}]& /@ lights

Use colored lights:

Wolfram Language code: Graphics3D[{GoochShading[], Sphere[]}, Lighting -> {{"Directional", Red, ImageScaled[{1, -0.5, 1}]}, {"Directional", Green, ImageScaled[{-1, -0.5, 1}]}, {"Directional", Blue, ImageScaled[{0, 1, 1}]}, {"Ambient", GrayLevel[0.2]}}]

Use "Accent" lighting to faithfully reproduce colors on the surface.

Wolfram Language code: Graphics3D[{GoochShading[], Sphere[]}, Lighting -> #] & /@ {"Accent", Automatic}

Properties & Relations  (2)

Approximate the default system shader with GoochShading:

Wolfram Language code: seq = GrayLevel /@ Range[0, 1, 1 / 50]
Wolfram Language code: Graphics3D[{GoochShading[seq], Sphere[]}]

Approximate GoochShading with ToonShading:

Wolfram Language code: seq = Blend[{LABColor[0.25, 0.4, -0.65], LABColor[0.55, 0.65, 0.65], LABColor[0.9, 0.05, 0.4]}, #]& /@ Range[0, 1, 1 / 60]
Wolfram Language code: Graphics3D[{ToonShading[seq], Sphere[]}, Lighting -> "Accent"]

Possible Issues  (2)

The default light scheme uses several colored light sources:

Wolfram Language code: Graphics3D[{GoochShading[], Sphere[]}]

Use a single directional light to get the standard Gooch shading effect:

Wolfram Language code: Graphics3D[{GoochShading[], Sphere[]}, Lighting -> {{"Directional", White, ImageScaled[{1, 1, 2}]}}]

Surfaces are displayed in a darker color:

Wolfram Language code: Graphics3D[{Red, GoochShading[], Sphere[]}, Lighting -> "Accent"]

Automatically get a balanced three-tone color scheme:

Wolfram Language code: Graphics3D[{GoochShading[Red], Sphere[]}, Lighting -> "Accent"]

Interactive Examples  (3)

Adjust the weights of the base colors:

Wolfram Language code: Manipulate[Graphics3D[{GoochShading[{w1, w2, w3} -> {DarkGray, Gray, LightGray}], Sphere[]}, Lighting -> "Accent"], {{w1, 0.5, "Dark"}, 0, 1}, {{w2, 0.5, "Base"}, 0, 1}, {{w3, 0.05, "Highlight"}, 0, 1}]

Explore gradient color schemes from ColorData:

Wolfram Language code: Manipulate[Graphics3D[{GoochShading[gradient], Sphere[]}, Lighting -> "Accent"], {{gradient, "SolarColors", "Gradient"}, ColorData["Gradients"]}]

Explore indexed color schemes from ColorData:

Wolfram Language code: Manipulate[Graphics3D[{GoochShading[index], Sphere[]}, Lighting -> "Accent"], {{index, 23, "Index"}, ColorData["Indexed"]}]
