HalftoneShading

HalftoneShading[]

is a three-dimensional graphics directive specifying that surfaces that follow are to be drawn with a base pattern of dots.

HalftoneShading[d]

uses the density d of shading.

HalftoneShading[col]

uses dots with the specified color col.

HalftoneShading["shape"]

uses the specified "shape" as base pattern.

HalftoneShading[d,col,"shape"]

uses a fixed pattern of "shape" with the specified color col and density d.

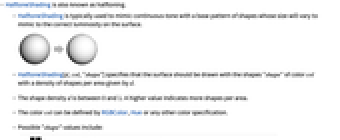

Details

  • HalftoneShading is also known as halftoning.

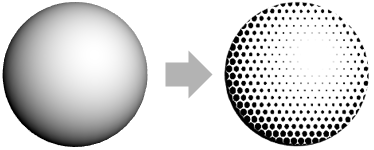

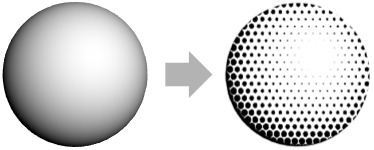

  • HalftoneShading is typically used to mimic continuous-tone with a base pattern of shapes whose size will vary to mimic to the correct luminosity on the surface.
  • HalftoneShading[d,col,"shape"] specifies that the surface should be drawn with the shapes "shape" of color col with a density of shapes per area given by d.
  • The shape density d is between 0 and 1. A higher value indicates more shapes per area.
  • The color col can be defined by RGBColor, Hue or any other color specification.
  • Possible "shape" values include:
  • "Disk"disk
    "Hexagon"hexagon
    "Line"line
    "Square"square
    "Triangle"triangle
  • The default value for the density is 0.5, the color Black, and the shape is taken to be "Disk".
  • HalftoneShading[] is effectively equivalent to HalftoneShading[0.5,Black,"Disk"].
  • The setting Lighting"Accent" uses a directional light and faithfully reproduces colors on the surface.

Examples

open all close all

Basic Examples  (3)

Apply halftone shading to the unit sphere with a directional light:

Wolfram Language code: Graphics3D[{HalftoneShading[], Sphere[]}, Lighting -> "Accent"]

Style a surface in a plot:

Wolfram Language code: Plot3D[ Style[(x^2 + y^2) Exp[1 - x^2 - y^2], HalftoneShading[]], {x, -3, 3}, {y, -3, 3}, Mesh -> None, PlotPoints -> 50, Lighting -> "Neutral"]

Show a sailing ship using a halftone:

Wolfram Language code: Graphics3D[{HalftoneShading[], ExampleData[{"Geometry3D", "Galleon"}, "GraphicsComplex"]}, Boxed -> False, Lighting -> "Accent"]

Scope  (13)

Basic Uses  (5)

Apply halftone shading to a graphics primitive:

Wolfram Language code: Graphics3D[{HalftoneShading[], #}, Lighting -> "Accent"]& /@ {Sphere[], CapsuleShape[], Cone[]}

Apply halftone shading to a plot:

Wolfram Language code: SphericalPlot3D[1 + 2Cos[2θ], {θ, 0, Pi}, {ϕ, 0, 2Pi}, Axes -> False, PlotStyle -> HalftoneShading[], PlotPoints -> 40, Lighting -> "Accent" ]

Apply halftone shading to a chart:

Wolfram Language code: BarChart3D[Range[5], ChartElements -> [image], ChartStyle -> HalftoneShading[]]

Apply halftone shading to a 3D object:

Wolfram Language code: Graphics3D[{HalftoneShading[], ExampleData[{"Geometry3D", "Beethoven"}, "GraphicsComplex"]}, Lighting -> "Accent"]

Summary box:

Wolfram Language code: HalftoneShading[]

Specification  (5)

HalftoneShading with no arguments uses gray tones:

Wolfram Language code: Graphics3D[{HalftoneShading[], Sphere[]}, Lighting -> "Accent"]

Apply halftone shading to the unit sphere with different densities:

Wolfram Language code: Graphics3D[{HalftoneShading[#], Sphere[]}, Lighting -> "Accent"]& /@ {.15, .4, .7}

Use colorized halftone shading:

Wolfram Language code: Graphics3D[{HalftoneShading[#], Sphere[]}, Lighting -> "Accent"]& /@ {Red, Green, Blue}

Use LightDarkSwitched to specify different colors for light and dark modes:

Wolfram Language code: graphic = Graphics3D[{HalftoneShading[LightDarkSwitched[StandardRed, StandardBlue]], Sphere[]}, Lighting -> "Accent"];
Wolfram Language code: {LightModePane[graphic], DarkModePane[graphic]}

Use different shapes:

Wolfram Language code: Graphics3D[{HalftoneShading[#], Sphere[]}, Lighting -> "Accent"]& /@ {"Square", "Triangle", "Line"}

Lighting  (3)

HalftoneShading works with all types of lights:

Wolfram Language code: lights = {{"Ambient", LightGray}, {"Point", White, ImageScaled[{1, 1, 2}]}, {"Directional", White, ImageScaled[{1, 1, 2}]}, {"Spot", White, {{1, -1, 1}, {0, 0, 0}}, Pi / 4}}; Graphics3D[{HalftoneShading[], Sphere[]}, Lighting -> {#}]& /@ lights

Use colored lights:

Wolfram Language code: Graphics3D[{HalftoneShading[], Sphere[]}, Lighting -> {{"Directional", Red, ImageScaled[{1, -0.5, 1}]}, {"Directional", Green, ImageScaled[{-1, -0.5, 1}]}, {"Directional", Blue, ImageScaled[{0, 1, 1}]}, {"Ambient", GrayLevel[0.2]}}]

Use "Accent" lighting to faithfully reproduce colors on the surface:

Wolfram Language code: Graphics3D[{HalftoneShading[], Sphere[]}, Lighting -> #] & /@ {"Accent", Automatic}

Possible Issues  (2)

The default light scheme uses several colored light sources:

Wolfram Language code: Graphics3D[{HalftoneShading[], Sphere[]}]

Use a single directional light to get the standard hatching shading effect:

Wolfram Language code: Graphics3D[{HalftoneShading[], Sphere[]}, Lighting -> {{"Directional", White, ImageScaled[{1, 1, 2}]}}]

No shading effect is applied to faces of polygons or filled graphic objects:

Wolfram Language code: Graphics3D[{Red, HalftoneShading[0], Sphere[]}]
