ToonShading[]

is a three-dimensional graphics directive specifying that surfaces that follow are to be drawn to emulate two-dimensional flat objects.

ToonShading[col]

uses the color col as base color.

ToonShading[{dcol,bcol,hcol}]

uses the dark color dcol, the base color bcol and highlight color hcol.

ToonShading[{w1,w2,w3}{dcol,bcol,hcol}]

uses the colors dcol, bcol and hcol weighted by the wi.

ToonShading["scheme"]

uses the specified discrete color scheme in ColorData.

Details
Details and Options Details and Options
Examples
Basic Examples
Scope
Basic Uses
Specification
Lighting
Properties & Relations
Possible Issues
Interactive Examples
See Also
Related Guides
History
Cite this Page

ToonShading

ToonShading[]

is a three-dimensional graphics directive specifying that surfaces that follow are to be drawn to emulate two-dimensional flat objects.

ToonShading[col]

uses the color col as base color.

ToonShading[{dcol,bcol,hcol}]

uses the dark color dcol, the base color bcol and highlight color hcol.

ToonShading[{w1,w2,w3}{dcol,bcol,hcol}]

uses the colors dcol, bcol and hcol weighted by the wi.

ToonShading["scheme"]

uses the specified discrete color scheme in ColorData.

Details

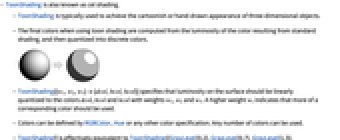

  • ToonShading is also known as cel shading.
  • ToonShading is typically used to achieve the cartoonish or hand-drawn appearance of three-dimensional objects.

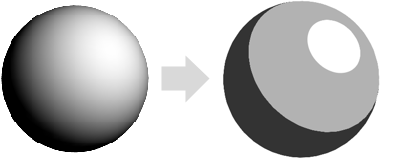

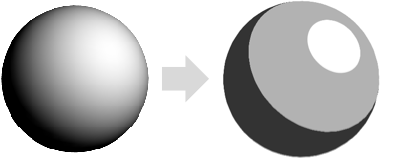

  • The final colors when using toon shading are computed from the luminosity of the color resulting from standard shading, and then quantized into discrete colors.
  • ToonShading[{w1,w2,w3}{dcol,bcol,hcol}] specifies that luminosity on the surface should be linearly quantized to the colors dcol, bcol and hcol with weights w1, w2 and w3. A higher weight wi indicates that more of a corresponding color should be used.
  • Colors can be defined by RGBColor, Hue or any other color specification. Any number of colors can be used.
  • ToonShading[] is effectively equivalent to ToonShading[{GrayLevel[0.2],GrayLevel[0.7],GrayLevel[1.]}].
  • ToonShading[col] uses dark, base and highlight colors obtained by blending col with Black, Gray and White.
  • In ToonShading[{dcol,bcol,hcol}], the colors dcol, bcol and hcol are weighted uniformly.
  • ToonShading["scheme"] is equivalent to ToonShading[ColorData["scheme","ColorList"]].
  • The setting Lighting"Accent" uses a directional light and faithfully reproduces colors on the surface.

Examples

open all close all

Basic Examples  (4)

Apply toon shading to the unit sphere with an accent light:

Wolfram Language code: Graphics3D[{ToonShading[], Sphere[]}, Lighting -> "Accent"]

Use a colored toon shading to show a knot:

Wolfram Language code: Graphics3D[{ToonShading[Red], KnotData["SolomonSeal", "ImageData"]}, Lighting -> "Accent"]

Style a surface in a plot:

Wolfram Language code: Plot3D[Sin[x + y ^ 2], {x, -3, 3}, {y, -2, 2}, PlotPoints -> 80, PlotStyle -> ToonShading[], Mesh -> None]

Draw a cartoon sailing ship:

Wolfram Language code: Graphics3D[{ToonShading[], ExampleData[{"Geometry3D", "Galleon"}, "GraphicsComplex"]}, Boxed -> False]

Scope  (14)

Basic Uses  (5)

Apply toon shading to a graphics primitive:

Wolfram Language code: Graphics3D[{ToonShading[], #}, Lighting -> "Accent"]& /@ {Sphere[], CapsuleShape[], Cone[]}

Apply toon shading to a plot:

Wolfram Language code: SphericalPlot3D[1 + 2Cos[2θ], {θ, 0, Pi}, {ϕ, 0, 2Pi}, Axes -> False, PlotStyle -> ToonShading[], PlotPoints -> 40, Lighting -> "Accent"]

Apply toon shading to a chart:

Wolfram Language code: BarChart3D[Range[5], ChartElements -> [image], ChartStyle -> ToonShading[]]

Apply toon shading to a 3D object:

Wolfram Language code: Graphics3D[{ToonShading[], ExampleData[{"Geometry3D", "Beethoven"}, "GraphicsComplex"]}]

Summary box:

Wolfram Language code: ToonShading[]

Specification  (6)

ToonShading with no arguments uses three gray tones:

Wolfram Language code: Graphics3D[{ToonShading[], Sphere[]}, Lighting -> "Accent"]

Use colorized toon shading:

Wolfram Language code: Graphics3D[{ToonShading[#], Sphere[]}, Lighting -> "Accent"]& /@ {Red, Green, Blue}

Use a custom color sequence:

Wolfram Language code: Graphics3D[{ToonShading[#], Sphere[]}, Lighting -> "Accent"]& /@ {{StandardGray, LightGray}, {Red, Pink, LightRed}, {Purple, Blue, Green, Yellow, Orange, Red}}

Specify the weight of each color:

Wolfram Language code: Graphics3D[{ToonShading[# -> {DarkGray, Gray, LightGray}], Sphere[]}, Lighting -> "Accent"]& /@ {{1, 0.1, 0.1}, {1, 1, 1}, {0.1, 1, 0.1}}

Use a predefined color scheme from ColorData:

Wolfram Language code: Graphics3D[{ToonShading[#], Sphere[]}, Lighting -> "Accent"]& /@ {"SunsetColors", "BlueGreenYellow", "DeepSeaColors"}

Use LightDarkSwitched to specify different colors for light and dark modes:

Wolfram Language code: graphic = Graphics3D[{ToonShading[LightDarkSwitched[StandardRed, StandardBlue]], Sphere[]}, Lighting -> "Accent"];
Wolfram Language code: {LightModePane[graphic], DarkModePane[graphic]}

Lighting  (3)

ToonShading works with all types of lights:

Wolfram Language code: lights = {{"Ambient", LightGray}, {"Point", White, ImageScaled[{1, 1, 2}]}, {"Directional", White, ImageScaled[{1, 1, 2}]}, {"Spot", White, {{1, -1, 1}, {0, 0, 0}}, Pi / 4}}; Graphics3D[{ToonShading[], Sphere[]}, Lighting -> {#}]& /@ lights

Use colored lights:

Wolfram Language code: Graphics3D[{ToonShading[], Sphere[]}, Lighting -> {{"Directional", Red, ImageScaled[{1, -0.5, 1}]}, {"Directional", Green, ImageScaled[{-1, -0.5, 1}]}, {"Directional", Blue, ImageScaled[{0, 1, 1}]}, {"Ambient", GrayLevel[0.2]}}]

Use "Accent" lighting to faithfully reproduce colors on the surface:

Wolfram Language code: Graphics3D[{ToonShading[], Sphere[]}, Lighting -> #] & /@ {"Accent", Automatic}

Properties & Relations  (3)

Specify FaceForm with ToonShading:

Wolfram Language code: Graphics3D[{FaceForm[#], ToonShading[], Sphere[]}, Lighting -> "Accent"]& /@ {Red, Green, Blue}

Approximate the default system shader with ToonShading:

Wolfram Language code: seq = GrayLevel /@ Range[0, 1, 1 / 50]
Wolfram Language code: Graphics3D[{ToonShading[seq], Sphere[]}]

Approximate GoochShading with ToonShading:

Wolfram Language code: seq = Blend[{LABColor[0.25, 0.4, -0.65], LABColor[0.55, 0.65, 0.65], LABColor[0.9, 0.05, 0.4]}, #]& /@ Range[0, 1, 1 / 60]
Wolfram Language code: Graphics3D[{ToonShading[seq], Sphere[]}, Lighting -> "Accent"]

Possible Issues  (2)

The default light scheme uses several colored light sources:

Wolfram Language code: Graphics3D[{ToonShading[], Sphere[]}]

Use a single directional light to get the standard toon shading effect:

Wolfram Language code: Graphics3D[{ToonShading[], Sphere[]}, Lighting -> {{"Directional", White, ImageScaled[{1, 1, 2}]}}]

Surfaces are displayed in a darker color:

Wolfram Language code: Graphics3D[{Red, ToonShading[], Sphere[]}, Lighting -> "Accent"]

Automatically get a balanced three-tone color scheme:

Wolfram Language code: Graphics3D[{ToonShading[Red], Sphere[]}, Lighting -> "Accent"]

Interactive Examples  (4)

Adjust the weights of the base colors:

Wolfram Language code: Manipulate[Graphics3D[{ToonShading[{w1, w2, w3} -> {DarkGray, Gray, LightGray}], Sphere[]}, Lighting -> "Accent"], {{w1, 0.5, "Dark"}, 0, 1}, {{w2, 0.5, "Base"}, 0, 1}, {{w3, 0.05, "Highlight"}, 0, 1}]

Transition between toon shading and smooth shading:

Wolfram Language code: Manipulate[ Graphics3D[{ToonShading[GrayLevel /@ Range[0, 1, 1 / (n - 1)]], Sphere[]}, Lighting -> "Accent"], {{n, 4, "Smoothness"}, 2, 100, 1}]

Explore gradient color schemes from ColorData:

Wolfram Language code: Manipulate[Graphics3D[{ToonShading[gradient], Sphere[]}, Lighting -> "Accent"], {{gradient, "SolarColors", "Gradient"}, ColorData["Gradients"]}]

Explore indexed color schemes from ColorData:

Wolfram Language code: Manipulate[Graphics3D[{ToonShading[index], Sphere[]}, Lighting -> "Accent"], {{index, 23, "Index"}, ColorData["Indexed"]}]
