HatchShading

HatchShading[]

is a three-dimensional graphics directive specifying that objects that follow are to be drawn with closely spaced parallel lines.

HatchShading[d]

uses the density d of shading.

HatchShading[col]

uses lines with the specified color col.

HatchShading[d,col]

uses lines with the specified color col and density d.

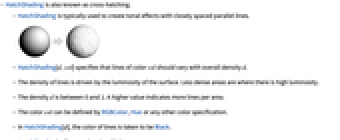

Details

  • HatchShading is also known as cross-hatching.

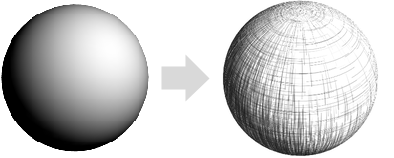

  • HatchShading is typically used to create tonal effects with closely spaced parallel lines.
  • HatchShading[d,col] specifies that lines of color col should vary with overall density d.
  • The density of lines is driven by the luminosity of the surface. Less dense areas are where there is high luminosity.
  • The density d is between 0 and 1. A higher value indicates more lines per area.
  • The color col can be defined by RGBColor, Hue or any other color specification.
  • In HatchShading[d], the color of lines is taken to be Black.
  • HatchShading[col] uses a density of 0.5.
  • HatchShading[] is effectively equivalent to HatchShading[0.5,Black].
  • The setting Lighting"Accent" uses a directional light and faithfully reproduces colors on the surface.

Examples

open all close all

Basic Examples  (4)

Apply hatch shading to the unit sphere with a directional light:

Wolfram Language code: Graphics3D[{HatchShading[], Sphere[]}, Lighting -> "Accent"]

Use hatch shading to show a knot:

Wolfram Language code: Graphics3D[{HatchShading[.6, Blue], KnotData["SolomonSeal", "ImageData"]}, Lighting -> "Accent"]

Style a surface in a plot:

Wolfram Language code: Plot3D[Style[Sin[x y], HatchShading[.7, Red]], {x, 0, 3}, {y, 0, 3}, Mesh -> None, TextureCoordinateFunction -> ({#1, #3}&), Lighting -> "Accent"]

A cross-hatching portrait of Beethoven:

Wolfram Language code: Graphics3D[{HatchShading[], ExampleData[{"Geometry3D", "Beethoven"}, "GraphicsComplex"]}, Boxed -> False, Lighting -> "Accent"]

Scope  (12)

Basic Uses  (5)

Apply hatch shading to a graphics primitive:

Wolfram Language code: Graphics3D[{HatchShading[], #}, Lighting -> "Accent"]& /@ {Sphere[], CapsuleShape[], Cone[]}

Apply hatch shading to a plot:

Wolfram Language code: SphericalPlot3D[1 + 2Cos[2θ], {θ, 0, Pi}, {ϕ, 0, 2Pi}, Axes -> False, PlotStyle -> HatchShading[], PlotPoints -> 40, Lighting -> "Accent" ]

Apply hatch shading to a chart:

Wolfram Language code: BarChart3D[Range[5], ChartElements -> [image], ChartStyle -> HatchShading[]]

Apply hatch shading to a 3D object:

Wolfram Language code: Graphics3D[{HatchShading[], ExampleData[{"Geometry3D", "Beethoven"}, "GraphicsComplex"]}, Lighting -> "Accent"]

Summary box:

Wolfram Language code: HatchShading[]

Specification  (4)

HatchShading with no arguments uses gray tones:

Wolfram Language code: Graphics3D[{HatchShading[], Sphere[]}, Lighting -> "Accent"]

Apply hatch shading to the unit sphere with different densities:

Wolfram Language code: Graphics3D[{HatchShading[#], Sphere[]}, Lighting -> "Accent"]& /@ {.15, .4, .7}

Use colorized hatch shading:

Wolfram Language code: Graphics3D[{HatchShading[#], Sphere[]}, Lighting -> "Accent"]& /@ {Red, Green, Blue}

Use LightDarkSwitched to specify different colors for light and dark modes:

Wolfram Language code: graphic = Graphics3D[{HatchShading[LightDarkSwitched[Red, Blue]], Sphere[]}, Lighting -> "Accent"];
Wolfram Language code: {LightModePane[graphic], DarkModePane[graphic]}

Lighting  (3)

HatchShading works with all types of lights:

Wolfram Language code: lights = {{"Ambient", LightGray}, {"Point", White, ImageScaled[{1, 1, 2}]}, {"Directional", White, ImageScaled[{1, 1, 2}]}, {"Spot", White, {{1, -1, 1}, {0, 0, 0}}, Pi / 4}}; Graphics3D[{HatchShading[], Sphere[]}, Lighting -> {#}]& /@ lights

Use colored lights:

Wolfram Language code: Graphics3D[{HatchShading[], Sphere[]}, Lighting -> {{"Directional", Red, ImageScaled[{1, -0.5, 1}]}, {"Directional", Green, ImageScaled[{-1, -0.5, 1}]}, {"Directional", Blue, ImageScaled[{0, 1, 1}]}, {"Ambient", GrayLevel[0.2]}}]

Use "Accent" lighting to faithfully reproduces colors on the surface:

Wolfram Language code: Graphics3D[{HatchShading[], Sphere[]}, Lighting -> #] & /@ {"Accent", Automatic}

Possible Issues  (2)

The default light scheme uses several colored light sources:

Wolfram Language code: Graphics3D[{HatchShading[], Sphere[]}]

Use a single directional light to get the standard hatch shading effect:

Wolfram Language code: Graphics3D[{HatchShading[], Sphere[]}, Lighting -> {{"Directional", White, ImageScaled[{1, 1, 2}]}}]

No shading effect is applied to faces of polygons or filled graphic objects:

Wolfram Language code: Graphics3D[{Red, HatchShading[0], Sphere[]}]
