ReconstructionMesh

ReconstructionMesh[{pt1,pt2,…}]

reconstructs a mesh from a set of points pt1,pt2,….

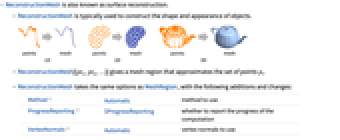

Details and Options

Examples

open all close all

Basic Examples  (3)

Reconstruct a curve in 2D:

Wolfram Language code: ReconstructionMesh[CirclePoints[16]]

Reconstruct a solid in 2D:

Wolfram Language code: pts = RandomPoint[Annulus[], 500];
Wolfram Language code: ReconstructionMesh[pts]

Reconstruct a surface in 3D:

Wolfram Language code: pts = RandomPoint[ResourceData["Stanford Bunny"], 10000];
Wolfram Language code: ReconstructionMesh[pts]

Scope  (7)

Basic Uses  (5)

Reconstruct a curve in 2D:

Wolfram Language code: pts = Table[(2 + 2 / 3.5Sin[3 t]) * RotationMatrix[t].{1, 0}, {t, 0, 2 Pi, 0.15}];
Wolfram Language code: ReconstructionMesh[pts]

Reconstruct a solid in 2D:

Wolfram Language code: pts = RandomPoint[Annulus[], 500];
Wolfram Language code: ReconstructionMesh[pts]

Reconstruct a curve in 3D:

Wolfram Language code: pts = Table[{t, Cos[t], Sin[t]}, {t, 0, 8Pi, Pi / 20}];
Wolfram Language code: ReconstructionMesh[pts]

Reconstruct a surface in 3D:

Wolfram Language code: pts = RandomPoint[DiscretizeRegion[Torus[]], 1000];
Wolfram Language code: ReconstructionMesh[pts]
Wolfram Language code: RegionDimension[%]

Reconstruct a solid in 3D:

Wolfram Language code: pts = RandomPoint[CapsuleShape[], 1000];
Wolfram Language code: ReconstructionMesh[pts]
Wolfram Language code: RegionDimension[%]

Specifications  (2)

ReconstructionMesh works on coordinates:

Wolfram Language code: coords = RandomPoint[ResourceData["Cow"], 10000];
Wolfram Language code: ReconstructionMesh[coords]

It is equivalent to points without normals:

Wolfram Language code: ReconstructionMesh[Point[coords]]

ReconstructionMesh works on oriented points:

Wolfram Language code: coords = ExampleData[{"Geometry3D", "Cow"}, "VertexData"]; normals = ExampleData[{"Geometry3D", "Cow"}, "VertexNormals"];
Wolfram Language code: ReconstructionMesh[Point[coords, VertexNormals -> normals]]

Options  (5)

Method  (3)

Use the "Crust" method to reconstruct curves:

Wolfram Language code: pts = Table[{t, Cos[t]}, {t, 0, 4Pi, Pi / 10}]; ReconstructionMesh[pts, Method -> "Crust"]
Wolfram Language code: pts = Table[{t, Cos[t], Sin[t]}, {t, 0, 4Pi, Pi / 20}]; ReconstructionMesh[pts, Method -> "Crust"]

Use the "AlphaShape" method to reconstruct curves:

Wolfram Language code: pts = Table[{t, Cos[t], Sin[t]}, {t, 0, 4Pi, Pi / 20}]; ReconstructionMesh[pts, Method -> "AlphaShape"]

Surfaces:

Wolfram Language code: pts = SpherePoints[80]; ReconstructionMesh[pts, Method -> "AlphaShape"]

Solids:

Wolfram Language code: pts = RandomPoint[Ball[], 1000]; ReconstructionMesh[pts, Method -> "AlphaShape"]

Set an explicit value for :

Wolfram Language code: ReconstructionMesh[pts, Method -> {"AlphaShape", "Alpha" -> 1.0}]

Use the "Poisson" method to reconstruct surfaces in 3D when the normals for the points are known:

Wolfram Language code: pts = ExampleData[{"Geometry3D", "Beethoven"}, "VertexData"]; nls = ExampleData[{"Geometry3D", "Beethoven"}, "VertexNormals"]; ReconstructionMesh[Point[pts, VertexNormals -> nls], Method -> "Poisson"]

If no normals are provided, ReconstructionMesh will estimate them before reconstruction:

Wolfram Language code: ReconstructionMesh[pts, Method -> "Poisson"]

ProgressReporting  (1)

By default, ReconstructionMesh does report progress:

Wolfram Language code: pts = RandomPoint[ResourceData["Cow"], 10000]; ReconstructionMesh[pts]
Wolfram Language code: [image]

With the setting ProgressReporting False, ReconstructionMesh does not show the progress of the computation:

Wolfram Language code: ReconstructionMesh[pts, ProgressReporting -> False]

VertexNormals  (1)

Specify coordinate orientations using VertexNormals:

Wolfram Language code: coords = ExampleData[{"Geometry3D", "Beethoven"}, "VertexData"]; normals = ExampleData[{"Geometry3D", "Beethoven"}, "VertexNormals"]; ReconstructionMesh[coords, VertexNormals -> normals]

This is equivalent to passing oriented points:

Wolfram Language code: ReconstructionMesh[Point[coords, VertexNormals -> normals]]
Wolfram Language code: RegionEqual[%, %%]

Applications  (4)

Curve Reconstruction  (1)

ReconstructionMesh can reconstruct 1D curves in 2D:

Wolfram Language code: pts = Table[{t, Cos[t]}, {t, 0, 4Pi, Pi / 20}]; ReconstructionMesh[pts]

3D:

Wolfram Language code: pts = Table[{t, Cos[t], Sin[t]}, {t, 0, 8Pi, Pi / 20}]; ReconstructionMesh[pts]

Surface Reconstruction  (2)

ReconstructionMesh can reconstruct surfaces in 1D:

Wolfram Language code: pts = RandomPoint[RegionUnion[Ball[{-2}], Ball[{2}]], 30]; ReconstructionMesh[pts]
Wolfram Language code: RegionMeasure[%]

2D:

Wolfram Language code: pts = RandomPoint[RegionBoundary[Annulus[]], 500]; ReconstructionMesh[pts]
Wolfram Language code: ArcLength[%]

3D:

Wolfram Language code: pts = RandomPoint[RegionBoundary[DiscretizeRegion[Torus[]]], 1000]; ReconstructionMesh[pts]
Wolfram Language code: Area[%]

ReconstructionMesh can reconstruct 3D models:

Wolfram Language code: ReconstructionMesh[RandomPoint[ResourceData[#], 10000]]& /@ {"Stanford Bunny", "Cow", "Horse"}

Solid Reconstruction  (1)

ReconstructionMesh can reconstruct solids in 2D:

Wolfram Language code: pts = RandomPoint[Annulus[], 500]; ReconstructionMesh[pts]
Wolfram Language code: Area[%]

3D:

Wolfram Language code: pts = RandomPoint[CapsuleShape[], 1000]; ReconstructionMesh[pts]
Wolfram Language code: Volume[%]

Properties & Relations  (7)

ConcaveHullMesh reconstructs meshes using alpha shapes:

Wolfram Language code: coords = RandomPoint[Annulus[], 500];
Wolfram Language code: ConcaveHullMesh[coords]

This is similar to calling ReconstructionMesh with the Method set to "AlphaShape":

Wolfram Language code: ReconstructionMesh[coords, Method -> "AlphaShape"]

GradientFittedMesh reconstructs meshes using Poisson surface reconstruction:

Wolfram Language code: coords = RandomPoint[DiscretizeRegion[Torus[]], 1000];
Wolfram Language code: GradientFittedMesh[coords]

This is similar to calling ReconstructionMesh with the Method set to "Poisson":

Wolfram Language code: ReconstructionMesh[coords, Method -> "Poisson"]

FindCurvePath can be used to reconstruct curves from points:

Wolfram Language code: coords = RandomPoint[Circle[], 30];
Wolfram Language code: path = FindCurvePath[coords]; MeshRegion[coords, Line[path]]

This is similar to calling ReconstructionMesh with the Method set to "Crust":

Wolfram Language code: ReconstructionMesh[coords, Method -> "Crust"]

ListSurfacePlot3D can also be used to reconstruct 3D surfaces from points:

Wolfram Language code: coords = MeshCoordinates[ResourceData["Stanford Bunny"]];
Wolfram Language code: ListSurfacePlot3D[coords, MaxPlotPoints -> 50]

ConvexHullMesh can reconstruct convex meshes:

Wolfram Language code: coords = CirclePoints[100];
Wolfram Language code: ConvexHullMesh[coords]

Use DelaunayMesh to include the interior simplices:

Wolfram Language code: DelaunayMesh[coords]

RegionFit fits a geometric model to a set of points:

Wolfram Language code: coords = RandomPoint[Circle[{1, 2}, 3], 5];
Wolfram Language code: RegionFit[coords, "Circle"]

EstimatedPointNormals can estimate normals for use in reconstruction:

Wolfram Language code: coords = RandomPoint[ResourceData["Cow"], 10000];
Wolfram Language code: normals = EstimatedPointNormals[coords]//Shallow
Wolfram Language code: ReconstructionMesh[Point[coords, VertexNormals -> %]]

Interactive Examples  (1)

Create an interactive example with draggable points to view the reconstructed mesh in real time:

Wolfram Language code: DynamicModule[{p = CirclePoints[10]}, LocatorPane[Dynamic[p], Graphics[{FaceForm[LightGray], EdgeForm[Black], Dynamic[ReconstructionMesh[p] /. _EmptyRegion -> {}]}, PlotRange -> 1.2]]]
