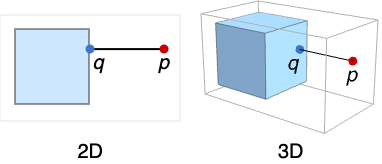

RegionNearest[reg,p]

gives a point in the region reg that is nearest the point p.

RegionNearest[reg]

gives a RegionNearestFunction[…] that can be repeatedly applied to points.

Details
Details and Options Details and Options
Examples
Basic Examples
Scope
Special Regions
Formula Regions
Mesh Regions
Derived Regions
Applications
Properties & Relations
See Also
Related Guides
History
Cite this Page

RegionNearest

RegionNearest[reg,p]

gives a point in the region reg that is nearest the point p.

RegionNearest[reg]

gives a RegionNearestFunction[…] that can be repeatedly applied to points.

Details

Examples

open all close all

Basic Examples  (2)

Find the nearest point in the unit disk:

Wolfram Language code: RegionNearest[Disk[], {2, 2}]

Plot it:

Wolfram Language code: Graphics[{{LightBlue, Disk[]}, {{Red, Point[{2, 2}]}, {Blue, Point[%]}, Line[{{2, 2}, %}]}}]

Find the nearest point in a MeshRegion:

Wolfram Language code: DelaunayMesh[RandomReal[1, {25, 2}]]

With one argument you get a RegionNearestFunction:

Wolfram Language code: nf = RegionNearest[%]

Apply the function to lists of points to compute many nearest points:

Wolfram Language code: nf[RandomReal[2, {5, 2}]]

Scope  (16)

Special Regions  (7)

Point sets:

Wolfram Language code: RegionNearest[Point[{{1, 1}, {1, 2}}], {3, 4}]

They work in any dimension:

Wolfram Language code: RegionNearest[Point[{{0, 0, 0, 0}, {1, 2, 3, 4}}], {2, 2, 2, 2}]

Visualize the nearest points:

Wolfram Language code: ℛ = Point[{{1, 2}, {3, 4}, {5, 6}}]; pts = Table[{3, 4} + 4{Cos[k 2π / 16], Sin[k 2π / 16]}, {k, 0, 15}]; nst = RegionNearest[ℛ, #]& /@ pts;
Wolfram Language code: Legended[Graphics[{ℛ, {Thin, Gray, Line[Transpose[{pts, nst}]]}, {Red, Point[pts]}, {Blue, Point[nst]}}], PointLegend[{Red, Blue}, {"start", "nearest"}]]

Line:

Wolfram Language code: RegionNearest[Line[{{0, 0}, {1, 1}}], {3, 4}]
Wolfram Language code: RegionNearest[Line[{{0, 0, 0}, {1, 1, 1}, {0, 0, 1}}], {1, 0, 3}]

Visualize it:

Wolfram Language code: ℛ = Line[{{0, 0}, {1, 2}, {1, 0}, {2, 2}}]; pts = Table[{1, 1} + 2{Cos[k 2π / 16], Sin[k 2π / 16]}, {k, 0, 15}]; nst = RegionNearest[ℛ, #]& /@ pts;
Wolfram Language code: Legended[Graphics[{ℛ, {Thin, Gray, Line[Transpose[{pts, nst}]]}, {Red, Point[pts]}, {Blue, Point[nst]}}], PointLegend[{Red, Blue}, {"start", "nearest"}]]

Rectangle can be used in 2D:

Wolfram Language code: RegionNearest[Rectangle[{0, 0}, {1, 2}], {3, 4}]

Cuboid generalizes it to any dimension:

Wolfram Language code: RegionNearest[Cuboid[{0, 0, 0, 0}, {1, 2, 3, 4}], {1, 1, 1, 5}]

Visualize the nearest points on a rectangle:

Wolfram Language code: ℛ = Rectangle[{0, 0}, {2, 1}]; pts = Table[{1, 1 / 2} + 2{Cos[k 2π / 16], Sin[k 2π / 16]}, {k, 0, 15}]; nst = RegionNearest[ℛ, #]& /@ pts;
Wolfram Language code: Legended[Graphics[{{LightBlue, EdgeForm[Gray], ℛ}, {Thin, Gray, Line[Transpose[{pts, nst}]]}, {Red, Point[pts]}, {Blue, Point[nst]}}], PointLegend[{Red, Blue}, {"start", "nearest"}]]

Simplex:

Wolfram Language code: RegionNearest[Simplex[1], {2}]
Wolfram Language code: RegionNearest[Simplex[3], {1, 1, 1}]

Visualize the nearest points on a 2D simplex:

Wolfram Language code: ℛ = Simplex[2]; pts = Table[{1 / 3, 1 / 3} + {Cos[k 2π / 16], Sin[k 2π / 16]}, {k, 0, 15}]; nst = RegionNearest[ℛ, #]& /@ pts;
Wolfram Language code: Legended[Graphics[{{LightBlue, EdgeForm[Gray], ℛ}, {Thin, Gray, Line[Transpose[{pts, nst}]]}, {Red, Point[pts]}, {Blue, Point[nst]}}], PointLegend[{Red, Blue}, {"start", "nearest"}]]

Polygon:

Wolfram Language code: RegionNearest[Polygon[{{0, 0}, {1, 0}, {0, 1}}], {1, 1}]

Visualize the nearest points in a hexagon:

Wolfram Language code: ℛ = Polygon[{{-2, 0}, {-1, 3 / 2}, {1, 3 / 2}, {2, 0}, {1, -3 / 2}, {-1, -3 / 2}}]; pts = Table[4{Cos[k 2 π / 25], Sin[k 2π / 25]}, {k, 0., 24}]; nst = RegionNearest[ℛ, #]& /@ pts;
Wolfram Language code: Legended[Graphics[{{LightBlue, EdgeForm[Gray], ℛ}, {Thin, Gray, Line[Transpose[{pts, nst}]]}, {Red, Point[pts]}, {Blue, Point[nst]}}], PointLegend[{Red, Blue}, {"start", "nearest"}]]

Disk can be used in 2D:

Wolfram Language code: RegionNearest[Disk[{0, 0}, 1], {3, 4}]

Ball generalizes a disk in any dimension:

Wolfram Language code: RegionNearest[Ball[{0, 0, 0}, 1], {3, 4, 5}]

Visualize the nearest points on a 3D ball:

Wolfram Language code: ℛ = Ball[{0, 0, 0}, 1]; pts = Flatten[Table[2{Cos[k 2π / 8]Cos[l π / 8], Sin[k 2π / 8]Cos[l π / 8], Sin[l π / 8]}, {k, 0, 7}, {l, -3, 3}], 1]; nst = RegionNearest[ℛ, #]& /@ pts;
Wolfram Language code: Legended[Graphics3D[{ℛ, {Thin, Gray, Line[Transpose[{pts, nst}]]}, {Red, Point[pts]}, {Blue, Point[nst]}}, Boxed -> False], PointLegend[{Red, Blue}, {"start", "nearest"}]]

Disk can be an ellipse in 2D:

Wolfram Language code: RegionNearest[Disk[{0, 0}, {1, 2}], {0, 4}]

Ellipsoid generalizes ellipses to any dimension:

Wolfram Language code: RegionNearest[Ellipsoid[{0, 0, 0}, {1, 2, 3}], {0, 3, 4}]

Plot the nearest points on an ellipse:

Wolfram Language code: ℛ = Disk[{0, 0}, {2, 1}]; pts = Table[3{Cos[k 2π / 16], Sin[k 2π / 16]}, {k, 0., 15}]; nst = RegionNearest[ℛ, #]& /@ pts;
Wolfram Language code: Legended[Graphics[{{LightBlue, EdgeForm[Gray], ℛ}, {Thin, Gray, Line[Transpose[{pts, nst}]]}, {Red, Point[pts]}, {Blue, Point[nst]}}], PointLegend[{Red, Blue}, {"start", "nearest"}]]

Formula Regions  (2)

The nearest point on a disk represented as an ImplicitRegion:

Wolfram Language code: ℛ = ImplicitRegion[x^2 + y^2 ≤ 1, {x, y}];
Wolfram Language code: Region[ℛ]
Wolfram Language code: RegionNearest[ℛ, {3, 4}]

A cylinder:

Wolfram Language code: ℛ = ImplicitRegion[x^2 + y^2 ≤ 1, {x, y, {z, 0, 2}}];
Wolfram Language code: RegionNearest[ℛ, {3, 4, 5}]

The nearest point on a disk represented as a ParametricRegion:

Wolfram Language code: ℛ = ParametricRegion[{r Cos[θ], r Sin[θ]}, {{r, 0, 1}, {θ, 0, 2π}}];
Wolfram Language code: RegionNearest[ℛ, {3, 4}]
Wolfram Language code: FullSimplify[%]

Using a rational parametrization of the disk:

Wolfram Language code: ℛ = ParametricRegion[{r(1 - t^2/1 + t^2), r(2t/1 + t^2)}, {t, {r, 0, 1}}];
Wolfram Language code: RegionNearest[ℛ, {3, 4}]

A cylinder:

Wolfram Language code: ℛ = ParametricRegion[{r Cos[θ], r Sin[θ], z}, {{r, 0, 1}, {θ, 0, 2π}, {z, 0, 2}}];
Wolfram Language code: RegionNearest[ℛ, {3, 4, 5}]
Wolfram Language code: FullSimplify[%]

Mesh Regions  (4)

The nearest point in a 1D BoundaryMeshRegion:

Wolfram Language code: ℛ = BoundaryMeshRegion[{{0}, {1}}, Point[{{1}, {2}}]]
Wolfram Language code: RegionNearest[ℛ, {2}]

2D:

Wolfram Language code: ℛ = ConvexHullMesh[RandomReal[1, {10, 2}]];
Wolfram Language code: Show[ℛ, Graphics[{Red, Point[{1, 1}]}]]
Wolfram Language code: RegionNearest[ℛ, {1, 1}]

3D:

Wolfram Language code: ℛ = ConvexHullMesh[RandomReal[1, {20, 3}]];
Wolfram Language code: Show[ℛ, Graphics3D[{Red, Point[{1, 1, 1}]}]]
Wolfram Language code: RegionNearest[ℛ, {1, 1, 1}]

The nearest point in a 0D MeshRegion in 1D:

Wolfram Language code: ℛ = MeshRegion[{{0}, {1}}, Point[{{1}, {2}}]]
Wolfram Language code: RegionNearest[ℛ, {1 / 2}]

A 1D region:

Wolfram Language code: ℛ = MeshRegion[{{0}, {1}}, Line[{1, 2}]]
Wolfram Language code: RegionNearest[ℛ, {2}]

The nearest point in a 0D MeshRegion in 2D:

Wolfram Language code: ℛ = MeshRegion[{{0, 0}, {1, 0}, {0, 1}}, Point[{{1}, {2}, {3}}]];
Wolfram Language code: Show[ℛ, Graphics[{Red, Point[{1, 1}]}]]
Wolfram Language code: RegionNearest[ℛ, {1, 1}]

A 1D region:

Wolfram Language code: ℛ = MeshRegion[{{0, 0}, {1, 0}, {0, 1}}, Line[{1, 2, 3, 1}]];
Wolfram Language code: Show[ℛ, Graphics[{Red, Point[{1, 1}]}]]
Wolfram Language code: RegionNearest[ℛ, {1, 1}]

A 2D region:

Wolfram Language code: ℛ = MeshRegion[{{0, 0}, {1, 0}, {0, 1}}, Polygon[{1, 2, 3}]];
Wolfram Language code: Show[ℛ, Graphics[{Red, Point[{1, 1}]}]]
Wolfram Language code: RegionNearest[ℛ, {1, 1}]

The nearest point in a 0D MeshRegion in 3D:

Wolfram Language code: ℛ = MeshRegion[{{0, 0, 0}, {0, 0, 1}, {0, 1, 0}, {1, 0, 0}}, Point[{{1}, {2}, {3}, {4}}]];
Wolfram Language code: Show[ℛ, Graphics3D[{Red, Point[{1, 1, 1}]}]]
Wolfram Language code: RegionNearest[ℛ, {1, 1, 1}]

A 1D region:

Wolfram Language code: ℛ = MeshRegion[{{0, 0, 0}, {0, 0, 1}, {0, 1, 0}, {1, 0, 0}}, Line[{{1, 2, 3, 4, 1}}]];
Wolfram Language code: Show[ℛ, Graphics3D[{Red, Point[{1, 1, 1}]}]]
Wolfram Language code: RegionNearest[ℛ, {1, 1, 1}]

A 2D region:

Wolfram Language code: ℛ = MeshRegion[{{0, 0, 0}, {0, 0, 1}, {0, 1, 0}, {1, 0, 0}}, Polygon[{{1, 2, 3}, {2, 3, 4}}]];
Wolfram Language code: Show[ℛ, Graphics3D[{Red, Point[{1, 1, 1}]}]]
Wolfram Language code: RegionNearest[ℛ, {1, 1, 1}]

A 3D region:

Wolfram Language code: ℛ = MeshRegion[{{0, 0, 0}, {0, 0, 1}, {0, 1, 0}, {1, 0, 0}}, Tetrahedron[{{1, 2, 3, 4}}]];
Wolfram Language code: Show[ℛ, Graphics3D[{Red, Point[{1, 1, 1}]}]]
Wolfram Language code: RegionNearest[ℛ, {1, 1, 1}]

Derived Regions  (3)

The distance to a RegionIntersection:

Wolfram Language code: ℛ = RegionIntersection[Disk[{0, 0}, 1], Disk[{0, 1}, 1]];
Wolfram Language code: RegionNearest[ℛ, {1, 1}]
Wolfram Language code: Show[Graphics[{Red, Point[{1, 1}]}], RegionPlot[ℛ]]

The distance to a TransformedRegion:

Wolfram Language code: ℛ = TransformedRegion[Disk[], ScalingTransform[{3, 2}]];
Wolfram Language code: RegionNearest[ℛ, {4, 3}]
Wolfram Language code: Show[DiscretizeRegion[ℛ, {{-3, 3}, {-2, 2}}], Graphics[{Red, Point[{4, 3}]}]]

The distance to a RegionBoundary:

Wolfram Language code: ℛ = RegionBoundary[Disk[]];
Wolfram Language code: RegionNearest[ℛ, {1 / 2, 1 / 2}]
Wolfram Language code: Graphics[{ℛ, Red, Point[{1 / 2, 1 / 2}]}]

Applications  (3)

Visualize the nearest points in a region:

Wolfram Language code: ℛ = BoundaryDiscretizeRegion[ImplicitRegion[Abs[x]^1 / 2 + Abs[y]^1 / 2 ≤ 1, {x, y}], {{-1, 1}, {-1, 1}}]; nf = RegionNearest[ℛ]; pts = Flatten[Table[r{Cos[k 2π / 128], Sin[k 2π / 128]}, {k, 0, 127}, {r, 1, 2}], 1]; nst = nf[pts];

The nearest points along two circles:

Wolfram Language code: Show[ℛ, Graphics[{Thin, Gray, Line[Transpose[{pts, nst}]]}]]

Visualize a region by mapping uniform points to the region using RegionNearest:

Wolfram Language code: ℛ = BoundaryDiscretizeRegion[ImplicitRegion[Abs[x]^1 / 2 + Abs[y]^1 / 2 ≤ 1, {x, y}], {{-1, 1}, {-1, 1}}]; nf = RegionNearest[ℛ]; pts = RandomReal[{-1, 1}, {10000, 2}]; Graphics[{PointSize[Tiny], Point[nf[pts]]}]

Find the altitude of a triangle:

Wolfram Language code: {a, b, c} = {{0, 0}, {3, 0}, {1, 2}};
Wolfram Language code: base = InfiniteLine[{a, b}];
Wolfram Language code: foot = RegionNearest[base, c];
Wolfram Language code: altitude = Line[{c, foot}];

Visualize altitude in red:

Wolfram Language code: Graphics[{{LightBlue, Triangle[{a, b, c}]}, {Thick, Darker@LightBlue, base}, {PointSize@Medium, Red, Point[{c, foot}]}, {Dashed, Red, altitude}}]

Properties & Relations  (4)

Only one point is returned in case there is a tie:

Wolfram Language code: pt = {0, 0}; ℛ = Circle[pt, 1];
Wolfram Language code: n = RegionNearest[ℛ, pt]

Visualize the nearest point chosen in red:

Wolfram Language code: Graphics[{Point[pt], {Gray, ℛ}, {Red, Point[n]}}]

A point is a RegionMember if the nearest point to the region is itself:

Wolfram Language code: pt = {0, 0}; ℛ = Disk[pt, 1];
Wolfram Language code: RegionMember[ℛ, pt]
Wolfram Language code: pt === RegionNearest[ℛ, pt]

RegionNearest is closely related to RegionDistance:

Wolfram Language code: ℛ = Disk[];

The distance to the nearest point is minimal:

Wolfram Language code: EuclideanDistance[RegionNearest[ℛ, {5, 5}], {5, 5}]
Wolfram Language code: RegionDistance[ℛ, {5, 5}]
Wolfram Language code: FullSimplify[%% - %]

Nearest gives nearest points for finite point regions:

Wolfram Language code: pts = {{0, 1}, {2, 1}, {3, 3}};
Wolfram Language code: Nearest[pts, {0.5, 0.5}]
Wolfram Language code: RegionNearest[Point[pts], {0.5, 0.5}]
