RegionIntersection

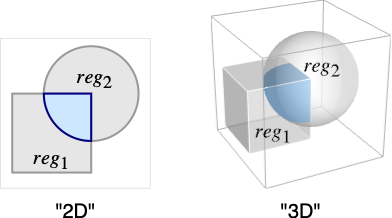

RegionIntersection[reg₁,reg₂,…]

gives the intersection of the regions reg₁, reg₂, ….

Details and Options

A point p belongs to RegionIntersection[reg₁,reg₂,…] if it belongs to all reg_i.

RegionIntersection takes the same options as Region.

Examples

open all close all

Basic Examples (2)

Intersection of two disks:

Wolfram Language code: ℛ = RegionIntersection[Disk[{0, 0}, 2], Disk[{0, 3}, 2]];

Visualize it:

Wolfram Language code: Region[ℛ]

Intersection of two MeshRegion objects:

Wolfram Language code: RegionIntersection[[image], [image]]

Scope (16)

Special Regions (7)

For some regions, intersection is computed explicitly:

Wolfram Language code:

Subscript[ℛ, 1] = Triangle[{{0, 0}, {2, 3}, {-2, 3}}];
Subscript[ℛ, 2] = Triangle[{{0, 2}, {2, -1}, {-2, -1}}];

Wolfram Language code: Subscript[ℛ, 3] = RegionIntersection[Subscript[ℛ, 1], Subscript[ℛ, 2]]

Visualize the intersection:

Wolfram Language code: Graphics[{Opacity[0.5], {Red, Subscript[ℛ, 1]}, {Green, Subscript[ℛ, 2]}, {Blue, Subscript[ℛ, 3]}}]

An intersection of an infinite line and a ball:

Wolfram Language code:

Subscript[ℛ, 1] = InfiniteLine[{{-1, -2, -3}, {1, 2, 3}}];
Subscript[ℛ, 2] = Ball[{0, 0, 0}, 3];

Wolfram Language code: Subscript[ℛ, 3] = RegionIntersection[Subscript[ℛ, 1], Subscript[ℛ, 2]]

Visualize the intersection:

Wolfram Language code: Graphics3D[{Opacity[0.5], {Red, Subscript[ℛ, 1]}, {Green, Subscript[ℛ, 2]}, {Blue, Subscript[ℛ, 3]}}]

An intersection of Line regions:

Wolfram Language code: ℛ = RegionIntersection[Line[{{1}, {3}}], Line[{{2}, {4}}]]

Visualize it:

Wolfram Language code: Region[ℛ]

An intersection of Polygon regions:

Wolfram Language code:

ℛ1 = Polygon[{{0, 0}, {-1, 3}, {0, 2}, {1, 3}}];
ℛ2 = Polygon[{{0, 5}, {1, 2}, {0, 3}, {-1, 2}}];

Wolfram Language code: ℛ = RegionIntersection[ℛ1, ℛ2];

Visualize it:

Wolfram Language code: Region[ℛ]

An intersection of two Disk regions:

Wolfram Language code: ℛ = RegionIntersection[Disk[{0, 0}, 1], Disk[{0, 1}, 1]];

Visualize it:

Wolfram Language code: Region[ℛ]

An intersection of a cuboid a cone:

Wolfram Language code: ℛ = RegionIntersection[Cuboid[], Cone[]];

Visualize it:

Wolfram Language code: Region[ℛ]

An intersection of regions with different RegionDimension:

Wolfram Language code: ℛ = RegionIntersection[Disk[{0, 0}, 1], Circle[{0, 1}, 1]]

Visualize it:

Wolfram Language code: Region[ℛ]

Formula Regions (2)

An intersection of ImplicitRegion objects is an ImplicitRegion:

Wolfram Language code:

Subscript[ℛ, 1] = ImplicitRegion[x ≤ 1, {x}];
Subscript[ℛ, 2] = ImplicitRegion[x ≥ -1, {x}];

Wolfram Language code: RegionIntersection[Subscript[ℛ, 1], Subscript[ℛ, 2]]

2D:

Wolfram Language code:

Subscript[ℛ, 1] = ImplicitRegion[x^2 + y^2 ≤ 1, {x, y}];
Subscript[ℛ, 2] = ImplicitRegion[x^2 + (y - 1)^2 ≤ 1, {x, y}];

Wolfram Language code: RegionIntersection[Subscript[ℛ, 1], Subscript[ℛ, 2]]

3D:

Wolfram Language code:

Subscript[ℛ, 1] = ImplicitRegion[x^2 + y^2 + z^2 ≤ 1, {x, y, z}];
Subscript[ℛ, 2] = ImplicitRegion[(x - 1)^2 + y^2 + z^2 ≤ 1, {x, y, z}];

Wolfram Language code: RegionIntersection[Subscript[ℛ, 1], Subscript[ℛ, 2]]

nD:

Wolfram Language code:

Subscript[ℛ, 1] = ImplicitRegion[x^2 + y^2 + z^2 + u^2 + v^2 ≤ 1, {x, y, z, u, v}];
Subscript[ℛ, 2] = ImplicitRegion[(x - 1)^2 + y^2 + z^2 + u^2 + v^2 ≤ 1, {x, y, z, u, v}];

Wolfram Language code: RegionIntersection[Subscript[ℛ, 1], Subscript[ℛ, 2]]

An intersection of ParametricRegion objects:

Wolfram Language code:

Subscript[ℛ, 1] = ParametricRegion[{u, v}, {{u, 0, 2}, {v, 0, 2}}];
Subscript[ℛ, 2] = ParametricRegion[{u + 1, v + 1}, {{u, 0, 2}, {v, 0, 2}}];

Wolfram Language code: ℛ = RegionIntersection[Subscript[ℛ, 1], Subscript[ℛ, 2]];

Visualize it:

Wolfram Language code: Region[ℛ]

Mesh Regions (2)

An intersection of BoundaryMeshRegion objects is a BoundaryMeshRegion:

Wolfram Language code: RegionIntersection[[image], [image]]

Wolfram Language code: BoundedRegionQ[%]

2D:

Wolfram Language code: RegionIntersection[[image], [image]]

Wolfram Language code: BoundedRegionQ[%]

3D:

Wolfram Language code: RegionIntersection[[image], [image]]

Wolfram Language code: BoundedRegionQ[%]

An intersection of full-dimensional MeshRegion objects is a MeshRegion:

Wolfram Language code: RegionIntersection[[image], [image]]

Wolfram Language code: MeshRegionQ[%]

2D:

Wolfram Language code: RegionIntersection[[image], [image]]

Wolfram Language code: MeshRegionQ[%]

3D:

Wolfram Language code: RegionIntersection[[image], [image]]

Wolfram Language code: MeshRegionQ[%]

Derived Regions (2)

An intersection of BooleanRegion objects:

Wolfram Language code:

Subscript[ℛ, 1] = BooleanRegion[Or, {Triangle[{{0, 0}, {2, 3}, {-2, 3}}], Triangle[{{0, 2}, {2, -1}, {-2, -1}}]}];
Subscript[ℛ, 2] = BooleanRegion[And, {Triangle[{{0, 0}, {2, 3}, {-2, 3}}], Triangle[{{0, 2}, {2, -1}, {-2, 2}}]}];

Wolfram Language code: ℛ = RegionIntersection[Subscript[ℛ, 1], Subscript[ℛ, 2]];

Visualize it:

Wolfram Language code: Region[ℛ]

An intersection of TransformedRegion objects:

Wolfram Language code:

Subscript[ℛ, 1] = TransformedRegion[Cuboid[], RotationTransform[Pi / 8, {1, 0, 0}]];
Subscript[ℛ, 2] = TransformedRegion[Cuboid[], RotationTransform[Pi / 8, {0, 1, 0}]];

Wolfram Language code: ℛ = RegionIntersection[Subscript[ℛ, 1], Subscript[ℛ, 2]];

Visualize it:

Wolfram Language code: Region[ℛ]

CSG Regions (2)

A intersection of CSGRegion objects in 2D:

Wolfram Language code:

Subscript[ℛ, 1] = CSGRegion[{Rectangle[{-1, -8}, {1, 8}], Rectangle[{-3, -8}, {-5, 8}], Rectangle[{-7, -8}, {-9, 8}], Rectangle[{3, -8}, {5, 8}], Rectangle[{7, -8}, {9, 8}]}];
Subscript[ℛ, 2] = CSGRegion["Difference", {Disk[{0, 0}, 8], Disk[{0, 0}, 4]}];

Wolfram Language code: RegionIntersection[Subscript[ℛ, 1], Subscript[ℛ, 2]]

A intersection of CSGRegion objects in 3D:

Wolfram Language code:

Subscript[ℛ, 1] = CSGRegion[{Cube[1.5], Cube[{0, 0, 1}, 0.8]}];
Subscript[ℛ, 2] = CSGRegion[{Ball[], Ball[{0, 0, 1}, 0.5]}];

Wolfram Language code: RegionIntersection[Subscript[ℛ, 1], Subscript[ℛ, 2]]

Subdivision Regions (1)

A intersection of SubdivisionRegion objects in 2D:

Wolfram Language code:

Subscript[ℛ, 1] = SubdivisionRegion[Rectangle[]];
Subscript[ℛ, 2] = SubdivisionRegion[Rectangle[{1 / 2, 1 / 2}]];

Wolfram Language code: RegionIntersection[Subscript[ℛ, 1], Subscript[ℛ, 2]]

3D:

Wolfram Language code:

Subscript[ℛ, 1] = SubdivisionRegion[Cube[]];
Subscript[ℛ, 2] = SubdivisionRegion[Cube[{1 / 4, 0, 0}]];

Wolfram Language code: RegionIntersection[Subscript[ℛ, 1], Subscript[ℛ, 2]]

Applications (3)

Intersection of regions:

Wolfram Language code: {Subscript[ℛ, 1], Subscript[ℛ, 2]} = {[image], [image]};

Wolfram Language code:

Multicolumn[Table[RegionIntersection[Subscript[ℛ, 1], TransformedRegion[Subscript[ℛ, 2], TranslationTransform[{0, 0, t}]]], {t, 0, 1, 0.2}], 3, Appearance -> "Horizontal" ]

Define a disk segment as an intersection of a disk and a half-plane:

Wolfram Language code: segment = RegionIntersection[Disk[{0, 0}, 1], HalfPlane[{{0.5, 0}, {0.5, 1}}, {1, 0}]];

Wolfram Language code: Show[{Region[Style[Disk[], LightRed]], Region[segment]}]

Define a new basic region diskSegment that uses the same notation as Disk does for disk sectors, so that diskSegment[{x,y},r,{θ₁,θ₂}] represents the disk segment from θ₁ to θ₂. Do it by writing it as a RegionIntersection of a Disk and a HalfPlane:

Wolfram Language code:

diskSegment[{x0_, y0_}, r_, {θ1_, θ2_}] :=
	Module[{ϕ1, ϕ2, ϕmid},
	If[θ1 < θ2, {ϕ1, ϕ2} = {θ1, θ2}, {ϕ1, ϕ2} = {θ1, θ2 + 2π}];
	ϕmid = (ϕ1 + ϕ2) / 2;
	RegionIntersection[Disk[{x0, y0}, r],
	HalfPlane[{{x0 + r Cos[ϕ1], y0 + r Sin[ϕ1]}, {x0 + r Cos[ϕ2], y0 + r Sin[ϕ2]}}, {Cos[ϕmid], Sin[ϕmid]}]]
	];

This evaluates an object that is RegionQ and can be used as any other region:

Wolfram Language code: ℛ = diskSegment[{0, 0}, 1, {π / 4, -π / 2}]

Wolfram Language code: RegionMember[ℛ, {x, y}]//FullSimplify

Visualize the disk segment together with the disk:

Wolfram Language code: Show[{Region[Style[Disk[], LightRed]], Region[ℛ]}]

Properties & Relations (4)

A point p belongs to RegionIntersection[reg₁,reg₂,…] if it belongs to all reg_i:

Wolfram Language code:

Subscript[ℛ, 1] = Disk[{0, 0}, 2];
Subscript[ℛ, 2] = Disk[{0, 3}, 2];
Subscript[ℛ, 3] = RegionIntersection[Subscript[ℛ, 1], Subscript[ℛ, 2]];

Use RegionMember to test membership:

Wolfram Language code: p = {0, 1};

Wolfram Language code: RegionMember[Subscript[ℛ, 3], p] == RegionMember[Subscript[ℛ, 1], p]∧ RegionMember[Subscript[ℛ, 2], p]

RegionIntersection is a Boolean combination And of regions:

Wolfram Language code: {Subscript[ℛ, 1], Subscript[ℛ, 2]} = {[image], [image]};

Wolfram Language code: RegionIntersection[Subscript[ℛ, 1], Subscript[ℛ, 2]] == BooleanRegion[And, {Subscript[ℛ, 1], Subscript[ℛ, 2]}]

The RegionMeasure of an intersection obeys a simple formula:

Wolfram Language code:

Subscript[ℛ, 1] = Disk[{0, 0}, 1];
Subscript[ℛ, 2] = Disk[{1, 0}, 1];
Subscript[ℛ, 3] = RegionIntersection[Subscript[ℛ, 1], Subscript[ℛ, 2]];

Subtract the measure of the RegionUnion from the sum of the measures:

Wolfram Language code:

RegionMeasure[Subscript[ℛ, 3]] == RegionMeasure[Subscript[ℛ, 1]] + RegionMeasure[Subscript[ℛ, 2]] - RegionMeasure[RegionUnion[Subscript[ℛ, 1], Subscript[ℛ, 2]]]

The RegionDimension of an intersection is at most the minimum of all input dimensions:

Wolfram Language code:

Subscript[ℛ, 1] = Disk[{0, 0}, 1];
Subscript[ℛ, 2] = Circle[{1, 0}, 1];

Wolfram Language code:

RegionDimension[RegionIntersection[Subscript[ℛ, 1], Subscript[ℛ, 2]]] == Min[RegionDimension /@ {Subscript[ℛ, 1], Subscript[ℛ, 2]}]

It can be lower, however:

Wolfram Language code:

Subscript[ℛ, 1] = Disk[{0, 0}, 1];
Subscript[ℛ, 2] = Circle[{2, 0}, 1];
Subscript[ℛ, 3] = RegionIntersection[Subscript[ℛ, 1], Subscript[ℛ, 2]];

Wolfram Language code: Show[Region[Subscript[ℛ, 1]], Region[Subscript[ℛ, 2]], Graphics[{Red, Point[{1, 0}]}]]

These regions overlap only at a point, so the dimension of the intersection is 0:

Wolfram Language code: RegionDimension[Subscript[ℛ, 3]]

Possible Issues (2)

RegionIntersection is defined only for regions with the same RegionEmbeddingDimension:

Wolfram Language code:

Subscript[ℛ, 1] = Disk[];
Subscript[ℛ, 2] = Ball[{0, 0, 1}, 1];

Wolfram Language code: RegionIntersection[Subscript[ℛ, 1], Subscript[ℛ, 2]]

Components of dimension less than the embedding dimension may be omitted:

Wolfram Language code:

Subscript[ℛ, 1] = MeshRegion[{{0, 0, 0}, {2, 0, 0}, {2, 2, 0}, {1, 1, 2}}, Tetrahedron[{1, 2, 3, 4}]];
Subscript[ℛ, 2] = MeshRegion[{{0, 0, 0}, {2, 2, 0}, {0, 2, 0}, {1, 1, 2}}, Tetrahedron[{1, 2, 3, 4}], PlotTheme -> "Web"];

Wolfram Language code: Show[{Subscript[ℛ, 1], Subscript[ℛ, 2]}]

Wolfram Language code: RegionIntersection[Subscript[ℛ, 1], Subscript[ℛ, 2]]

Turn on a message:

Wolfram Language code: On[BooleanRegion::drc]

Wolfram Language code: RegionIntersection[Subscript[ℛ, 1], Subscript[ℛ, 2]]

Neat Examples (1)

The intersection of two spiral polygons:

Wolfram Language code: RegionIntersection[[image], [image]]
