FlatShading

FlatShading[]

is a three-dimensional graphics directive that specifies that faces of polygons and other filled graphics objects are to be drawn to reflect as a flat surface.

FlatShading[d]

uses the attenuation factor d for the diffuse light.

FlatShading[{d,a}]

uses the attenuation factor a for the ambient light.

Details

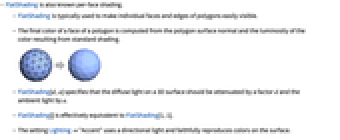

  • FlatShading is also known per‐face shading.
  • FlatShading is typically used to make individual faces and edges of polygons easily visible.

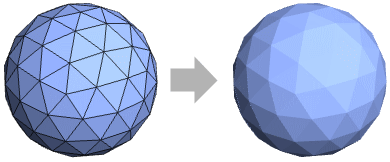

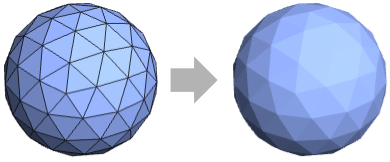

  • The final color of a face of a polygon is computed from the polygon surface normal and the luminosity of the color resulting from standard shading.
  • FlatShading[{d,a}] specifies that the diffuse light on a 3D surface should be attenuated by a factor d and the ambient light by a.
  • FlatShading[] is effectively equivalent to FlatShading[{1,1}].
  • The setting Lighting"Accent" uses a directional light and faithfully reproduces colors on the surface.

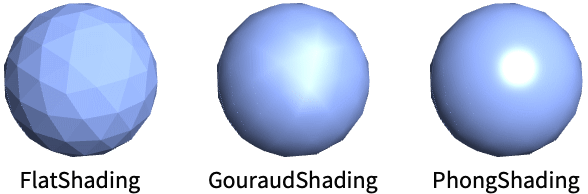

  • The basic shading models FlatShading, GouraudShading and PhongShading compared:

Examples

open all close all

Basic Examples  (4)

Apply flat shading to the geodesic polyhedron:

Wolfram Language code: Graphics3D[{FlatShading[], GeodesicPolyhedron[5]}]

Use flat shading to show a knot:

Wolfram Language code: Graphics3D[{FlatShading[], KnotData["SolomonSeal", "ImageData"]}]

Show the faces used when rendering a plot:

Wolfram Language code: Plot3D[Sin[x + y ^ 2], {x, -3, 3}, {y, -2, 2}, PlotStyle -> FlatShading[], Mesh -> None, PlotPoints -> 5]

Visualize a 3D model with hard edges between polygons:

Wolfram Language code: model = ExampleData[{"Geometry3D", "Galleon"}, "GraphicsComplex"]; Graphics3D[{FlatShading[], model}]

Scope  (12)

Basic Uses  (5)

Apply flat shading to a graphics primitive:

Wolfram Language code: Graphics3D[{FlatShading[], #}]& /@ {Sphere[], CapsuleShape[], Cone[]}

Apply flat shading to a plot:

Wolfram Language code: SphericalPlot3D[1 + 2 Cos[2 θ], {θ, 0, Pi}, {ϕ, 0, 2 Pi}, Axes -> False, PlotStyle -> FlatShading[], Mesh -> None]

Apply flat shading to a chart:

Wolfram Language code: BarChart3D[Range[5], ChartElements -> [image], ChartStyle -> FlatShading[]]

Apply flat shading to a 3D object:

Wolfram Language code: Graphics3D[{FlatShading[], ExampleData[{"Geometry3D", "Beethoven"}, "GraphicsComplex"]}]

Summary box:

Wolfram Language code: FlatShading[]

Specification  (4)

FlatShading with no arguments uses similar calculations for diffuse and ambient light as the default system shader:

Wolfram Language code: Graphics3D[{FlatShading[], Sphere[]}]

Attenuate all light from the surface by a scaler value:

Wolfram Language code: Graphics3D[{FlatShading[#], Sphere[]}]& /@ {0, 0.5, 1.0}

This is equivalent to specifying each attenuation factor explicitly:

Wolfram Language code: Graphics3D[{FlatShading[{#, #}], Sphere[]}]& /@ {0, 0.5, 1.0}

Attenuate the diffuse light, setting the other attenuation factor to zero:

Wolfram Language code: Graphics3D[{FlatShading[{#}], Sphere[]}]& /@ {0, 0.5, 1.0}

Attenuate the ambient light, setting the other attenuation factor to zero:

Wolfram Language code: Graphics3D[{FlatShading[{0, #}], Sphere[]}]& /@ {0, 0.5, 1.0}

Lighting  (3)

FlatShading works with all types of lights:

Wolfram Language code: lights = {AmbientLight[LightGray], PointLight[White, ImageScaled[{1, 1, 2}]], DirectionalLight[White, ImageScaled[{1, 1, 2}]], SpotLight[White, {{1, -1, 1}, {0, 0, 0}}, Pi / 4]}; Graphics3D[{FlatShading[], Sphere[]}, Lighting -> {#}]& /@ lights

Use colored lights:

Wolfram Language code: Graphics3D[{FlatShading[], Sphere[]}, Lighting -> {DirectionalLight[RGBColor[1, 0, 0], ImageScaled[{1, -0.5, 1}]], DirectionalLight[RGBColor[0, 1, 0], ImageScaled[{-1, -0.5, 1}]], DirectionalLight[RGBColor[0, 0, 1], ImageScaled[{0, 1, 1}]], AmbientLight[GrayLevel[0.2]]}]

The ambient percentage only applies if an AmbientLight is has been specified:

Wolfram Language code: Graphics3D[{FlatShading[{1, #}], Sphere[]}, Lighting -> AmbientLight[LightGray]]& /@ {0.0, 1.0}

Applications  (4)

Basic Applications  (2)

The face colors are constant across the face of a polygon and based on the face normal:

Wolfram Language code: flatshading[p_] := Graphics3D[{FlatShading[], p, Arrow[...]& /@ p[[1]]}]
Wolfram Language code: flatshading[Polygon[{{{0, 0, 0}, {2, 0, 0}, {1, 2, 0}}}]]

Apply FlatShading on the Icosahedron:

Wolfram Language code: flatshading[Polygon[{{{0., 0., 0.9510565162951536}, {0.2628655560595668, 0.8090169943749475, 0.42532540417601994}, {-0.6881909602355868, 0.5, 0.42532540417601994}}, {{0., 0., 0.9510565162951536}, {-0.6881909602355868, 0.5, 0.42532540417601994}, {-0 ... {-0.2628655560595668, 0.8090169943749475, -0.42532540417601994}}, {{-0.2628655560595668, -0.8090169943749475, -0.42532540417601994}, {-0.6881909602355868, -0.5, 0.42532540417601994}, {-0.85065080835204, 0., -0.42532540417601994}}}]]

The face color is based on the angle between the face normal and light vector:

Wolfram Language code: lightAngle[p : Polygon[v_], θ_] := Block[{c = Mean[v], n = Normalize[Cross[v[[2]] - v[[1]], v[[3]] - v[[1]]]], l}, l = RotationMatrix[θ, {n, {1, 0, 0}}].n;Graphics3D[{FlatShading[], p, Thick, RGBColor[0., 2/3, 1.], Arrowheads[0.1], Arrow[{c, c + n}], RGBColor[1., 3/4, 0.], Arrow[{c, c + l}]}, Lighting -> DirectionalLight[White, c + l]]]
Wolfram Language code: polygon = Polygon[{{0, 0, 0}, {1.6, 0, 0}, {0.8, 1.6, 0}}]; lightAngle[polygon, #]& /@ {0.2, 0.6, 1.0}

The face is brightest when pointed toward the light:

Wolfram Language code: lightAngle[polygon, 0]

The face is darkest when the face normal and light vector are orthogonal:

Wolfram Language code: lightAngle[polygon, Pi / 2]

Visualizations  (2)

Create a low poly plot style:

Wolfram Language code: SphericalPlot3D[1 + 2 Cos[2 θ], {θ, 0, Pi}, {ϕ, 0, 2 Pi}, PlotPoints -> 5, Mesh -> None, PlotStyle -> FlatShading[]]

Visualize the underlying plot mesh:

Wolfram Language code: ParametricPlot3D[{1.16 ^ v Cos[v] (1 + Cos[u]), -1.16 ^ v Sin[v] (1 + Cos[u]), -2 1.16 ^ v (1 + Sin[u])}, {u, 0, 2 Pi}, {v, -15, 6}, Mesh -> None, PlotRange -> All, PlotStyle -> FlatShading[]]

Properties & Relations  (3)

FlatShading ignores VertexNormals:

Wolfram Language code: model = GraphicsComplex[{...}, Polygon[...], VertexNormals -> {...}]; Graphics3D[{#, model}]& /@ {Null, FlatShading[]}

Specify FaceForm with FlatShading:

Wolfram Language code: Graphics3D[{FaceForm[#], FlatShading[], Icosahedron[]}]& /@ {Red, Green, Blue}

FlatShading is similar to PhongShading when no VertexNormals are available:

Wolfram Language code: Graphics3D[{#, ResourceData["Beethoven"]}, Boxed -> False]& /@ {PhongShading[], FlatShading[]}

FlatShading does not include specular reflection:

Wolfram Language code: Graphics3D[{#, Specularity[White, 1], ResourceData["Beethoven"]}, Boxed -> False]& /@ {PhongShading[], FlatShading[]}

Possible Issues  (2)

FlatShading works for graphics objects made of flat polygonal faces:

Wolfram Language code: Graphics3D[{FlatShading[], Sphere[]}]

A discretization of the sphere:

Wolfram Language code: Graphics3D[{FlatShading[], DiscretizeGraphics[Sphere[]]}]

Specular reflection does not affect FlatShading:

Wolfram Language code: model = ExampleData[{"Geometry3D", "Cow"}, "GraphicsComplex"];
Wolfram Language code: Graphics3D[{FlatShading[], Specularity[White, 10], model}]

Use the default system shader with no VertexNormals specified to include specular lighting:

Wolfram Language code: Graphics3D[{Specularity[White, 10], EdgeForm[], DeleteCases[model, Rule[VertexNormals, _]]}]
