GouraudShading

GouraudShading[]

is a three‐dimensional graphics directive that specifies that faces of polygons and other filled graphics objects are to be drawn to reflect as a smooth surface using a normal‐vector average shading.

GouraudShading[d]

uses the attenuation factor d for the diffuse light.

GouraudShading[{d,s}]

uses the attenuation factor s for the specular light.

GouraudShading[{d,s,a}]

uses the attenuation factor a for the ambient light.

Details

  • GouraudShading is also known as per‐vertex shading.
  • GouraudShading is typically used to achieve smooth lighting on low-polygon surfaces.

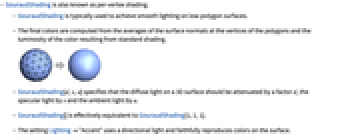

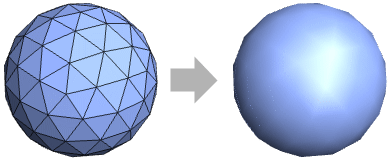

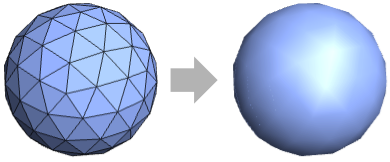

  • The final colors are computed from the averages of the surface normals at the vertices of the polygons and the luminosity of the color resulting from standard shading.
  • GouraudShading[{d,s,a}] specifies that the diffuse light on a 3D surface should be attenuated by a factor d, the specular light by s and the ambient light by a.
  • GouraudShading[] is effectively equivalent to GouraudShading[{1,1,1}].
  • The setting Lighting"Accent" uses a directional light and faithfully reproduces colors on the surface.

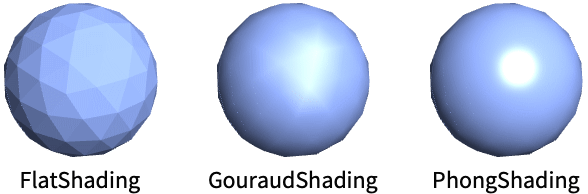

  • The basic shading models FlatShading, GouraudShading and PhongShading compared:

Examples

open all close all

Basic Examples  (3)

Apply GouraudShading to the geodesic polyhedron:

Wolfram Language code: Graphics3D[{GouraudShading[], GeodesicPolyhedron[4]}]

Style a plot with GouraudShading:

Wolfram Language code: Plot3D[Sin[x + y ^ 2], {x, -3, 3}, {y, -2, 2}, PlotStyle -> GouraudShading[], Mesh -> None]

Draw a 3D model with GouraudShading:

Wolfram Language code: Graphics3D[{GouraudShading[], ResourceData["Galleon"]}]

Scope  (14)

Basic Uses  (5)

Apply Gouraud shading to a graphics primitive:

Wolfram Language code: Graphics3D[{GouraudShading[], #}]& /@ {Sphere[], CapsuleShape[], Cone[]}

Apply Gouraud shading to a plot:

Wolfram Language code: SphericalPlot3D[1 + 2 Cos[2 θ], {θ, 0, Pi}, {ϕ, 0, 2 Pi}, Axes -> False, PlotStyle -> GouraudShading[], Mesh -> None]

Apply Gouraud shading to a chart:

Wolfram Language code: BarChart3D[Range[5], ChartElements -> [image], ChartStyle -> GouraudShading[]]

Apply Gouraud shading to a 3D object:

Wolfram Language code: Graphics3D[{GouraudShading[], ResourceData["Beethoven"]}]

Summary box:

Wolfram Language code: GouraudShading[]

Specification  (5)

GouraudShading with no arguments uses similar calculations as the default system shader:

Wolfram Language code: Graphics3D[{GouraudShading[], Sphere[]}]

Attenuate all light from the surface by a scaler value:

Wolfram Language code: Graphics3D[{GouraudShading[#], Sphere[]}]& /@ {0, 0.5, 1.0}

This is equivalent to specifying each attenuation factor explicitly:

Wolfram Language code: Graphics3D[{GouraudShading[{#, #, #}], Sphere[]}]& /@ {0, 0.5, 1.0}

Attenuate the diffuse light, setting other attenuation factors to zero:

Wolfram Language code: Graphics3D[{GouraudShading[{#}], Sphere[]}]& /@ {0, 0.5, 1.0}

Attenuate the specular light, setting other attenuation factors to zero:

Wolfram Language code: Graphics3D[{GouraudShading[{0, #}], Specularity[White, 5], Sphere[]}]& /@ {0, 0.5, 1.0}

Attenuate the ambient light, setting other attenuation factors to zero:

Wolfram Language code: Graphics3D[{GouraudShading[{0, 0, #}], Sphere[]}]& /@ {0, 0.5, 1.0}

Lighting  (4)

GouraudShading works with all types of lights:

Wolfram Language code: lights = {AmbientLight[LightGray], PointLight[White, ImageScaled[{1, 1, 2}]], DirectionalLight[White, ImageScaled[{1, 1, 2}]], SpotLight[White, {{1, -1, 1}, {0, 0, 0}}, Pi / 4]}; Graphics3D[{GouraudShading[], Sphere[]}, Lighting -> {#}]& /@ lights

Use colored lights:

Wolfram Language code: Graphics3D[{GouraudShading[], Sphere[]}, Lighting -> {DirectionalLight[RGBColor[1, 0, 0], ImageScaled[{1, -0.5, 1}]], DirectionalLight[RGBColor[0, 1, 0], ImageScaled[{-1, -0.5, 1}]], DirectionalLight[RGBColor[0, 0, 1], ImageScaled[{0, 1, 1}]], AmbientLight[GrayLevel[0.2]]}]

The specular percentage only applies if the Specularity directive has been specified:

Wolfram Language code: Graphics3D[{GouraudShading[{1, #, 1}], Specularity[White], Sphere[]}]& /@ {0.0, 1.0}

The ambient percentage only applies if an AmbientLight has been specified:

Wolfram Language code: Graphics3D[{GouraudShading[{1, 1, #}], Sphere[]}, Lighting -> AmbientLight[LightGray]]& /@ {0.0, 1.0}

Applications  (2)

Basic Applications  (2)

Interior face colors are linear combinations of the lighting calculated at each vertex:

Wolfram Language code: v = {{0, 0, 0}, {1, 0, 0}, {1 / 2, 1, 0}}; cols = {Red, Green, Blue}; lights = Table[PointLight[cols[[i]], v[[i]] + {0, 0, 0.01}], {i, Length[v]}]; Graphics3D[{GouraudShading[], Triangle[v]}, Lighting -> lights, ViewPoint -> Above]

This is equivalent to passing precomputed vertex lighting as the VertexColors with an ambient White light:

Wolfram Language code: Graphics3D[{EdgeForm[], Triangle[v, VertexColors -> cols]}, Lighting -> AmbientLight[White], ViewPoint -> Above]

Show vertex normals:

Wolfram Language code: arrows[_[v_, ___, VertexNormals -> n_]] := Table[Arrow[{v[[i]], v[[i]] + n[[i]]}], {i, Length[v]}] vnormals[p_] := Graphics3D[{GouraudShading[], p, arrows[p]}, Boxed -> False, Method -> {"ShrinkWrap" -> True}]

Vertex normals of a triangle:

Wolfram Language code: vnormals[Polygon[{{Sqrt[3]/2, -1/2, 0}, {0, 1, 0}, {-1/2*Sqrt[3], -1/2, 0}}, VertexNormals -> {{0, 0, 1}, {0, 0, 1}, {0, 0, 1}}]]

Triangle with perturbed normals:

Wolfram Language code: vnormals[Polygon[{{Sqrt[3]/2, -1/2, 0}, {0, 1, 0}, {-1/2*Sqrt[3], -1/2, 0}}, VertexNormals -> {{Sqrt[3/5]/2, -1/2*1/Sqrt[5], 2/Sqrt[5]}, {0, 1/Sqrt[5], 2/Sqrt[5]}, {-1/2*Sqrt[3/5], -1/2*1/Sqrt[5], 2/Sqrt[5]}}]]

Polyhedron with smooth normals:

Wolfram Language code: vnormals[Polyhedron[{{-0.5, 0.5, -0.5}, {0.5, 0.5, -0.5}, {0.5, -0.5, -0.5}, {-0.5, -0.5, -0.5}, {-0.5, 0.5, 0.5}, {0.5, 0.5, 0.5}, {0.5, -0.5, 0.5}, {-0.5, -0.5, 0.5}}, {{1, 2, 3, 4}, {5, 6, 2, 1}, {6, 7, 3, 2}, {7, 8, 4, 3}, {8, 5, 1, 4}, {8, 7, 6, 5 ... 258, 0.5773502691896258, 0.5773502691896258}, {0.5773502691896258, 0.5773502691896258, 0.5773502691896258}, {0.5773502691896258, -0.5773502691896258, 0.5773502691896258}, {-0.5773502691896258, -0.5773502691896258, 0.5773502691896258}}]]

Vertices are duplicated with different normals to create hard edges:

Wolfram Language code: vnormals[GraphicsComplex[...]]

Properties & Relations  (3)

GouraudShading uses VertexNormals if specified:

Wolfram Language code: model = GraphicsComplex[{...}, Polygon[...], VertexNormals -> {...}]; Graphics3D[{GouraudShading[], model}]

Specify FaceForm with GouraudShading:

Wolfram Language code: Graphics3D[{FaceForm[#], GouraudShading[], Icosahedron[]}]& /@ {Red, Green, Blue}

GouraudShading approximates the PhongShading when the screen size and shade variance across polygons are small:

Wolfram Language code: Graphics3D[{#, EdgeForm[], Specularity[White, 10], ResourceData["Stanford Bunny"]}, Boxed -> False]& /@ {PhongShading[], GouraudShading[]}

Possible Issues  (1)

Lighting artifacts are visible along polygon borders:

Wolfram Language code: Plot3D[Cos[x + y] + Sin[y], {x, -3, 3}, {y, -2, 2}, PlotStyle -> GouraudShading[], Mesh -> None, PlotPoints -> 3]

Use a more refined mesh to reduce the differences between polygons:

Wolfram Language code: Plot3D[Cos[x + y] + Sin[y], {x, -3, 3}, {y, -2, 2}, PlotStyle -> GouraudShading[], Mesh -> None, PlotPoints -> 40]

Interactive Examples  (1)

Interactively drag the light position while rendering a triangle with GouraudShading applied. Notice that the color of the triangle is calculated by interpolating the light values at its corners:

Wolfram Language code: DynamicModule[{pt = {0.5, 0.7}, corners = {{0, 0, 0}, {1, 0, 0}, {1 / 2, Sqrt[3] / 2, 0}}}, LocatorPane[Dynamic[pt], Graphics3D[{Dynamic[PointLight[Gray, Append[pt, 1 / 2], {0, 1, 0}]], GouraudShading[], Triangle[corners], PointSize[0.05], Point[corners, VertexNormals -> ConstantArray[{0, 0, 1}, 3]]}, ViewPoint -> Above, PlotRange -> {{0, 1}, {0, 1}, {-0.2, 0.2}}, Lighting -> None]]]
