RegionUnion

RegionUnion[reg₁,reg₂,…]

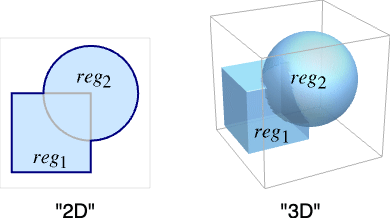

gives the union of the regions reg₁, reg₂, ….

Details and Options

A point p belongs to RegionUnion[reg₁,reg₂,…] if it belongs to some reg_i.

RegionUnion takes the same options as Region.

Examples

open all close all

Basic Examples (2)

Union of two disks:

Wolfram Language code: RegionUnion[Disk[{0, 0}, 2], Disk[{3, 0}, 2]];

Visualize it:

Wolfram Language code: Region[%]

Union of two MeshRegion objects:

Wolfram Language code: RegionUnion[[image], [image]]

Scope (14)

Special Regions (6)

For some regions, the union is computed explicitly:

Wolfram Language code:

Subscript[ℛ, 1] = Triangle[{{0, 0}, {0, 1}, {1, 0}}];
Subscript[ℛ, 2] = Disk[];

Wolfram Language code: Subscript[ℛ, 3] = RegionUnion[Subscript[ℛ, 1], Subscript[ℛ, 2]]

Visualize the union:

Wolfram Language code: Graphics[{Opacity[0.3], {Blue, Subscript[ℛ, 1]}, {Yellow, Subscript[ℛ, 2]}, {Red, Subscript[ℛ, 3]}}]

A union of Line regions:

Wolfram Language code: Subscript[ℛ, 1] = RegionUnion[Line[{{1}, {2}}], Line[{{3}, {4}}]];

Visualize it:

Wolfram Language code: Region[Subscript[ℛ, 1]]

With overlap:

Wolfram Language code: Subscript[ℛ, 2] = RegionUnion[Line[{{1}, {3}}], Line[{{2}, {4}}]];

Visualize it:

Wolfram Language code: Region[Subscript[ℛ, 2]]

A union of Polygon regions:

Wolfram Language code:

Subscript[ℛ, 1] = Polygon[{{0, 0}, {3, -1}, {2, 0}, {3, 1}}];
Subscript[ℛ, 2] = Polygon[{{5, 0}, {2, 1}, {3, 0}, {2, -1}}];

Wolfram Language code: ℛ = RegionUnion[Subscript[ℛ, 1], Subscript[ℛ, 2]];

Visualize it:

Wolfram Language code: Region[ℛ]

A union of two Disk regions:

Wolfram Language code: ℛ = RegionUnion[Disk[{0, 0}, 1], Disk[{1, 0}, 1]];

Visualize it:

Wolfram Language code: Region[ℛ]

A union of two Cuboid regions:

Wolfram Language code: ℛ = RegionUnion[Cuboid[], Cuboid[{0.5, 0.5, 0.5}]];

Visualize it:

Wolfram Language code: Region[ℛ]

A union of regions with different RegionDimension:

Wolfram Language code: ℛ = RegionUnion[Disk[{0, 0}, 1], Circle[{1, 0}, 1]];

Visualize it:

Wolfram Language code: Region[ℛ]

Formula Regions (2)

A union of ImplicitRegion objects is an ImplicitRegion:

Wolfram Language code:

Subscript[ℛ, 1] = ImplicitRegion[x ≤ -1, {x}];
Subscript[ℛ, 2] = ImplicitRegion[x ≥ 1, {x}];

Wolfram Language code: RegionUnion[Subscript[ℛ, 1], Subscript[ℛ, 2]]

2D:

Wolfram Language code:

Subscript[ℛ, 1] = ImplicitRegion[x^2 + y^2 ≤ 1, {x, y}];
Subscript[ℛ, 2] = ImplicitRegion[x^2 + (y - 1)^2 ≤ 1, {x, y}];

Wolfram Language code: RegionUnion[Subscript[ℛ, 1], Subscript[ℛ, 2]]

3D:

Wolfram Language code:

Subscript[ℛ, 1] = ImplicitRegion[x^2 + y^2 + z^2 ≤ 1, {x, y, z}];
Subscript[ℛ, 2] = ImplicitRegion[(x - 1)^2 + y^2 + z^2 ≤ 1, {x, y, z}];

Wolfram Language code: RegionUnion[Subscript[ℛ, 1], Subscript[ℛ, 2]]

nD:

Wolfram Language code:

Subscript[ℛ, 1] = ImplicitRegion[x^2 + y^2 + z^2 + u^2 + v^2 ≤ 1, {x, y, z, u, v}];
Subscript[ℛ, 2] = ImplicitRegion[(x - 1)^2 + y^2 + z^2 + u^2 + v^2 ≤ 1, {x, y, z, u, v}];

Wolfram Language code: RegionUnion[Subscript[ℛ, 1], Subscript[ℛ, 2]]

A union of ParametricRegion objects:

Wolfram Language code:

Subscript[ℛ, 1] = ParametricRegion[{u, v}, {{u, 0, 2}, {v, 0, 2}}];
Subscript[ℛ, 2] = ParametricRegion[{u + 1, v + 1}, {{u, 0, 2}, {v, 0, 2}}];

Wolfram Language code: ℛ = RegionUnion[Subscript[ℛ, 1], Subscript[ℛ, 2]];

Visualize it:

Wolfram Language code: Region[ℛ]

Mesh Regions (2)

A union of BoundaryMeshRegion objects is a BoundaryMeshRegion:

Wolfram Language code: RegionUnion[[image], [image]]

Wolfram Language code: BoundedRegionQ[%]

2D:

Wolfram Language code: RegionUnion[[image], [image]]

Wolfram Language code: BoundedRegionQ[%]

3D:

Wolfram Language code: RegionUnion[[image], [image]]

Wolfram Language code: BoundedRegionQ[%]

A union of full-dimensional MeshRegion objects is a MeshRegion:

Wolfram Language code: RegionUnion[[image], [image]]

Wolfram Language code: MeshRegionQ[%]

2D:

Wolfram Language code: RegionUnion[[image], [image]]

Wolfram Language code: MeshRegionQ[%]

3D:

Wolfram Language code: RegionUnion[[image], [image]]

Wolfram Language code: MeshRegionQ[%]

Derived Regions (2)

A union of BooleanRegion objects:

Wolfram Language code:

Subscript[ℛ, 1] = BooleanRegion[Or, {Triangle[{{0, 0}, {2, 3}, {-2, 3}}], Triangle[{{0, 2}, {2, -1}, {-2, -1}}]}];
Subscript[ℛ, 2] = BooleanRegion[And, {Triangle[{{0, 0}, {2, 3}, {-2, 3}}], Triangle[{{0, 2}, {2, -1}, {-2, 2}}]}];

Wolfram Language code: ℛ = RegionUnion[Subscript[ℛ, 1], Subscript[ℛ, 2]];

Visualize it:

Wolfram Language code: Region[ℛ]

A union of TransformedRegion objects:

Wolfram Language code:

Subscript[ℛ, 1] = TransformedRegion[Cuboid[], RotationTransform[Pi / 8, {1, 0, 0}]];
Subscript[ℛ, 2] = TransformedRegion[Cuboid[], RotationTransform[Pi / 8, {0, 1, 0}]];

Wolfram Language code: ℛ = RegionUnion[Subscript[ℛ, 1], Subscript[ℛ, 2]];

Visualize it:

Wolfram Language code: Region[ℛ]

CSG Regions (1)

A union of CSGRegion objects in 2D:

Wolfram Language code:

Subscript[ℛ, 1] = CSGRegion["Difference", {Disk[{0, 0}, 6], Disk[{0, 0}, 3]}];
Subscript[ℛ, 2] = CSGRegion["Difference", {Rotate[Rectangle[{-8, -8}, {8, 8}], 45Degree], Rotate[Rectangle[{-6, -6}, {6, 6}], 45Degree]}];

Wolfram Language code: RegionUnion[Subscript[ℛ, 1], Subscript[ℛ, 2]]

3D:

Wolfram Language code:

Subscript[ℛ, 1] = CSGRegion["Difference", {Ball[{-1, 0, 0}, 2], Cuboid[{-1, -5, -5}, {5, 5, 5}]}];
Subscript[ℛ, 2] = CSGRegion["Difference", {Ball[{1, 0, 0}, 2], Cuboid[{1, -5, -5}, {-5, 5, 5}]}];

Wolfram Language code: RegionUnion[Subscript[ℛ, 1], Subscript[ℛ, 2]]

Subdivision Regions (1)

A union of SubdivisionRegion objects in 2D:

Wolfram Language code:

Subscript[ℛ, 1] = SubdivisionRegion[Rectangle[{-2, -1 / 2}]];
Subscript[ℛ, 2] = SubdivisionRegion[RegularPolygon[3]];

Wolfram Language code: RegionUnion[Subscript[ℛ, 1], Subscript[ℛ, 2]]

3D:

Wolfram Language code:

Subscript[ℛ, 1] = SubdivisionRegion[Cube[{-1, 0, 0}]];
Subscript[ℛ, 2] = SubdivisionRegion[Tetrahedron[3]];

Wolfram Language code: RegionUnion[Subscript[ℛ, 1], Subscript[ℛ, 2]]

Applications (6)

Union of regions:

Wolfram Language code: {Subscript[ℛ, 1], Subscript[ℛ, 2]} = {[image], [image]};

Wolfram Language code:

Multicolumn[Table[RegionUnion[Subscript[ℛ, 1], TransformedRegion[Subscript[ℛ, 2], TranslationTransform[{0, 0, t}]]], {t, 0, 2.5, 0.5}], 3, Appearance -> "Horizontal" ]

Union of all South America countries to get the map:

Wolfram Language code: countries = CountryData["SouthAmerica"]

Country regions:

Wolfram Language code: regs = Table[BoundaryDiscretizeGraphics[Polygon[First[c["Polygon"]][[1, 1]]]], {c, countries}]

South America map:

Wolfram Language code: RegionUnion@@regs

Define a stadium as the union of disks and a rectangle:

Wolfram Language code: stadium = RegionUnion[Disk[{0, 0}, 1], Rectangle[{0, -1}, {2, 1}], Disk[{2, 0}, 1]];

Wolfram Language code: Region[stadium]

The area is the sum of disk and quadrilateral areas:

Wolfram Language code: Area[stadium]

Wolfram Language code: Area[Disk[{0, 0}, 1]] + Area[Rectangle[{0, -1}, {2, 1}]]

Define a capsule as the union of balls and a cylinder:

Wolfram Language code: capsule = RegionUnion[Ball[{0, 0, 0}, 1], Cylinder[{{0, 0, 0}, {2, 0, 0}}, 1], Ball[{2, 0, 0}, 1]];

Wolfram Language code: Region[capsule]

The volume is the sum of the ball and cylinder volumes:

Wolfram Language code: Volume[capsule]

Wolfram Language code: Volume[Ball[{0, 0, 0}, 1]] + Volume[Cylinder[{{0, 0, 0}, {2, 0, 0}}, 1]]

By taking a RegionUnion of many disks, dilation of a mesh can be approximated:

Wolfram Language code: mr = BoundaryDiscretizeGraphics[Graphics[Text[""]], _Text]

Create disks of the dilation radius around the mesh boundary:

Wolfram Language code:

rad = 0.25;
pts = MeshCoordinates[mr];
disks = BoundaryDiscretizeRegion[Disk[#, rad]]& /@ pts;

Then simply take the union of all disks plus the original mesh:

Wolfram Language code: RegionUnion[RegionUnion@@disks, mr]

By removing a RegionUnion of many disks, erosion of a mesh can be approximated:

Wolfram Language code: mr = BoundaryDiscretizeGraphics[Graphics[Text[""]], _Text]

Create disks of the erosion radius around the mesh boundary:

Wolfram Language code:

rad = 0.1;
pts = MeshCoordinates[mr];
disks = BoundaryDiscretizeRegion[Disk[#, rad]]& /@ pts;

Then subtract the union of the disks from the original mesh:

Wolfram Language code: RegionDifference[mr, RegionUnion@@disks]

Properties & Relations (5)

A point p belongs to RegionUnion[reg₁,reg₂,…] if it belongs to some reg_i:

Wolfram Language code:

Subscript[ℛ, 1] = Disk[{0, 0}, 2];
Subscript[ℛ, 2] = Disk[{0, 3}, 2];
Subscript[ℛ, 3] = RegionUnion[Subscript[ℛ, 1], Subscript[ℛ, 2]];

Use RegionMember to test membership:

Wolfram Language code: p = {0, 1};

Wolfram Language code: RegionMember[Subscript[ℛ, 3], p] == RegionMember[Subscript[ℛ, 1], p]∨ RegionMember[Subscript[ℛ, 2], p]

RegionUnion is a Boolean combination Or of regions:

Wolfram Language code: {Subscript[ℛ, 1], Subscript[ℛ, 2]} = {[image], [image]};

Wolfram Language code: RegionUnion[Subscript[ℛ, 1], Subscript[ℛ, 2]] == BooleanRegion[Or, {Subscript[ℛ, 1], Subscript[ℛ, 2]}]

RegionSymmetricDifference can be found using RegionUnion and RegionDifference:

Wolfram Language code: {Subscript[ℛ, 1], Subscript[ℛ, 2]} = {[image], [image]};

Wolfram Language code:

RegionSymmetricDifference[Subscript[ℛ, 1], Subscript[ℛ, 2]] == RegionUnion[RegionDifference[Subscript[ℛ, 1], Subscript[ℛ, 2]], RegionDifference[Subscript[ℛ, 2], Subscript[ℛ, 1]]]

The RegionDimension of a union is the max of all input dimensions:

Wolfram Language code:

Subscript[ℛ, 1] = Point[{0, 0}];
Subscript[ℛ, 2] = Line[{{1, 0}, {1, 1}}];
Subscript[ℛ, 3] = Disk[{2, 0}, 1];

Wolfram Language code:

RegionDimension[RegionUnion[Subscript[ℛ, 1], Subscript[ℛ, 2], Subscript[ℛ, 3]]] == Max[RegionDimension /@ {Subscript[ℛ, 1], Subscript[ℛ, 2], Subscript[ℛ, 3]}]

If two regions are disjoint, the RegionMeasure of their union is a sum:

Wolfram Language code:

Subscript[ℛ, 1] = Disk[{0, 0}, 1];
Subscript[ℛ, 2] = Disk[{3, 0}, 1];
Subscript[ℛ, 3] = RegionUnion[Subscript[ℛ, 1], Subscript[ℛ, 2]];

Wolfram Language code: RegionMeasure[Subscript[ℛ, 3]] == RegionMeasure[Subscript[ℛ, 1]] + RegionMeasure[Subscript[ℛ, 2]]

If they overlap, you must subtract the measure of the RegionIntersection:

Wolfram Language code:

Subscript[ℛ, 1] = Disk[{0, 0}, 1];
Subscript[ℛ, 2] = Disk[{1, 0}, 1];
Subscript[ℛ, 3] = RegionUnion[Subscript[ℛ, 1], Subscript[ℛ, 2]];

Wolfram Language code:

RegionMeasure[Subscript[ℛ, 3]] == RegionMeasure[Subscript[ℛ, 1]] + RegionMeasure[Subscript[ℛ, 2]] - RegionMeasure[RegionIntersection[Subscript[ℛ, 1], Subscript[ℛ, 2]]]

Possible Issues (2)

RegionUnion is defined only for regions with the same RegionEmbeddingDimension:

Wolfram Language code:

Subscript[ℛ, 1] = Disk[];
Subscript[ℛ, 2] = Ball[{0, 0, 1}, 1];

Wolfram Language code: RegionUnion[Subscript[ℛ, 1], Subscript[ℛ, 2]]

RegionUnion may include overlapping lower-dimensional components:

Wolfram Language code:

Subscript[ℛ, 1] = Sphere[];
Subscript[ℛ, 2] = Ball[{1 / 2, 0, 0}];

Wolfram Language code: Graphics3D[{Yellow, Subscript[ℛ, 1], Green, Opacity@.5, Subscript[ℛ, 2]}]

Wolfram Language code: Subscript[ℛ, 3] = RegionUnion[DiscretizeGraphics[Subscript[ℛ, 1]], BoundaryDiscretizeGraphics[Subscript[ℛ, 2]]]

The connected mesh components:

Wolfram Language code: ConnectedMeshComponents[Subscript[ℛ, 3]]

Neat Examples (1)

The union of two spiral polygons:

Wolfram Language code: RegionUnion[[image], [image]]
