CSGRegion

CSGRegion[{reg₁,reg₂,…}]

represents the solid region corresponding to the union of solid regions reg₁,reg₂,….

CSGRegion["op",{reg₁,reg₂,…}]

represents the solid region corresponding to the Boolean combination "op" of regions reg₁,reg₂,….

CSGRegion["op",{…,w_i[reg_i],…}]

represents the solid region defined by regions reg_i transformed by a geometric transformation w_i.

CSGRegion

CSGRegion[{reg₁,reg₂,…}]

represents the solid region corresponding to the union of solid regions reg₁,reg₂,….

CSGRegion["op",{reg₁,reg₂,…}]

represents the solid region corresponding to the Boolean combination "op" of regions reg₁,reg₂,….

CSGRegion["op",{…,w_i[reg_i],…}]

represents the solid region defined by regions reg_i transformed by a geometric transformation w_i.

Details and Options

CSGRegion is also known as constructive solid geometry (CSG) object.
CSGRegion is typically used to construct solid geometric regions by using nested combinations of union, intersection and subtraction of simple geometric primitives.

CSGRegion[…] displays in a notebook as a plot of a solid region in 2D and 3D.
In CSGRegion["op",{reg₁,reg₂,…}], "op" are Boolean operations and regions reg_i are other CSGRegion objects or geometric regions.
The following Boolean operators "op" can be used:

		"Intersection"	smallest solid containing the intersection of two regions
		"Difference"	smallest solid containing the difference of two regions
		"Union"	smallest solid containing the union of two regions

The following 2D solid regions reg_i are supported:
Disk disk

Ellipsoid ellipsoid

Parallelogram parallelogram

Rectangle rectangle

Triangle triangle

Simplex simplex
The following 3D solid regions reg_i are supported:

		Ball	ball
		Cone	cone
		Cube	cube
		Cuboid	cuboid
		Cylinder	cylinder
		Dodecahedron	dodecahedron
		Ellipsoid	ellipsoid
		Icosahedron	icosahedron
		Octahedron	octahedron
		Parallelepiped	parallelepiped
		Prism	prism
		Pyramid	pyramid
		Simplex	simplex
		Tetrahedron	tetrahedron

The following n‐dimensional solid regions reg_i are supported:
Ball ball

Cuboid axis-aligned cuboid

Ellipsoid ellipsoid

Parallelepiped parallelotope

Simplex simplex
In CSGRegion["op",{…,w_i[reg_i],…}], w_i are geometric transformations or wrappers for regions reg_i.
The following geometric transformations w_i can be used:

	GeometricTransformation[reg_i,…]	geometric affine transformation
	Rotate[reg_i,…]	rotation
	Scale[reg_i,…]	scaling
	Translate[reg_i,…]	translation

The following special wrappers w_i can be used:
Annotation[reg_i,…] associate an annotation with reg_i

Style[reg_i,…] show reg_i with the specified style
CSGRegion[{reg₁,reg₂,…}] is equivalent to CSGRegion["Union",{reg₁,reg₂,…}].
CSGRegion takes the same options as Region.
CSGRegion can be used with functions such as RegionMember, RegionDistance, RegionMeasure and NIntegrate.

Examples

open all close all

Basic Examples (3)

Intersection of two solid regions in 2D:

Wolfram Language code: CSGRegion["Intersection", {Disk[], Rectangle[]}]

Its area:

Wolfram Language code: Area[%]

Intersection of two solid regions in 3D:

Wolfram Language code: CSGRegion["Intersection", {Ball[], Cuboid[]}]

Its volume:

Wolfram Language code: Volume[%]

Style solid regions:

Wolfram Language code: CSGRegion["Intersection", {Style[Cube[1.5], Hue[0.58, 1, 0.9]], Style[Ball[], Hue[0.13, 1, 0.91]]}]

Scope (11)

Basic Uses (4)

Union of regions:

Wolfram Language code: CSGRegion["Union", {Cube[3 / 2], Ball[]}]

Difference:

Wolfram Language code: CSGRegion["Difference", {Cube[3 / 2], Ball[]}]

Intersection:

Wolfram Language code: CSGRegion["Intersection", {Cube[3 / 2], Ball[]}]

CSG regions in 2D:

Wolfram Language code: CSGRegion["Intersection", {Disk[], Rectangle[]}]

3D:

Wolfram Language code: CSGRegion["Intersection", {Ball[], Cuboid[]}]

nD:

Wolfram Language code: CSGRegion["Intersection", {Ball[{0, 0, 0, 0}], Ball[{1, 0, 1, 0}]}]

One-level CSG region:

Wolfram Language code: CSGRegion["Intersection", {Ball[], Cube[3 / 2]}]

Nested CSG region:

Wolfram Language code: CSGRegion["Difference", {CSGRegion["Intersection", {Ball[], Cube[3 / 2]}], Cylinder[{{0, 0, -1}, {0, 0, 1}}, 1 / 2]}]

Union with more than two regions:

Wolfram Language code: CSGRegion["Union", {Ball[], Cube[{2, 0, 0}, 2], Ball[{4, 0, 0}]}]

Use Or as an alternative to "Union":

Wolfram Language code: CSGRegion[Or, {Cube[3 / 2], Ball[]}]

Use And as an alternative to "Intersection":

Wolfram Language code: CSGRegion[And, {Cube[3 / 2], Ball[]}]

Presentation (4)

Specify styling for parts of a CSGRegion in 2D:

Wolfram Language code: CSGRegion["Union", {Style[Disk[], Hue[0.58, 1, 0.9]], Style[Rectangle[], Hue[0.13, 1, 1]]}]

3D:

Wolfram Language code: CSGRegion["Intersection", {Style[Cuboid[], Hue[0.58, 1, 0.9]], Style[Ball[], Hue[0.13, 1, 0.91]]}]

Specify styling for a subtree within CSGRegion:

Wolfram Language code: CSGRegion[Cube /@ {{-1, -1, 0}, {-1, 1, 0}, {1, -1, 0}, {1, 1, 0}}]

Wolfram Language code: CSGRegion[{Cube[], Style[%, Red]}]

Apply styling to a CSGRegion:

Wolfram Language code: CSGRegion[{Cuboid[], Ball[]}]

Wolfram Language code: Annotate[%, "CSGRegionStyle" -> Red]

Modify styling of an existing CSGRegion:

Wolfram Language code: csg = CSGRegion[{Cuboid[], Ball[]}]

Wolfram Language code: AnnotationValue[csg, "CSGRegionStyle"] = Red;

Styling is now applied to the original CSGRegion expression:

Wolfram Language code: csg

Annotations (3)

Specify annotations with Annotation:

Wolfram Language code: csg = CSGRegion[{Annotation[Cube[3 / 2], "Material" -> "Wood"], Ball[]}]

Check for existing annotations with AnnotationKeys:

Wolfram Language code: AnnotationKeys[{csg, {1}}]

Retrieve annotations with AnnotationValue:

Wolfram Language code: AnnotationValue[{csg, {1}}, "Material"]

Apply annotations with Annotate:

Wolfram Language code: Annotate[{csg, {1}}, "Weight" -> Quantity[30, "Grams"]]

Wolfram Language code: AnnotationKeys[{%, {1}}]

Delete annotations with AnnotationDelete:

Wolfram Language code: AnnotationDelete[{csg, {1}}, "Material"]

Wolfram Language code: AnnotationKeys[{%, {1}}]

Modify annotations with AnnotationValue:

Wolfram Language code: csg = CSGRegion[{Annotation[Cuboid[], "Material" -> "Wood"], Ball[]}]

Wolfram Language code: AnnotationValue[{csg, {1}}, "Material"] = "Iron";

Original CSGRegion gives updated annotation value:

Wolfram Language code: AnnotationValue[{csg, {1}}, "Material"]

CSGRegion styling is managed through annotations:

Wolfram Language code: Annotate[{CSGRegion[{Ball[], Cuboid[]}], {1}}, "CSGRegionStyle" -> Red]

Wolfram Language code: AnnotationValue[{%, {1}}, "CSGRegionStyle"]

Use Style wrapper as a shorthand to specify styling annotations:

Wolfram Language code: CSGRegion[{Style[Ball[], Red], Cuboid[]}]

Wolfram Language code: AnnotationValue[{%, {1}}, "CSGRegionStyle"]

Applications (7)

Basic Applications (4)

Construct a nested annulus:

Wolfram Language code:

rings = Table[CSGRegion["Difference", {Disk[{0, 0}, t + 0.1], Disk[{0, 0}, t]}], {t, 0.1, 1.0, 0.2}];
CSGRegion["Union", rings]

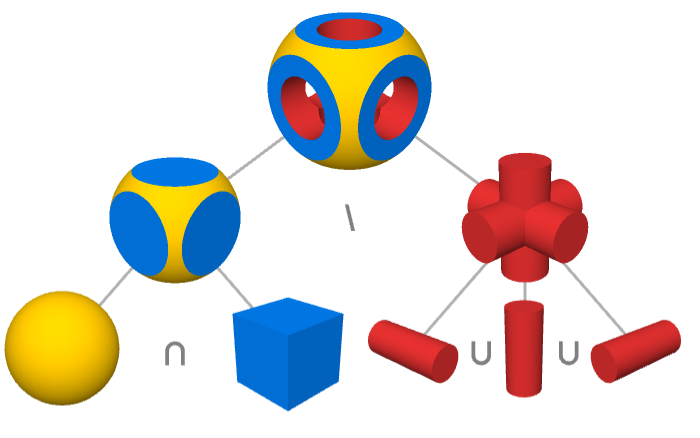

CSGRegion using multiple operations:

Wolfram Language code:

cylinder = Cylinder[{{0., 0., -0.6}, {0., 0., 0.6}}, 0.3];
CSGRegion["Difference", {CSGRegion["Intersection", {Ball[{0, 0, 0}, 0.65], Cube[]}],
   CSGRegion["Union", {cylinder,
       Rotate[cylinder, {{0, 0, 1}, {1, 0, 0}}], Rotate[cylinder, {{0, 0, 1}, {0, 1, 0}}]}]}]

Create polyhedron with rounded corners:

Wolfram Language code: CSGRegion["Intersection", {Icosahedron[], Ball[{0, 0, 0}, 0.85]}]

Model complex objects:

Wolfram Language code: CSGRegion["Union", {...}]

CAD Modeling (3)

Construct a rail support:

Wolfram Language code:

CSGRegion["Difference", {CSGRegion["Union", {Cuboid[{-10, -10, 0}, {10, 10, 40}], Cuboid[{-26, -10, 0}, {26, 10, 5}]}], CSGRegion["Union", {Cuboid[{-1, -12, 30}, {1, 12, 50}], Cylinder[{{-20, 0, 35}, {20, 0, 35}}, 2], Cylinder[{{0, -20, 25}, {0, 20, 25}}, 7], Cylinder[{{-18, 0, -1}, {-18, 0, 12}}, 4], Cylinder[{{18, 0, -1}, {18, 0, 12}}, 4]}]}]

Construct a pipe guide bracket:

Wolfram Language code:

CSGRegion["Union", {Cuboid[{-30, -30, -1}, {30, 30, 1}], Cylinder[{{-30, 0, 0}, {30, 0, 0}}, 10], Cylinder[{{0, -30, 0}, {0, 30, 0}}, 10]}]

Wolfram Language code:

CSGRegion["Union", {Cylinder[{{-31, 0, 0}, {31, 0, 0}}, 9], Cylinder[{{0, -31, 0}, {0, 31, 0}}, 9], Cylinder[{{-20, -20, -2}, {-20, -20, 2}}, 3], Cylinder[{{20, -20, -2}, {20, -20, 2}}, 3], Cylinder[{{-20, 20, -2}, {-20, 20, 2}}, 3], Cylinder[{{20, 20, -2}, {20, 20, 2}}, 3], Cuboid[{-40, -40, 0}, {40, 40, -15}], Cylinder[{{0, 0, -15}, {0, 0, 15}}, 10], Sequence@@Table[CSGRegion["Difference", {Cube[c * 25 + c * 5 * Sqrt[2], 15], Cylinder[{c * 25 - {0, 0, 10}, c * 25 + {0, 0, 10}}, 5]}], {c, Append[#, 0]& /@ {{-1, -1}, {-1, 1}, {1, -1}, {1, 1}}}]}]

Wolfram Language code: CSGRegion["Difference", {%%, %}]

Construct a universal joint:

Wolfram Language code:

CSGRegion["Difference", {Cylinder[{{0, 0, -15}, {0, 0, 15}}, 10], CSGRegion["Union", {Cylinder[{{-9, -10, 0}, {-9, 10, 0}}, 5], Cylinder[{{9, -10, 0}, {9, 10, 0}}, 5], Cuboid[{-12, -10, 0}, {-4, 10, 10}], Cuboid[{12, -10, 0}, {4, 10, 10}], Cylinder[{{0, 0, -8}, {0, 0, 16}}, 8], Cylinder[{{0, 0, -16}, {0, 0, 16}}, 4], Cylinder[{{0, -14, 8}, {0, 14, 8}}, 2], CSGRegion["Difference", {Cuboid[{-11, -12, 8}, {11, 12, 18}], Cylinder[{{0, -14, 8}, {0, 14, 8}}, 4]}]}]}]

Wolfram Language code:

CSGRegion["Union", {%, Translate[Rotate[Rotate[%, 180Degree, {1, 0, 0}], 90Degree, {0, 0, 1}], {0, 0, 16}], CSGRegion["Union", {Cylinder[{{0, -12, 8}, {0, 12, 8}}, 1.5], Cylinder[{{-12, 0, 8}, {12, 0, 8}}, 1.5], Ball[{0, 0, 8}, 4]}]}]

Properties & Relations (4)

Compute the union of two regions:

Wolfram Language code: Region[RegionUnion[Rectangle[], Rectangle[{0.5, 0.5}]]]

RegionIntersection:

Wolfram Language code: Region[RegionIntersection[Rectangle[], Rectangle[{0.5, 0.5}]]]

RegionDifference:

Wolfram Language code: Region[RegionDifference[Rectangle[], Rectangle[{0.5, 0.5}]]]

CSG regions can be represented as Boolean regions:

Wolfram Language code: CSGRegion["Union", {Ball[], Cuboid[]} ]

Wolfram Language code: Region[BooleanRegion[Or, {Ball[], Cuboid[]}]]

A CSGRegion object is solid:

Wolfram Language code: SolidRegionQ[CSGRegion["Intersection", {Ball[], Cuboid[]}]]

The embedding dimension of a CSG region is the same as its geometry dimension:

Wolfram Language code: CSGRegion["Intersection", {Ball[], Cuboid[]}]

Wolfram Language code: RegionEmbeddingDimension[%] === RegionDimension[%]

Possible Issues (1)

CSGRegion with transparency does not show occluded regions:

Wolfram Language code: CSGRegion[{Cube[], Style[Ball[], RGBColor[1, 0, 0, 1 / 4]]}]

Use Graphics3D to show all regions:

Wolfram Language code: Graphics3D[{Cube[], Style[Ball[], RGBColor[1, 0, 0, 1 / 4]]}]

Interactive Examples (3)

Create an interactive CSG region to visualize the intersection of multiple draggable disks:

Wolfram Language code:

DynamicModule[{p = CirclePoints[1 / 2, 3]}, LocatorPane[Dynamic@p, Dynamic@Graphics[{CSGRegion["Intersection", Disk /@ p], Dashed, FaceForm[], Circle /@ p}, PlotRange -> {{-2, 2}, {-2, 2}}], Appearance -> "•"]]

Create an interactive CSG region with draggable points. Click the region to add and remove draggable points:

Wolfram Language code:

DynamicModule[{p = RandomReal[{-4, 4}, {8, 2}]}, LocatorPane[Dynamic@p, Dynamic@CSGRegion["Difference", {Rectangle[{-5, -5}, {5, 5}], CSGRegion["Union", Disk /@ p]}, ImageSize -> Small], LocatorAutoCreate -> True, Appearance -> "•"]]

Separate an object into multiple chunks:

Wolfram Language code:

Manipulate[DynamicModule[{positions, base}, positions = Flatten[Table[{x, y, z}, {x, {-1, 1}}, {y, {-1, 1}}, {z, {-1, 1}}], 2];
	CSGRegion["Union", Table[base = t * positions[[i]];
	CSGRegion["Intersection", {Ball[base, 2], Cube[base + positions[[i]], 2]}], {i, Length[positions]}]]], {{t, 1 / 2}, 0, 1}]

Neat Examples (3)

Create polyhedron shells:

Wolfram Language code:

CSGRegion["Difference", {Style[#[1], RGBColor[0.430592, 0.585007, 0.337497]], CSGRegion[{Style[#[0.8], RGBColor[0.882911, 0.359638, 0.360092]], Style[Cube[{0, 0, 5}, 9.5], RGBColor[0.949819, 0.725559, 0.725754]]}]}]& /@ {Icosahedron, Dodecahedron, Octahedron}

Separate an object into chunks:

Wolfram Language code:

pts = Flatten[Table[{x, y, z}, {x, {-1, 1}}, {y, {-1, 1}}, {z, {-1, 1}}], 2];
chunks = CSGRegion["Intersection", {Ball[{0, 0, 0}, 2], Cube[#, 2]}]& /@ pts;
colors = {RGBColor[0.131838, 0.159976, 0.163333], RGBColor[0.230913, 0.290626, 0.293972], RGBColor[0.392506, 0.513992, 0.525327], RGBColor[0.484579, 0.662274, 0.695467], RGBColor[0.523077, 0.717819, 0.782847], RGBColor[0.566364, 0.722379, 0.819837], RGBColor[0.609652, 0.686364, 0.806245], RGBColor[0.479438, 0.4981, 0.622843]};
CSGRegion[Table[Style[Translate[chunks[[i]], # * pts[[i]]], colors[[i]]], {i, 8}], ImageSize -> Tiny]& /@ {0, 1 / 2, 1}

Show slices of complex objects:

Wolfram Language code:

pts1 = Prepend[#, -11]& /@ CirclePoints[3, 24];
pts2 = RotateRight[Prepend[#, 11]& /@ CirclePoints[3, 24], 7];
cylinders = Cylinder[#, 1 / 5]& /@ Transpose[{pts1, pts2}];
slices = Table[Cuboid[{x - 1, -4, -4}, {x + 1, 4, 4}], {x, -9, 9, 18 / 5}];
CSGRegion["Intersection", {Style[CSGRegion[cylinders], Hue[0.11, 1., 0.98]], Style[CSGRegion[slices], Hue[0., 1., 0.71]]}]
