ConvexRegionQ

ConvexRegionQ[reg]

gives True if reg is a convex region and False otherwise.

Details

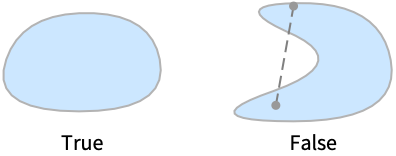

  • A region is convex if no line segment between two points in the region ever goes outside the region.
  • A region is convex if for points p1,p2∈reg, λ p1+(1-λ)p2∈reg for all 0≤λ≤1.

Examples

open all close all

Basic Examples  (2)

Test whether a rectangle is convex:

Wolfram Language code: ConvexRegionQ[Rectangle[]]

A circle is not a convex region:

Wolfram Language code: Region[Circle[]]
Wolfram Language code: ConvexRegionQ[%]

Scope  (22)

Special Regions  (4)

Regions in including Point:

Wolfram Language code: ConvexRegionQ[Point[{1}]]

Interval:

Wolfram Language code: ℛ = Interval[{1, 2}]; Region[ℛ]
Wolfram Language code: ConvexRegionQ[ℛ]

A HalfLine is unbounded:

Wolfram Language code: ConvexRegionQ[HalfLine[{{1}, {2}}]]

Regions in including Point:

Wolfram Language code: ℛ = Point[Table[{t, Sin[t]}, {t, 0, 2π, 2π / 10}]]; Region[ℛ]
Wolfram Language code: ConvexRegionQ[ℛ]

Line:

Wolfram Language code: ℛ = Line[{{1, 2}, {4, 3}}]; Region[ℛ]
Wolfram Language code: ConvexRegionQ[ℛ]

Polygon:

Wolfram Language code: ℛ = Polygon[{{0, 0}, {1, 0}, {0.2, 1}, {0.9, 1}}]
Wolfram Language code: ConvexRegionQ[ℛ]

Circle:

Wolfram Language code: ℛ = Circle[{1, 2}, 3]; Region[ℛ]
Wolfram Language code: ConvexRegionQ[ℛ]

Disk:

Wolfram Language code: ℛ = Disk[{1, 2}, {4, 3}]; Region[ℛ]
Wolfram Language code: ConvexRegionQ[ℛ]

Regions in including Point:

Wolfram Language code: ℛ = Point[Tuples[Range[2], 3]]; Region[ℛ]
Wolfram Language code: ConvexRegionQ[ℛ]

Line:

Wolfram Language code: ℛ = Line[{{1, 2, 3}, {6, 5, 4}, {3, 4, 7}}]; Region[ℛ]
Wolfram Language code: ConvexRegionQ[ℛ]

Polygon:

Wolfram Language code: ℛ = Polygon[Table[{Cos[2π k / 6], Sin[2π k / 6], 0}, {k, 0, 5}], {Range[6]}]
Wolfram Language code: ConvexRegionQ[ℛ]

Cylinder:

Wolfram Language code: ℛ = Cylinder[{{0, 0, 0}, {1, 1, 1}}, 2]; Region[ℛ]
Wolfram Language code: ConvexRegionQ[ℛ]

Regions in including Simplex in :

Wolfram Language code: ConvexRegionQ[Simplex[{{1, 0, 0, 0}, {0, 1, 0, 0}, {0, 0, 1, 0}, {0, 0, 0, 1}}]]

Cuboid in :

Wolfram Language code: ConvexRegionQ[Cuboid[{1, 2, 3, 4, 5}, {6, 7, 8, 9, 10}]]

Ball in :

Wolfram Language code: ConvexRegionQ[Ball[{1, 2, 3, 4, 5, 6, 7}, 8]]

Mesh Regions  (4)

MeshRegion in 1D:

Wolfram Language code: MeshRegion[{{0}, {1}, {5}}, Line[{1, 2, 3}]]
Wolfram Language code: ConvexRegionQ[%]

2D:

Wolfram Language code: MeshRegion[{{0, 0}, {2, 0}, {3, 1}, {2, 3}, {1, 2}}, Polygon[{1, 2, 3, 4, 5}]]
Wolfram Language code: ConvexRegionQ[%]

3D:

Wolfram Language code: MengerMesh[1, 3]
Wolfram Language code: ConvexRegionQ[%]

MeshRegion that represents a curve in 2D:

Wolfram Language code: ℛ = MeshRegion[{{0, 0}, {1, 0}, {2, -1}, {2, 1}}, {Line[{{1, 2, 3, 4, 2}}]}]
Wolfram Language code: ConvexRegionQ[ℛ]

A MeshRegion can have components of different dimensions:

Wolfram Language code: ℛ = MeshRegion[{{0, 0}, {1, 0}, {2, -1}, {2, 1}}, {Line[{{1, 2}}], Polygon[{{2, 3, 4}}]}]
Wolfram Language code: ConvexRegionQ[ℛ]

BoundaryMeshRegion in 1D:

Wolfram Language code: BoundaryMeshRegion[{{0}, {1}}, Point[{1, 2}]]
Wolfram Language code: ConvexRegionQ[%]

2D:

Wolfram Language code: BoundaryMeshRegion[{{0, 0}, {2, 0}, {3, 1}, {2, 3}, {1, 2}}, Line[{1, 2, 3, 4, 5, 1}]]
Wolfram Language code: ConvexRegionQ[%]

3D:

Wolfram Language code: ConvexHullMesh[RandomReal[1, {100, 3}]]
Wolfram Language code: ConvexRegionQ[%]

Formula Regions  (3)

A parabolic region as an ImplicitRegion:

Wolfram Language code: ℛ = ImplicitRegion[x + 3y ≤ 3 && 2x + y ≥ 1, {x, y}];
Wolfram Language code: Region[ℛ]
Wolfram Language code: ConvexRegionQ[ℛ]

A parabola represented as a ParametricRegion:

Wolfram Language code: ℛ = ParametricRegion[{t, t^2}, {t}];
Wolfram Language code: Region[ℛ]
Wolfram Language code: ConvexRegionQ[ℛ]

ImplicitRegion can have several components of different dimensions:

Wolfram Language code: ℛ = ImplicitRegion[x^2 + y^2 ≤ 1∨(x + 1)^2 + y^2 == 1, {x, y}];
Wolfram Language code: Region[ℛ]
Wolfram Language code: ConvexRegionQ[ℛ]

Derived Regions  (6)

RegionIntersection of two regions:

Wolfram Language code: ℛ = RegionIntersection[Disk[{0, 0}, 1], Disk[{0, 1}, 1]];
Wolfram Language code: Region[ℛ]
Wolfram Language code: ConvexRegionQ[ℛ]

RegionUnion of mixed-dimensional regions:

Wolfram Language code: ℛ = RegionUnion[Circle[{0, 0}, 1], Disk[{2, 0}, 1]];
Wolfram Language code: Region[ℛ]
Wolfram Language code: ConvexRegionQ[ℛ]

General BooleanRegion combination:

Wolfram Language code: {r1, r2, r3} = {Disk[], ParametricRegion[{{u v, u ^ 2 - v ^ 2}, -1 ≤ u + v ≤ 1}, {u, v}], Simplex[{{0, 0}, {0, 1}, {1, 0}}]}; ℛ = BooleanRegion[#1 && (#2 || !#3)&, {r1, r2, r3}]; Region[ℛ]
Wolfram Language code: ConvexRegionQ[ℛ]

TransformedRegion:

Wolfram Language code: ℛ = TransformedRegion[Disk[], {Indexed[#1, 1] + Indexed[#1, 2], Indexed[#1, 1] - Indexed[#1, 2], Indexed[#1, 1] Indexed[#1, 2]}& ];
Wolfram Language code: Region[ℛ]
Wolfram Language code: ConvexRegionQ[ℛ]

InverseTransformedRegion:

Wolfram Language code: ℛ = InverseTransformedRegion[Disk[], {Indexed[#1, 1] + Indexed[#1, 2] + Indexed[#1, 3], Indexed[#1, 1] Indexed[#1, 2]Indexed[#1, 3]}& , 3];
Wolfram Language code: Region[%]
Wolfram Language code: ConvexRegionQ[ℛ]

RegionBoundary:

Wolfram Language code: ℛ = RegionBoundary[Ball[]];
Wolfram Language code: ConvexRegionQ[ℛ]

Geographic Regions  (3)

Test a polygon with GeoPosition:

Wolfram Language code: ℛ = Polygon[GeoPosition[{{{40.083441, -88.235716}, {40.083607, -88.257488}, {40.082603, -88.257149}, {40.076136999999996, -88.25740499999999}, {40.076178, -88.270888}, {40.076516, -88.271558}, {40.083686, -88.271512}, {40.083659999999995, -88.267046}, ... 33323}, {40.098112, -88.228687}, {40.095216, -88.228627}, {40.095179, -88.238547}, {40.094480999999995, -88.238546}, {40.094508999999995, -88.23267}, {40.094106, -88.232556}, {40.090666999999996, -88.232477}, {40.090741, -88.235745}}}]];
Wolfram Language code: ConvexRegionQ[ℛ]

Polygons with GeoPositionXYZ:

Wolfram Language code: ℛ = Polygon[GeoPositionXYZ[{{{150451.6968462432, -4.884430486484052*^6, 4.085078564164219*^6}, {148595.27532671497, -4.884475441490381*^6, 4.085092666620835*^6}, {148626.35829777512, -4.884546311005128*^6, 4.0850073717259285*^6}, {148618.5908634042 ... 7*^6, 4.0860187668081024*^6}, {150697.56410771207, -4.8836599487428395*^6, 4.085984535480795*^6}, {150711.88303095422, -4.883905546449982*^6, 4.0856924143435075*^6}, {150433.15479548014, -4.883908845676418*^6, 4.0856987003255524*^6}}}]];
Wolfram Language code: ConvexPolygonQ[ℛ]

Polygons with GeoPositionENU:

Wolfram Language code: ℛ = Polygon[GeoPositionENU[{{{3378.2547059731055, -3369.2234780923936, -0.7440009205072329}, {1521.3211635380246, -3351.391253626573, -0.022340134218666208}, {1550.2571145363192, -3462.8657556618973, -0.08899812728964207}, {1528.5672303494055, -418 ... 63383291193, -0.37494203351275246}, {3654.121991908476, -2566.7472331234085, -0.5214977847472255}, {3375.420726854886, -2558.6597093173914, -0.3648706331350695}}}, GeoPosition[{40.11379115639895, -88.2753251202516, -1.0415787873318691}]]];
Wolfram Language code: ConvexPolygonQ[ℛ]

The area of a polygon with GeoGridPosition:

Wolfram Language code: ℛ = Polygon[GeoGridPosition[{{{-0.9950503945490105, 1.2366760550756015}, {-0.9952074890903578, 1.2369207053693891}, {-0.9952196732768064, 1.2369073327446167}, {-0.9953160063787643, 1.236848436956935}, {-0.9954141759436825, 1.2369993898475449}, {-0. ... 197645333103}, {-0.9949098578570917, 1.2368130881428654}, {-0.9948663952535768, 1.2367477711687371}, {-0.9948714472169538, 1.2367426500757825}, {-0.9949211061652593, 1.2367089232486177}, {-0.9949439717990124, 1.236746107097628}}}, "Bonne"]];
Wolfram Language code: ConvexPolygonQ[ℛ]

ConvexRegionQ works on polygons with geographic entities:

Wolfram Language code: ℛ = Polygon[["france"]];
Wolfram Language code: ConvexPolygonQ[ℛ]

CSG Regions  (1)

CSGRegion in 2D:

Wolfram Language code: CSGRegion["Difference", {Disk[], Disk[{1 / 2, 1 / 2}]}]
Wolfram Language code: ConvexRegionQ[%]

3D:

Wolfram Language code: CSGRegion["Difference", {Cube[2], Cylinder[{{1, 1, 1}, {1, -1, 1}}]}]
Wolfram Language code: ConvexRegionQ[%]

Subdivision Regions  (1)

SubdivisionRegion in 2D:

Wolfram Language code: SubdivisionRegion[Rectangle[]]
Wolfram Language code: ConvexRegionQ[%]

3D:

Wolfram Language code: SubdivisionRegion[Tetrahedron[]]
Wolfram Language code: ConvexRegionQ[%]

Applications  (5)

Platonic solids are convex:

Wolfram Language code: Row[Table[Region[Style[f[]]], {f, {Tetrahedron, Cube, Octahedron, Dodecahedron, Icosahedron}}]]

Test whether a basic region is convex:

Wolfram Language code: Multicolumn[Table[Region[Style[f, If[ConvexRegionQ[f] === False, Red]], ImageSize -> 40], {f, {...}}], 5, Spacings -> 2]

The convex hull of a compound of five tetrahedra is a dodecahedron:

Wolfram Language code: ℛ = DiscretizeGraphics[PolyhedronData["TetrahedronFiveCompound"]]
Wolfram Language code: ConvexRegionQ[ℛ]
Wolfram Language code: ConvexHullRegion[MeshCoordinates[ℛ]]
Wolfram Language code: ConvexRegionQ[%]

Test whether a polygon is concave:

Wolfram Language code: concavePolygonQ[poly_] := Not[ConvexRegionQ[poly]]
Wolfram Language code: Table[RandomPolygon[RandomInteger[{3, 5}]], {4}]
Wolfram Language code: concavePolygonQ /@ %

Generate random polygons for testing algorithms and verification of time complexity:

Wolfram Language code: n = Table[Floor[10 ^ i], {i, 1, 4, 1 / 40}];
Wolfram Language code: polygons = Table[RandomPolygon[{"Convex", i}], {i, n}];
Wolfram Language code: AllTrue[polygons, ConvexRegionQ]

Time complexity for algorithms for convex polygons:

Wolfram Language code: t = First[AbsoluteTiming[ConvexRegionQ[#]]]& /@ polygons;
Wolfram Language code: Show[{ListPlot[Transpose[{n, t}], PlotRange -> All, Joined -> True, AxesLabel -> {"n", "Time"}], Plot[Style[Evaluate[Fit[Transpose[{n, t}], {1, x}, x]], Red, Dashed], {x, 0, 10 ^ 5}]}]

Properties & Relations  (3)

If two regions are convex, the intersection is convex:

Wolfram Language code: {Subscript[ℛ, 1], Subscript[ℛ, 2]} = {[image], [image]};
Wolfram Language code: Subscript[ℛ, 3] = RegionIntersection[Subscript[ℛ, 1], Subscript[ℛ, 2]]
Wolfram Language code: ConvexRegionQ /@ {Subscript[ℛ, 1], Subscript[ℛ, 2], Subscript[ℛ, 3]}

The InverseTransformedRegion of a convex region is convex:

Wolfram Language code: Subscript[ℛ, 1] = Rectangle[]; Subscript[ℛ, 2] = InverseTransformedRegion[Rectangle[], RotationTransform[π / 3], 2];
Wolfram Language code: Region /@ {Subscript[ℛ, 1], Subscript[ℛ, 2]}
Wolfram Language code: ConvexRegionQ /@ {Subscript[ℛ, 1], Subscript[ℛ, 2]}

Using ConvexHullRegion to create a convex region:

Wolfram Language code: x = ConvexHullRegion[RandomReal[{-1, 1}, {50, 2}]]
Wolfram Language code: ConvexRegionQ[%]

Possible Issues  (1)

ConvexRegionQ returns False for nonconstant regions:

Wolfram Language code: 𝒫 = Polygon[{{a, b}, {c, d}, {e, f}, {g, h}}];
Wolfram Language code: ConstantRegionQ[𝒫]
